Машина для выравнивания Бетонного Пола с
- Категория: Concrete Machinery >>>
- Поставщик: Shandong,Vanse,Machinery,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 124950.13 $* | 131198.44 $* |
| Aug-16-2025 | 123900.8 $* | 130095.63 $* |
| Jul-16-2025 | 103950.8 $* | 109148.83 $* |
| Jun-16-2025 | 121800.60 $* | 127890.46 $* |
| May-16-2025 | 106050.70 $* | 111353.36 $* |
| Apr-16-2025 | 119700.97 $* | 125685.95 $* |
| Mar-16-2025 | 118650.20 $* | 124583.20 $* |
| Feb-16-2025 | 117600.89 $* | 123480.65 $* |
| Jan-16-2025 | 116550.55 $* | 122378.99 $* |
Характеристики
Specification

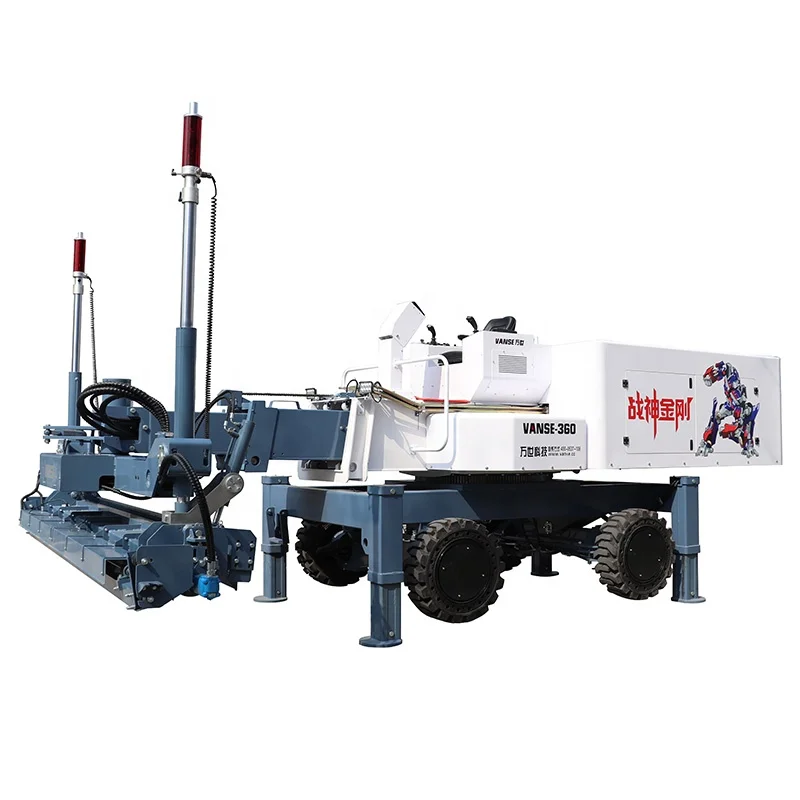

Name | Concrete Laser Screed |
Type | YZ40-4E |
Engine Type | YANMAR 4TNV98T |
Characteristic | Water-cooled Diesel, 4 Stroke,4 Cylinder |
Cooling System | Closed Cooling Liquid |
Power | 63KW / 2500Rpm |
Fuel Consumption | 《=254g/kw.h |
Fuel Tank Volume | 140L |
Engine Oil Volume | 8.9-10.6L |
Screed Width | 4M |
Telescopic Boom | 6M Long, 360° Rotation |
Screed Swing Angle | 120 Degrees. |
Paving Mode | Hydraulic Screw Conveyor Paving |
Paving Thickness | 5-45CM |
Leveling Precision | 1.5MM |
Vibrating System | Hydraulic Eccentric Vibrating Beam |
Excitation Force | 3000N |
Vibration Frequency | 60HZ |
Configuration | Laser Emitter, Laser Receiver, Tripod |
Laser Control System | Microcomputer Laser Scanning |
Applicable Scope | Flat Surface、Slope/Double Slope （three-dimensional） |
Drive Type | Full Hydraulic 4 Wheels Drive |
Mini turning radius | 2.9M |
Hydraulic Oil Tank | 200L |
Tyre | Solid Puncture-proof &Antiskid Tyre |
Walking Speed | 0-10 KM/H (Double speeds switch) |
Working Speed | 24㎡/Min |
Speed Control | Stepless Speed Change. |
Turning Mode | 2 Wheels/ 4 Wheels/ Crab Turn. |
Power | External Motor |
Theoretical Flow | 20m³/h |
Rated Pressure | 7kgs/c㎡ |
Outline Dimension | 5835*4470*2630 mm |
Net Weight | 8500Kgs |
SHANDONG VANSE MACHINERY TECHNOLOGY CO., LTD. is located in Jining City of Shandong Province, the home of the far reaching Confucian Culture. VANSE covers an area of 66000 sq. meters with 26000 sq. meters as workshop, enjoying great natural and culture resources as well as transportation advantages.
The company employs more than 200 R&D professionals, production engineers and technical support experts, provides self-development patented laser positioning screed machines, concrete pavers and light-weight handheld mortar mixer. With years of experience in R&D and a rich fund of knowledge, VANSE established products line in 4 models of Two-wheeled Laser Screed Machine, Four-wheeled Laser Screed Machine,2 models of Seat-type Laser Troweling Machine, as well as supporting equipments like Walk-behind Laser Troweling Machine, Vibration Ruler, and etc.
So far, VANSE's products have undergone three generation, all with Independent Intellectual Property Rights for the core parts. The fourth generation is under R&D process. With major auxiliary parts imported from Germany, USA, and Japan, VANSE's equipments have more durable ,safe and reliable performance to meet customers' need in a better way.
The company employs more than 200 R&D professionals, production engineers and technical support experts, provides self-development patented laser positioning screed machines, concrete pavers and light-weight handheld mortar mixer. With years of experience in R&D and a rich fund of knowledge, VANSE established products line in 4 models of Two-wheeled Laser Screed Machine, Four-wheeled Laser Screed Machine,2 models of Seat-type Laser Troweling Machine, as well as supporting equipments like Walk-behind Laser Troweling Machine, Vibration Ruler, and etc.
So far, VANSE's products have undergone three generation, all with Independent Intellectual Property Rights for the core parts. The fourth generation is under R&D process. With major auxiliary parts imported from Germany, USA, and Japan, VANSE's equipments have more durable ,safe and reliable performance to meet customers' need in a better way.

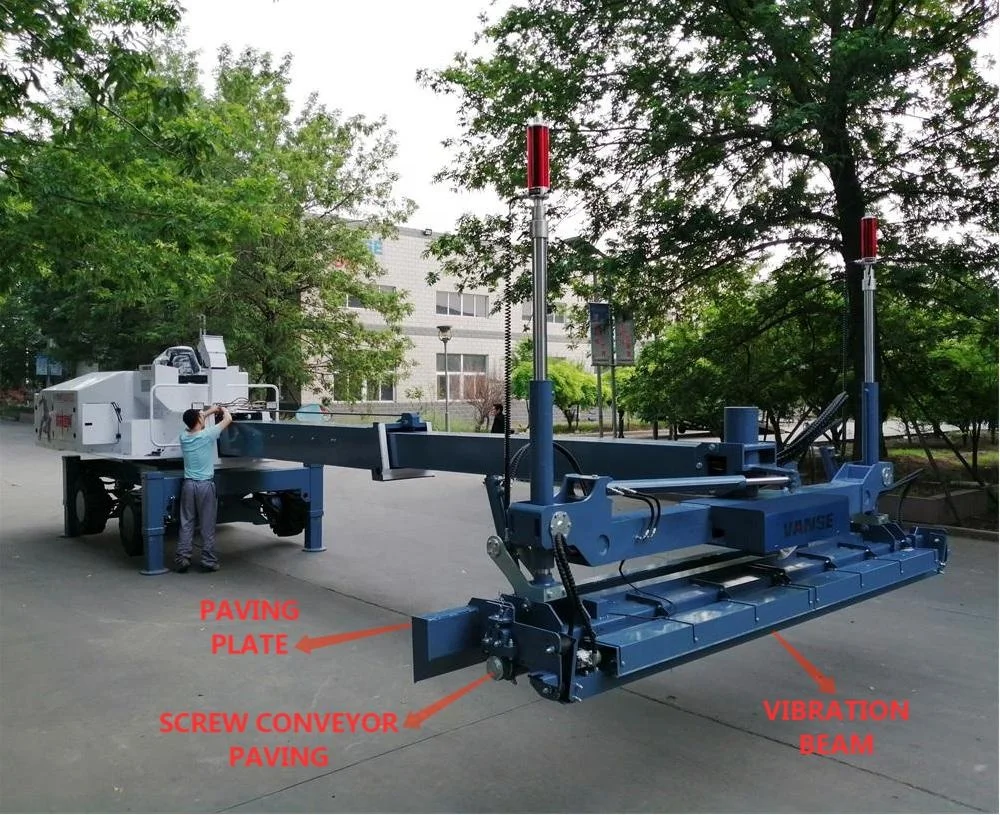

Product Description

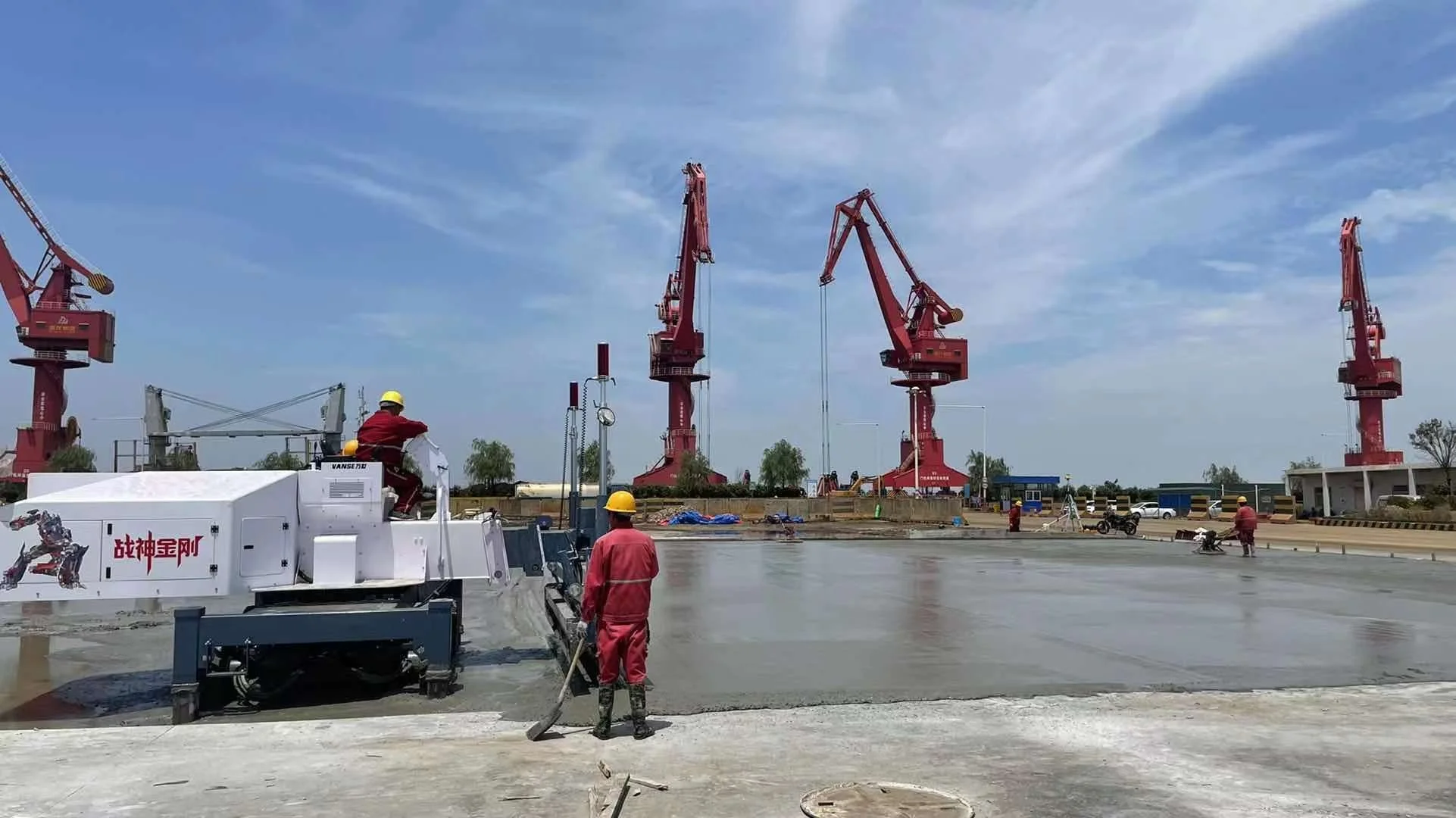

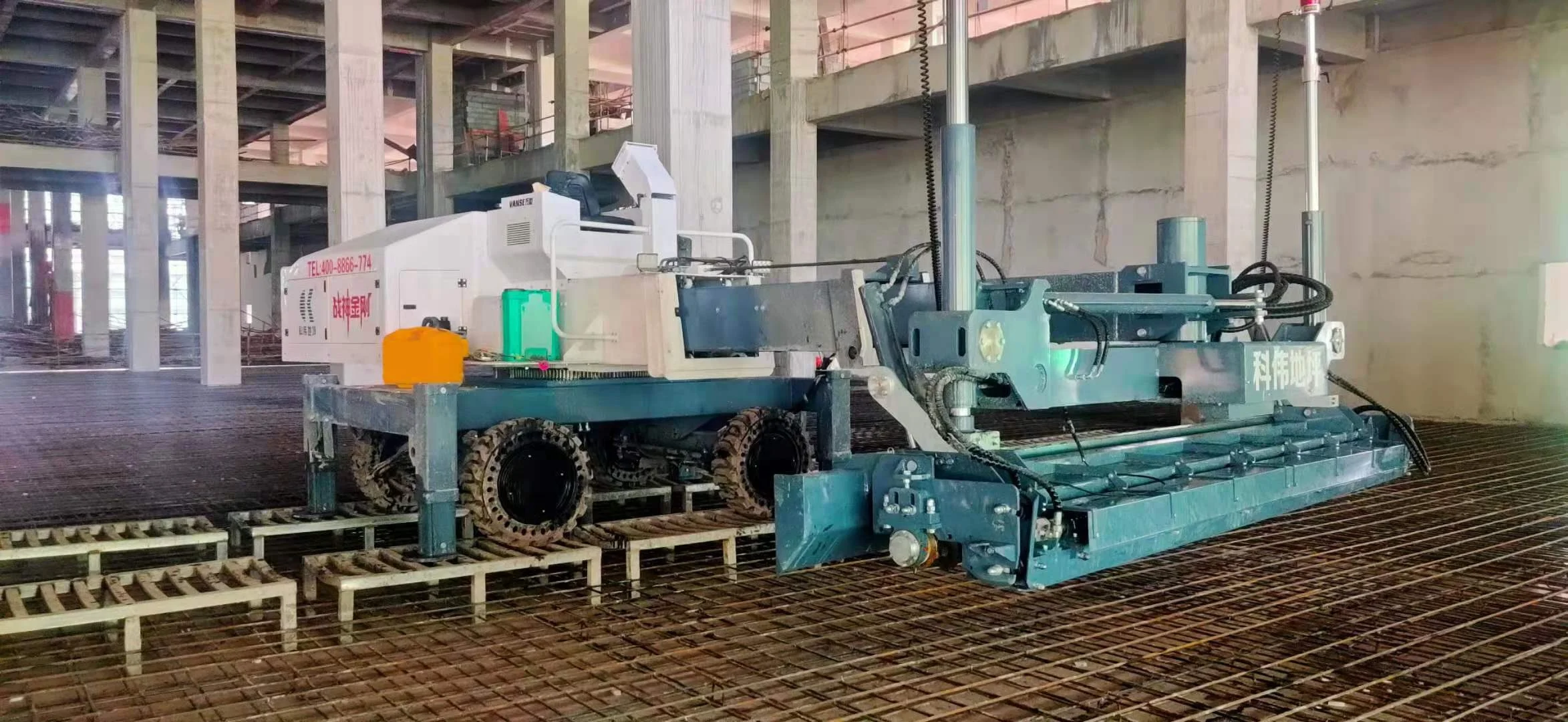

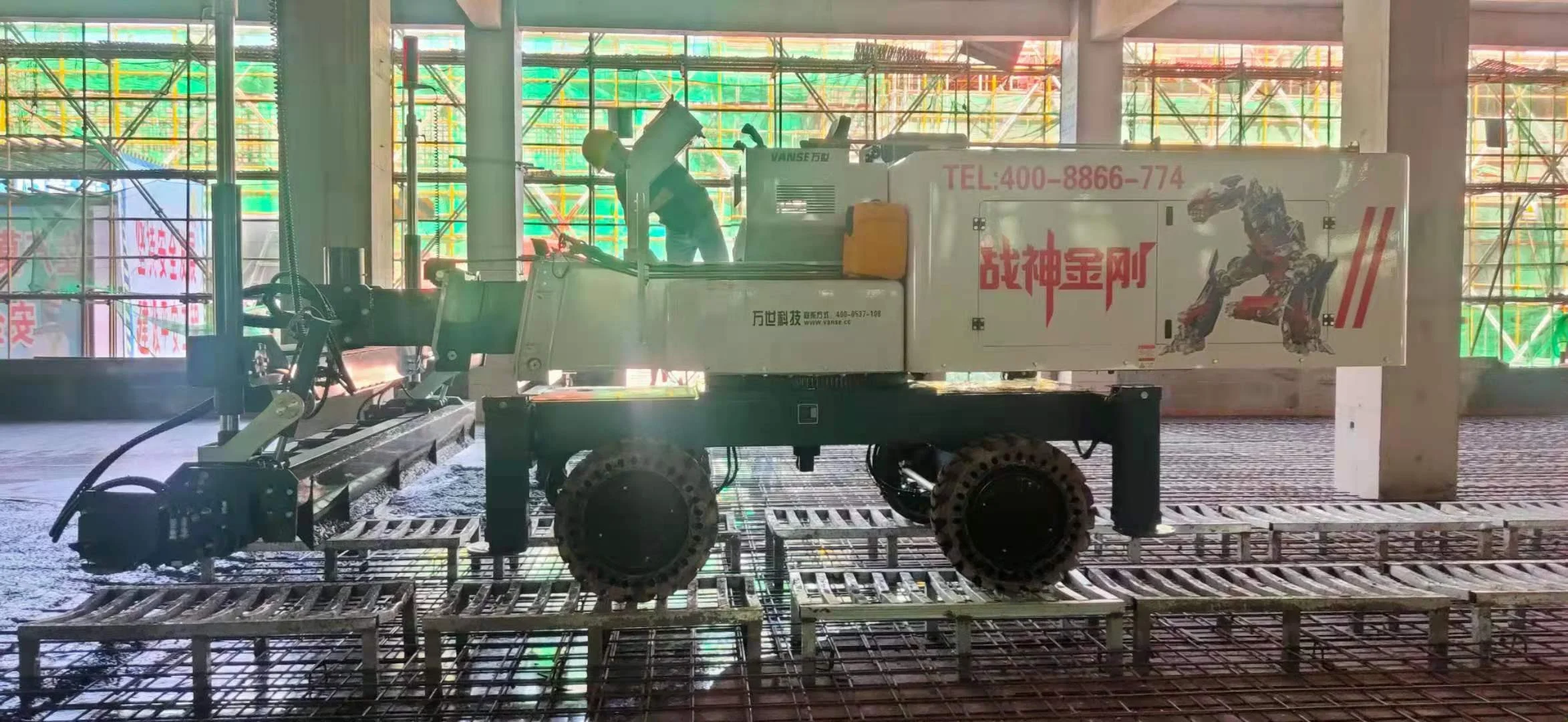

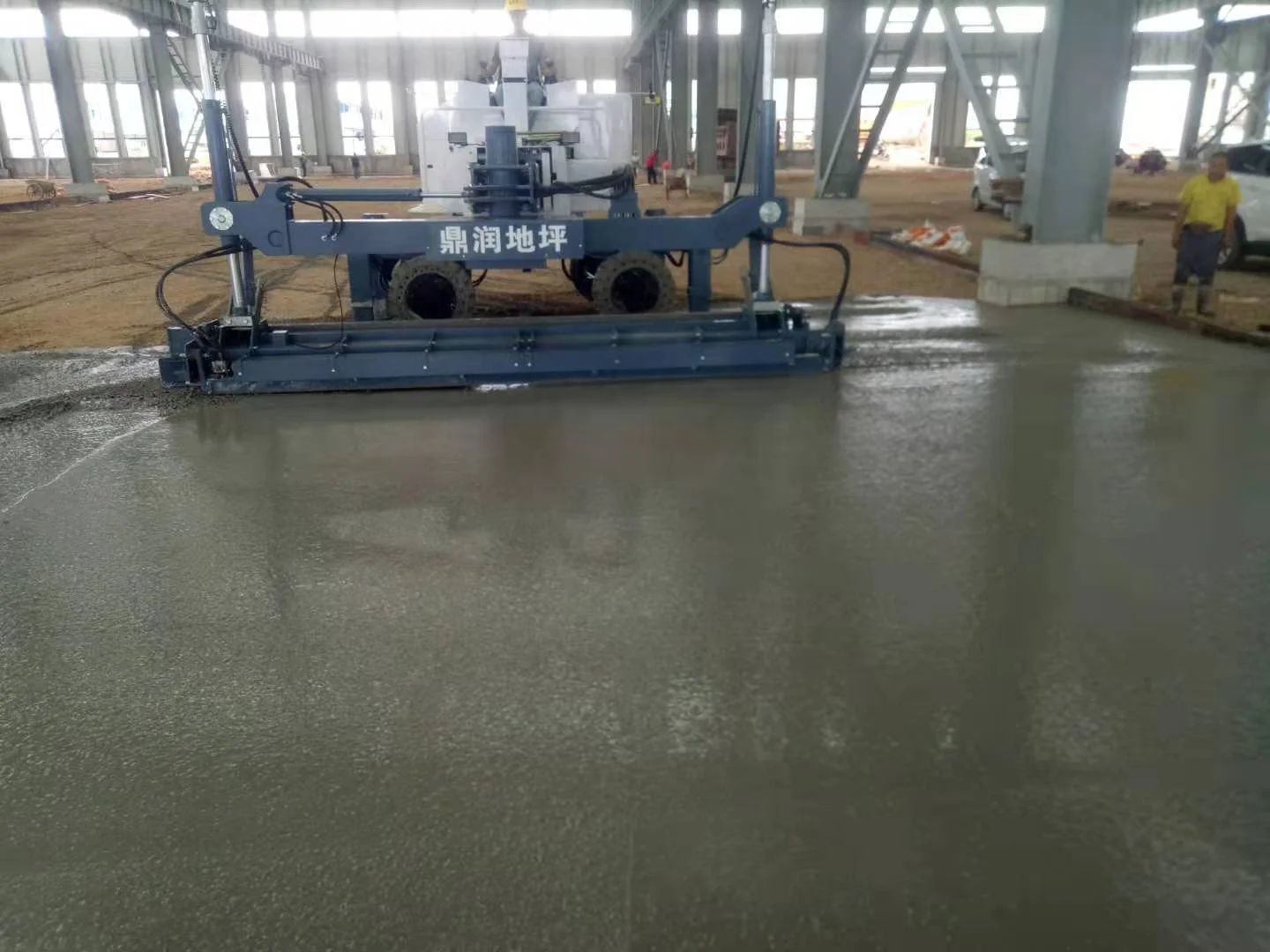

1, Concrete laser screeds are used in concrete floor works, including flat floor works, slop works and double slops works. Such as factory, workshop, park, plaza, super market, exhibition hall, container yards, wharf, play ground, square and so on.
2, It has three important functions: Paving the concrete, Leveling the concrete floor, Compacting the concrete floor. It improves
the quality of floor.
3, It can level the concrete floor automatically by microcomputer laser scanning.
4, It can improve the flatness of the concrete floor. The height deviation of all concrete floor is below 1.5mm.
5, It can save about 70% of manpower. So it can increase the profit greatly.
6, It can shorten the construction period. It can work quickly and well.
7,Operation is very easy.
8, The drive system is hydraulic drive fully.
9, The telescopic boom is 6m long, 360 degrees rotary.
2, It has three important functions: Paving the concrete, Leveling the concrete floor, Compacting the concrete floor. It improves
the quality of floor.
3, It can level the concrete floor automatically by microcomputer laser scanning.
4, It can improve the flatness of the concrete floor. The height deviation of all concrete floor is below 1.5mm.
5, It can save about 70% of manpower. So it can increase the profit greatly.
6, It can shorten the construction period. It can work quickly and well.
7,Operation is very easy.
8, The drive system is hydraulic drive fully.
9, The telescopic boom is 6m long, 360 degrees rotary.
