Valuen 20 л реактор из нержавеющей стали Химический Промышленный биореакционный миксер смешивание брожения сосуд химический
- Категория: Reactors >>>
- Поставщик: Shanghai,Valuen,Industrial,Co.,Ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.33 $* | 0.15 $* |
| Aug-15-2025 | 0.4 $* | 0.14 $* |
| Jul-15-2025 | 0.98 $* | 0.49 $* |
| Jun-15-2025 | 0.3 $* | 0.23 $* |
| May-15-2025 | 0.21 $* | 0.33 $* |
| Apr-15-2025 | 0.82 $* | 0.82 $* |
| Mar-15-2025 | 0.17 $* | 0.3 $* |
| Feb-15-2025 | 0.98 $* | 0.98 $* |
| Jan-15-2025 | 0.36 $* | 0.81 $* |
Характеристики
Product Description

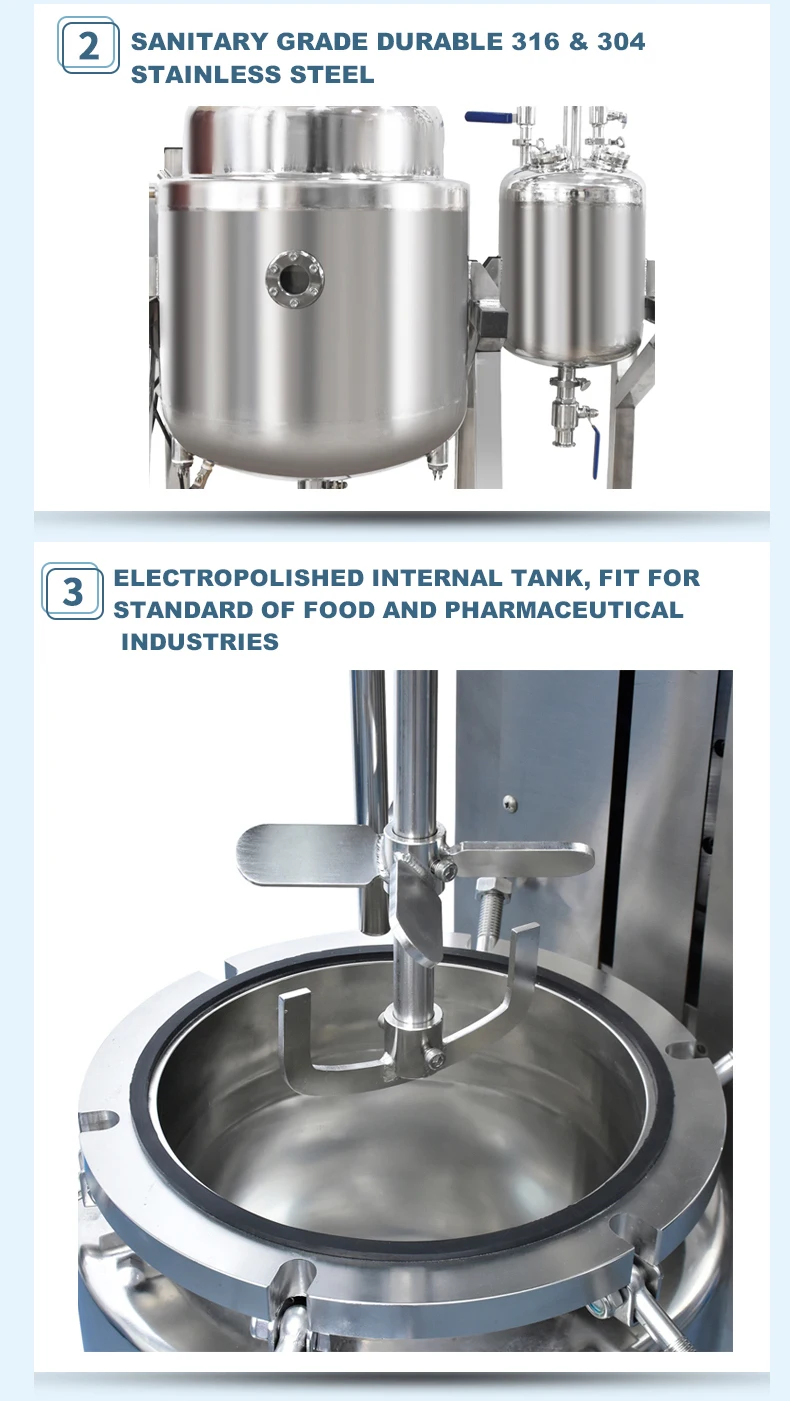

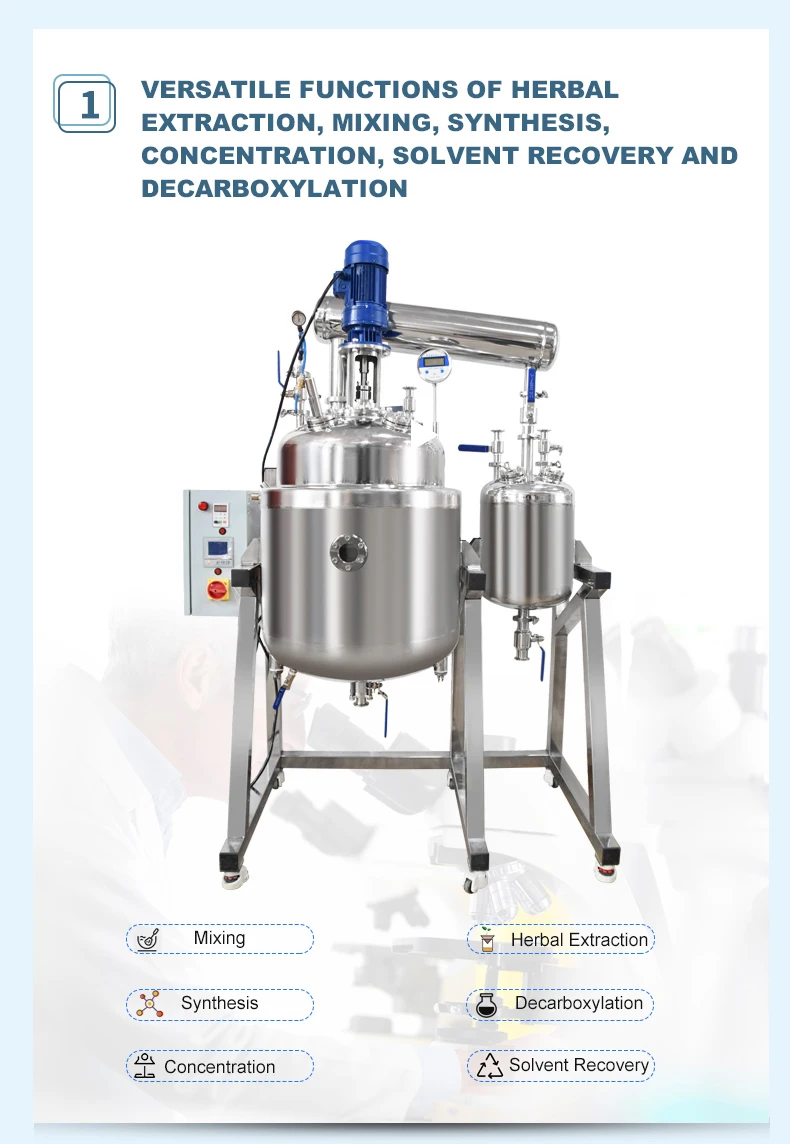

Single or Dual Jacketed Sanitary Grade Stainless Steel Reactor (10-500L) Versatile Functions Of Herbal Extraction, Mixing, Synthesis, Concentration, Solvent Recovery And Decarboxylation Sanitary Grade Durable 316 & 304 Stainless Steel Electropolished Internal Tank, Fit For Standard Of Food And Pharmaceutical Industries | ||||||||
Model | VJR 10S | VJR 20S | VJR 50S | VJR 100S | VJR 150S | VJR 200S | VJR 300S | VJR 500S | |||||||
Reaction Vessel Capacity | 10L / 2.6Gal | 20L / 5.28Gal | 50L / 13.20Gal | 100L / 26.4Gal | 150L / 39.6Gal | 200L / 52.8Gal | 300L / 79.2Gal | 500L / 132Gal | |||||||
Receiving Flask Capacity | 5L / 1.32Gal | 5L / 1.32Gal | 10L / 2.6Gal | 30L / 7.8Gal | 50L / 13.20Gal | 50L / 13.20Gal | 100L / 26.41Gal | 150L / 39.6Gal | |||||||
Jacket Quantity | Single jacket or Dual jacket with inner heating jacket and outer insulation jacket (customizable) | ||||||||||||||
Stainless Steel Material | Wet parts: Sanitary Grade 316 Stainles Steel; Outernal parts and Frame:Sanitary Grade 304 Stainless Steel (customizable) | ||||||||||||||
Heating Mode (Optional) | 2 Options: Built-in electrical heating device or Circulation jacket with heating fluid | ||||||||||||||
Cooling Mode (Optional) | 2 Options: Internal cooling condensers or Ciruculation jacket with cooling fluid | ||||||||||||||
Working Temperature Range | -80°C to 250°C / -112°F to 482°F | ||||||||||||||
Rotary Speed | 0-500RPM | ||||||||||||||
Stirrer | 316 Stainless Steel Stirrer (shape and layer quantities are customizable) | ||||||||||||||
Stirring Motor Power | 200W | 370W | 400W | 750W | 1500W | 2000W | |||||||||
Heating Power if with inner electrical heating device (Optional) | |||||||||||||||
Control Panel | Digital-display Stirring speed controller, Heating temperature controller if with internal electrical heating, and Main power switch | ||||||||||||||
Power Supply | 110V or 220V, 50/60Hz, Single Phase; 220V or 380V, 50/60HZ, 3 Phase | ||||||||||||||
Vacuum Level | Under 0.098Mpa | ||||||||||||||
Condensation Area | 0.5㎡ | 1.0㎡ | 1.5㎡ | 2.0㎡ | 2.0㎡ | 3.0㎡ | 4㎡ | ||||||||
Ports on Lid | 6 Ports: Stirring port, Air inlet port, Liquid inlet port, Thermowell port, Vacuum gauge port and Condenser port (Customizable) | ||||||||||||||

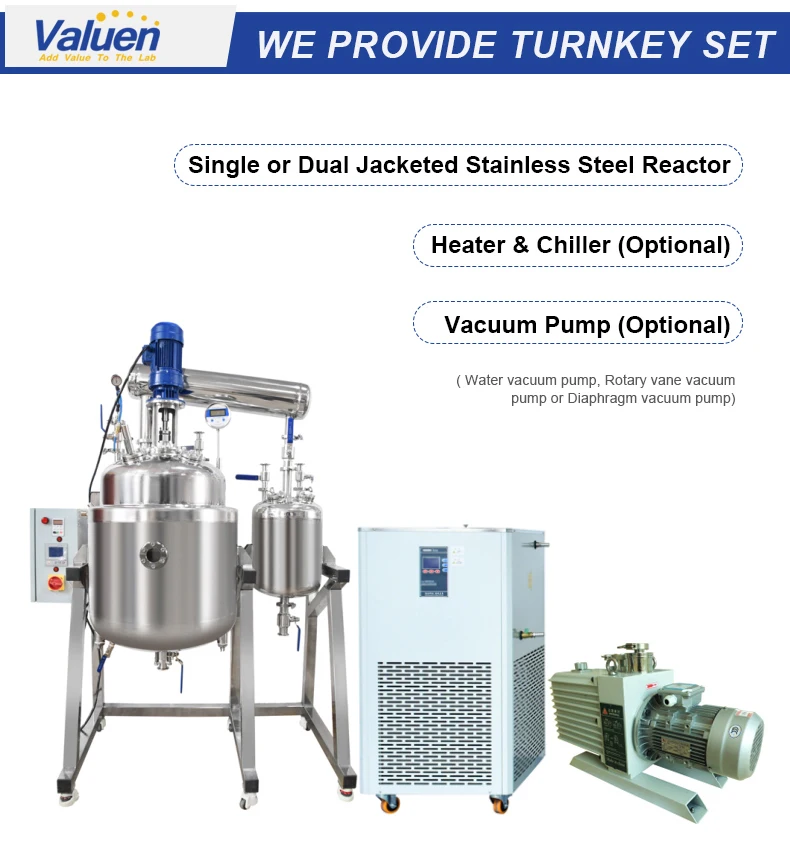

We Provide Turnkey Set Single or Dual Jacketed Stainless Steel Reactor Heater & Chiller (Optional) Vacuum Pump (Optional) ( Water vacuum pump, Rotary vane vacuum pump or Diaphragm vacuum pump) | ||||||||
Company Profile
With more than 15 years’ industry experiences, Valuen team are experts in the design, development, and manufacture of premium quality products for chemists and chemical engineers in areas such as academia, pharmaceutical, chemical, food, flavor & fragrance, and petrochemical industries as well as many others. Our products cover a broad range of applications from distillation, concentration, reaction, extraction, isolation, purification, mixing, drying, and ancillary equipment for supporting those chemical process like heating, cooling and vacuum devices, both of lab and scale production.
