Ручная машина для изготовления сотовых брикетов
US $60.00-$300.00
Химическое минеральное неорганическое удобрение сухое механическое высокое давление двойной ролик гидравлическая машина для
- Категория: >>>
- Поставщик: Changzhou,Shengong,Granulation,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 3429197.74 $* | 3497781.67 $* |
| Jul-16-2025 | 2781160.86 $* | 2836783.10 $* |
| Jun-16-2025 | 3375194.47 $* | 3442698.48 $* |
| May-16-2025 | 3348192.38 $* | 3415156.89 $* |
| Apr-16-2025 | 2673153.27 $* | 2726616.50 $* |
| Mar-16-2025 | 3294189.48 $* | 3360073.55 $* |
| Feb-16-2025 | 3267188.5 $* | 3332532.39 $* |
| Jan-16-2025 | 3240186.65 $* | 3304990.20 $* |
Характеристики
Briquette forming machine applications:
1.fertilizer:
2.powder material
zinc oxide, lead oxide, calcium chloride, calcium phosphate, High test bleaching powder, cryolite, chemical inhibitor, silica, Isophthalodinitrile etc.
3.chemical raw material, fine chemical material
We are small factory but dedicated in only roller compactor for granulating & briquetting powders

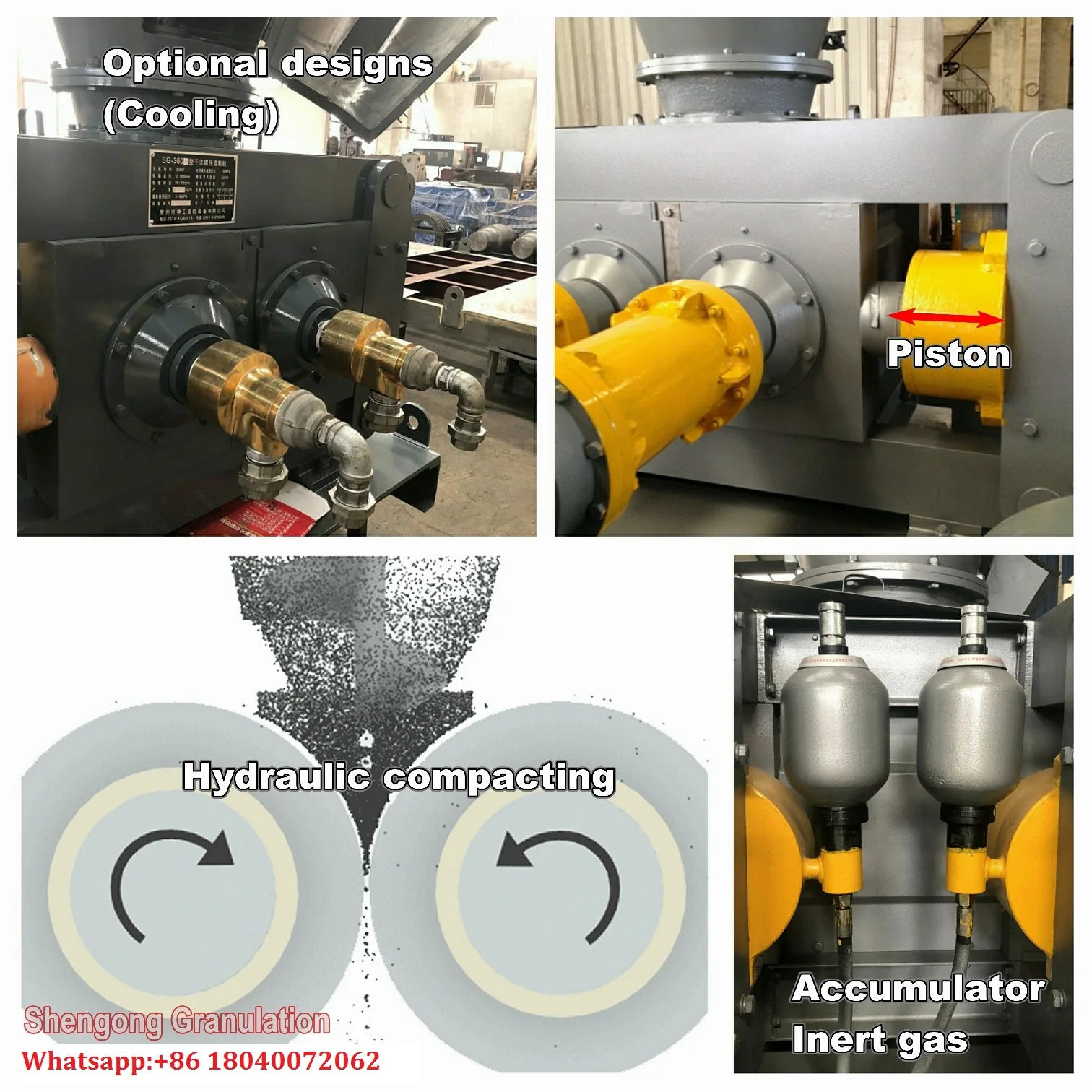

Briquette forming machine operating principle:
Difference of Briquette forming machine type A and type B
Briquette forming machine technical parameter: type B takes FGD gypsum for instance,final briquettes are oval ball
Type Item | SG-360B | SG-500B | SG-600B | SG-650B |
Roller dia. (mm) | Φ360 | Φ504 | Φ600 | 650 |
Effective width (mm) | 180 | 300 | 310 | 330 |
Roller rotating speed (r/min) | 16 to 22 | 14 to 20 | 12 to 18 | 10 to 16 |
Power of feeder (kw) | 7.5 | 11 | 11 | 15 |
Pre-pressure of accumulator (Mpa) | 5 to 6 | 6 to 10 | 8 to 10 | 8 to 12 |
Max. pressure rate (kN/cm) | 55 | 55 | 55 | 55 |
Briquette's size and shape(mm) | On request | On request | On request | On request |
Briquette output (kg/h) | 3,000 to 5,000 | 6,000 to 8,000 | 8,000 to 10,000 | 10,000 to 12,000 |
Power of compacting machine (kw) | 30 | 75 | 90 | 110 |
Installed capacity (kw) | 42 | 88 | 104 | 129 |
Dimension (l*w*h) (mm) | 1,850*1,5000*1,650 | 3,650*2,250*2,500 | 3,660*2,450*2,700 | 4,000*2,600*3,300 |
Weight of feeder and compacting machine (kg) | 6,000 | 15,000 | 20,000 | 25,000 |
Production time(d) | 30 | 45 | 60 | 60 |

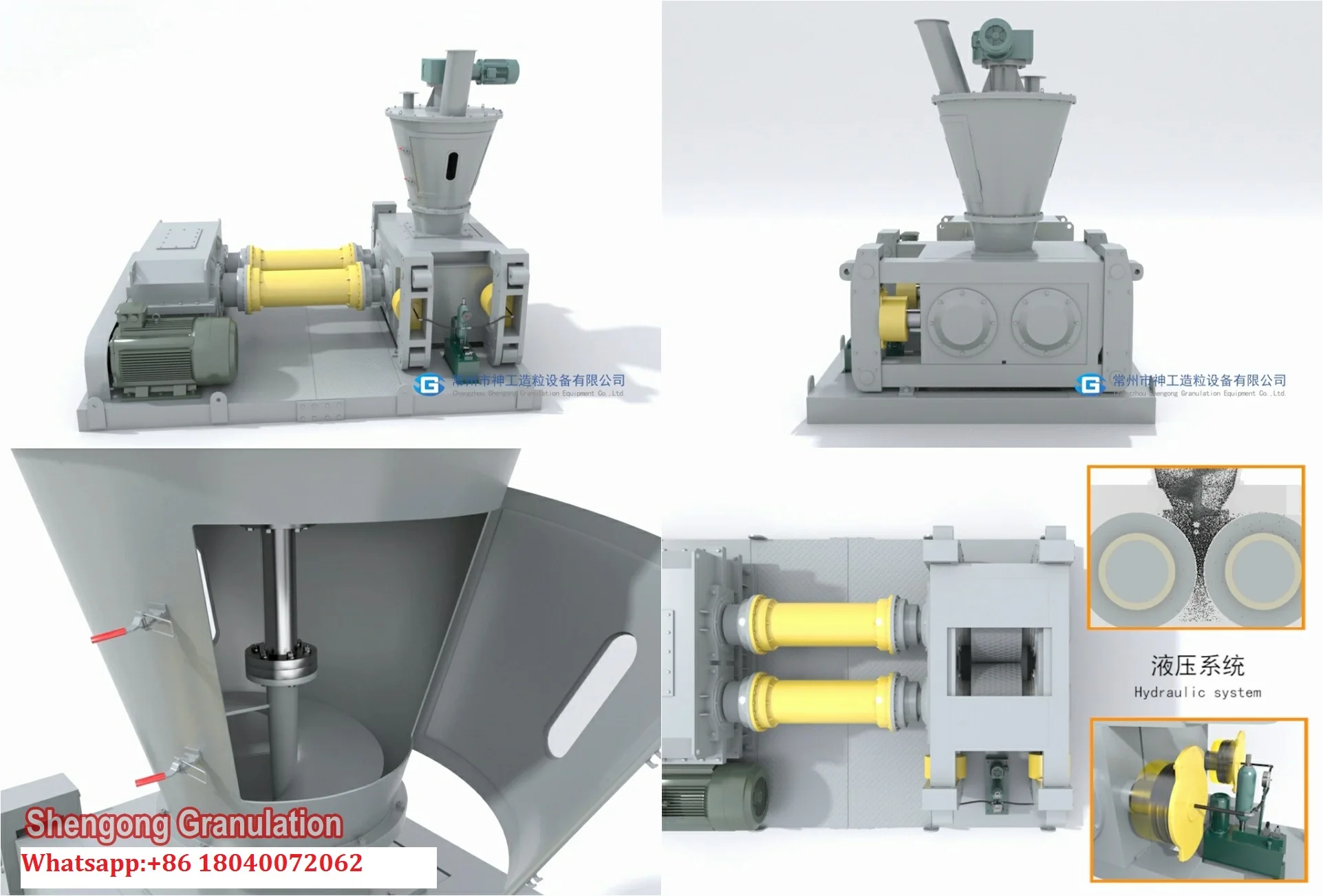

Briquette forming machine consists of screw feeder (upper taper) and double roller compactor

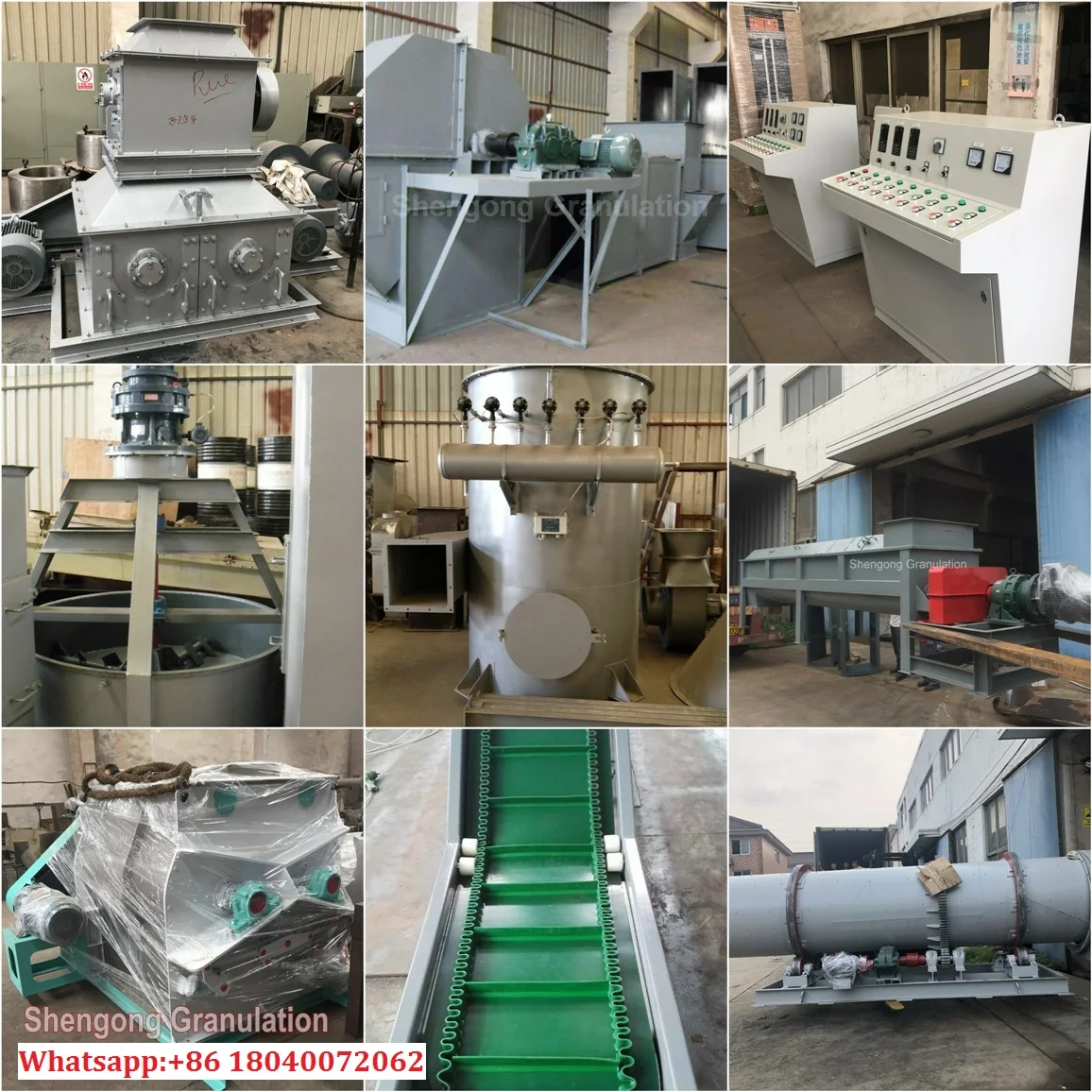

Briquette forming machine's peripheral equipments
Briquette forming machine final briquettes variable shapes

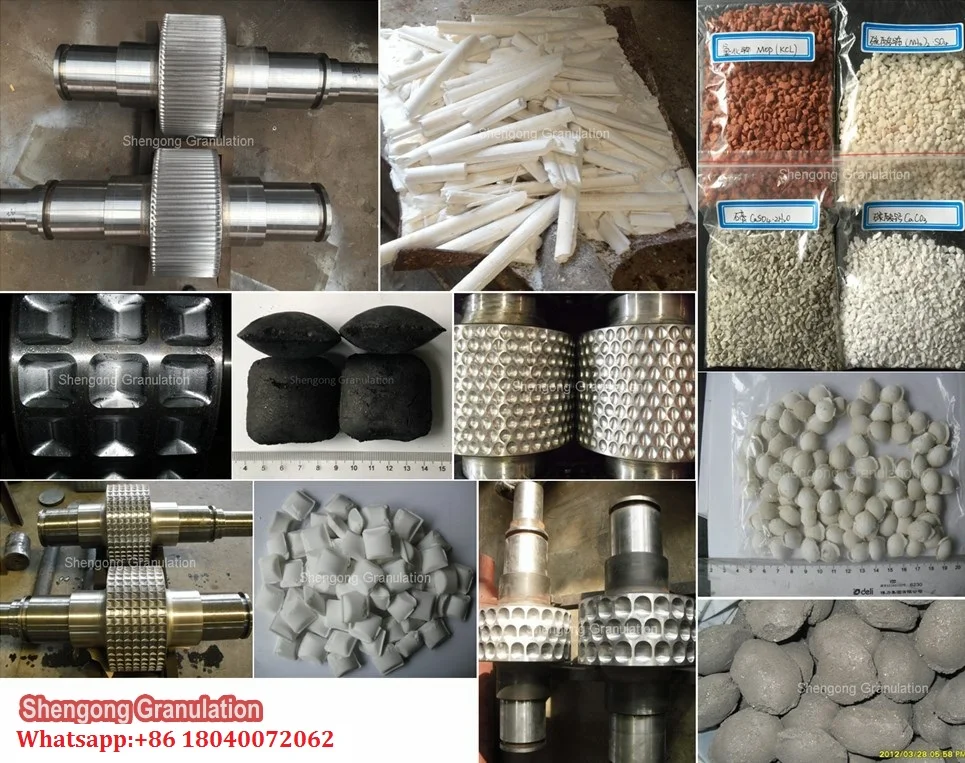

Briquettes and rollers

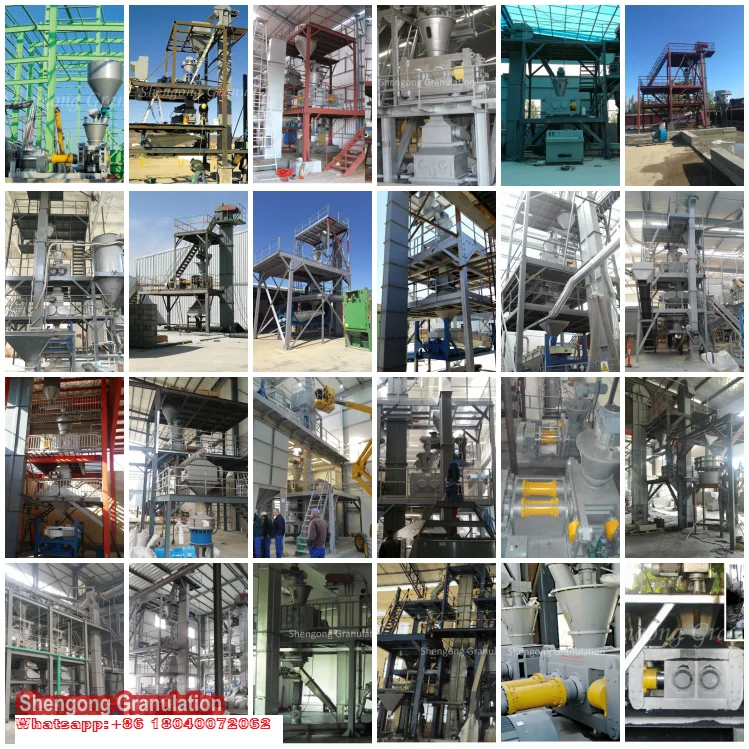

Briquette forming machine line loading and packing
