60 мм Высококачественный пзт-элемент пьезоэлектрическая керамика для
- Категория: Electrical Ceramics >>>
- Поставщик: Foshan,Xinchen,Electric,Appliance,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 2.25 $* | 2.76 $* |
| Aug-16-2025 | 2.25 $* | 2.2 $* |
| Jul-16-2025 | 2.33 $* | 2.5 $* |
| Jun-16-2025 | 2.11 $* | 2.84 $* |
| May-16-2025 | 2.38 $* | 2.8 $* |
| Apr-16-2025 | 2.86 $* | 2.13 $* |
| Mar-16-2025 | 2.98 $* | 2.52 $* |
| Feb-16-2025 | 2.24 $* | 2.69 $* |
| Jan-16-2025 | 2.99 $* | 2.26 $* |
Характеристики
Product Description
Piezoelectric Ceramics (PZT) materials are categorized as functional ceramics. In sensors they make it possible toconvert forces,pressures and accelerations into electrical signals, and in sonic and ultrasonic transducers and actuators they convert electric voltages into vibrations or deformations. Piezoelectric Ceramics materials are classified according to their chemical composition on the one hand, and by the specific application conditions on the other.
Piezoelectric Materials of Ring Piezoelectric Ceramics
PZT4,PZT5,PZT8 or other required Piezoelectric Materials
PZT4,PZT5,PZT8 or other required Piezoelectric Materials
Our product Features:
· High dielectric constant
· Very high Q-factor
· Excellent temperature stability
· Tight tolerance
· Recommended applications: base station DR filters, satellite communication LNB and so on
· Available in different sizes
Factory Direct Sale transducer PZT ring Piezoelectric Piezo Ceramics
Based on our technical innovation, high quality and excellent services, we have won a good reputation among customers around the world. We welcome all interested companies to cooperate with us!

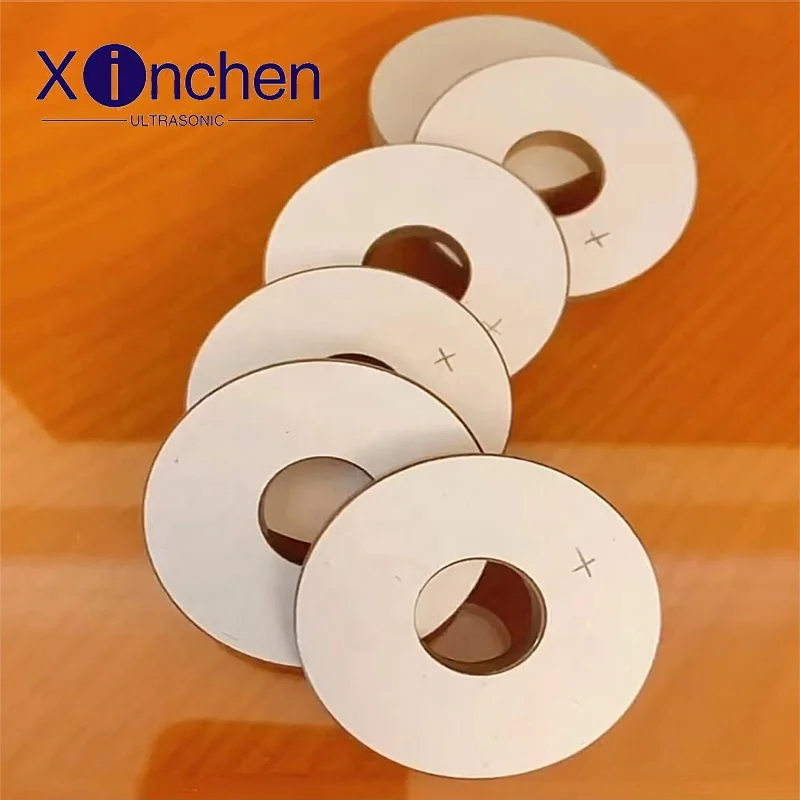

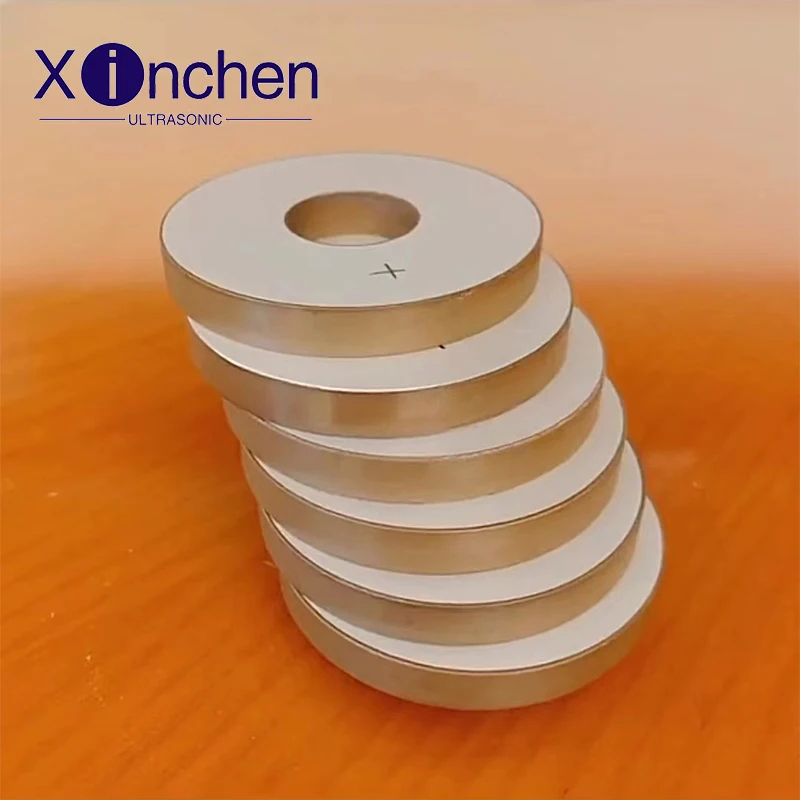

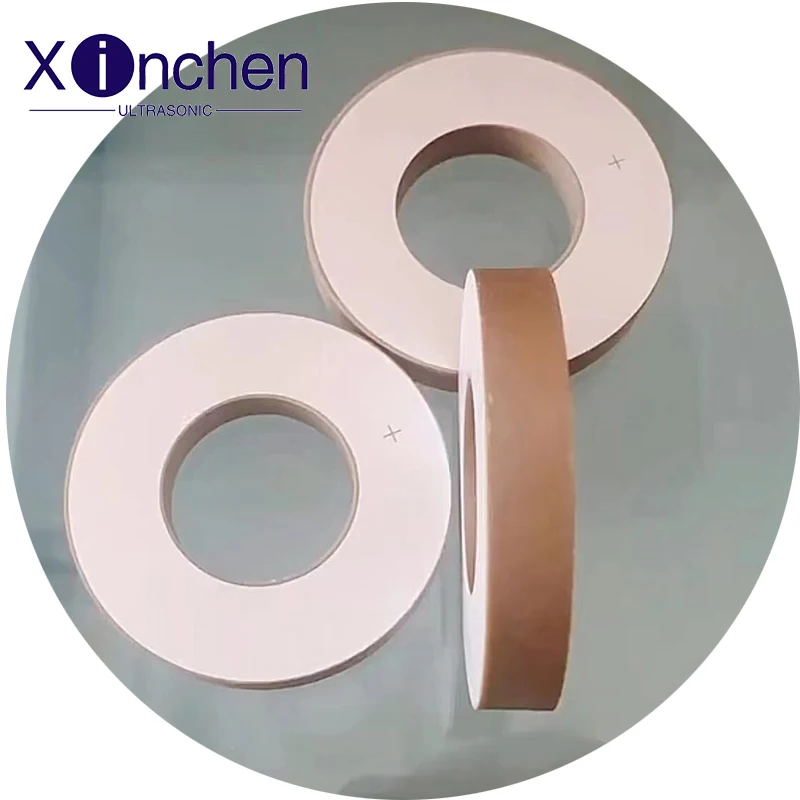

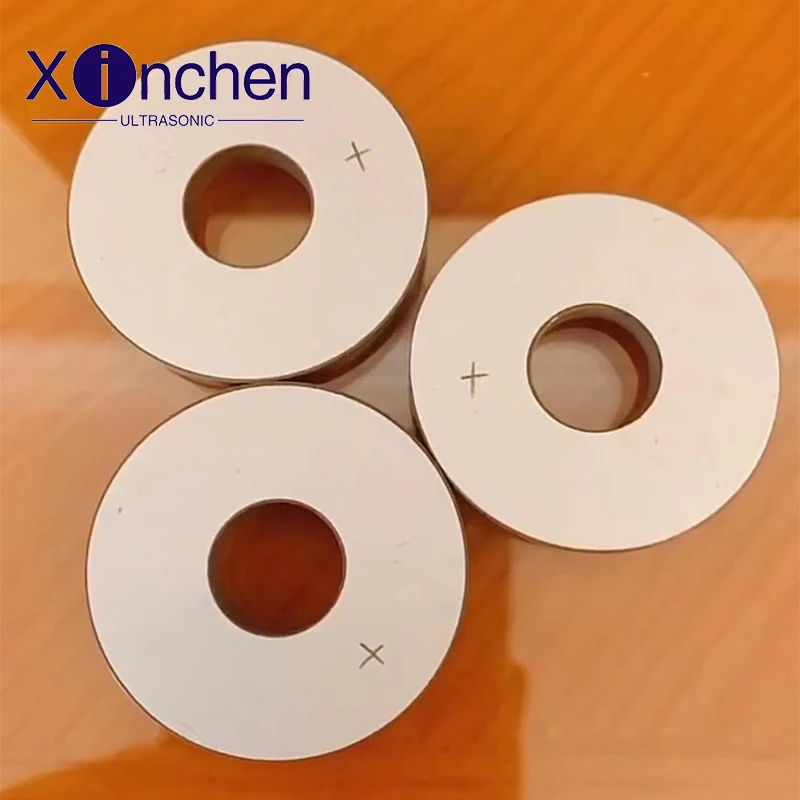

Product photograph
Product Paramenters
Some standard Size of Ring Piezoelectric Ceramics
(Size=OD*ID*Thickness) (Qm=Mechanical quality factor) (tanδ(%)=Dielectric dissipation factor )
(Size=OD*ID*Thickness) (Qm=Mechanical quality factor) (tanδ(%)=Dielectric dissipation factor )
Specification | Size（mm) | Capacitance (pF) | Radial Frequency Fr (KHz) | Impedance Zr(Ω) | Thick Frequency Ft(KHz)) | (Kr) % | Qm |
XCPC-R105-2 | Φ10×Φ5×2 | 240±10% | 153±5% | ≤25 | 1020 | ≥45 | ≥800 |
XCPC-R166-2.5 | Φ16×Φ6×2.5 | 300±10% | 105±5% | ≤20 | 800 | ≥45 | ≥800 |
XCPC-R168-4 | Φ16×Φ8×4 | 340±10% | 95.8±5% | ≤20 | 512 | ≥45 | ≥800 |
XCPC-R2510-4 | Φ25×Φ10×4 | 935±10% | 65.5±5% | ≤15 | 512 | ≥45 | ≥800 |
XCPC-R3010-5 | Φ30×Φ10×5 | 1150±10% | 58.4±5% | ≤15 | 410 | ≥45 | ≥800 |
XCPC-R3015-5 | Φ32×Φ15×5 | 1080±10% | 49.2±5% | ≤15 | 410 | ≥45 | ≥800 |
XCPC-R3515-5 | Φ35×Φ15×5 | 1430±10% | 45.5±5% | ≤15 | 410 | ≥45 | ≥800 |
XCPC-R3815-5 | Φ38×Φ15×5 | 1750±10% | 43.4±5% | ≤15 | 410 | ≥46 | ≥800 |
XCPC-R4015-5 | Φ40×Φ15×5 | 1970±10% | 42.8±5% | ≤15 | 410 | ≥45 | ≥800 |
XCPC-R4215-5 | Φ42×Φ15×5 | 2200±10% | 40±5% | ≤15 | 410 | ≥45 | ≥800 |
XCPC-R4217-5 | Φ42×Φ17×5 | 2110±10% | 38.8±5% | ≤15 | 410 | ≥45 | ≥800 |
XCPC-R4515-5 | Φ45×Φ15×5 | 2580±10% | 38.1±5% | ≤15 | 410 | ≥46 | ≥800 |
XCPC-R5017-5 | Φ50×Φ17×5 | 3160±10% | 34.8±5% | ≤15 | 410 | ≥45 | ≥800 |
XCPC-R5017-6 | Φ50×Φ17×6 | 2430±10% | 34.8±5% | ≤15 | 315 | ≥45 | ≥800 |
XCPC-R5023 | Φ50×Φ23×6.5 | 2155±10% | 31±5% | ≤15 | 310 | ≥45 | ≥800 |
XCPC-R6030 | Φ60×Φ30×10 | 1975±10% | 25.5±5% | ≤15 | 200 | ≥45 | ≥800 |
Welcome to sample a variety of customized products, the growth of the road we appreciate your support! Please provide parameters and we will suggest a match. Thank you .
Like Product
----------------Click Here To Learn More----------------
Application
Packing&Shipping
Company Introduction
FAQ
1）Are you a manufactuer?
Yes. We've been in this field for over 10 years. the reliable products and professional service will be provided.
Yes. We've been in this field for over 10 years. the reliable products and professional service will be provided.
2）Why choose us?
1. High quality & competitive price
2. Various styles with different materials
3. Stock available and accept small orders
1. High quality & competitive price
2. Various styles with different materials
3. Stock available and accept small orders
3）Can I get discount?
Yes. For large orders, long-term customers and frequent buyers, we can provide relatively better discount.
New customers can also get some discount with long term business agreements.
New customers can also get some discount with long term business agreements.
4）What is the lead time?
Stock Products: can deliver within 3-7days.
5）How can the products be sent to us?
For small quantity, the goods will be sent by DHL, EMS, UPS, FEDEX or other delivery services. We will choose the safest and the most economical way for customers if they do not have their preference agent. It can send per clients' requirements. For large quantity, we will suggest customer to ship by sea.
