Алюминиевые трубки и фитинги pex-al-pex
US $49.50-$55.00
CSTB требования WRAS SKZ Сертифицированный внахлест 5 слоев PEX Al алюминиево-пластиковые композитные
- Категория: Composite Pipes >>>
- Поставщик: Zhejiang,Mingshi,Xingxin,Hvac,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.76 $* | 0.53 $* |
| Aug-18-2025 | 0.53 $* | 0.70 $* |
| Jul-18-2025 | 0.74 $* | 0.23 $* |
| Jun-18-2025 | 0.98 $* | 0.28 $* |
| May-18-2025 | 0.24 $* | 0.21 $* |
| Apr-18-2025 | 0.77 $* | 0.25 $* |
| Mar-18-2025 | 0.60 $* | 0.77 $* |
| Feb-18-2025 | 0.13 $* | 0.85 $* |
| Jan-18-2025 | 0.35 $* | 0.25 $* |
Характеристики
Multilayer PEX-AL-PEX/ PERT-AL-PERT Pipe | ||
Warranty | More than 10 years | |
Certification | AENOR, WRAS, CSTB, ACS, WATERMARK, SKZ | |
Application | Water/ Gas/ Underfloor heating (UFH) | |
Customized support | OEM, ODM | |
Place of Origin | China, Zhejiang | |
Brand Name | OEM/MINGSHI/MSP | |
Model Number | S-1 | |
Standard | ISO 21003/ other | |
Welding types | Buttwelding/ Overlapped | |
OD (mm) | 15/ 16/ 18/ 20/ 22/ 25/ 26/ 28/ 32/ 40/50/63 | |

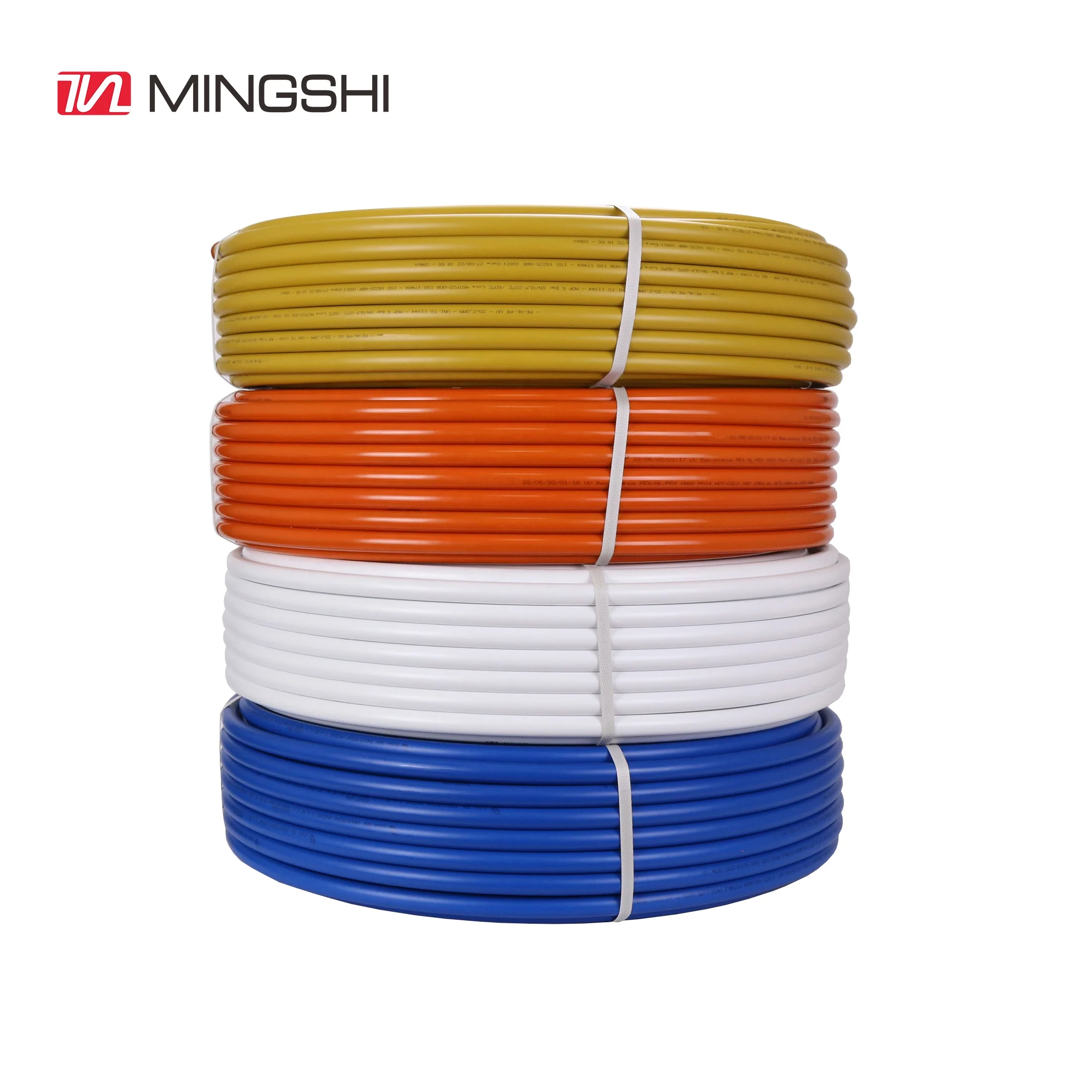

Colors | White/ Black/ Red/ Blue/ Yellow/ Orange | |
Working pressure | Max. 10 bars | |
Working temperature | Max. 95℃ | |
Crosslinking degree | ≥65 | |
1. For Plumbing water(cold & hot)/gas / underfloor heating systems, Composed of 5 layers:

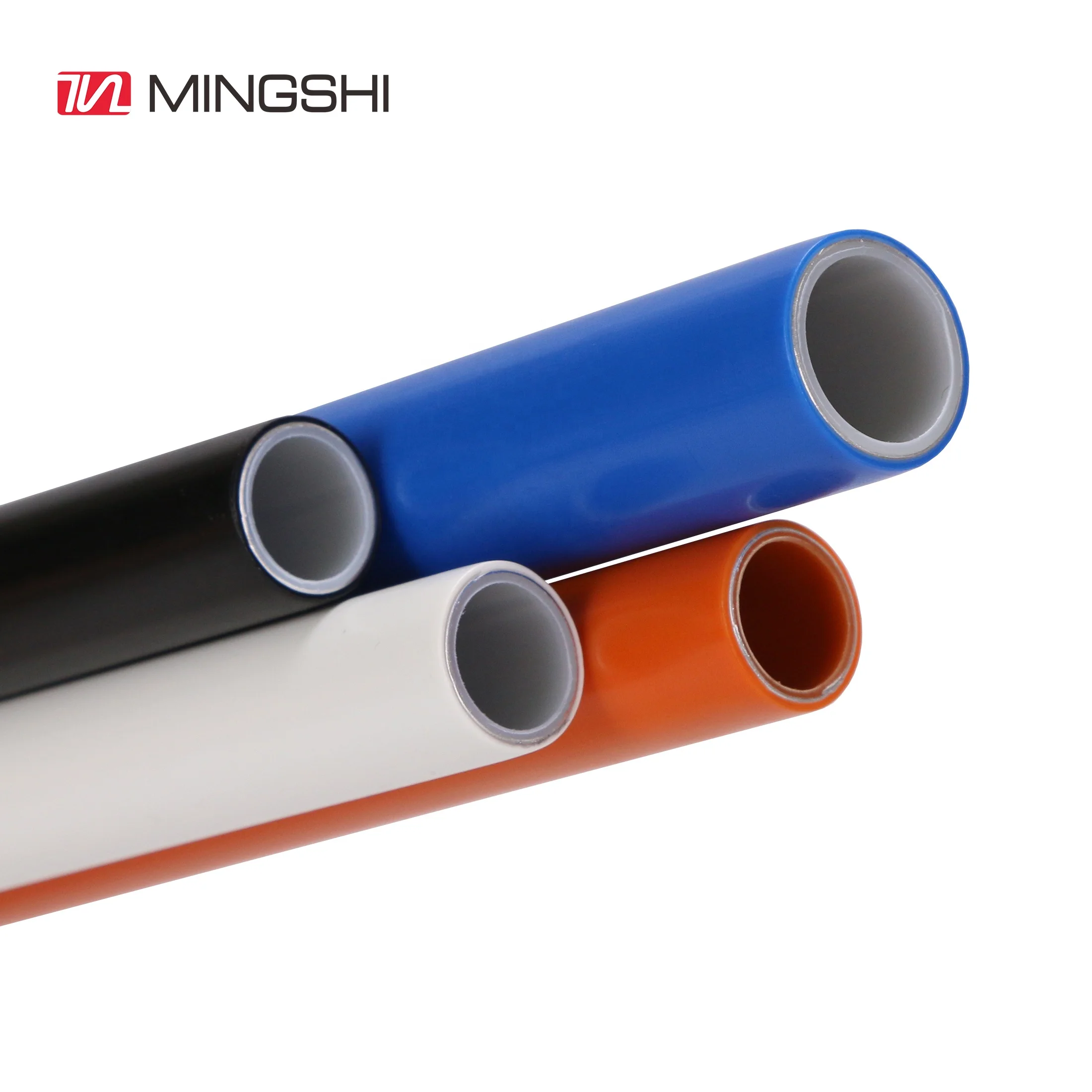

-External Plastic/external Glue/Aluminum/internal Glue/internal Plastic
2. Certificates we have: AENOR, CSTB, SKZ, ACS, WATERMARK, JASWIC, ISO9001
3. Material: CONSTAB/ Other PEX
4. QC: Including materials checking and test, spot inspection on production lines, and all the tests required by each standard done on the finished products in our lab rooms
5. Overlapped/buttwelding
-Spec. (mm)
16*2.0
18*2.0
20*2.0
20*2.25
25*2.5
26*3.0
32*3.0
40*4.0
50*4.5
63*6.0
6. Lead time: 15-30days
7. Main makets: Europe, South Africa, Mecico, Asia, Australia
8. Applications:
-Cool & Hot Water Pipe System
-Housing Gas Pipe System
-Under floor heating System
-Solar Energy & Air-conditioning Matching Pipe System
-Medical, Foodstuff & Chemical Industry Pipe System
9. Characters & Advantages:
-Wide range working temperature(-10C~95C), Hi-pressure resistance
-30% more flow than metal pipe
-50 year working life
-Non-corrosive, scale-free
-Hygiene, no oxygen permeability, no growth of Microorganism
-Non-inflammable, non-static
-Easy bending but never spring back
-Light in weight, easy to carry and store
-Few pipe fitting applying leading to little leakage
-Economical price.
-External Plastic/external Glue/Aluminum/internal Glue/internal Plastic
2. Certificates we have: AENOR, CSTB, SKZ, ACS, WATERMARK, JASWIC, ISO9001
3. Material: CONSTAB/ Other PEX
4. QC: Including materials checking and test, spot inspection on production lines, and all the tests required by each standard done on the finished products in our lab rooms
5. Overlapped/buttwelding
-Spec. (mm)
16*2.0
18*2.0
20*2.0
20*2.25
25*2.5
26*3.0
32*3.0
40*4.0
50*4.5
63*6.0
6. Lead time: 15-30days
7. Main makets: Europe, South Africa, Mecico, Asia, Australia
8. Applications:
-Cool & Hot Water Pipe System
-Housing Gas Pipe System
-Under floor heating System
-Solar Energy & Air-conditioning Matching Pipe System
-Medical, Foodstuff & Chemical Industry Pipe System
9. Characters & Advantages:
-Wide range working temperature(-10C~95C), Hi-pressure resistance
-30% more flow than metal pipe
-50 year working life
-Non-corrosive, scale-free
-Hygiene, no oxygen permeability, no growth of Microorganism
-Non-inflammable, non-static
-Easy bending but never spring back
-Light in weight, easy to carry and store
-Few pipe fitting applying leading to little leakage
-Economical price.
