Прямая продажа с завода 15 тонн 20 25 30 60 гидравлическая Тяговая Лебедка длинным канатом

Прямая продажа с завода 15 тонн 20 25 30 60 гидравлическая Тяговая Лебедка длинным канатом

Категория: Winches >>>
Поставщик: Ningbo,Eajea,Machinery,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	0.55 $*	0.57 $*
Aug-16-2025	0.34 $*	0.32 $*
Jul-16-2025	0.26 $*	0.41 $*
Jun-16-2025	0.97 $*	0.3 $*
May-16-2025	0.76 $*	0.96 $*
Apr-16-2025	0.7 $*	0.42 $*
Mar-16-2025	0.51 $*	0.75 $*
Feb-16-2025	0.32 $*	0.84 $*
Jan-16-2025	0.56 $*	0.43 $*

Характеристики

Our Main Products: Pulling Winch Hydraulic

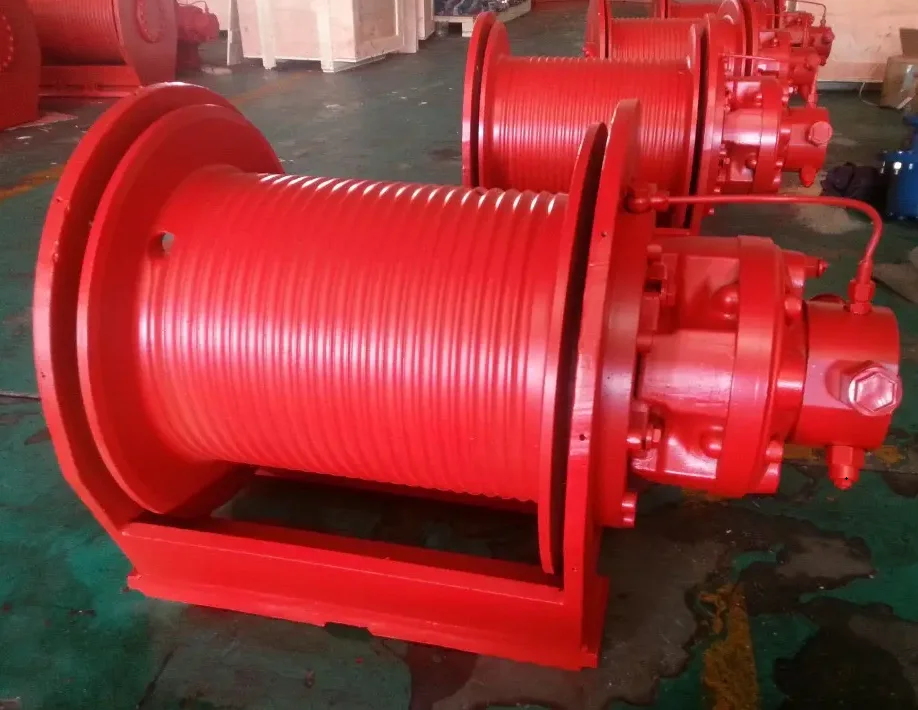

Factory Direct Sale 15 ton 20 ton 25 ton 30 ton 60 ton Pulling Hydraulic Winch with Long Rope Manufacturers

.png

EJ series Pulling Winch Hydraulic For Sale adopts our company's professional technology, and is composed of various integrated valve blocks, hydraulic motors, Z-type brakes, planetary reducers, reels, frames and clutches composed of high-pressure shuttle valves with one-way balance valves and control brakes. It is composed of components, and the user only needs to equip the pump station and the pump. Because the winch has its own valve group, it not only simplifies the hydraulic system but also improves the working reliability of the transmission device. In addition, it also has the characteristics of high starting and working efficiency, high power, low energy consumption, low noise, beautiful appearance, compact structure and good economy. This product can be widely used in construction engineering, petroleum, geological exploration, ship deck machinery and other equipment.

4 (1)

Technical parameters:

Model	Pull force KN	Rope speed m/min	Rope Capacity m	Total Displacement ml/r	Difference of Working Pressures Mpa	Steel wire Diameter m	Hydraulic motor	Gearbox Model	Weight kg
EJ2.5-10-60.10-ZP	10	0-40	60	575	15	10	GM05-110D1201	EC2.5-5	130
EJ2.5-20-50.12-ZP	20	0-40	50	1050	15	12	GM05-200D1201	EC2.5-5.5	220
EJ3-30-70.14-ZP	30	0-40	70	2500	15	14	GM2-500D2401	EC3-5	230
EJ3-40-60.16-ZP	40	0-40	60	3300	15	16	GM2-600D2401	EC3-5.5	370
EJ4-50-70.20-ZP	50	0-40	70	4500	16	20	GM3-900D2401	EC4-5	390
EJ4-60-70.20-ZP	60	0-40	70	5500	16	20	GM3-1000D2401	EC4-5.5	400
EJ5-80-100.24-ZP	80	0-40	100	6500	17	24	GM4-1300D2401	EC5-5	800
EJ5-100-90.28-ZP	100	0-40	90	11000	17	28	GM5-2000D2401	EC5-5.5	1100
EJ6-120-170.18-ZP	120	0-30	170	13750	18	30	GM6-2500D4801	EC6-5.5	1600
EJ6-150-150.19-ZP	150	0-30	150	16500	18	32	GM6-3000D4801	EC6-5.5	1800
