4028 40*28 мм Внутренний Магнитный 4 Ом 3 Вт блок драйвера 85 дБ квадратный динамик для
- Категория: Speakers >>>
- Поставщик: Guangzhou,Yueneng,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.79 $* | 0.60 $* |
| Aug-15-2025 | 0.28 $* | 0.64 $* |
| Jul-15-2025 | 0.5 $* | 0.54 $* |
| Jun-15-2025 | 0.66 $* | 0.46 $* |
| May-15-2025 | 0.50 $* | 0.16 $* |
| Apr-15-2025 | 0.42 $* | 0.54 $* |
| Mar-15-2025 | 0.15 $* | 0.47 $* |
| Feb-15-2025 | 0.84 $* | 0.84 $* |
| Jan-15-2025 | 0.13 $* | 0.65 $* |
Характеристики
4028 40*28 mm Internal Magnetic 4 ohm 3 w unit driver 85db square Laptop Dynamic speaker
Product Name | 4028 40*28 mm Internal Magnetic 4 ohm 3 w unit driver 85db square Laptop Dynamic speaker |
Type | Dynamic speaker |
RATED / MAX. POWER | 3.0W / 3.5W |
IMPEDANCE | 4Ω±15% at 1 KHz 2.0Vms Sine Wave |
OPERATING TEMPERATURE | - 30℃ ～ +60℃ |
STORAGE TEMPERATURE | - 40℃ ～ +75℃ |
RESONANCE FREQUENCY | 550±20% Hz at 1.0V Sine wave |
SENSITIVITY (S.P.L.) | 85dB ±3dB at 0.5w/ 0.1m / 10.12.15.20×100Hz average |
FREQUENCY RANGE | fo ~ 20kHz |
DISTORTION | Less than 5 % at 1000Hz 0.6 W |
OUT SIDE SIZE | 40mm×28mm |
UNIT WEIGHT | 12.0g±0.1g |

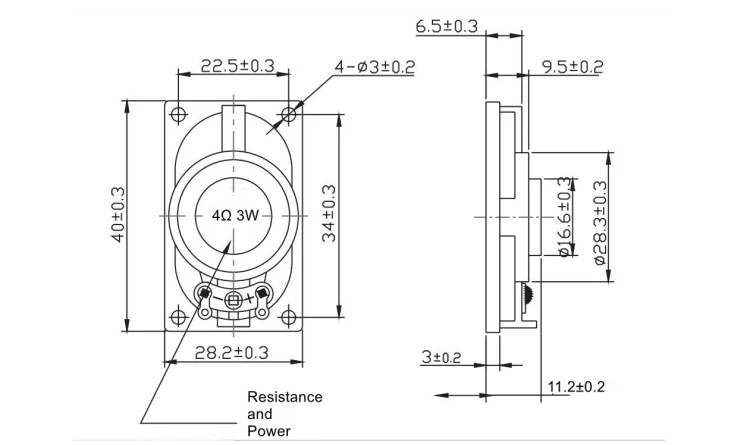

1. Speaker Dimensions
2. Speaker Test Circuit
3. Speaker Frequency Response
4. Speaker Packing
Note:
1. In automated mounting of the SMD sound transducers on PCB, any bending, expanding and pulling forces or shocks against the SMD sound transducers shall be kept minimum to prevent them from electrical failures and mechanical damages of the devices.
2. In the reflow soldering, too high soldering temperatures and too large temperature Gradient such as rapid heating or cooling may cause electrical failures and mechanical damages of the devices.
