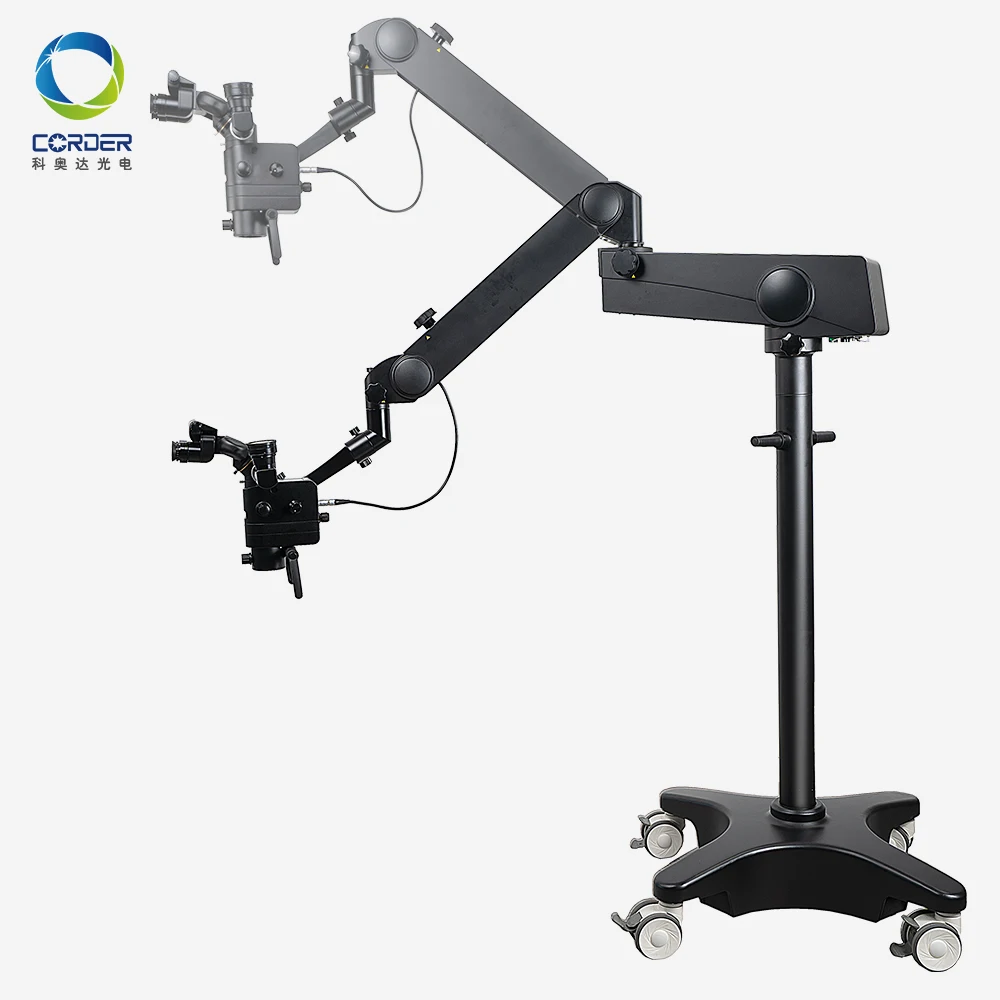

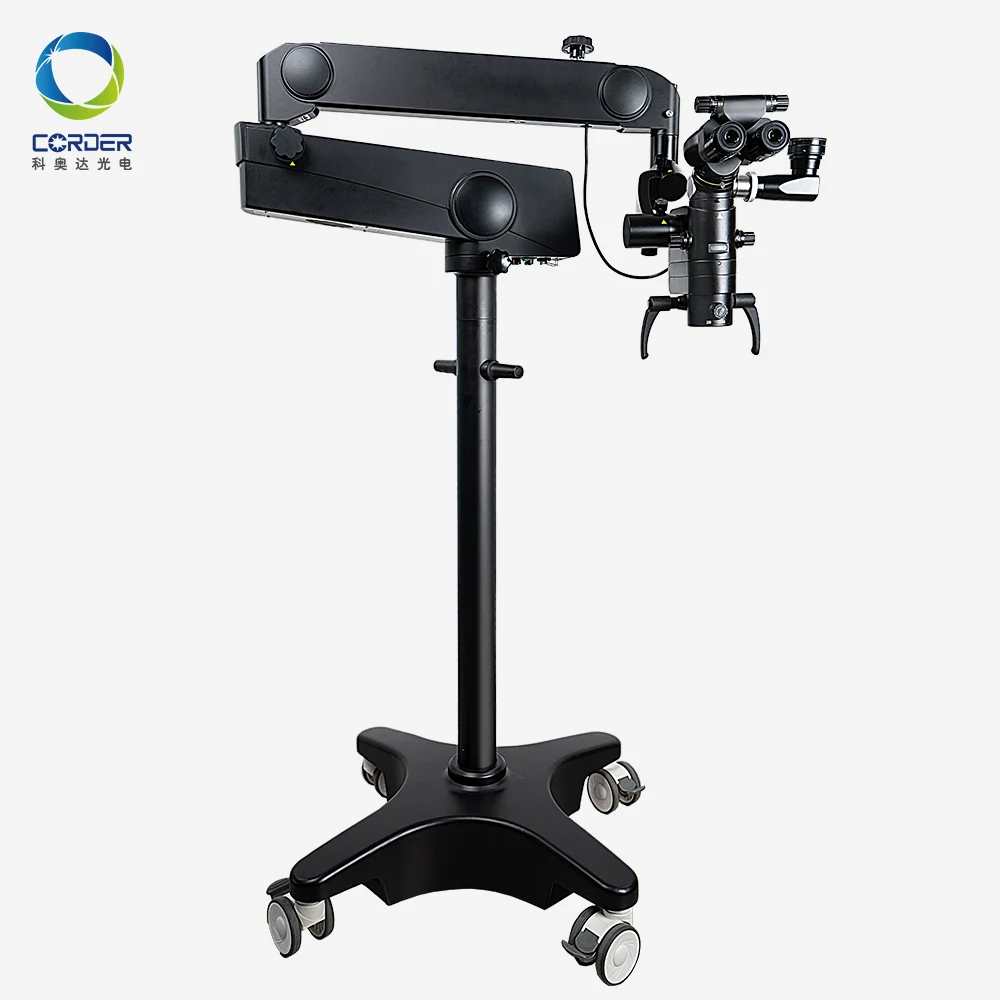

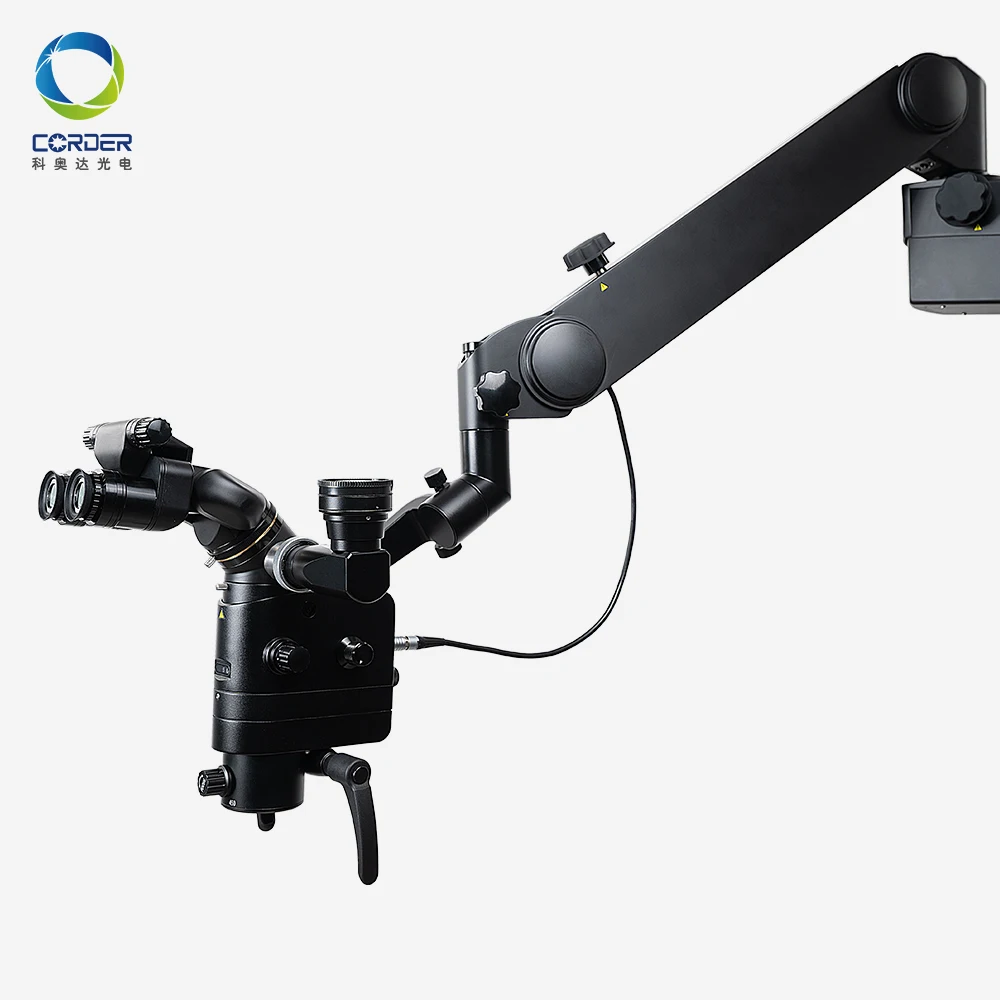

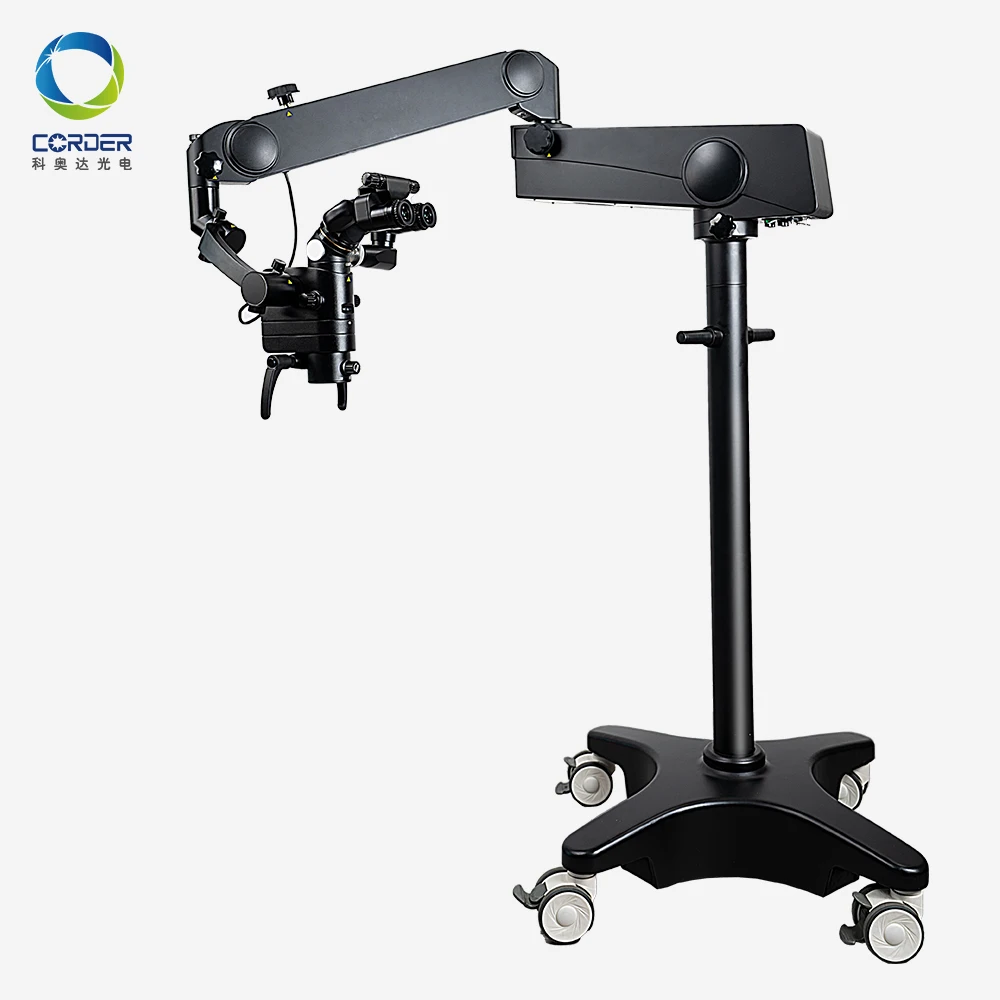

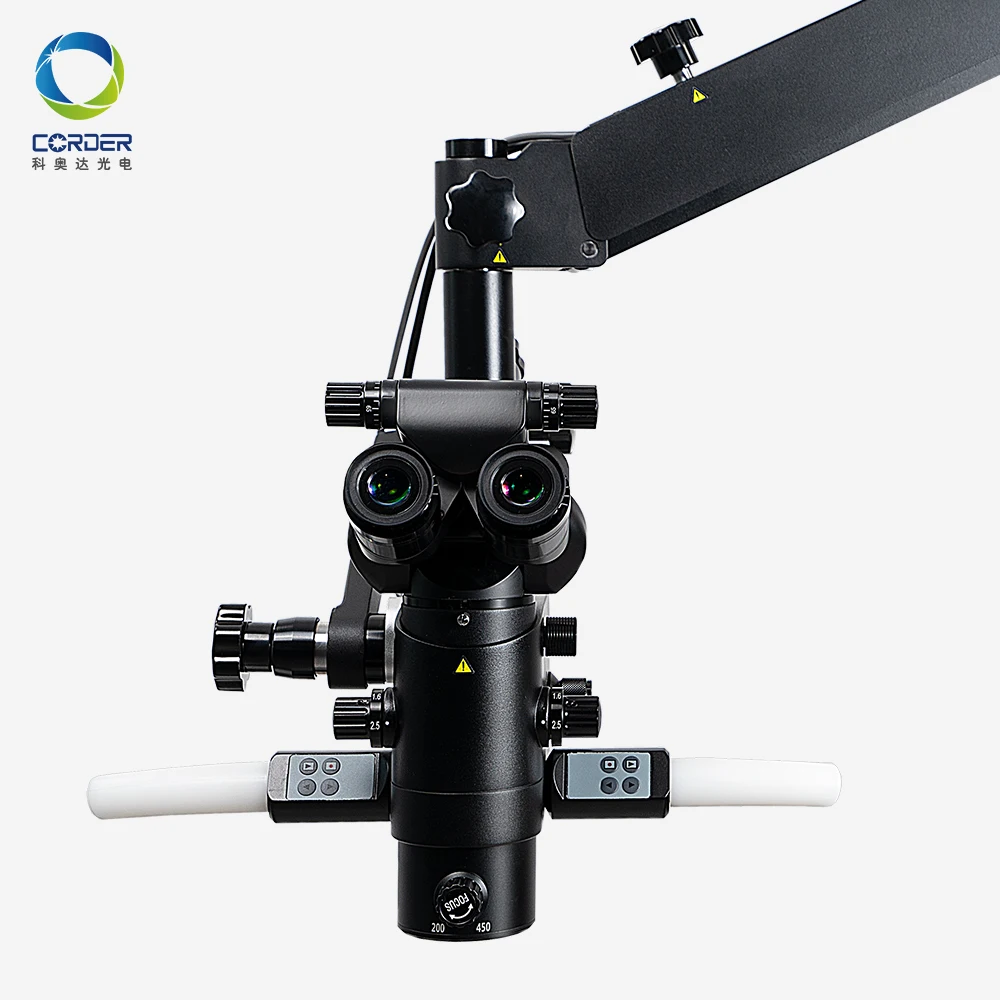

Model | ASOM-520-D | |
Function | Dental/ENT | |
Electrical data | ||
Power socket | 220v(+10%/-15%) 50HZ/110V(+10%/-15%) 60HZ | |
Power consumption | 40VA | |
Safety class | class I | |
microscope | ||
Tube | 0-200 degree inclinable binocular tube | |
Magnification | Motorized control by handle, Ratio 0.4X~2.4X ,total magnification 2.5~21x ( F 180-300mm) | |
Stereo base | 22mm | |
Objectives | Motorized control by handle, F= 180mm-300mm | |
Objective focusing | 120mm | |
Eyepiece | 12.5x/ 10x | |
pupil distance | 55mm~75mm | |
diopter adjustment | +6D ~ -6D | |
Feild of veiw | Φ78.6~Φ9mm | |
Reset functions | yes | |
Light source | LED cold light with life time >100000 hours, brightness >60000 lux , CRI>90 | |
filter | OG530, Red free filter, small spot | |
Banlance arm | 120° Banlance arm | |
Automatic switching device | Built-in arm | |
Imaging system | Build-in Full HD camera SONY 1/1.8 ,Control by Handle | |
Light intensity adjustment | Using a drive knob on the optics carrier | |
Stands | ||
Max extension range | 1100mm | |
Base | 680 × 680 mm | |
Transportation height | 1476 mm | |
Balancing range | Min3 kg to max 8 kg load on the optics carrier | |
Brake system | Fine adjustable mechanical brakes for all rotation axes with detachable brake | |
System weight | 108 kg | |
Stand options | Ceiling mount,Wall mount,Floor plate,Floor stand | |
Accessories | ||
Knobs | sterilizable | |
Tube | 90°binocular tube + 45°Wedge splitter, 45° binocular tube | |
Video adapter | Mobile phone adapter, beam splitter, CCD adapter, CCD, SLR digital camera adaper,camcorder adapter | |
Ambient conditions | ||
Use | +10°C to +40°C | |
30% to 75% relative humidity | ||
500 mbar to 1060 mbar atmospheric pressure | ||
Storage | –30°C to +70°C | |
10% to 100% relative humidity | ||
500 mbar to 1060 mbar atmospheric pressure | ||
Limitations on use | ||
The surgical microscope may be used in enclosed rooms and on flat surfaces with max. 0.3° unevenness; or at stable walls or ceilings that fulfill microscope specifications |
