Промышленный панельный ПК высокой яркости 21 5 дюйма универсальный IP65 водонепроницаемый сенсорный

Size

7 inch

15 inch

21.5 inch

Screen ratio

16：9

4：3

16：9

Resolution

800 x 480

1024 x 768

1920 x 1080

Display area

154.08 x 85.92mm

304.128 x 228.096mm

476.64 x 268.11mm

Pixel pitch

0.1926 x 0.1790mm

0.297 x 0.297mm

0.24825 x 0.24825mm

Brightness

LCD screen: 250 cd/m² (typical value) (customizable highlighting) Capacitive touch screen: 217.5 cd/m² (typical value)

LCD screen: 350 cd/m² (typical value) (customizable highlighting) Touch screen with capacitor: 304.5 cd/m² (typical value)

LCD screen: 250 cd/m² (typical value) (customizable highlighting) Capacitive touch screen: 217.5 cd/m² (typical value)

Contrast

500:1 (typical value)

1000:1 (typical value)

1000:1 (typical value)

Angle of view (left/right/up/down)

70/70/50/70 (CR≥10)

89/89/89/89 (CR≥10)

89/89/89/89 (CR≥10)

Best View

At 6 o 'clock

whole perspective

whole perspective

Display mode

TN

IPS

IPS

Display color/gamut

262K / 16.7M

16.7M

16.7M

Response time (Tr+Td)

25ms (typical value)

30ms (typical value)

14ms (typical value)

Frequency

Level: 30-80 KHz

Level: 30-80 KHZ.

Level: 30-80 KHZ.

Surface treatment

AG(fog surface)/

AG(fog surface)/

AG(fog surface)/

Backlight type

LED backlight

LED backlight

LED backlight

Backlit life

20000 hours (typical value)

50000 hours (min)

30000 hours (minimum)

LCD Screen Type

TFT LCD

TFT LCD

TFT LCD

LCD operating environment

Working environment: -20°C ~ 70°C, 20% ~ 90%RH without condensation Storage environment: -30°C to 80°C, 20% to 90%RH without
condensation

Working environment: -20°C ~ 70°C, 20% ~ 90%RH without condensation Storage environment: -20°C to 70°C, 20% to 90%RH without
condensation

LCD features/selling points

Original brand new, standard A.

Original brand new, standard A.

Original brand new, standard A.

Touch screen technology/type

Capacitive

Structure

G+G

Touch points

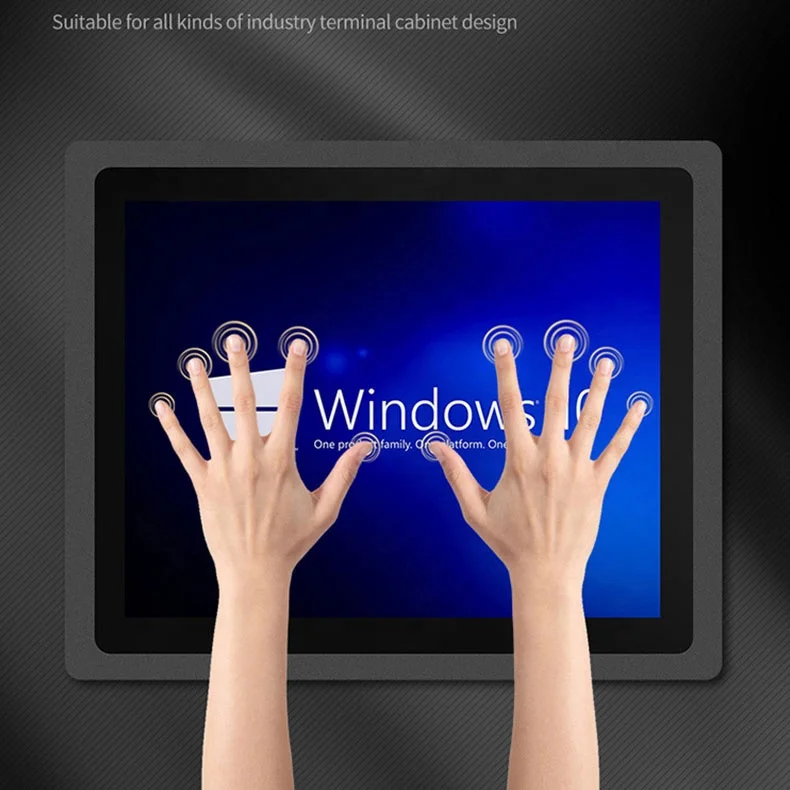

10 points touch

Resolution of touch

≥4096×4096 (determined by touch screen size)

Light transmittance

≥87%

Surface hardness

≥6H (determined by the structure of the touch screen)

Touch energizes

≤10 g fingers

Touch medium (input mode)

Fingers, capacitive stylus, or medical grade gloves

Minimum touching object (diameter)

There is no minimum touch object limit

Touch response speed

≤15ms (determined by touch screen controller)

Touch life (number of touches per point)

≥3 years (200 million times)

Touch interface

USB / RS232

Working voltage

USB: 5V

Surface treatment

AG(fog surface)/Clear(mirror surface)

Touch screen Installation

Flush mount or flat surface

Touch screen supports the operating system

Windows, Android, Linux, Mac OS, MS-DOS.

Touch Screen U se Environment

Working environment: -20°C ~ 70°C, 20% ~ 90%RH without condensation Storage environment: -30°C to 80°C, 20% to 90%RH without
condensation

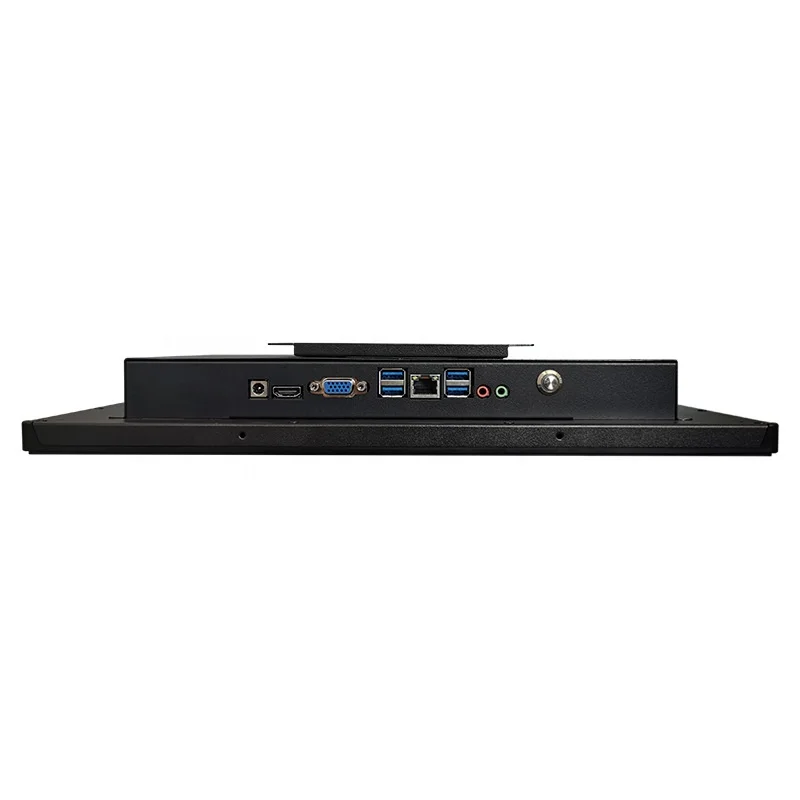

VGA

1

DVI

Optional

HDMI

Optional

USB

1 (for touch screen)

DisplayPort

N/A

AV

N/A

RJ45

N/A

Serial port

N/A

Audio in

1 (Optional)

Audio out

N/A

Mic

N/A

Power socket (AC/DC input)

1 （DC2.0）

Control

(1) Key: 5 key /6 key. Button content: Menu, Auto, Left, Right, Power. Key position: side/front/back. (2) Remote control: optional

OSD menu

Settings: Brightness, contrast, color temperature, reset, etc. Language: Simplified Chinese, English, others optional

Built-in speaker

optional

Automatic brightness adjustment

N/A

Electromagnetic touch module

N/A

Encryption module

N/A

The peep film

N/A

Others (Optional)

Aviation power interface /camera/ stylus/ The remote control/

Shell material

Front frame/middle frame: plastic shell/hardware shell (optional). Rear shell: Hardware shell

color

Front/Middle frame: black (other optional) Back shell: Black (other optional)

Installation Way

(1) Tabletop type: with base or bracket (can tilt, can be multi-angle adjustment, removable) (2) Wall-mounted: VESA hole (75*75mm
or 100*100mm) (3) Embedded: side keyhole type, back keyhole type, etc

Packaging

Carton + foam

power input

Type: External Power adapter (DC-12V) Input voltage: AC 100-240 V, 50/60Hz Output voltage: +12.0V ± 5% DC DC plug connector: male,
inner diameter 2.1mm, outer diameter 5.5mm

power consumption of the work

Standby power consumption

<1W

<1W

<1W

Protection level/durability

IP protection level: to be determined; Waterproof: Good. Dust proof: Excellent Riot control: Better Explosion-proof: Good Strong
light resistance: excellent Anti-interference: Excellent Oil resistance: Good Chemical solvent resistance: good Vibration
resistance: to be determined; Impact resistance: to be determined; EMC: good; Antistatic: 2KV(contact); 4KV(air); (Higher level
optional)

altitude

≤ 3000m

Heat dissipation

No fan

Machine life/Mean time to failure (MTBF)

50,000 hours

quality guarantee

1 year
