Product Description

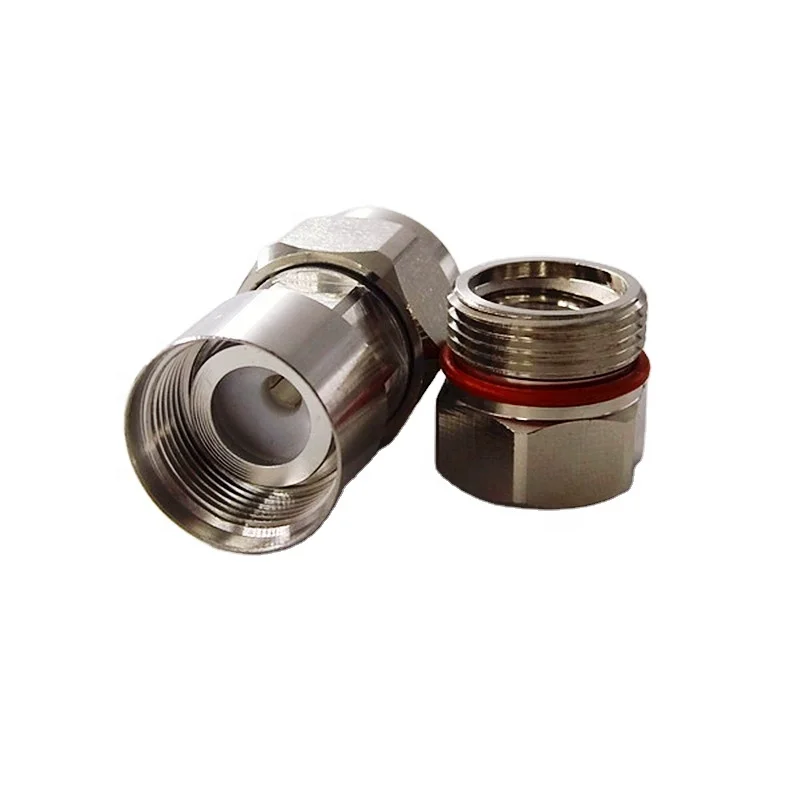

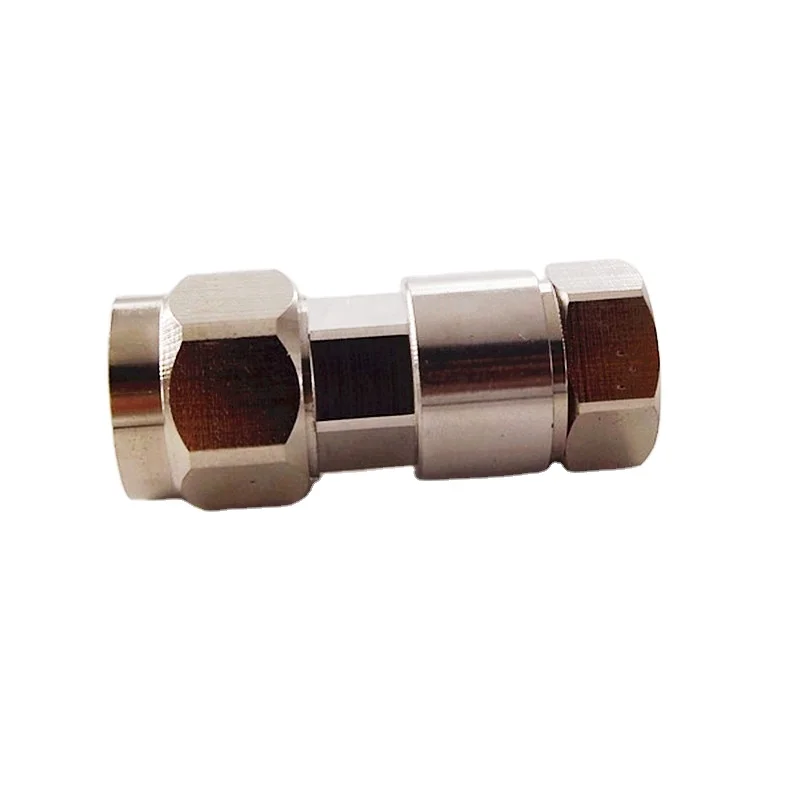

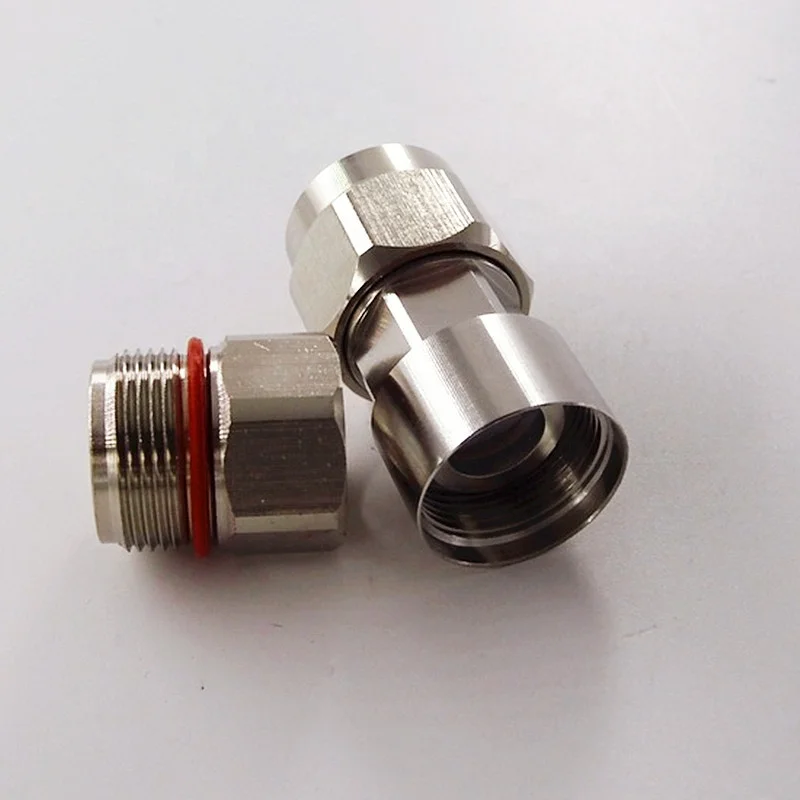

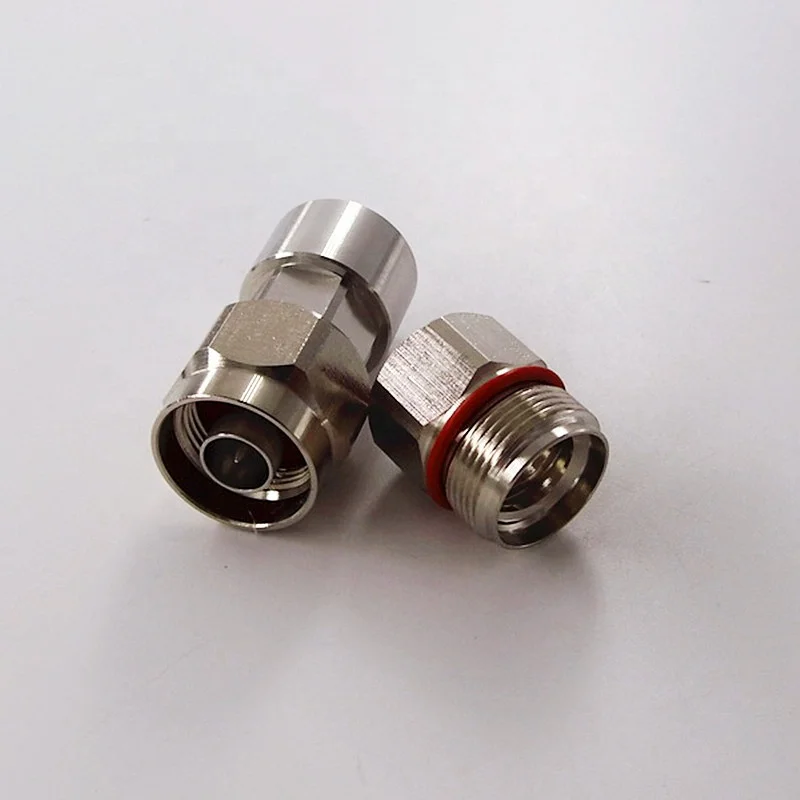

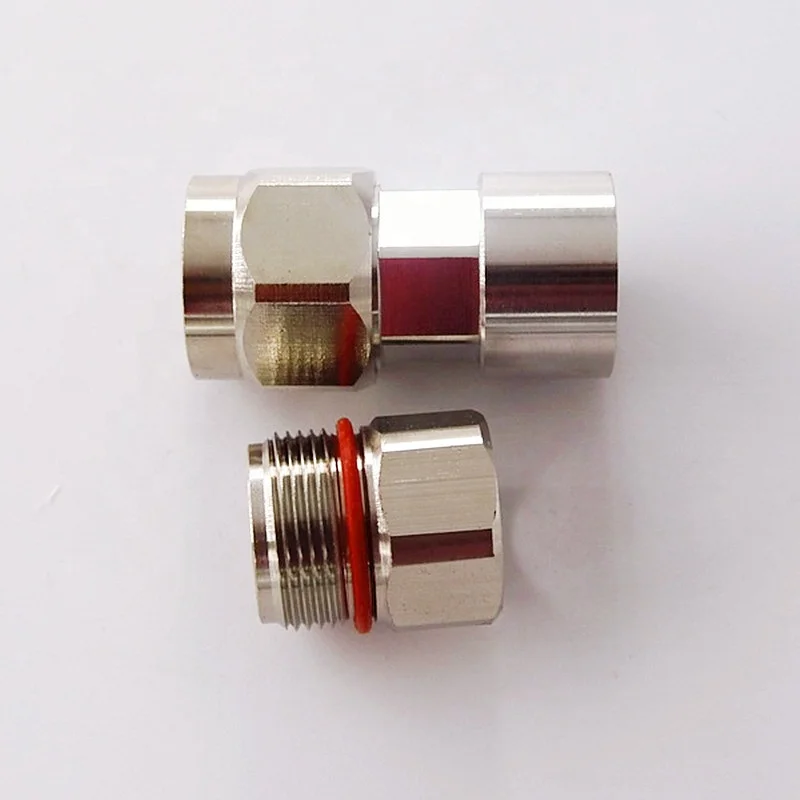

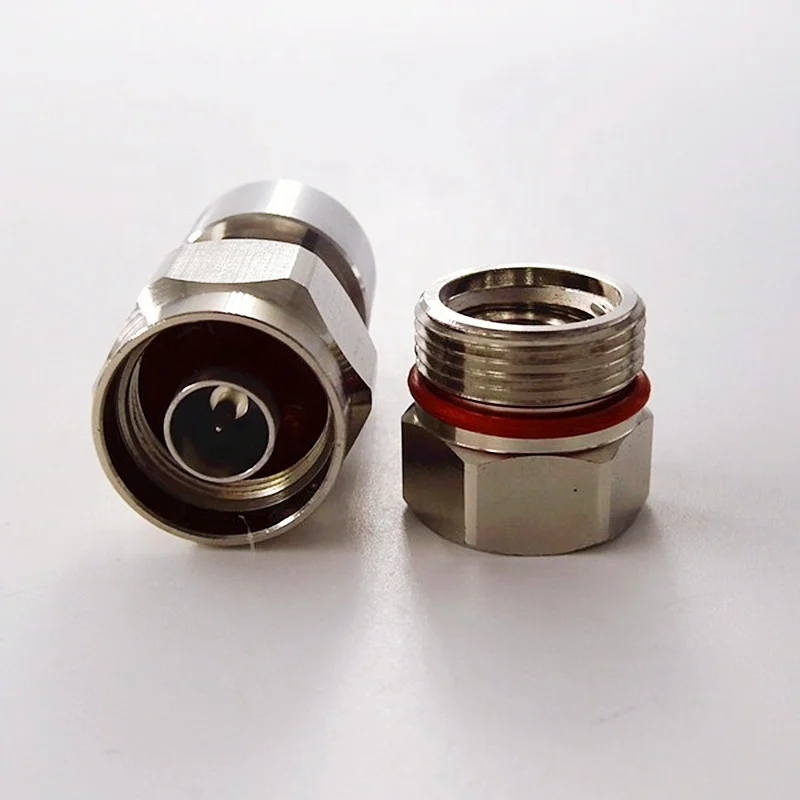

N Male Clamp Connector For 1/2” Foam Superflexible Cable
TYPE N is a kind of low to medium power connectors with screw coupling,Characteristic impedance has two types:50ohm and 75ohm.The characteristic of connector is high reliability,great vibration performance, excellent mechanical and electrical performance etc. They are used in connection with RF coaxial cable in radio instrument, communication equipment, microwave test and ground launch
system at vibration and inclement weather circumstance. By using semi-rigid or semi-flex cable,this type will gain smaller VSWR, and the frequency can by up to 11GHZ.
system at vibration and inclement weather circumstance. By using semi-rigid or semi-flex cable,this type will gain smaller VSWR, and the frequency can by up to 11GHZ.
Specification
Model No. | N-J1/2SA1 | ||
Interface | IEC 60169-16 | ||
Electrical | |||
Characteristic Impedance | 50ohm | ||
Frequency Range | DC-11GHz | ||
VSWR | ≤1.10 @DC-3GHz;≤1.15@D3-3.8GHz | ||
Intermodulation 3rd(PIM 3) | ≤ -155dBc@2×20W (43dBm ） | ||
Dielectric Withstanding Voltage | ≥2500V RMS,50Hz,at sea level | ||
Working Vlotage | ≤1000V RMS,50Hz,at sea level | ||
Dielectric Resistance | ≥5000MΩ | ||
Contact Resistance | Center Contact ≤1.0mΩ | Outer Contact ≤0.25mΩ | |
Mechanical | |||
Durability | Mating cycles ≥500 | ||
Material and Plating | |||
Parts Name | Material | Plating | |
Body | Brass | Tri-alloy | |
Insulator | PTFE | — | |
Center conductor | Phosphor Bronze | Ag | |
Coupling nut | Brass | Ni | |
Press ring | Brass | Ag | |
Back nut | Brass | Ni | |
Gasket | Silicone rubber | — | |
Environmental | |||
Temperature Range | -45℃~+85℃ | ||
Weatherproof Rate | IP68 | ||
RoHS | Compliant Yes | ||
