EMV ISO 7816 планшетный ПК микро USB 2 0 считыватель смарт-карт для окно/внутренний и внешний створчатый распашный
- Категория: Access Control Card Readers >>>
- Поставщик: Shenzhen,Hcc,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 14.45 $* | 14.22 $* |
| Jul-18-2025 | 11.47 $* | 11.1 $* |
| Jun-18-2025 | 14.28 $* | 14.66 $* |
| May-18-2025 | 14.59 $* | 14.65 $* |
| Apr-18-2025 | 11.29 $* | 11.27 $* |
| Mar-18-2025 | 13.35 $* | 13.44 $* |
| Feb-18-2025 | 13.69 $* | 13.58 $* |
| Jan-18-2025 | 13.88 $* | 13.53 $* |
Характеристики
Product Description
Dimensions | 58.0 mm (L) x 20 mm (W) x 13.7 mm (H) |
Weight | 12.0g |
Protocol | USB CCID |
Connector Type | Standard Type A |
Power Source | From USB port |
Speed | USB Full Speed (12 Mbps) |
Supply Voltage | 5 V |

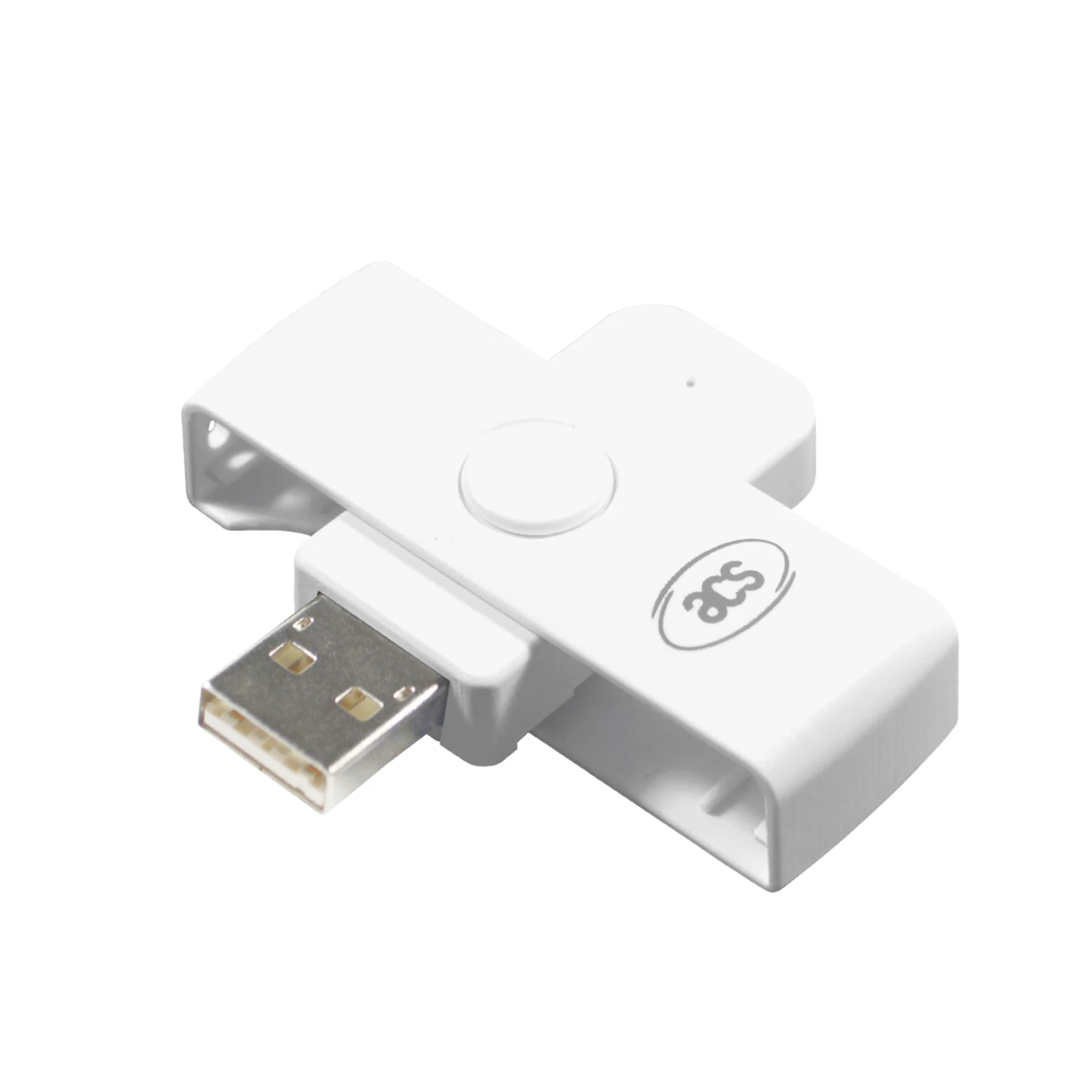

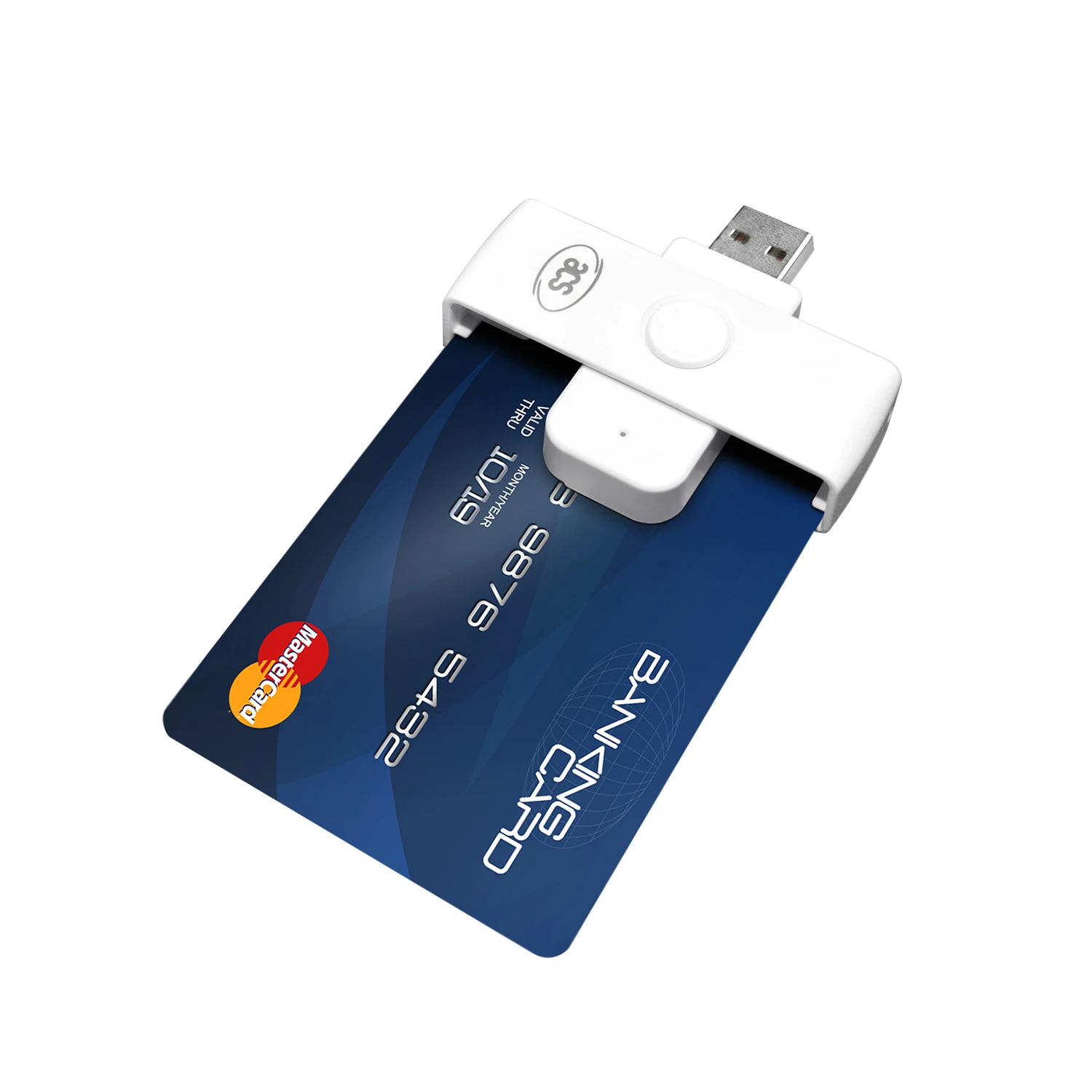

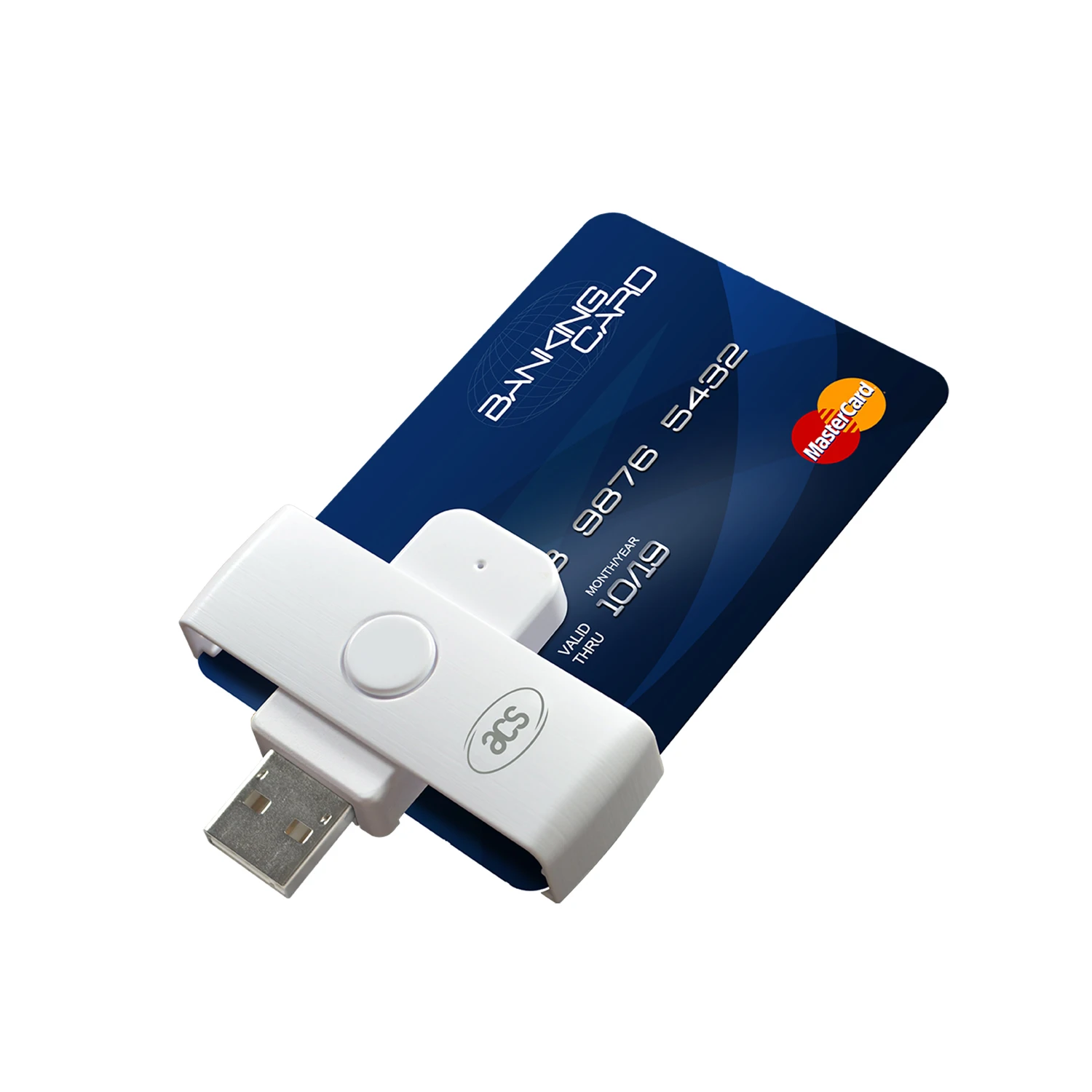

ACR38U-N1 is a smart card reader that has more to it than meets the eye. No larger than a standard USB token, it transforms
into a smart card reader for full-sized contact smart cards with just a single swivel motion. It is capable of supporting
demanding smart card applications, balancing functionality and design aesthetics to meet your security needs in applications
like e-Banking, e-Payment, Physical and Logical Access and e-Government.
into a smart card reader for full-sized contact smart cards with just a single swivel motion. It is capable of supporting
demanding smart card applications, balancing functionality and design aesthetics to meet your security needs in applications
like e-Banking, e-Payment, Physical and Logical Access and e-Government.
Feature
* USB 2.0 Full Speed Interface
* USB Type A Connector
* Plug and Play – CCID support brings utmost mobility

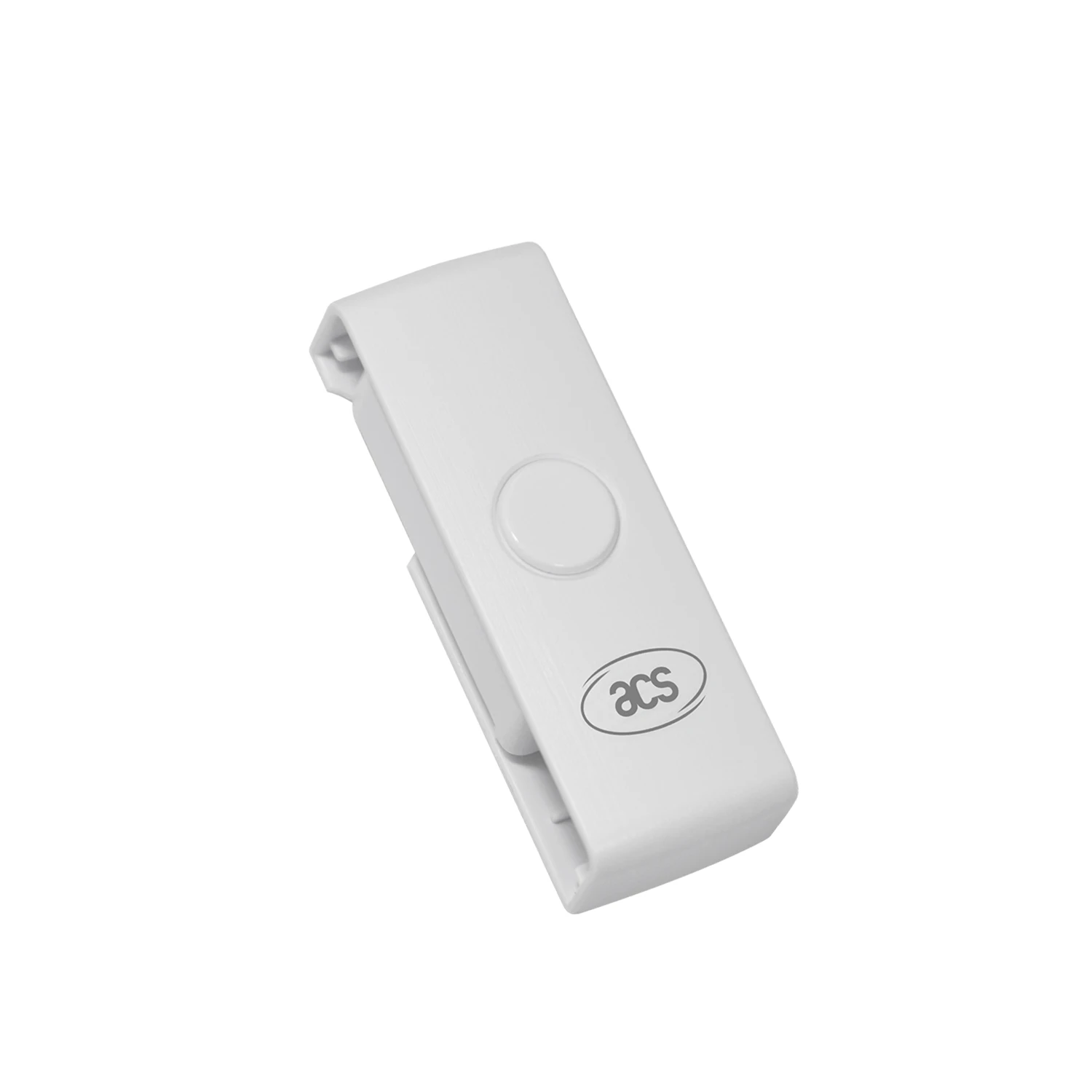

* Swivel Motion Design
* Smart Card Reader: * Supports ISO 7816 Class A, B, and C (5 V, 3 V, 1.8 V) cards
* Supports CAC
* Supports SIPRNET Card
* Supports J-LIS card
* Supports microprocessor cards with T=0 and T=1 protocol
* Supports memory cards
* Supports PPS (Protocol and Parameters Selection)
* Features Short Circuit Protection
* Application Programming Interface: * Supports PC/SC
* Supports CT-API (through wrapper on top of PC/SC)
* Supports Android™ 3.1 and later1
* Compliant with the following standards: * EN 60950/IEC 60950, ISO 7816,EMV™ Level 1 (Contact),PC/SC,CCID,CE,FCC
* WEEE, RoHS 2, REACH, TAA (USA)
* J-LIS (Japan), VCCI (Japan), PBOC (China), Microsoft® WHQL
* USB 2.0 Full Speed Interface
* USB Type A Connector
* Plug and Play – CCID support brings utmost mobility
* Swivel Motion Design
* Smart Card Reader: * Supports ISO 7816 Class A, B, and C (5 V, 3 V, 1.8 V) cards
* Supports CAC
* Supports SIPRNET Card
* Supports J-LIS card
* Supports microprocessor cards with T=0 and T=1 protocol
* Supports memory cards
* Supports PPS (Protocol and Parameters Selection)
* Features Short Circuit Protection
* Application Programming Interface: * Supports PC/SC
* Supports CT-API (through wrapper on top of PC/SC)
* Supports Android™ 3.1 and later1
* Compliant with the following standards: * EN 60950/IEC 60950, ISO 7816,EMV™ Level 1 (Contact),PC/SC,CCID,CE,FCC
* WEEE, RoHS 2, REACH, TAA (USA)
* J-LIS (Japan), VCCI (Japan), PBOC (China), Microsoft® WHQL
Details Images
Product Usage
Application
1. e-Government
2. e-Banking and e-Payment
3. e-Healthcare
4. Public Key Infrastructure
5. Network Security
6. Access Control
7. Loyalty Program
1. e-Government
2. e-Banking and e-Payment
3. e-Healthcare
4. Public Key Infrastructure
5. Network Security
6. Access Control
7. Loyalty Program

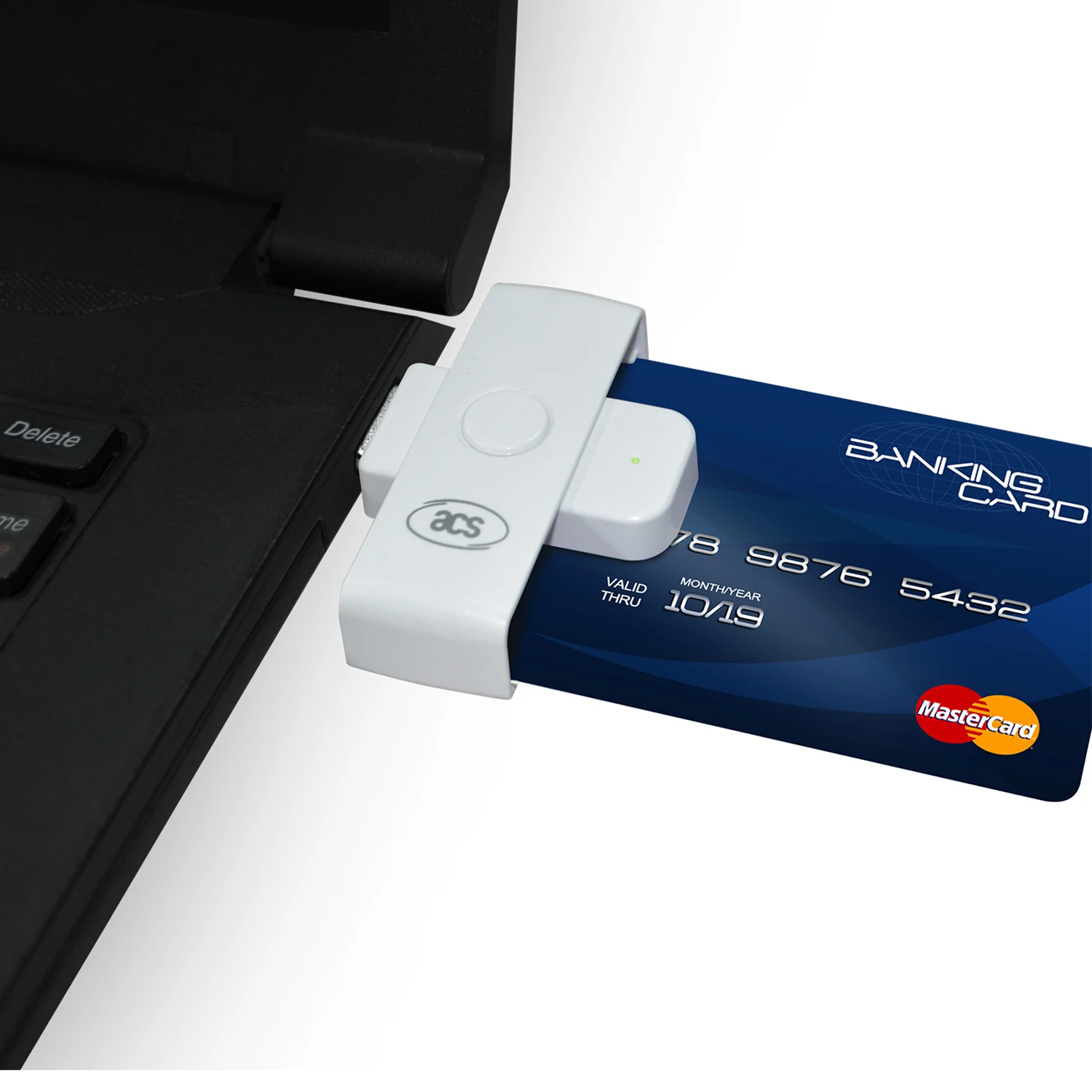

The highly compact ACR38U-N1 PocketMate is designed to be used anytime, anywhere. Being a PC/SC and CCID compliant device,
ACR38U PocketMate can easily be integrated into a PC environment, with drivers that are compatible with Windows, Linux and Mac operating systems. Also, ACR38U-N1 PocketMate may now be used on mobile devices running on Android™ platform versions 3.1 and above.
ACR38U PocketMate can easily be integrated into a PC environment, with drivers that are compatible with Windows, Linux and Mac operating systems. Also, ACR38U-N1 PocketMate may now be used on mobile devices running on Android™ platform versions 3.1 and above.
Number of Slot | 1 Full-sized Card Slot |
Standard | ISO 7816 Parts 1-3, Class A, B, C (5 V, 3 V, 1.8 V) |
Protocol | T=0; T=1; Memory Card Support |
Supply Current | Max. 50mA |
Smart Card Read/Write Speed | 9.6 Kbps – 600 Kbps |
Short Circuit Protection | (+5) V/GND on all pins |
Clock Frequency | 4.8 MHz |
Card Connector Type | Contact |
Card Insertion Cycles | Min. 100,000 |
PC-linked Mode | PC/SC CT-API (through wrapper on top of PC/SC) |
Temperature | 0 °C – 60 °C |
Humidity | Max. 90% (non-condensing) |
MTBF | 500,000 hrs |
Certifications/Compliance | EN 60950/IEC 60950, ISO 7816, USB Full Speed, EMV™ Level 1 (Contact), PC/SC, CCID, CE, FCC, WEEE, RoHS 2, REACH TAA (USA), J-LIS (Japan), VCCI (Japan), PBOC (China), Microsoft® WHQL |
Device Driver Operating System Support | Windows® XP, Windows Vista®, Windows® 7, Windows® 8, Windows® 8.1, Windows® 10 Windows® Server 2003, Windows® Server 2008, Windows® Server 2008 R2, Windows® Server 2012, Windows® Server 2012 R2, Windows® Server 2016 |
Related Products
OEM Company
Most of our products have passed CE, FCC, RoHS international standard, and also approved by Unionpay, EMV, PCI, Visa, MasterCard Industry Professional Certifications, which greatly ensure the highest level safety and quality of our products.
Our Factory
Certifications
Package&Payment
FAQ
1. Are you manufacturer?
Yes, we are manufacturers. We have been in PC/POS/Mobile Payment product & Solution for 10 years. We can provide OEM / ODM customized service according to our customers’ various application and demands.
2. Would you provide SDK for me?
Yes, we offer free SDK if you order sample. All the contents in a CD ROM with sample together.
3. What warranty for the products?
According to our warranty policy, we will provide 12 months warranty time from the shipment date for our all products (Excluded the consumable parts). As for the mass order, we will provide certain proportion spare parts or RMA machine for local service.
4.What is the minimum order?
We accept one piece for standard products. If require OEM, will see detailed requirements and confirm MOQ to you from our sales
department.
5. Can we get the free sample?
Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation. When they place the mass order, we can return the sample cost to the customers.
6. Do you accept Paypal?
Yes, we accept paypal. Besides, we accept Western Union, T/T, L/C, Secure payment (Escrow Service from Alibaba) and so on.
7. What's the delivery time?
Generally, sample can be shipped in 2-3 working days after payment. For quantity, the leading time will be 1-4 weeks depend on exact quantity.
8.Which way to deliver the goods?
By Express: DHL UPS TNT FEDEX or ARAMEX EMS E-packing. By Sea: Inform us the Sea Port to check which ship line.
2. Would you provide SDK for me?
Yes, we offer free SDK if you order sample. All the contents in a CD ROM with sample together.
3. What warranty for the products?
According to our warranty policy, we will provide 12 months warranty time from the shipment date for our all products (Excluded the consumable parts). As for the mass order, we will provide certain proportion spare parts or RMA machine for local service.
4.What is the minimum order?
We accept one piece for standard products. If require OEM, will see detailed requirements and confirm MOQ to you from our sales
department.
5. Can we get the free sample?
Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation. When they place the mass order, we can return the sample cost to the customers.
6. Do you accept Paypal?
Yes, we accept paypal. Besides, we accept Western Union, T/T, L/C, Secure payment (Escrow Service from Alibaba) and so on.
7. What's the delivery time?
Generally, sample can be shipped in 2-3 working days after payment. For quantity, the leading time will be 1-4 weeks depend on exact quantity.
8.Which way to deliver the goods?
By Express: DHL UPS TNT FEDEX or ARAMEX EMS E-packing. By Sea: Inform us the Sea Port to check which ship line.
By Air: Inform us the Airport to check which flight. Or pick up by the customers.
9. What the after sale service?
a. Our all products will provide 12 months warranty;
b. Enough stock spare parts for guarantee;
c. Professional engineers provide 7*24 online service; If required, our engineers can provide local service in field;
d. As for the returned failure products, we will fix it and return to the customers in one week after we received it;
9. What the after sale service?
a. Our all products will provide 12 months warranty;
b. Enough stock spare parts for guarantee;
c. Professional engineers provide 7*24 online service; If required, our engineers can provide local service in field;
d. As for the returned failure products, we will fix it and return to the customers in one week after we received it;
