Новый дизайн сельскохозяйственная машина Сухая Земля дизельные маленькие культиваторы мини-культиватор ротационный для


Поделиться:


Цена:2 748,00 $ - 3 148,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-16-2025 3270.65 $* 3434.59 $*
Aug-16-2025 3243.84 $* 3405.28 $*
Jul-16-2025 2721.39 $* 2857.20 $*
Jun-16-2025 3188.99 $* 3347.10 $*
May-16-2025 2775.1 $* 2914.18 $*
Apr-16-2025 3133.42 $* 3290.17 $*
Mar-16-2025 3105.65 $* 3260.43 $*
Feb-16-2025 3078.88 $* 3232.52 $*
Jan-16-2025 3050.68 $* 3203.96 $*

Характеристики



Our Advantages








Details Images

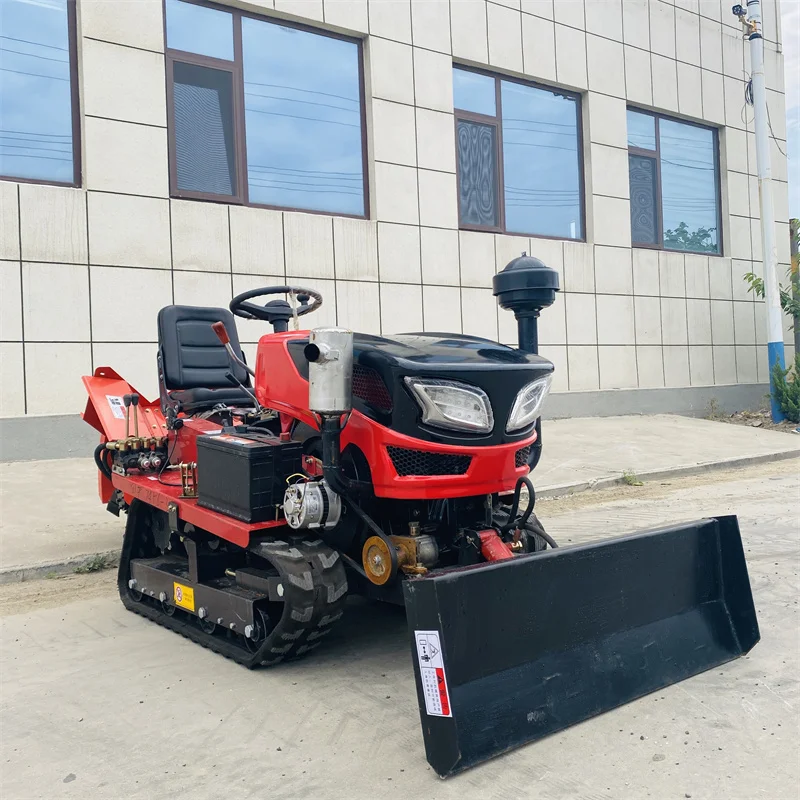

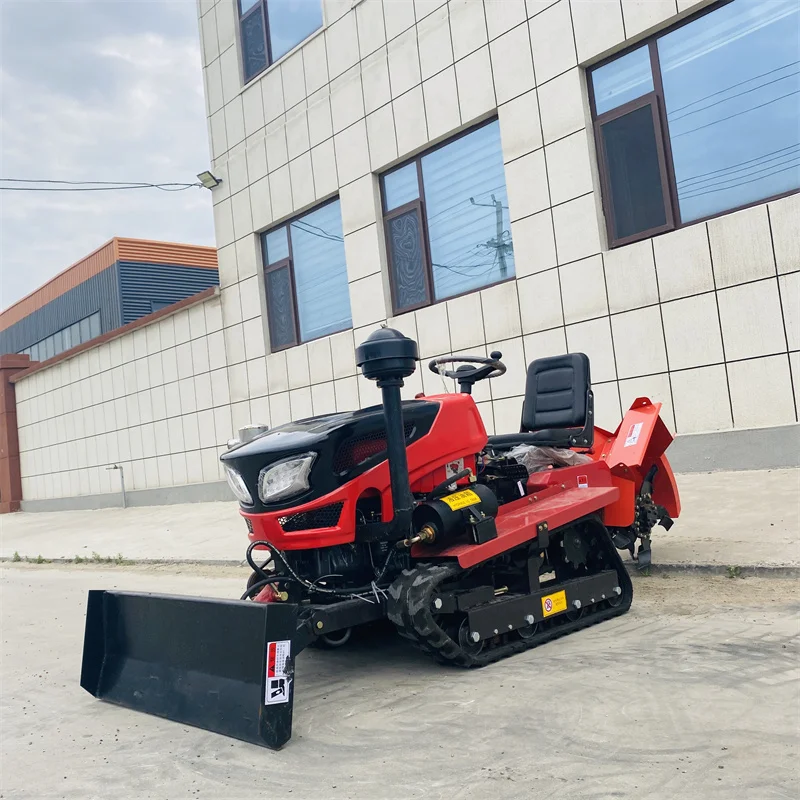

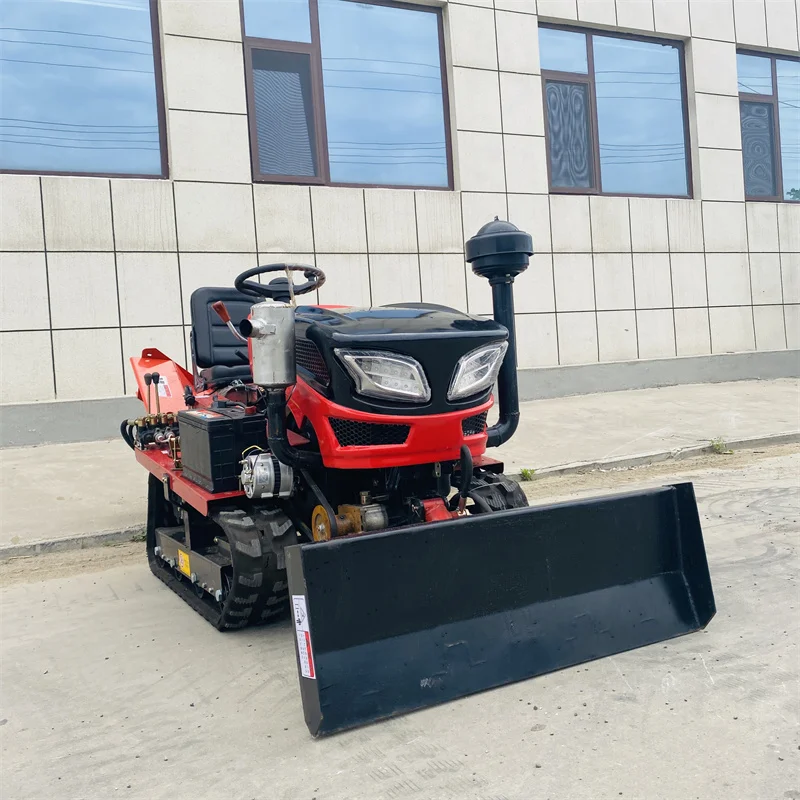

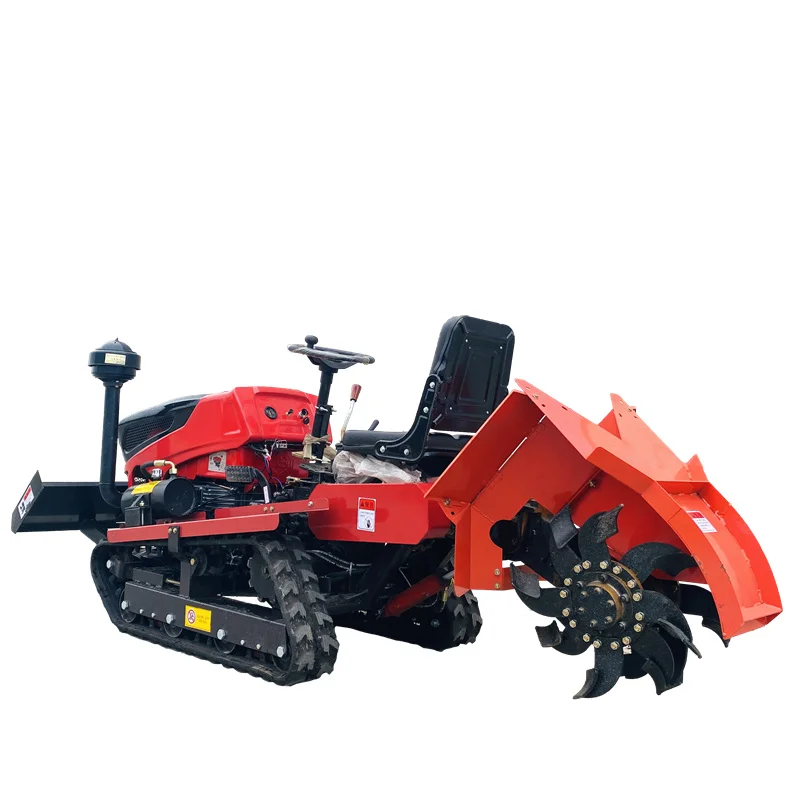

Rotary Cultivator Tractor
Reasonably Designed Frame
Made of Thickened Steel Plate
Effectively reduce the vibration generated by the engine
Prolong the service life of the machine

Used for both water and dry land
Machine will not sink in muddy land.
Reinforced and raised chassis
Special widened and thickened track for paddy field
Each roller is made of cast steel with waterproof bearing oil seal inside,
It can be equipped with a variety of agricultural tools,
One machine with multiple purposes.








Product Parameters


Model
Parameter
Remarks
25 HP riding crawler rotary tiller
Overall dimensions
2550*900*1150 mm
Standard configuration: 5 kinds of agricultural tools (rotary tillage, weeding, trenching, backfilling, bulldozing shovel) are
presented
Diesel engine brand
Changzhou engine / Custom Acceptable
Overall weight
700 kg
Oil consumption
1-2l / mu
Transmission mode
gear drive
Track size
180 mm wide
Gear
3 forward gears, 1 reverse gear, 8 high and low speed gears in total
Walking speed
2 km/h
Working speed
About 1-2 mu / h
Air filter
Oil filter
Water tank
Dry the pot type water tank without water shortage
Standard agricultural tools
Bulldozing width: 90cm, rotary tillage: 100cm, trench depth: 20cm
Width: 20cm; weeding width: 90CM; backfilling width: 90CM
transmission case
Customized pure gear transmission
engine speed
2200rpm
25 HP track rotary cultivator
Overall dimensions
2400*1060*1500 mm
Standard configuration: 5 kinds of agricultural tools (rotary tillage, weeding, trenching, backfilling) are presented
Diesel engine brand
Changzhou engine / Custom Acceptable
Overall weight
750 kg
Oil consumption
1-2l / mu
Transmission mode
gear drive
Track size
250 mm wide
Gear
3 forward gears, 1 reverse gear, 8 high and low speed gears in total
Walking speed
2 km/h
Working speed
About 1-2 mu / h
Air filter
Oil filter
Water tank
Dry the pot type water tank without water shortage
Standard agricultural tools
Rotary tillage: 100cm, trench depth: 20cm;Width: 20cm; weeding width: 90CM; backfilling width: 90CM
transmission case
Customized pure gear transmission
engine speed
2200rpm
35 HP riding crawler rotary tiller, remote control
Overall dimensions
2850*1000*1200 mm
Standard configuration: 5 kinds of agricultural tools (rotary tillage, weeding, trenching, backfilling, bulldozing shovel) are
presented
Diesel engine brand
Changzhou engine / Custom Acceptable
Overall weight
750 kg
Oil consumption
1-2l / mu
Transmission mode
gear drive
Track size
180 mm wide
Gear
3 forward gears, 1 reverse gear, 8 high and low speed gears in total
Walking speed
5 km/h
Working speed
About 1-3 mu / h
Air filter
Oil filter
Water tank
Dry the pot type water tank without water shortage
Standard agricultural tools
Bulldozing width: 100cm, rotary tillage: 100cm, trench opening depth: 35cm, width: 35cm, weeding width: 100cm, and backfilling
width: 100cm
transmission case
Customized pure gear transmission
engine speed
2200rpm
Simple 35 HP riding crawler rotary tiller
Configuration: 25 horsepower frame and gearbox, replaced with a 35 horsepower engine, not recommended for main propulsion
Hood
35 HP Water and dry crawler
Overall dimensions
2600*1100*1500 mm
Standard configuration: 5 kinds of agricultural tools (rotary tillage, weeding, trenching, backfilling) are presented
Diesel engine brand
Changzhou engine / Custom Acceptable
Overall weight
850 kg
Oil consumption
1-2l / mu
Transmission mode
gear drive
Track size
250 mm wide
Gear
3 forward gears, 1 reverse gear, 8 high and low speed gears in total
Walking speed
5 km/h
Working speed
About 1-3 mu / h
Air filter
Oil filter
Water tank
Dry the pot type water tank without water shortage
Standard agricultural tools
Rotary tillage: 100cm, trench opening depth: 35cm, width: 35cm, weeding width: 100cm, and backfilling width: 100cm
transmission case
Customized pure gear transmission
engine speed
2200rpm
35 HP round remote-controlled crawler rotary tiller
Overall dimensions
2490*930*830 mm
Standard configuration: 5 kinds of agricultural tools (rotary tillage, weeding, trenching, backfilling, bulldozing shovel) are
presented
Diesel engine brand
Changzhou engine / Custom Acceptable
Overall weight
780 kg
Oil consumption
1-2l / mu
Transmission mode
gear drive
Track size
180 mm wide
Gear
3 forward gears, 1 reverse gear, 8 high and low speed gears in total
Walking speed
5 km/h
Working speed
About 1-2 mu / h
Air filter
Oil filter
Water tank
Dry the pot type water tank without water shortage
Standard agricultural tools
Rotary tillage: 100cm; Trench depth: 35cm; Width: 35cm; Weeding width: 100cm; Backfill width: 100cm; Fertilization: 30cm
transmission case
Customized pure gear transmission
engine speed
2200rpm
50 HP crawler tractor
Overall dimensions
2700*1350*1300 mm
It can be used with all wheeled tractors and farm implements (with suspension)
Diesel engine brand
Ledong 490 / Custom Acceptable
Overall weight
1300 kg
Oil consumption
2-3 l / mu
Transmission mode
Shaft drive
Track size
230 mm wide
Gear
4 forward gears, 1 reverse gear, 10 high and low speed gears in total
Walking speed
20 km/h
Working speed
About 2-7 mu / h
Air filter
Paper filter
Water tank
The antifreeze needs to be replaced in cold weather, and the water tank cannot lack water
Accessory matching
Optional Rotary Tillage, Weeding, Trenching, Backfilling, Bulldozer, Ridge Ridging, Seeding, Twin-bamboo Plough, Loading Bucket,
etc.
transmission case
Patented custom gearbox
engine speed
2400rpm
50 HP crawler grain loader
Overall dimensions
3650*1350*1300 mm
It can be used with all wheeled tractors and farm implements (with suspension)
Diesel engine brand
Ledong 490 / Custom Acceptable
Overall weight
1600 kg
Oil consumption
2-3 l / mu
Transmission mode
Shaft drive
Track size
230 mm wide
Gear
4 forward gears, 1 reverse gear, 10 high and low speed gears in total
Walking speed
20 km/h
Working speed
About 2-7 mu / h
Air filter
Paper filter
Water tank
The antifreeze needs to be replaced in cold weather, and the water tank cannot lack water
Accessory matching
Optional Rotary Tillage, Weeding, Trenching, Backfilling, Bulldozer, Ridge Ridging, Seeding, Twin-bamboo Plough, Loading Bucket,
etc.
transmission case
Patented custom gearbox
engine speed
2400rpm
50 HP Water and dry crawler tractor
Overall dimensions
2700*1550*1500 mm
It can be used with all wheeled tractors and farm implements (with suspension)
Diesel engine brand
Ledong 490 / Custom Acceptable
Overall weight
1500 kg
Oil consumption
2-3 l / mu
Transmission mode
Shaft drive
Track size
350 mm wide
Gear
4 forward gears, 1 reverse gear, 10 high and low speed gears in total
Walking speed
20 km/h
Working speed
About 2-7 mu / h
Air filter
Paper filter
Water tank
The antifreeze needs to be replaced in cold weather, and the water tank cannot lack water
Accessory matching
Optional Rotary Tillage, Weeding, Trenching, Backfilling, Bulldozer, Ridge Ridging, Seeding, Twin-bamboo Plough, Loading Bucket,
etc.
transmission case
Patented custom gearbox
engine speed
2400rpm
60 HP crawler tractor
Overall dimensions
2700*1350*1300 mm
It can be used with all wheeled tractors and farm implements (with suspension)
Diesel engine brand
Ledong 495 / Custom Acceptable
Overall weight
1600 kg
Oil consumption
2-3 l / mu
Transmission mode
Shaft drive
Track size
230 mm wide
Gear
4 forward gears, 1 reverse gear, 10 high and low speed gears in total
Walking speed
20 km/h
Working speed
About 2-7 mu / h
Air filter
Paper filter
Water tank
The antifreeze needs to be replaced in cold weather, and the water tank cannot lack water
Accessory matching
Optional Rotary Tillage, Weeding, Trenching, Backfilling, Bulldozer, Ridge Ridging, Seeding, Twin-bamboo Plough, Loading Bucket,
etc.
transmission case
Patented custom gearbox
engine speed
2400rpm
60 HP Water and dry crawler tractor
Overall dimensions
2700*1550*1500 mm
It can be used with all wheeled tractors and farm implements (with su
spension)
Diesel engine brand
Ledong 495 / Custom Acceptable
Overall weight
1600 kg
Oil consumption
2-3 l / mu
Transmission mode
Shaft drive
Track size
350 mm wide
Gear
4 forward gears, 1 reverse gear, 10 high and low speed gears in total
Walking speed
20 km/h
Working speed
About 3-5 mu / h
Air filter
Paper filter
Water tank
The antifreeze needs to be replaced in cold weather, and the water tank cannot lack water
Accessory matching
Optional Rotary Tillage, Weeding, Trenching, Backfilling, Bulldozer, Ridge Ridging, Seeding, Twin-bamboo Plough, Loading Bucket,
etc.
transmission case
Patented custom gearbox
engine speed
2400rpm
80 HP Water and dry crawler tractor
Overall dimensions
2900*1600*1900 mm
It can be used with all wheeled tractors and farm implements (with su
spension)
Diesel engine brand
Ledong 495 supercharged engine / Custom Acceptable
Overall weight
2000 kg
Oil consumption
3-4 l / mu
Transmission mode
Hydraulic shaft transmission
Track size
350 mm wide
Gear
4 forward gears, 1 reverse gear, 10 high and low speed gears in total
Walking speed
10 km/h
Working speed
About 1-4 mu / h
Air filter
Paper filter
Water tank
The antifreeze needs to be replaced in cold weather, and the water tank cannot lack water
Accessory matching
Optional Rotary Tillage, Weeding, Trenching, Backfilling, Bulldozer, Ridge Ridging, Seeding, Twin-bamboo Plough, Loading Bucket,
etc.
transmission case
Patented custom gearbox
engine speed
2400rpm
80 HP crawler grain loader
Overall dimensions
4100*1600*1900 mm
It can be used with all wheeled tractors and farm implements (with suspension)
Diesel engine brand
Ledong 495 supercharged engine / Custom Acceptable
Overall weight
2300 kg
Oil consumption
3-4 l / mu
Transmission mode
Hydraulic shaft transmission
Track size
350 mm wide
Gear
4 forward gears, 1 reverse gear, 10 high and low speed gears in total
Walking speed
10 km/h
Working speed
About 1-4 mu / h
Air filter
Paper filter
Water tank
The antifreeze needs to be replaced in cold weather, and the water tank cannot lack water
Accessory matching
Optional Rotary Tillage, Weeding, Trenching, Backfilling, Bulldozer, Ridge Ridging, Seeding, Twin-bamboo Plough, Loading Bucket,
etc.
transmission case
Patented custom gearbox
engine speed
2400rpm
100 HP water and dry dual-use crawler traction
Overall dimensions
2900*1600*1900 mm
It can be used with all wheeled tractors and farm implements (with suspension)
Diesel engine brand
Ledong 4100 non supercharged engine / Custom Acceptable
Overall weight
2000 kg
Oil consumption
3-4 l / mu
Transmission mode
Hydraulic shaft transmission
Track size
350 mm wide
Gear
4 forward gears, 1 reverse gear, 10 high and low speed gears in total
Walking speed
10 km/h
Working speed
About 6-8 mu / h
Air filter
Paper filter
Water tank
The antifreeze needs to be replaced in cold weather, and the water tank cannot lack water
Accessory matching
Optional Rotary Tillage, Weeding, Trenching, Backfilling, Bulldozer, Ridge Ridging, Seeding, Twin-bamboo Plough, Loading Bucket,
etc.
transmission case
Patented custom gearbox
engine speed
2400rpm

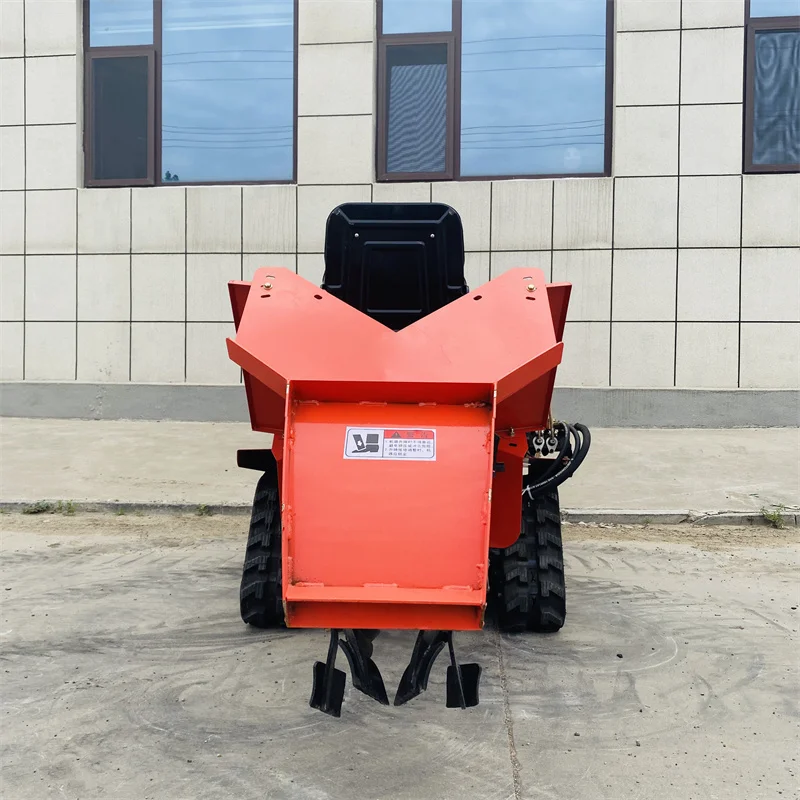

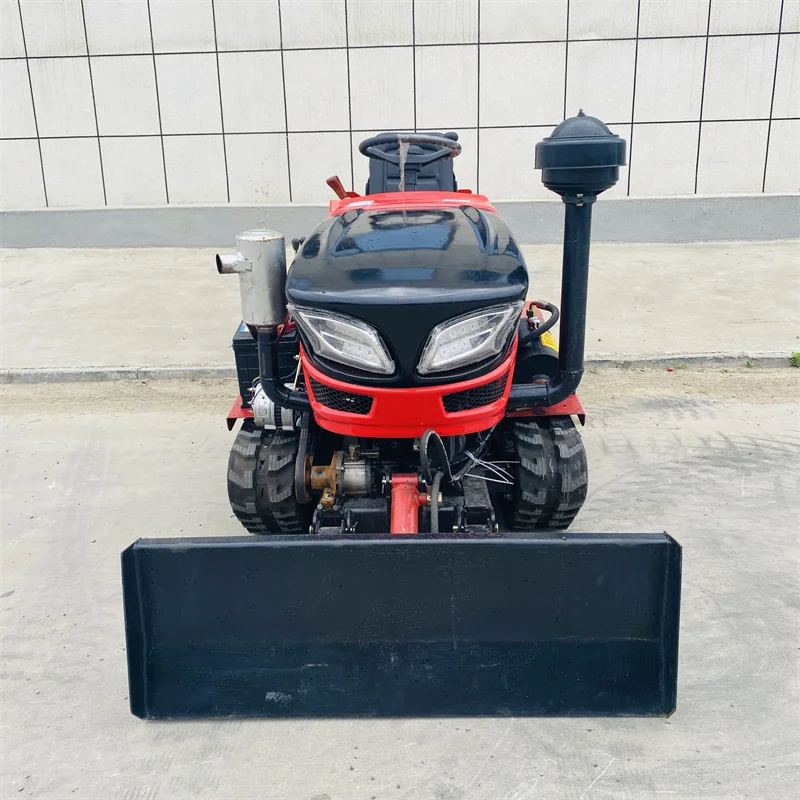

120 HP water and dry dual-use crawler traction
Overall dimensions
3000*1700*1900 mm
(with suspension and counterweight) can be used with all wheeled tractors and farm implements
Diesel engine brand
Ledong 4000 supercharged engine / Custom Acceptable
Overall weight
2000 kg
Oil consumption
3-4 l / mu
Transmission mode
Hydraulic shaft transmission
Track size
400 mm wide
Gear
4 forward gears, 1 reverse gear, 10 high and low speed gears in total
Walking speed
10 km/h
Working speed
About 3-9 mu / h
Air filter
Paper filter
Water tank
The antifreeze needs to be replaced in cold weather, and the water tank cannot lack water
Accessory matching
Optional Rotary Tillage, Weeding, Trenching, Backfilling, Bulldozer, Ridge Ridging, Seeding, Twin-bamboo Plough, Loading Bucket,
etc.
transmission case
Patented custom gearbox
engine speed
2400rpm


Application


A rotary cultivator is a tool that is used to loosen, aerate, and prepare soil for new planting or to enhance the condition of soil for existing plantings. A rotary cultivator, often known as a rototiller or rotocultivator, consists of sharp rotating tines or blades that are typically made of steel or aluminum. The rotating tines dig into the soil, loosening and aerating the soil in a process known as cultivation.

How to decide or select a crawler rotary cultivator tractor or a wheeled rotaryy tiller one?
For crawler rotary cultivatior, it's applicable for below situation:
1. Mountains, hills, greenhouses, orchards and other places with narrow space and complex terrain
2. Paddy field in rainy season
3. Strong traction and short journey

For others cases, you can choose wheel rotary cultivator tractor / wheel rptary tiller.








Recommend Products


Excavator
crawler excavator, wheel excavator, wheel-crawler excavator
Loader
wheel loader
backhoe loader
Forklift
hydraulic forklift,
power forklift
Road Roller
small road roller
Pile Drive
small / mini pile drive
Spare Parts
Spare parts for machinery (bushing, pins and rolls etc.)
More
Coming soon




Company Introduction




GuanChuang (NingBo) Intelligent Equipment Co., Ltd is a professional manufacturer and exporter engaged in the research, development, production, sale and service of small construction, agriculture and graziery use machine, certified by CE certificate and TUV audit, with high quality by our professional team and more than 11-years-experience. Our business cope covers Excavator, Loader (backhoe loader, mini loader, telescopic loader), Forklift, Road Roller, Tractor, Rotary Cultivator, Law Mower, dumper tricycle etc. and spare parts for machinery (bushing, pins and rolls etc.)

GuanChuang has been adhering to the "customer first, quality first, service first" market principles.

GuanChuang supports our customer by HD photo and HD videos of the machines. We're also glad to show the Video of ours production line and warehouse to you. You're so welcomed to check the machines onsite.

GuanChuang also supports OEM and ODM as requested. It's acceptable for you to select a current product from our catalog or seek engineering assistance for your application, you can reach GuanChuang about your sourcing needs.

GuanChuang will never and ever stop to provide more and better products to the international stage.


After-sale Service


1. Reach us anytime if you need our help, we have professional engineers here to service you 24/7. We can provide detailed installation videos and pictures. Or send engineers team if necessary.

2. There's a 24 months warranty. If any parts of the machine break itself during the warranty period, not the artificial damage, please reach us, we will cover all the cost including the freight.

3. Renew the contract after the expiry of warranty to make sure you can enjoy the same service.

4. We will stress on the service training of the staffs to make sure you're satisfied with our service.

5. If you need, you can come to visit our factory onsite for your staff training for free, or we can also provide online training.


Shipment and Packaging


Shipping Choices
Generally ship it by Sea, LCL or FCL
the most cost-efficient way

FOB is the most common one.
We can also do CNF, CIF, etc.

If urgent, we can also find a solution for air shipping, or something else, but don't recommend it considering the high cost.


Wood Box
Generally used for
LCL (less than one container)
Steel Frame
Generally used for
FCL (Full container)
Custom Packing
acceptable as requested,
like PVC films wrap




FAQ


1. What's the MOQ (Minimum Order Quantity)?
A: 1 unit.

2. Can GuanChuang support massive production (OEM or ODM), even for one piece?
A: Definitely acceptable to OEM or ODM. We support customization, even for one piece. As we know, the customized prototypes will be charged accordingly and need you provide the design artwork.
It's acceptable to you to select a current product from our catalog or seek engineering assistance for your application, you can reach GuanChuang about your sourcing needs.

3. What's the Payment Terms?
A: Alibaba Trade Assurance online or T/T offline.

4. What's the shipping way and delivery time?
A: Normally by Sea, FOB (QingDao), CFR, CIF, taking 20-50 days according to your address and order quantity after the ship leaves China.
If urgent, Air shipping for small machine, taking 5-15 days according to your details.

5. What if we want it to be delivered to my door?
A: Of course, it can be.
If you're quite closed to the port, we recommend you to pick it up directly, you will save A LOT OF Money in this way!!!
If not so closed, we recommend you to find an Inland Transportation Company by yourself to handle the import procedures, we will assist him at the same time; we can also find an agency for you, but we don't recommend it because the toll will be very high, not cost-efficient. During the assistance, we will not charge any Intermediate fees or additional service fees other than the freight.

6. What about the production time?
A: Generally within 7-10 workdays after receiving the payment for small quantity. 15-35 workdays for large quantity.

7. What about the After-Sales after I get it? How to install it?
A: Reach us anytime if you need our help, we have professional engineers here to service you 24/7 hours. We can provide detailed installation videos and pictures. Or send engineers team if necessary.

8. What's the warranty.
A: There's a 24 months warranty. If any parts of the machine break itself during the warranty period, not the artificial damage, please reach us, we will cover all the cost including the freight.

9. What's your company type?
A: GuanChuang is a manufacturer and export company. Factory is located in ShanDong Province, Office is located in NingBo, Zhejiang Province. You're so welcomed to visit us.


Good Supplier


Good Supplier
We are good supplier in the international trade.
You can enter "GuanChuang" to get the search result to prove there's no complain of us. Reliable Supplier to you.
Don't hesitate to reach us for more.




Похожие товары

Данные ресурс не является интернет-магазином, а лишь содержит ссылки на международную торговую площадку Alibaba.com
