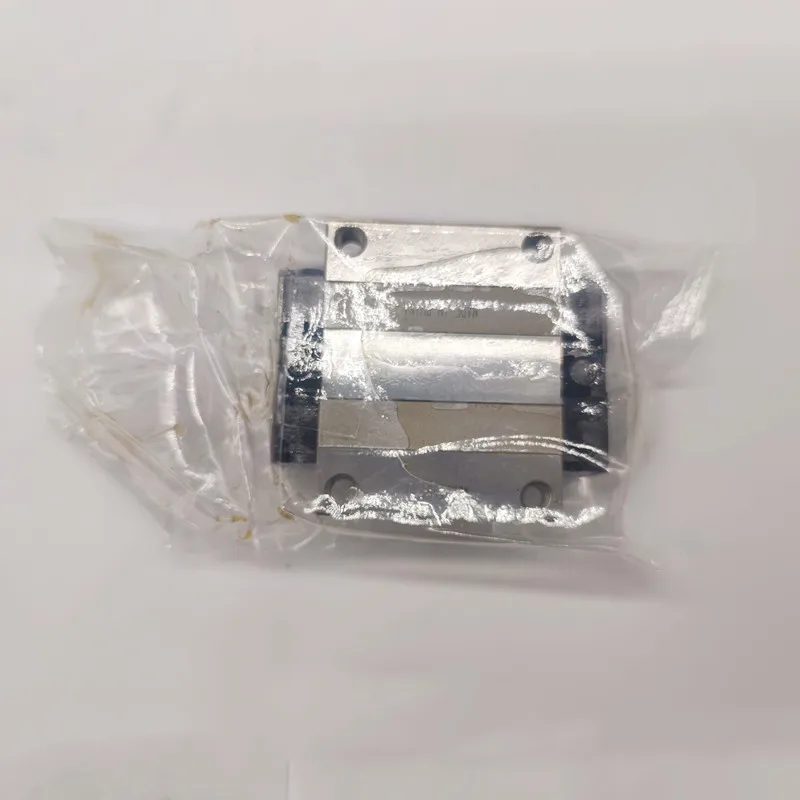

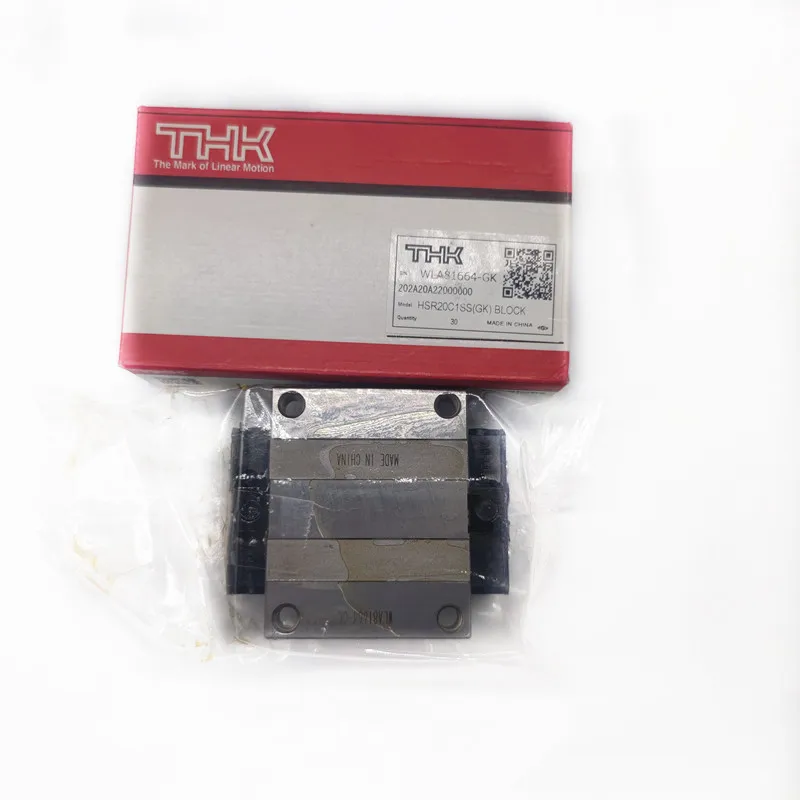

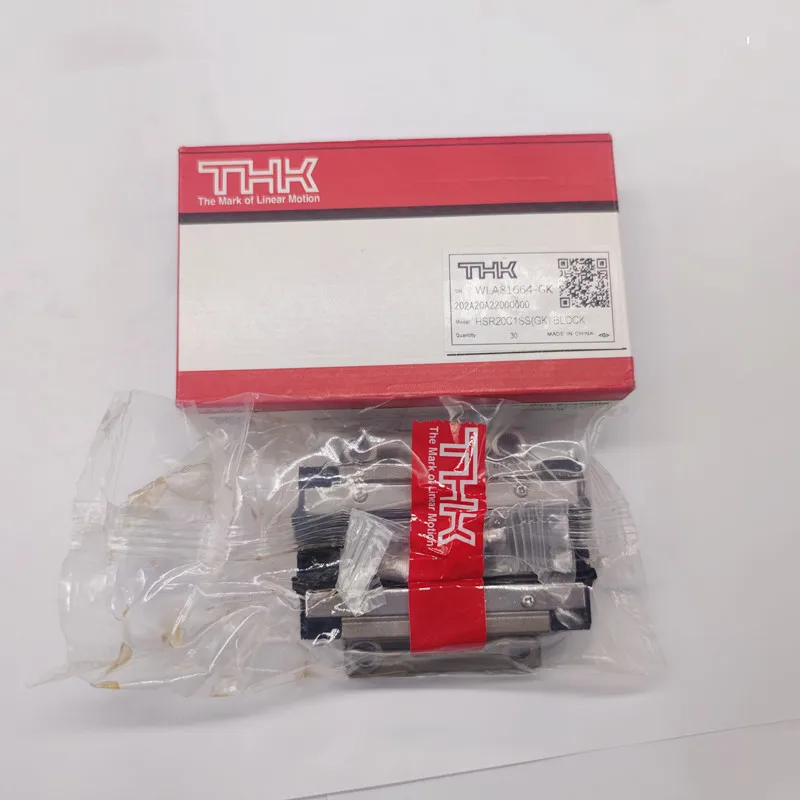

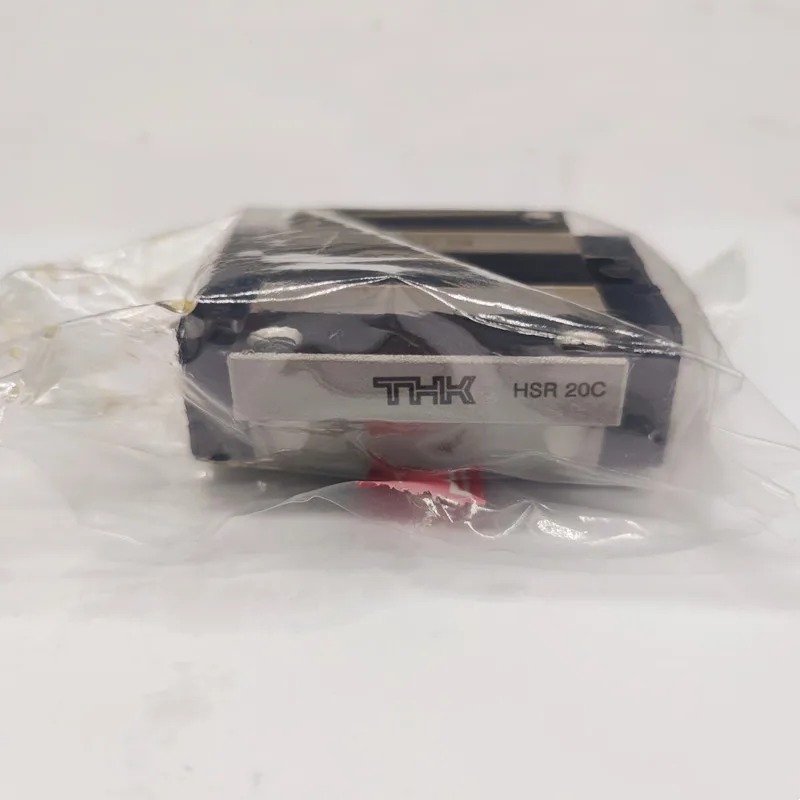

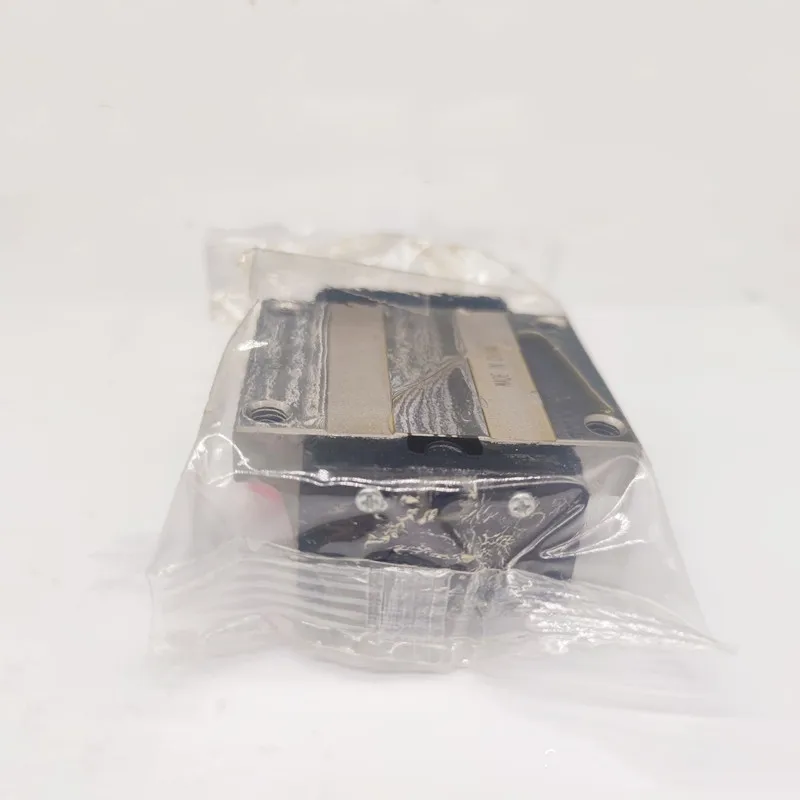

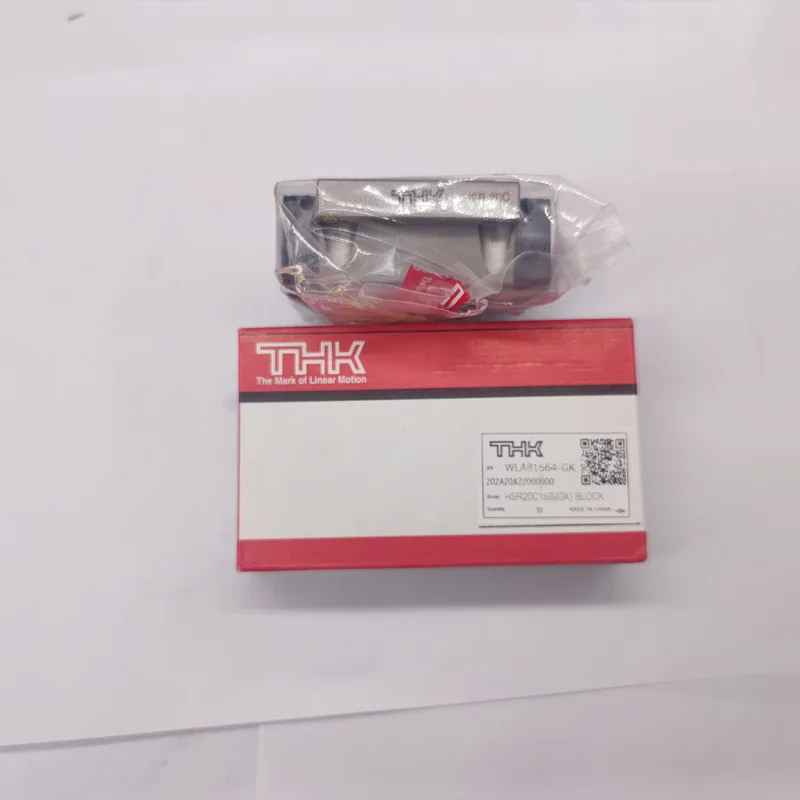

Япония THK линейный направляющий рельсовый блок HSR20C

Structure and Features
Balls roll in four rows of raceways precision-ground on an LM rail and an LM block, and endplates
incorporated in the LM block allow the balls to circulate.

Since retainer plates hold the balls, they do not fall off even if the LM rail is pulled out (except models HSR 8, 10 and 12).

Each row of balls is placed at a contact angle of 45 so that the rated loads applied to the LM block are uniform in the four directions (radial, reverse radial and lateral directions), enabling the LM Guide to be used in all orientations. In addition, the LM block can receive a well-balanced preload, increasing the rigidity in the four directions while maintaining a constant, low friction coeffi cient. With the low sectional height and the high rigidity design of the LM block, this model achieves highly accurate and stable straight motion.

[4-way Equal Load]
Each row of balls is placed at a contact angle of 45 so that the rated loads applied to the LM block
are uniform in the four directions (radial, reverse radial and lateral directions), enabling the LM
Guide to be used in all orientations and in extensive applications.

[High Rigidity Type]
Since balls are arranged in four rows in a well-balanced manner, a large preload can be applied and
the rigidity in four directions can easily be increased.

[Self-adjustment Capability]
The self-adjustment capability through front-to-front configuration of THK’s unique circular-arc
grooves (DF set) enables a mounting error to be absorbed even under a preload, thus to achieve
highly accurate, smooth straight motion.

[High Durability]
Even under a preload or excessive biased load, differential slip of balls does not occur. As a result, smooth motion, high wear resistance, and long-term maintenance of accuracy are achieved.

[Stainless Steel Type also Available]
A special type which LM block, LM rail and balls are made of stainless steel is also available.

Relative Model

HSR15A HSR20A HSR25A HSR30A HSR35A HSR45A HSR55A HSR65A HSR85A
HSR20LA HSR25LA HSR30LA HSR35LA HSR45LA HSR55LA HSR65LA HSR85LA
HSR15R HSR20R HSR25R HSR30R HSR35R HSR45R HSR55R HSR65R HSR85R
HSR20LR HSR25LR HSR30LR HSR35LR HSR45LR HSR55LR HSR65LR HSR85LR
HSR15B HSR20B HSR25B HSR30B HSR35B HSR45B HSR55B HSR65B HSR85B
HSR20LB HSR25LB HSR30LB HSR35LB HSR45LB HSR55LB HSR65LB HSR85LB
HSR8RM HSR10RM HSR12RM

SSR15XW SSR20XW SSR25XW SSR30XW SSR35XW SSR15XV
SSR20XV SSR25XV SSR15XTBY SSR20XTB SSR25XTBY

SRS9M SRS12M SRS15M SRS20M SRS25M SRS9WM SRS12WM SRS15WM

SHW12CAM SHW14CAM SHW17CAM SHW21CA SHW27CA SHW35CA SHW50CA SHW12CRM SHW12HRM SHW14CRM
SHW17CRM SHW21CR SHW27CR SHW35CR SHW50CR

HRW17CA HRW17CAM HRW21CA HRW21CAM HRW27CA HRW27CAM HRW35CA HRW35CAM HRW50CAHRW60CA
HRW12LRM HRW14LRM HRW17CR HRW17CRM HRW21CR HRW27CRM HRW35CR HRW35CRM HRW50CR

SHS15C SHS15LC SHS20C SHS20LC SHS25C SHS25LC SHS30C SHS30LC SHS35C SHS35LC SHS45C SHS45LC SHS55C SHS55LC SHS65C SHS65LC

SHS15V SHS15LV SHS20V SHS20LV SHS25V SHS25LV SHS30V SHS30LV SHS35V SHS35LV HS45V SHS45LV SHS55V SHS55LV SHS65V SHS65LV

SR15W SR15WM SR15V SR15VM SR20W SR20WM SR20V SR20VM SR25WY SR25WMY SR25VY SR25VMY SR30W SR25WM SR30V SR25VM

SR35W SR35WM SR35V SR35VM SR45W SR55W SR70T SR85T SR100T SR120T SR150T

SR15TB SR15TBM SR15SB SR15SBM SR20TB SR20TBM SR20SB SR20SBM SR25TBY SR25TBMY SR25SBY SR25SBMY

SR30TB SR30TBM SR30SB SR30SBM SR35TB SR30TBM SR35SB SR30SBM SR45TB SR55TB

1.Deep groove ball bearings (68series,69series,60series,62series,63series,64series)
2.Tapered roller bearing(320 series,322 series,323 series)
3.Linear bearing
4.Thrust ball bearing(511 series,512 series,513 series)
5.Cylindrical roller bearing(NU10 series,NJ2 Series,N3 series, NN series)
6.Needle roller bearing
7.Angular contact ball bearing(70 series.72 series.73 series.74 series)
8.Spherical roller bearing
9.Thurst roller bearing
10.Spherical ball bearing(230 series,222series,223series)
11.Pillow block bearing(UCP series, UCF series, UCT series, UCFL series)

1.Professional bearing manufacturer and exporter for more than 10 years;

2.The lowest cost price from our factory with high quality;

3.OEM brand available and customized;

4.Good after-sale service with professional technical engineers.
