Характеристики
Principle of air / water impulse generator
Principle of air / water impulse generator

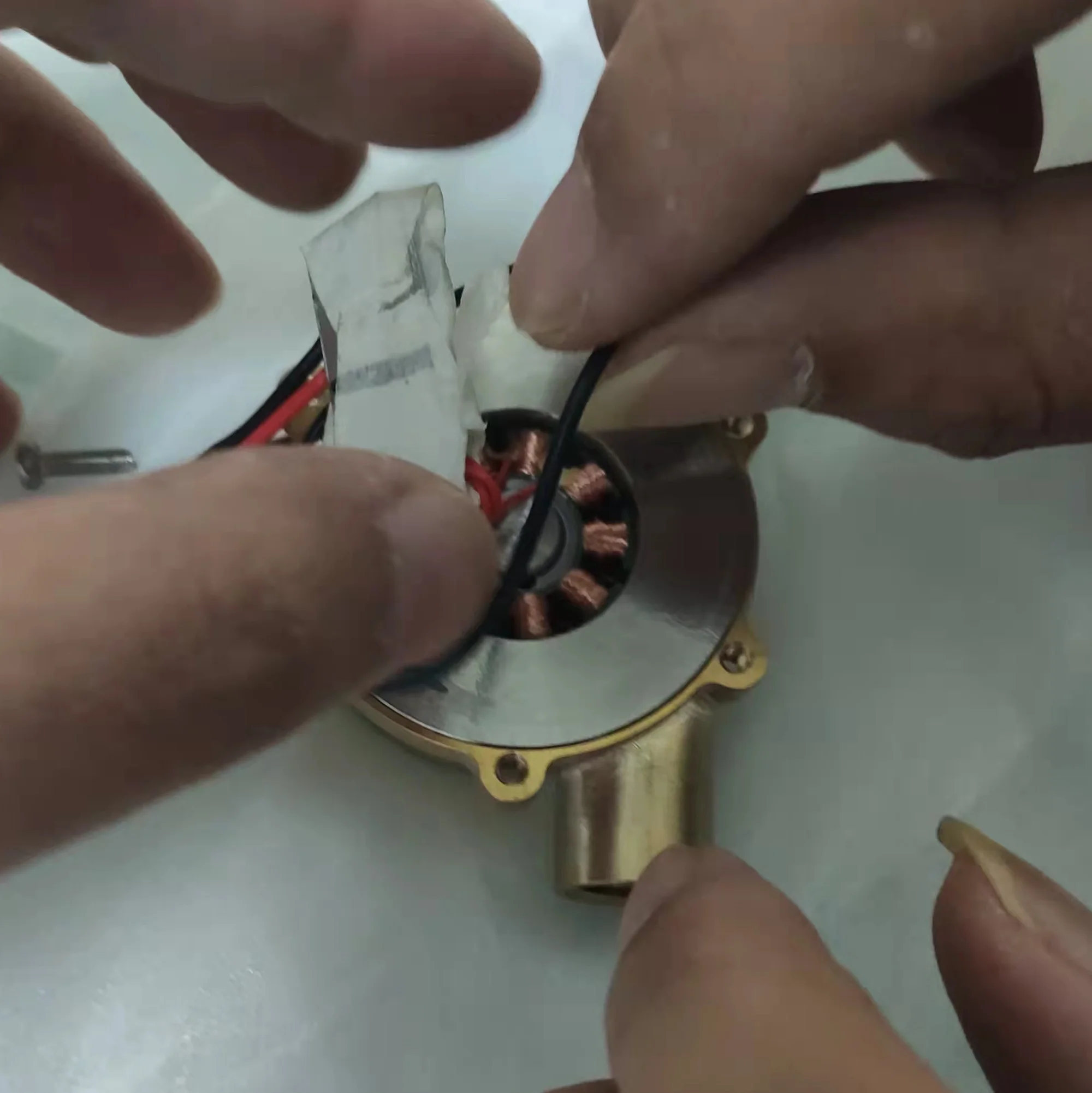

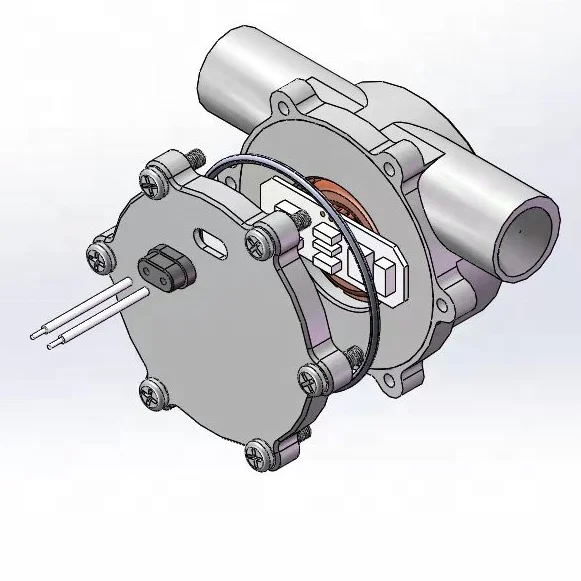

There is provided a micro power generating device, Principle of Gas/Water impact generator.Generator set in the middle of the generator stator coil, impeller be set on the ring magnet generator rotor, wrapped in ring magnet stator coil, air impact impeller, make its rotation, the lines of magnetic force in the process of rotation, the stator coil cutting, according to the principle of electromagnetic induction, can produce a voltage in the stator winding, stator coil connected to the load, creates an electric current in the stator coil.
1、Sealing Test
No air and water leakage at 17bar
2、Air Pressure And Voltage Test Records
Note: The time of gas test should not be too long, because the impeller sample is plastic and will be damaged due to high temperature.
NO. | P/KPA | U/V |
1 | 500 | 19.6 |
2 | 1000 | 38.9 |
3 | 2000 | 79.3 |
4 | 3000 | 120.5 |
5 | 4000 | 158.6 |
6 | 5000 | 196.4 |
3、Air Pressure And Power Test Records
Note: The time of gas test should not be too long, because the impeller sample is plastic and will be damaged due to high temperature.
NO. | P/KPA | p/W |
1 | 500 | 0.63 |
2 | 1000 | 1.21 |
3 | 2000 | 2.38 |
4 | 3000 | 3.49 |
5 | 4000 | 4.44 |
6 | 5000 | 5.30 |
4、Water Pressure And Power Test Records
Note: Water pressure is stable.
NO. | P/MPA | U/V |
1 | 0.05 | 3 |
2 | 0.1 | 5 |
3 | 0.2 | 24 |
4 | 0.3 | 38 |
5 | 0.4 | 46 |
6 | 0.5 | 54 |
7 | 0.6 | 60 |
8 | 0.7 | 66 |
9 | 0.8 | 70 |
5、Water Pressure And Power Test Records
Note: Water pressure is stable.
NO. | P/MPA | p/W |
1 | 0.05 | 0.44 |
2 | 0.1 | 0.61 |
3 | 0.2 | 0.99 |
4 | 0.3 | 1.25 |
5 | 0.4 | 1.44 |
6 | 0.5 | 1.60 |
7 | 0.6 | 1.72 |
8 | 0.7 | 1.80 |
9 | 0.8 | 1.86 |
