Алюминиевый сварочный аппарат волоконный лазер ручной для металла 1000 Вт 2000 Igolden
- Категория: Laser Welders >>>
- Поставщик: Shandong,Igolden,CNC,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 5355.26 $* | 5623.6 $* |
| Aug-16-2025 | 5310.92 $* | 5576.58 $* |
| Jul-16-2025 | 4455.30 $* | 4678.18 $* |
| Jun-16-2025 | 5220.78 $* | 5481.41 $* |
| May-16-2025 | 4545.77 $* | 4772.92 $* |
| Apr-16-2025 | 5130.59 $* | 5387.60 $* |
| Mar-16-2025 | 5085.75 $* | 5339.59 $* |
| Feb-16-2025 | 5040.86 $* | 5292.71 $* |
| Jan-16-2025 | 4995.67 $* | 5245.11 $* |
Характеристики
Product Description
The handheld laser welding machine adopts the latest generation of laser sources for welding stainless steel plates, carbon steel plates, galvanized sheets and other metal materials. Laser welding machines can be used in almost any field that requires metal welding. Compared with traditional welding methods, handheld laser welding machines have the advantages of simple operation, beautiful welds, fast welding speed and high efficiency.
Features:
1. Pure hand-held laser welding machine is a hand-held welding head, which connects the optical fiber to the hand-held welding head, and then realizes various welding of products.
2. The advantage of the handheld laser welding machine is that for products with larger specifications and longer welding lengths, such as sinks and stainless steel kitchen cabinets, they can be welded without placing these products on the workbench.
3. The welding is flexible and easy to operate. In addition to repairing large molds, large machines can also achieve long-distance welding, which can be welded without disassembling the product.
4. It has the advantages of simple operation, beautiful welding seam, fast welding speed, and no consumables. It can perfectly replace traditional argon arc welding, electric welding and other processes for welding thin stainless steel plates, iron plates,galvanized plates and other metal materials.
2. The advantage of the handheld laser welding machine is that for products with larger specifications and longer welding lengths, such as sinks and stainless steel kitchen cabinets, they can be welded without placing these products on the workbench.
3. The welding is flexible and easy to operate. In addition to repairing large molds, large machines can also achieve long-distance welding, which can be welded without disassembling the product.
4. It has the advantages of simple operation, beautiful welding seam, fast welding speed, and no consumables. It can perfectly replace traditional argon arc welding, electric welding and other processes for welding thin stainless steel plates, iron plates,galvanized plates and other metal materials.
Specification
Item No. | iGWL-HW | ||
Laser Wavelength | 1070nm | ||
Laser Power | 1000w/1500w/2000w/3000w | ||
Fiber Type | Continuous/ Modulation | ||
language | Chinese, English, Korean, Japanese, Russian, Traditional, French, Spanish, Israeli（custom made） | ||
Welding mode | 4 types: Normal continuous welding mode TIG welding fish scale welding mode Thin plate QCW self-melting spot welding mode Thick plate welding without oxidation mode | ||
Automatic wire break | Yes | ||
Focus focal length | 150mm | ||
Light source diameter | Adjustable（0.5-5）mm | ||
Fiber length | 8-10m (15moptional) | ||
Pump Source | Semiconductor | ||
Light Beam | ≤1.1 | ||
Voltage | 220V/380V±5%, 50Hz/60Hz | ||
Cooling Method | Water-cooling | ||
Water-cooling Temperature | 15-35℃ | ||
Machine Size | 600*1200*1100+600mm | ||
Machine Weight | 220kg |
Product Details

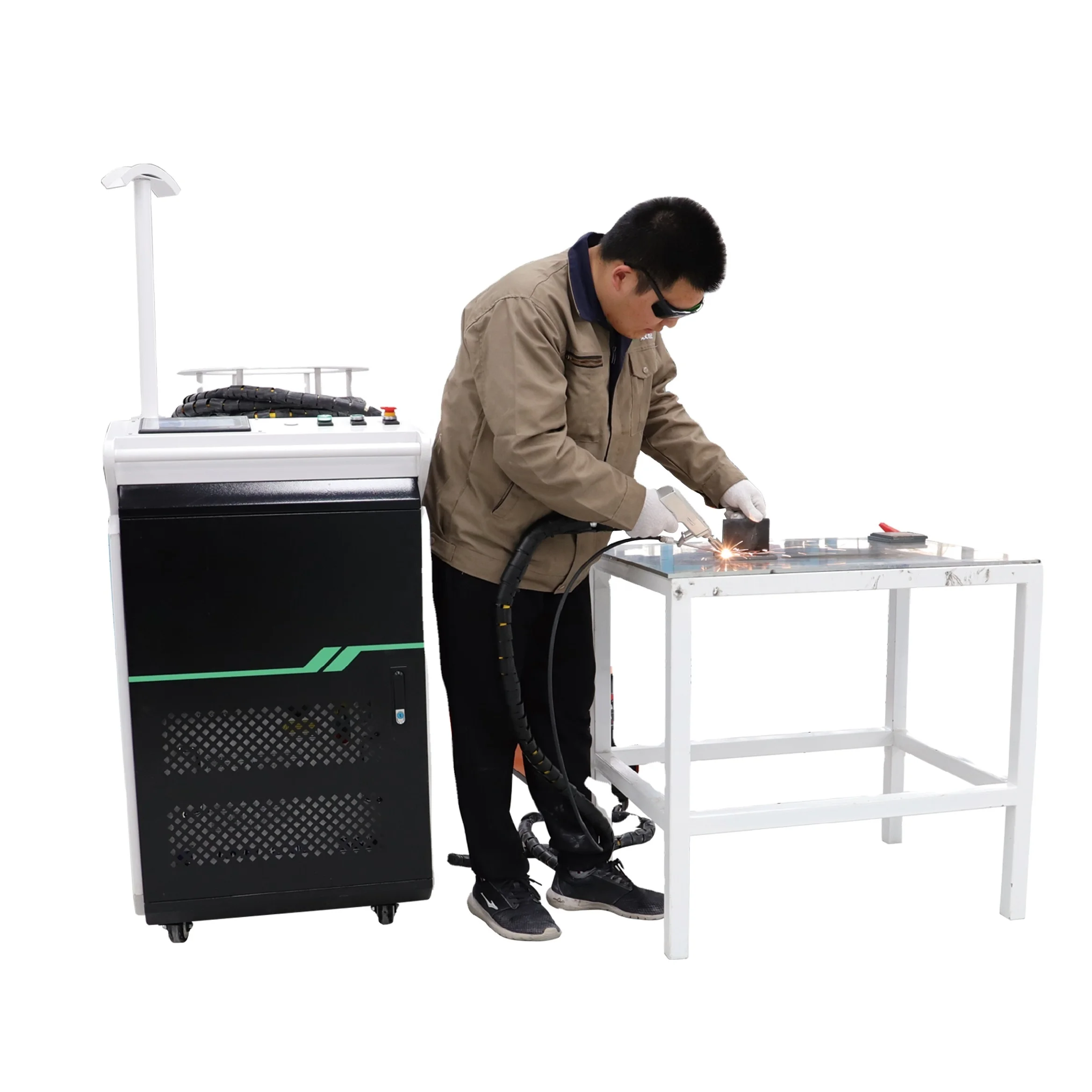

Hand-held welding laser head
The handheld laser welding machine can perform long-distance laser welding of large workpieces. The heat affected area is small during welding, and it will not cause deformation, blackening, and traces on the back of the workpiece. The connection depth is large, the welding is firm, and the melting is sufficient. There is no depression in the joint between the raised part of the molten material in the bath and the substrate! The welding speed is fast, 2-10 times faster than traditional welding, and one machine can save at least 2 welders a year.

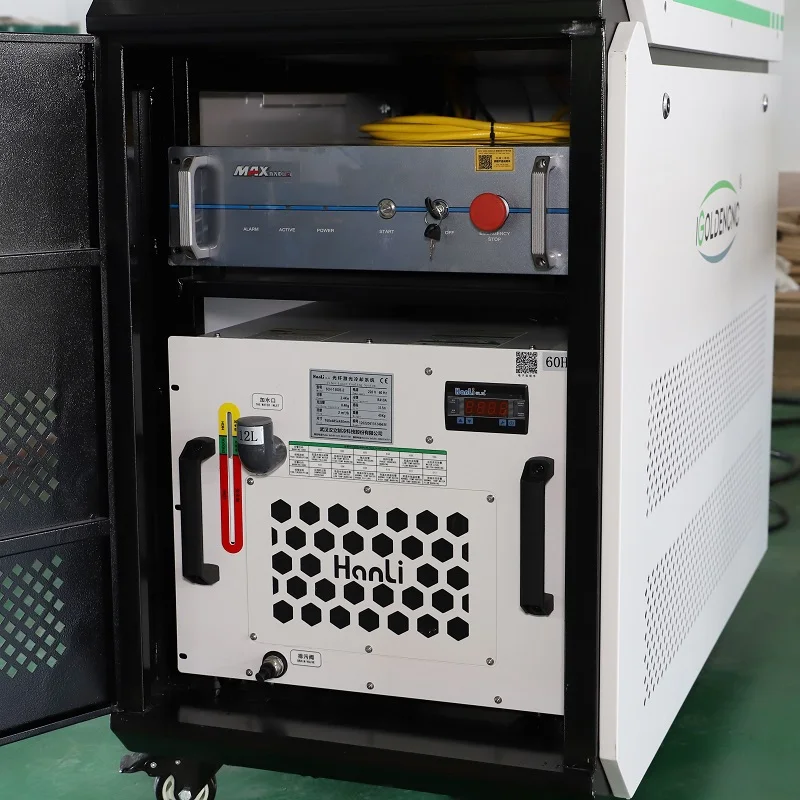

Laser Source
1. The laser adopts water-cooled heat dissipation and rack-mounted chassis design.
2. It has many advantages such as high electro-optical conversion efficiency, low energy consumption, compact structure, adjustment-free maintenance, and easy integration for customers.
3. It is industrial laser welding and other Ideal light source for application.
HANLI Chiller
1. The cooling capacity is up to 1400W, and environmentally friendly refrigerants can be used;
2. Small size, long life and durable, easy to operate;
3. The temperature control accuracy can reach +0.3C;
4. The intelligent thermostat has two temperature control modes, which are suitable for different use occasions; it has a variety of settings and fault display functions;
5. With multiple alarm protection functions.
Sample
Company Profile
Packing & Delivery
FAQ
Q1: How do you guarantee quality?
A1: We have a complete quality inspection process.A machine is only allowed to be packaged if it passes the inspection and there is no problem with the trial operation.
Q2: What services can you provide?
Q2: What services can you provide?
A2: Complete pre-sales and after-sales service system;
Accepted Delivery Terms: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES；
Accepted Payment Currency: USD, EUR, CNY, etc;
Accepted Payment Type: T/T,L/C,Western Union; Language Spoken: English, Chinese, Spanish, Japanese, German, Arabic, Russian, Korean.
Q3: How to operate the machine ?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES；
Accepted Payment Currency: USD, EUR, CNY, etc;
Accepted Payment Type: T/T,L/C,Western Union; Language Spoken: English, Chinese, Spanish, Japanese, German, Arabic, Russian, Korean.
Q3: How to operate the machine ?
A3: We will deliver manual and videos about operating with the machine to you. Our technicians provide online guidance all time. If you have any questions, you can always contact. The operation of this machine is simple, and our tutorial is also very detailed, you don't need to worry about this.
Q4: Can you arrange the shipment for me ?
Q4: Can you arrange the shipment for me ?
A4: Yes, of course we can. Our products have been shipped to dozens of countries and regions in the world, and we are very experienced.You can leave a message with your needs at the bottom, and the dedicated manager will check the freight for you and help you handle subsequent transportation.
All in all, please feel free to contact us for any questions!
All in all, please feel free to contact us for any questions!
