Вставки из карбида вольфрама для майнинга от

Категория: Mining Machine Parts >>>
Поставщик: Zhuzhou,Better,Tungsten,Carbide,Co.,LimitedZhuzhou,Limited

Цена:7 118,38-7 428,78 ₽*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-20-2025	8470.65 $*	8894.85 $*
Aug-20-2025	8399.62 $*	8819.3 $*
Jul-20-2025	7047.88 $*	7399.1 $*
Jun-20-2025	8257.45 $*	8670.90 $*
May-20-2025	7189.60 $*	7548.32 $*
Apr-20-2025	8115.47 $*	8521.11 $*
Mar-20-2025	8043.38 $*	8445.42 $*
Feb-20-2025	7972.42 $*	8371.19 $*
Jan-20-2025	7901.22 $*	8296.4 $*

Характеристики

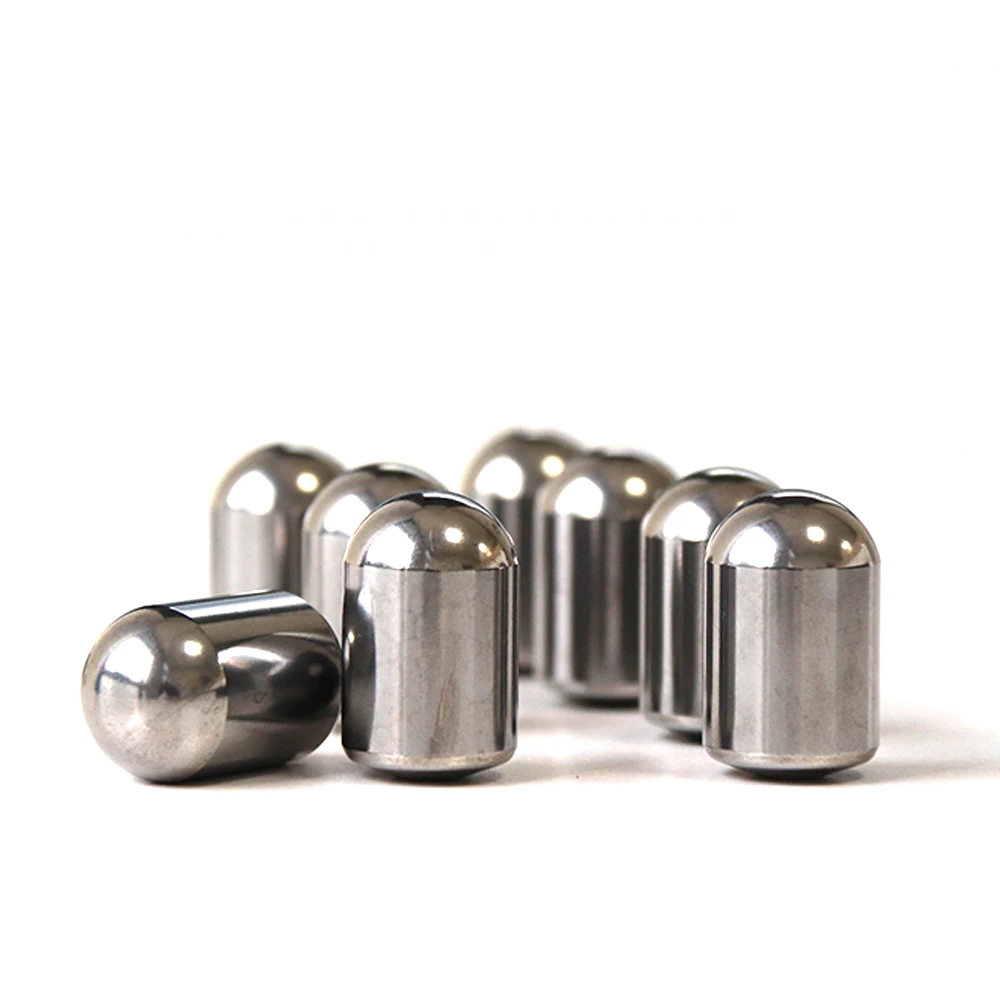

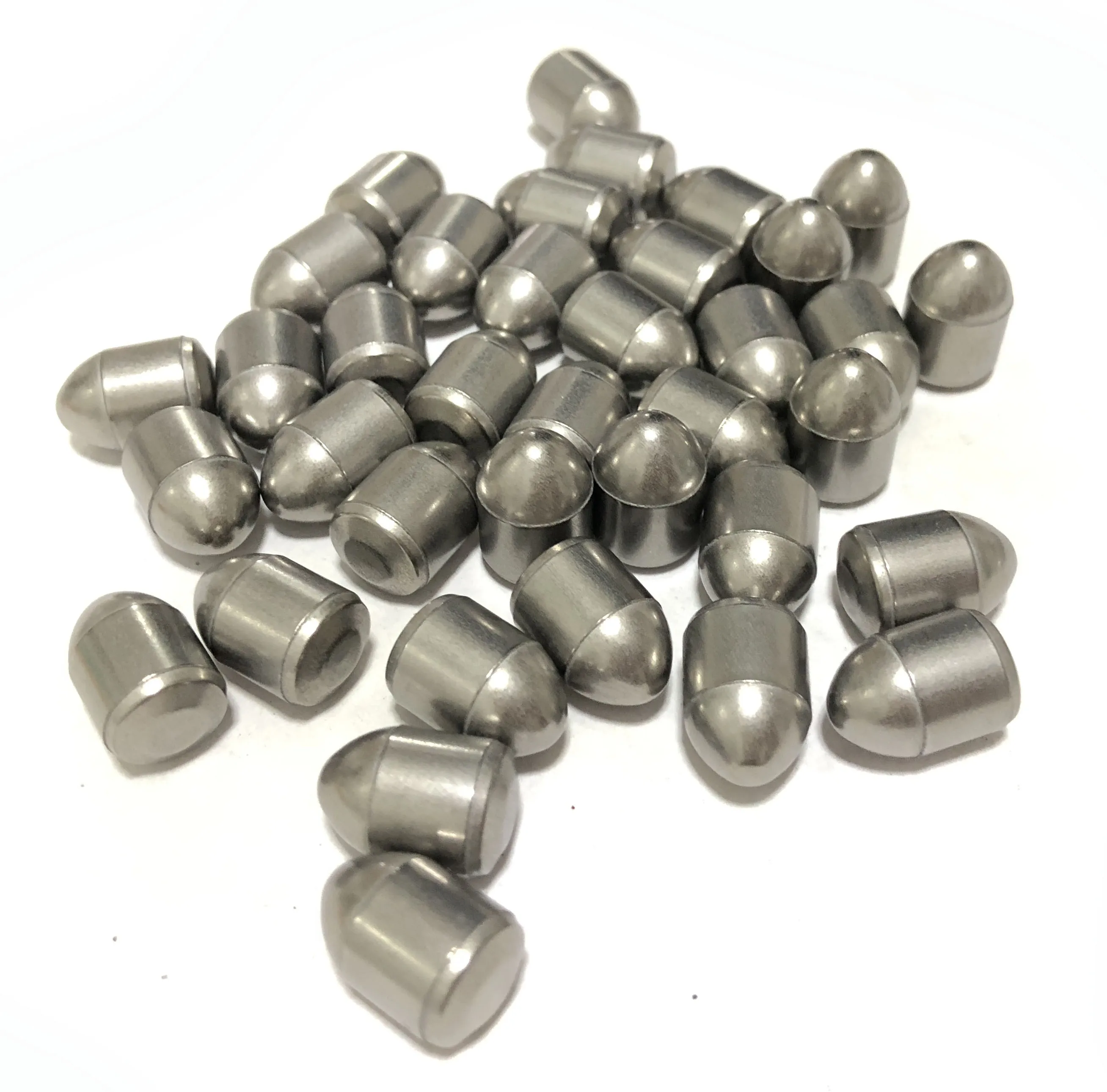

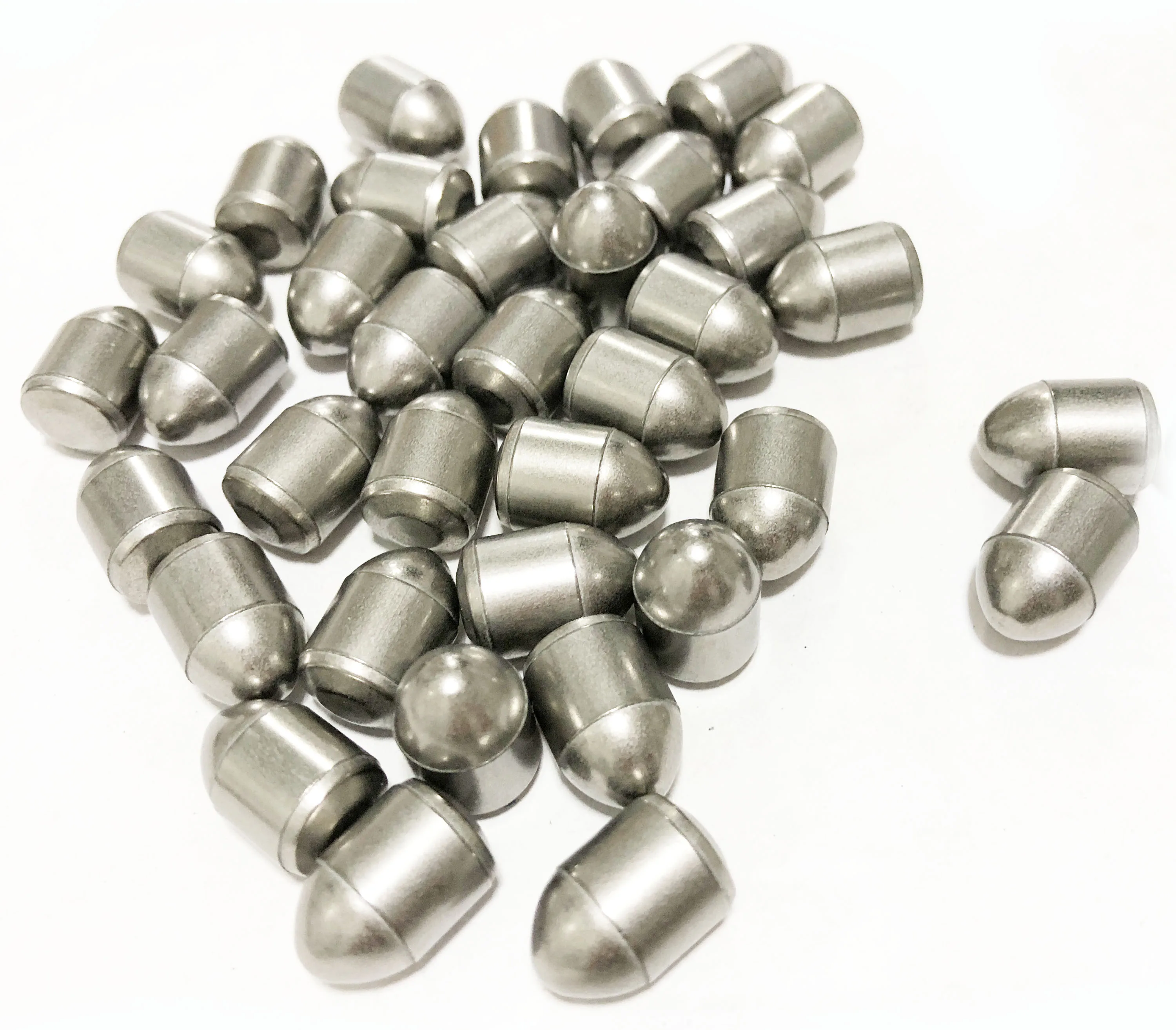

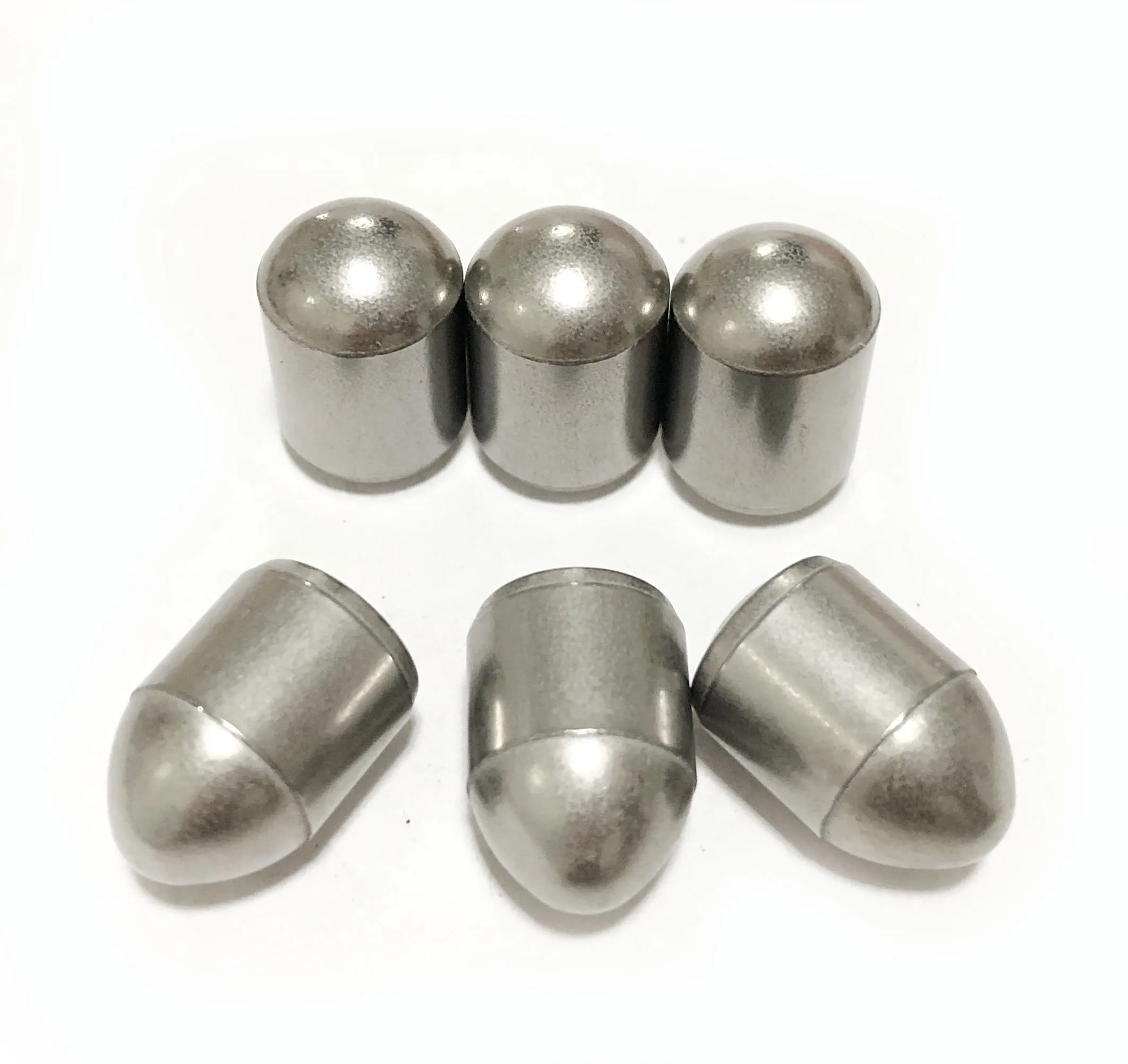

Tungsten carbide Conical button parabolic buttons carbide dome buttons for DTH bits

Product description

Brief introduction about tungsten carbide buttons
Tungsten carbide is used many drilling and mining fields. With high resistance to wear is demanded in drilling, milling, trenching and cutting. ZZbetter offers an extensive product line, including many dimensions and shapes and which is constantly being used on drilling and mining tools. ZZbetter also manufactures tungsten carbide/cemented carbide/ hard alloy buttons in special shapes for certain applications.

Advantages of tungsten carbide buttons
1. Having unique working performance
2. High hardness and good wear resistance
3. Widely used in mining of various rocks and oil drilling.
4. Suitable for crushing very strong granite, limestone and poor iron ore, etc.

Common grades for tungsten carbide buttons

Grade	Density g/cm3	TRS MPa	Hardeness HRA	Applications
YG4C	15.10	1800	90.0	It is mainly used as an impact drill for cutting soft, medium and hard materials
YG6	14.95	1900	90.5	Used as electronic coal bit, coal pick, petroleum cone bit and scraper ball tooth bit.
YG8	14.80	2200	89.5	Used as core drill, electric coal bit, coal pick, petroleum cone bit and scraper ball tooth bit.
YG8C	14.80	2400	88.5	It is mainly used as the ball tooth of small and medium-sized impact bit and as the bearing bush of rotary exploration drill.
YG11C	14.40	2700	86.5	Most of them are used in impact bits and ball teeth used to cut high hardness materials in cone bits.
YG13C	14.2	2850	86.5	It is mainly used for cutting ball teeth of medium and high hardness materials in rotary impact drill.
YG15C	14.0	3000	85.5	It is a cutting tool for oil cone drill and medium soft and medium hard rock drilling.

Application

1. Oil drilling and shoveling, snow plow machines and other equipment.
2. Used for coal drilling tools, mining machinery tools and road maintenance tools.
3. used in quarrying, mining, tunneling, and civil construction.
4. DTH Drill bit, thread drill bit and other drill bits.

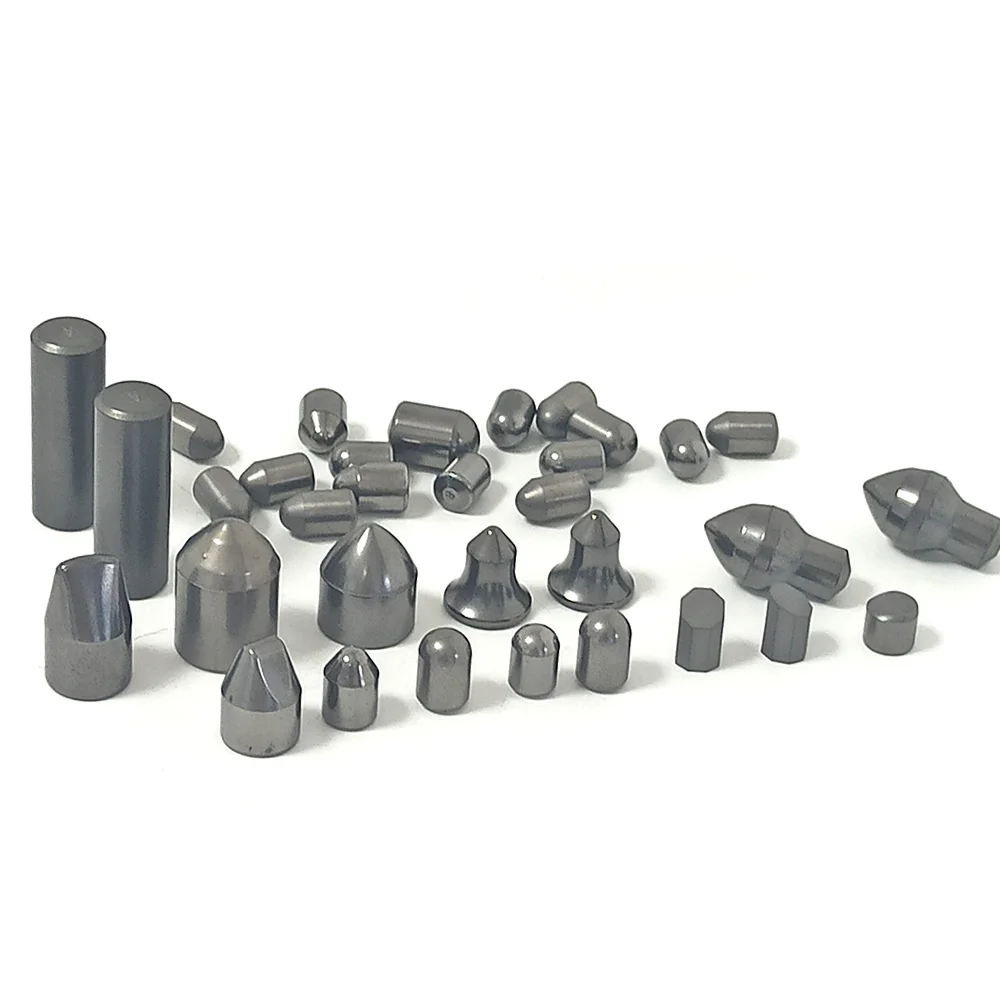

Classifications of tungsten carbide buttons
Spherical Buttons
Carbide Tapered Button
The spoon-shaped button
Parabolic Button
Wedge Button
Road Digging Button
The above-mentioned cemented carbide button of various shapes have their respective ranges of use and working characteristics.
What kind of cemented carbide button should be used based on the test and choose the appropriate cemented carbide button shape
according to the actual situation.
