Product Overview

NOAH SOLARLIFT

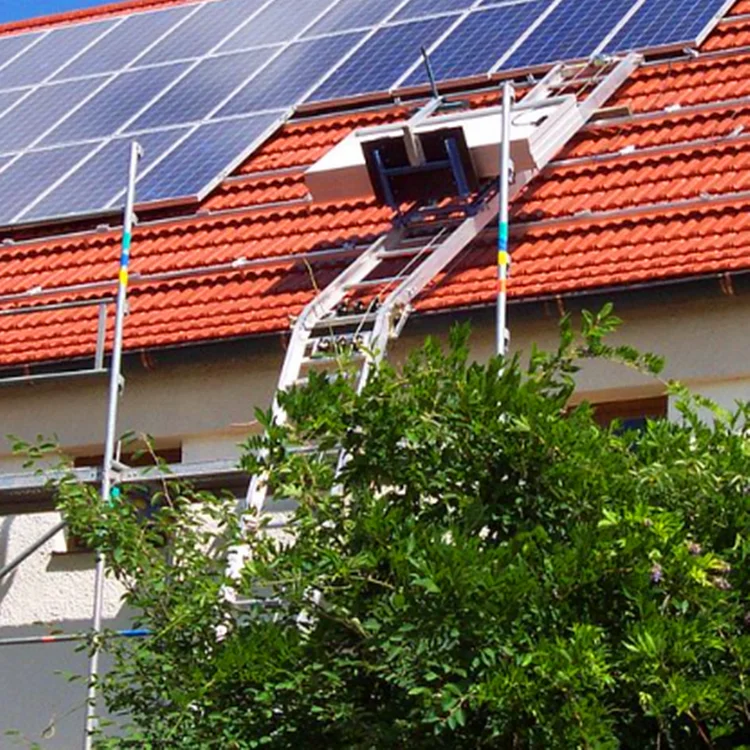

NOAH Solarlift – a Professional Mounting for Photovoltaic Systems

After the decision of placing a photovoltaic system on the roof has been made, the solar panels need to be mounted. It might sound
like a lot of work at first, but NOAH Solarlift is your choice for assembling large and unhandy solar panels and photovoltaic
modules. The NOAH Solarlift is very space-saving. Therefore, it can be installed at places that are not easily accessible. This
feature as well as the quick and easy assembly, the space-saving storage and the easy transport are the main advantages of the
NOAH Solarlift, and the reason for our customers to trust in our German engineered expertise.

FEATURES AT A GLANCE

Pioneering, efficient mast system

Completely new

development

Flexible mast bracket

NOAH Solarlifts – Different Modalities for Your Application Area

The individual elements of the NOAH Solarlift, made of light aluminum, can be dismantled quickly and transported with the help of a chassis in a space-saving and effortless manner. The basic unit of a NOAH solar lift consists of a standard carriage with cable breakage protection, a head section with quick-locking pulley and a 2 m wide foot section. With this equipment three different variants are offered: the single-stage NOAH Lift 200 Standard and NOAH Lift 250 Comfort as well as the two-stage Fixlift 250.

The NOAH Lift 250 Comfort and Fixlift 250 models are equipped with a pluggable electric winch, while the NOAH LIFT 200 Standard has a fixed control unit and limit switch. In addition, the models differ in their load-bearing capacity, which depends on the design of the ladder profiles as well as the inclination and rail length. Simple ladder sections with a load of 150 kg / 200 kg and reinforced elements with a load capacity of 200 kg / 250 kg are offered. The lifting speed also varies from model to model.

Whilethe one-stage standard model NOAH Lift 200 transports the material at up to 25 m/min, the comfort version NOAH Lift 250 achieves a speed of around 30 m/min and the NOAH Fixlift is equipped with a two-stage so-called soft start. It can move the elements at a speed of 19 m/min or 38 m/min.
All models reach a head of up to 19 m, require little space as well as a power connection.

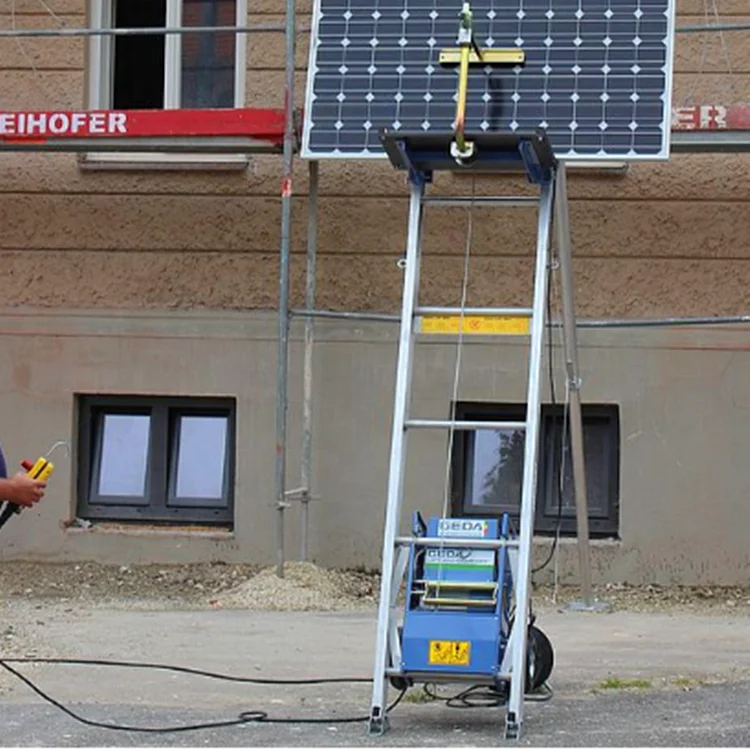

Unique Concept: the Solar Platform

The GEDA Solarlift has particularly been designed for working with sensitive materials and offers a specific solar platform for a safe transport of expensive solar panels. The platform provides a specially developed plastic surface and an extra fixation possibility which can be adjusted as desired. The second transport variation is the collector platform, which is adjustable for 0,5 to 1,6 m panel width. Also, GEDA provides you with complementary accessories such as a roof trestle for working underneath the
ladder.

PRODUCT SPECIFICATIONS

Wheeled undercarriage

Roof tie

Angle track section

Sheet carrier

Front protector

Angle track section

NOAH Solarlift – one Device, Several Advantages

Altogether, the NOAH Solarlift offers a broad range of advantages. The lift’s acquisition costs are worth the money and the lift itself is quite space-saving. Its construction is made of separate modules that can easily be assembled in the desired ladder length. This flexibility also offers the availability to use it at places that are hard to access. NOAH Solarlift is a reliable device on every construction site to transport and assemble solar panels and photovoltaic systems securely. The solarlift also comes with an extra post that supports the ladder segments for heavy loads.
The German-engineered device convinces with an amazing set-up time of only 18 minutes.

If you need more information about the NOAH Solarlift and its accessories, our team of experts will gladly assist you – feel free to call us and we answer any question of yours!
