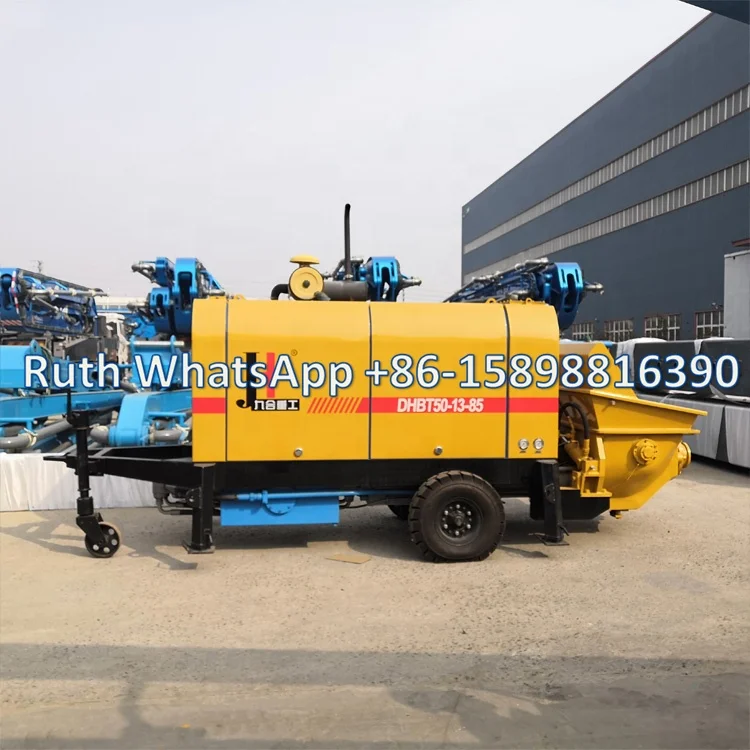

Китай бетономешалка заводская цена бренд JIUHE/JH DHBT50 бетононасос

Item

Unit

Parameter

Pumping system

Max.  theoretical delivery volume

m³/h

50

Max.  theoretical delivery  pressure

MPa

13

Max. theoretical delivery height

m

150

Max. theoretical delivery distance

m

350

Max. delivery frequency (Low/High pressure)

times/min

23

Distribution valve type

S tube valve

Main oil cylinder specification: cylinder dia./role dia. × stroke

mm

125/80×1200

Concrete cylinder specification

mm

200×1200

Hopper capacity

L

500

Output opening diameter

mm

150

Power system

Diesel engine power

KW

Rated rotation speed

r/min

2200

Hydraulic system

Type of Hydraulic oil circuit

Open oil circuit

Main oil pump

Handok From South Korea

Maximum oil pressure of pumping system

MPa

28

Maximum oil pressure of mixing system

14

Highest mixing speed

r/min

24

Hydraulic oil tank capacity

L

300

Allowable max. dia.of aggregate

mm

30

Inner dia.of concrete delivery pipe

mm

Φ125

Dimension(length× width× height)

mm

5270x1860x2580

Weight

kg

4000
