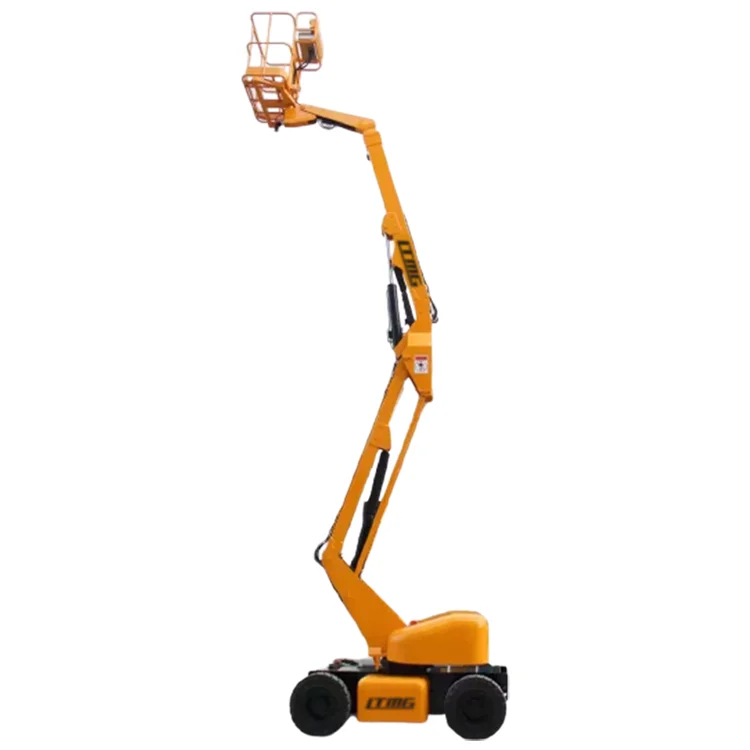

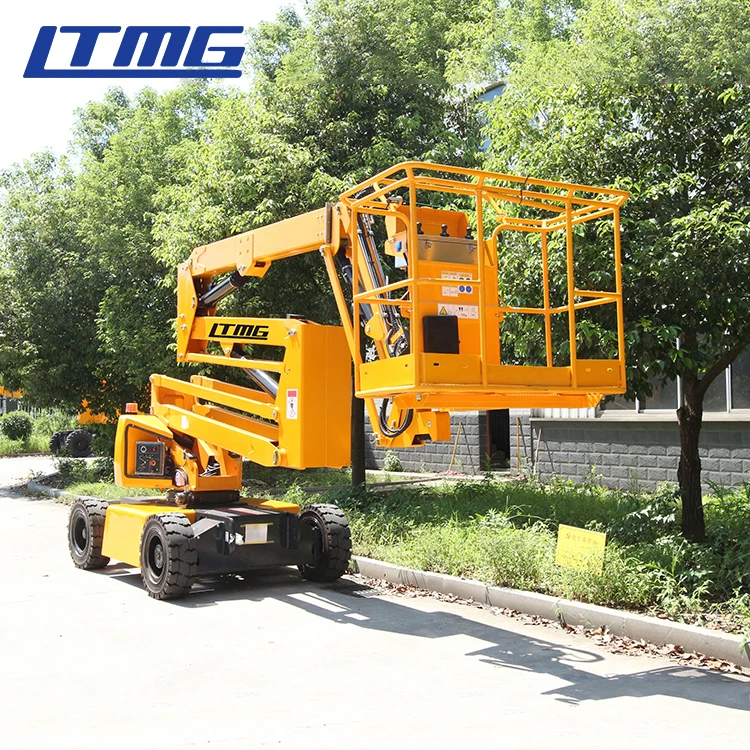

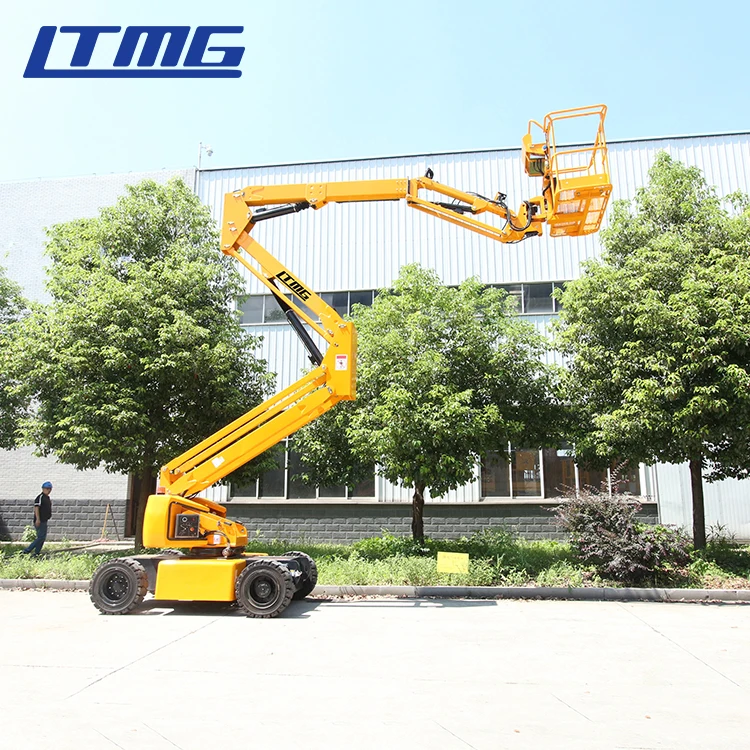

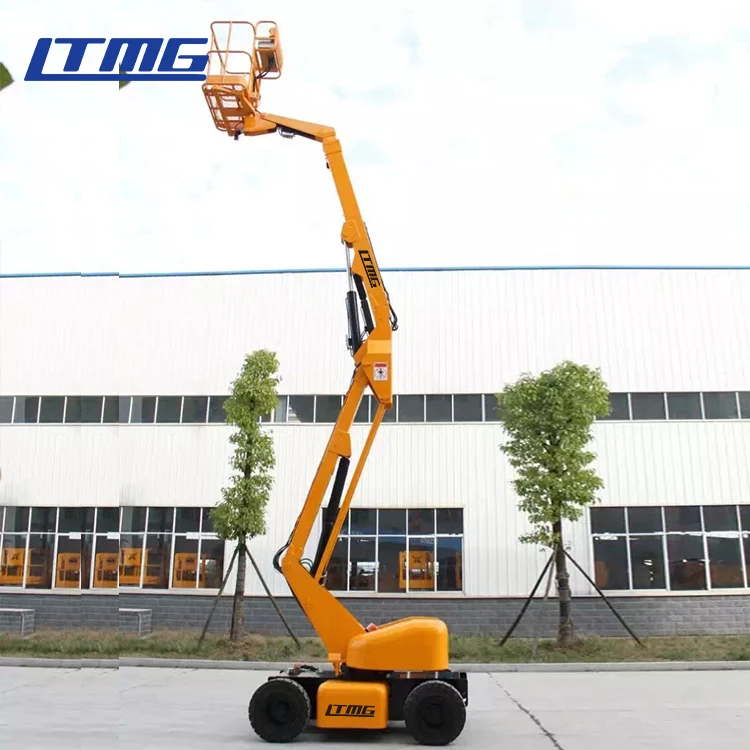

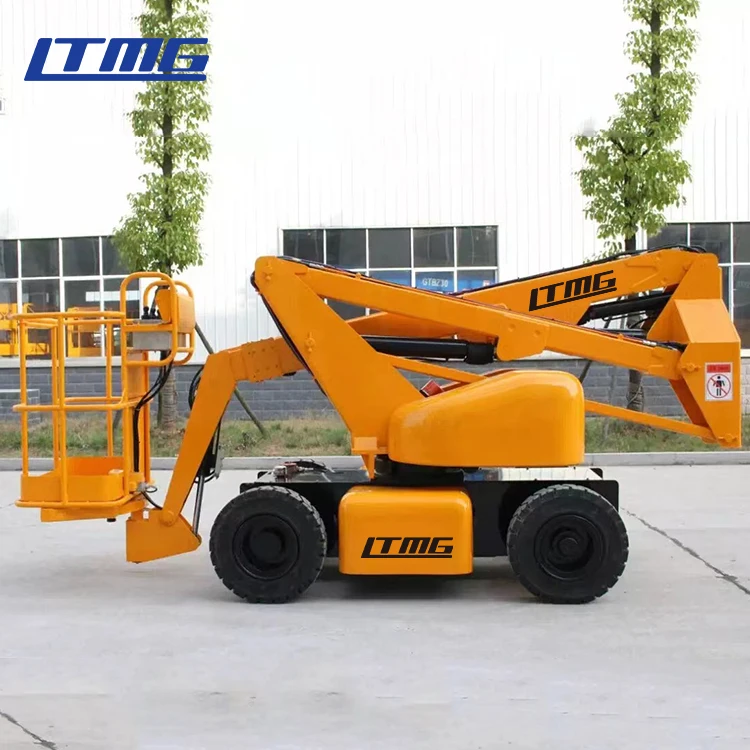

LTMG 16 метров складной кронштейн платформа для авиационной работы мобильный Электрический шарнирный
- Категория: Work Platforms >>>
- Поставщик: Xiamen,LTMG,co.,ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-20-2025 | 49397.60 $* | 50385.11 $* |
| Jul-20-2025 | 40062.75 $* | 40863.59 $* |
| Jun-20-2025 | 48619.38 $* | 49591.41 $* |
| May-20-2025 | 48230.40 $* | 49195.20 $* |
| Apr-20-2025 | 38506.89 $* | 39276.30 $* |
| Mar-20-2025 | 47452.19 $* | 48401.32 $* |
| Feb-20-2025 | 47063.71 $* | 48004.80 $* |
| Jan-20-2025 | 46674.35 $* | 47607.9 $* |
Характеристики
The specification of electric articulating telescopic boom lift | ||||||||
LTQE1012 | LTQE1214 | LTQE1416 | LTQE1618 | |||||
Maximum working height m | 12 | 14 | 16 | 18 | ||||
Maximum platform height m | 10 | 12 | 14 | 16 | ||||
Maximum horizontal working range m | 6.4 | 8 | 7.8 | 9.4 | ||||
Maximum carrying capacity kg | 200 | 230 | 230 | 230 | ||||
Maximum spanning height m | 4.78 | 5 | 7.7 | 7.78 | ||||
Receiving length m | 4% | 5.3 | 6.34 | 6.62 | ||||
Receiving width m | 1.5 | 1.75 | 1.75 | 2.28 | ||||
stowed height m | 1.99 | 2.05 | 2 | 2.18 | ||||
Wheelbase m | 1.65 | 2 | 2 | 2.4 | ||||
ground clearance mm | 0.15 | 200 | 200 | 330 | ||||
Platform size (length × width) m | 1.1×0.65×1.13 | 1.1×0.65 | 1.53×0.76×1.1 | 1.53×0.76 | ||||
Minimum turning radius m | 3.45 | 3.8 | 4.5 | 4.5 | ||||
Walking speed in the folded state km/h | 5 | 5 | 5 | 5 | ||||
Lifting state walking state km/h | 0.8 | 0.8 | 0.8 | 0.8 | ||||
Maximum grade | 25% | 14°（25%） | 16.7°（30%） | 40%(4WD) | ||||
Solid Tire Specifications | 250/15 | 250/15 | 250/15 | 33*12-20 | ||||
Turntable rotation speed rpm | 0～0.8 | 0～0.8 | 0～0.8 | 0～0.8 | ||||
turntable rotation | 355° | 355° | 355° | 355° | ||||
platform leveling | 120° | auto levelling | auto levelling | auto levelling | ||||
Platform rotation | 120° | 120° | 180° | ±90° | ||||
Hydraulic tank volume L | 30 | 30 | 30 | 30 | ||||
total weight kg | 4800 | 6800 | 6800 | 7300 | ||||
Control voltage V | 24 | 24 | 24 | 24 | ||||
Travel motor kw | 2×3.56 | 2×3.56 | 2×3.56 | 4×3.56 | ||||
Battery V/Ah | 48/320 | 48/320 | 48/390 | 48/390 | ||||
Charger V/A | 48/50 | 48/50 | 48/60 | 48/60 | ||||
