Anytone завод AT-288G ручной радио приемопередатчик
- Категория: Walkie Talkie >>>
- Поставщик: Qixiang,Electron,Science,&,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 55.66 $* | 58.40 $* |
| Aug-16-2025 | 54.82 $* | 57.95 $* |
| Jul-16-2025 | 46.28 $* | 48.14 $* |
| Jun-16-2025 | 53.83 $* | 56.66 $* |
| May-16-2025 | 46.83 $* | 48.13 $* |
| Apr-16-2025 | 52.21 $* | 55.90 $* |
| Mar-16-2025 | 52.73 $* | 55.62 $* |
| Feb-16-2025 | 52.86 $* | 55.62 $* |
| Jan-16-2025 | 51.51 $* | 54.0 $* |
Характеристики
Product Description
MODEL NO.: AT-288 G
Frequency:
VHF 136~174MHz, 2, 350~390MHz, UHF 400~470MHz, 440~512MHz
Funtions:1.Output power 4/5W
2.Receive FM Radio
3.Multi-Scan mode: VFO scan+channel scan+priority scan+CTCSS scan+DCS scan.
4.128 Signal-duplex channels, three-color LCD backlight display.
5.CTCSS+DCS encode and decode+DTMF encode/decode.
5.CTCSS+DCS encode and decode+DTMF encode/decode.
6.VOX function (3 levels), voice scramble & compander, wide/narrow band.9.DTMF ANI function.
7.Squelch Tail Elimination function.
8.Emergency lighting function.
7.Squelch Tail Elimination function.
8.Emergency lighting function.
**can be programmed by pc cable
Specification
General | ||||
Frequency Range | VHF:136-174Mhz VHF:66-88Mhz VHF:245-245.9875MHz UHF:350-390Mhz UHF:400-470Mhz UHF:450-520Mhz | |||
Channel Capacity | 128 channels | |||
Channel Spacing | 25KHz (Wide Band) 20KHz(Middle Band) 12.5KHz (Narrow Band) | |||
Phase-locked Step | 5KHz, 6.25KHz | |||
Operating Voltage | 7.4V DC | |||
Battery Life | More than 14 Hours (1350mAh), by 5-5-90 work cycle | |||
Frequency Stability | ±2.5ppm | |||
Operating Temperature | -20℃~ +55℃ | |||

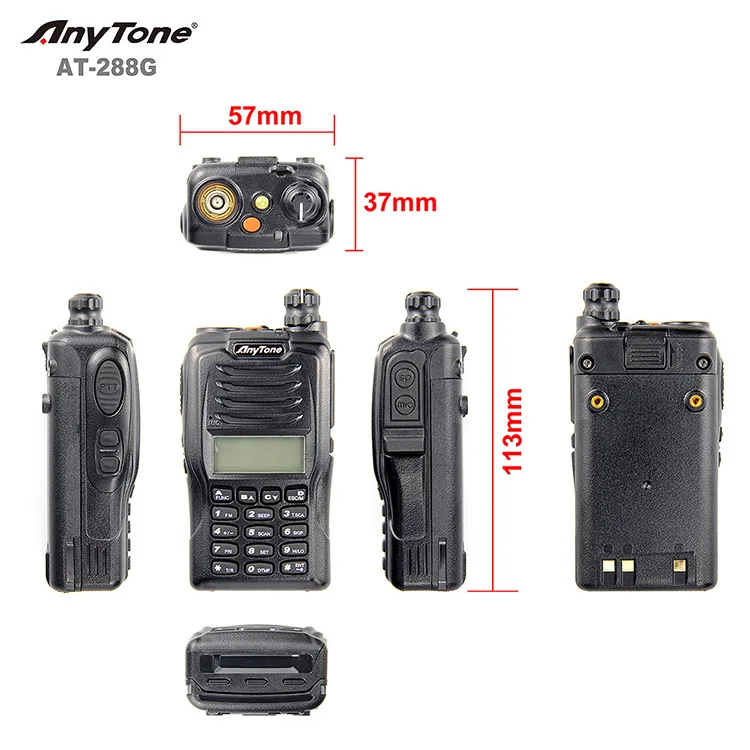

Size | 260×57×37mm (with battery pack) | |||
Weight | 210 g (with battery pack, antenna) | |||
Receiving Part | ||||
Wide band | Narrow band | |||
Sensitivity(12dB SINAD) | ≤0.25μV | ≤0.35μV | ||
Adjacent Channel Selectivity | ≥70dB | ≥60dB | ||
Intermodulation | ≥65dB | ≥60dB | ||
Spurious Rejection | ≥70dB | ≥70dB | ||
Audio Response | +1~ -3dB(0.3~3KHz) | +1~ -3dB(0.3~2.55KHz) | ||
Hum & Noise | ≥45dB | ≥40dB | ||
Audio Distortion | ≤5% | |||
Audio Power Output | 1000mW/10% | |||
Transmitting Part | ||||
Wide band | Narrow band | |||
Power Output | 4W/2W/0.5W | |||
Modulation | 16KΦF3E | 11KΦF3E | ||
Adjacent Channel Power | ≥70dB | ≥62dB | ||
Hum & Noise | ≥40dB | ≥36dB | ||
Spurious Emission | ≤-36dB | ≤-36dB | ||
Audio Response | +1~ -3dB(0.3~3KHz) | +1~ -3dB(0.3~2.55KHz) | ||
Audio Distortion | ≤5% | |||
Details Images
Packing & Delivery
Package Includes:
1.Single-band VHF or UHF Radio
2.1500 mAh lithium ion battery (1800 optional)

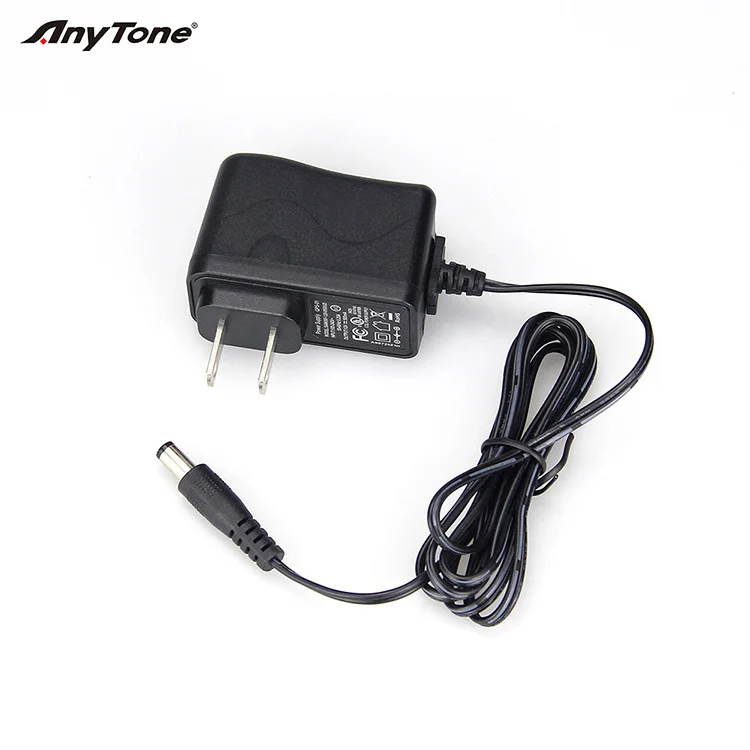

3.Desk charger w/ AC adapter

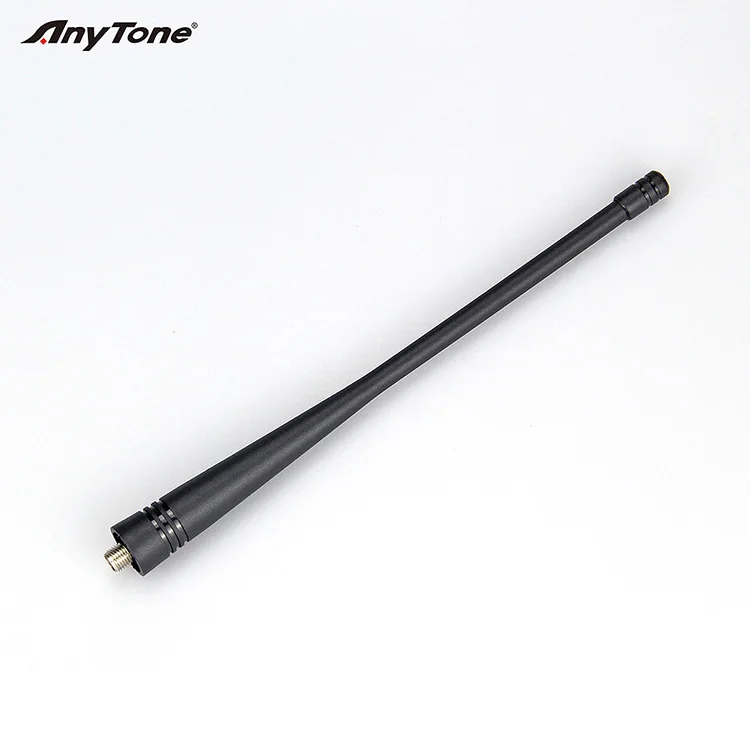

4.rubber antenna
5.Belt clip
6.software
7.User manual
Company Profile
Below is our factory introduction, for more detail informations, plz contact sale16833@qxdz.cn
FAQ
1.Who are we?
We are based in Fujian, China, start from 1993,sell to mainly Western Europe & North America, also
Eastern Asia, Oceania,Southeast Asia, Eastern Europe, South America. There are total about 300+
people in our factory.We have our own brand "ANYTONE"
2.How to place order?
Inquiry => We quote => Price confirmed => We send you Invoice => Payment => Shipping => You receive it
3.How can we guarantee quality?
Always a pre-production sample before mass production;
Always materials inspection from the start and final Inspection before shipment
4.Warranty
18 months warranty for radio and 6 months for accessories.
If you find any defective,please contact us within 3 days after you receive,thanks.
5.what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
We are based in Fujian, China, start from 1993,sell to mainly Western Europe & North America, also
Eastern Asia, Oceania,Southeast Asia, Eastern Europe, South America. There are total about 300+
people in our factory.We have our own brand "ANYTONE"
2.How to place order?
Inquiry => We quote => Price confirmed => We send you Invoice => Payment => Shipping => You receive it
3.How can we guarantee quality?
Always a pre-production sample before mass production;
Always materials inspection from the start and final Inspection before shipment
4.Warranty
18 months warranty for radio and 6 months for accessories.
If you find any defective,please contact us within 3 days after you receive,thanks.
5.what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
