Все типы MC 4 коннектора солнечного кабеля для солнечной
- Категория: Solar Related Products >>>
- Поставщик: Suzhou,Chichuang,Intelligent,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.61 $* | 0.46 $* |
| Aug-19-2025 | 0.93 $* | 0.89 $* |
| Jul-19-2025 | 0.74 $* | 0.7 $* |
| Jun-19-2025 | 0.44 $* | 0.13 $* |
| May-19-2025 | 0.8 $* | 0.65 $* |
| Apr-19-2025 | 0.31 $* | 0.3 $* |
| Mar-19-2025 | 0.52 $* | 0.84 $* |
| Feb-19-2025 | 0.38 $* | 0.44 $* |
| Jan-19-2025 | 0.47 $* | 0.36 $* |
Характеристики

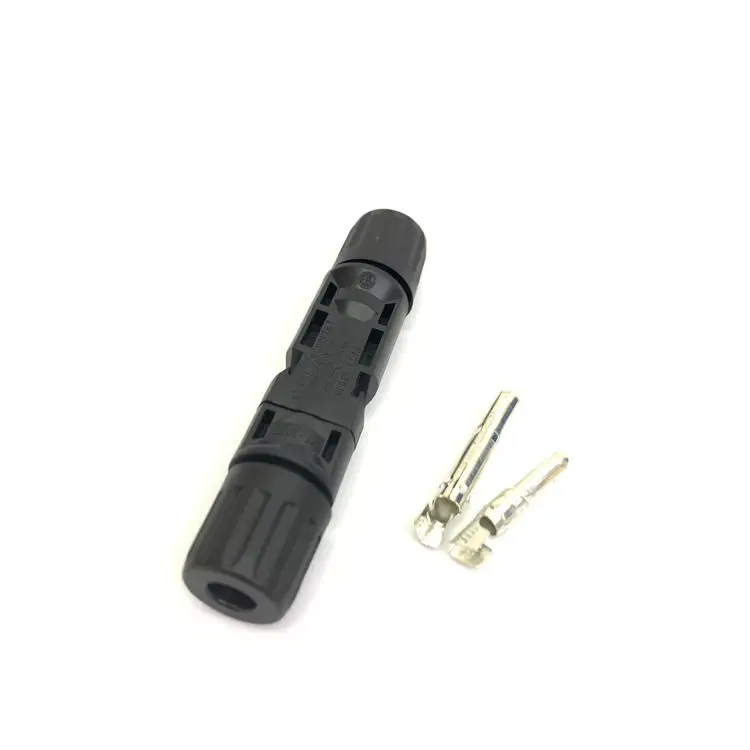

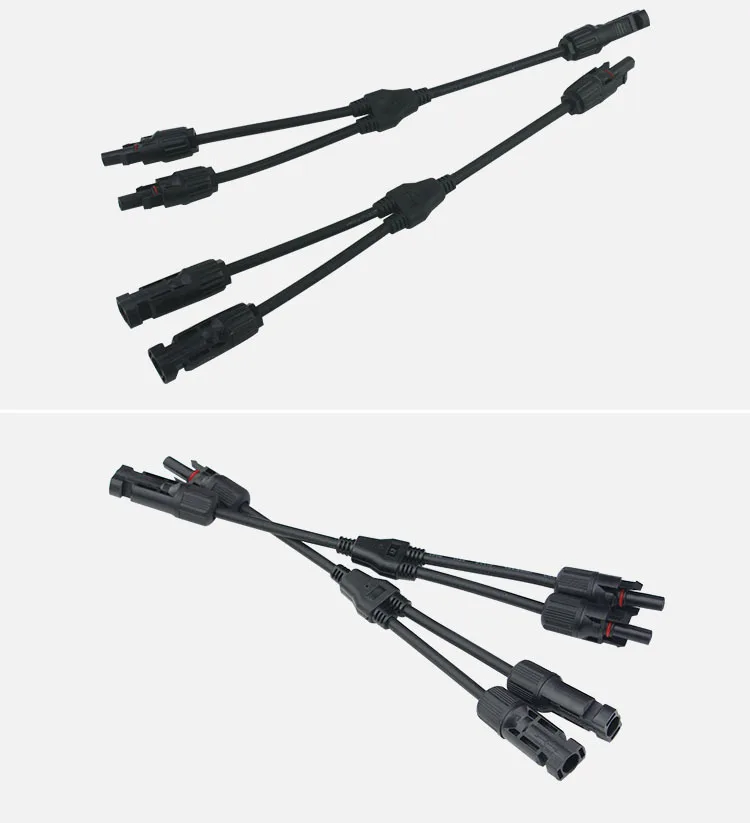

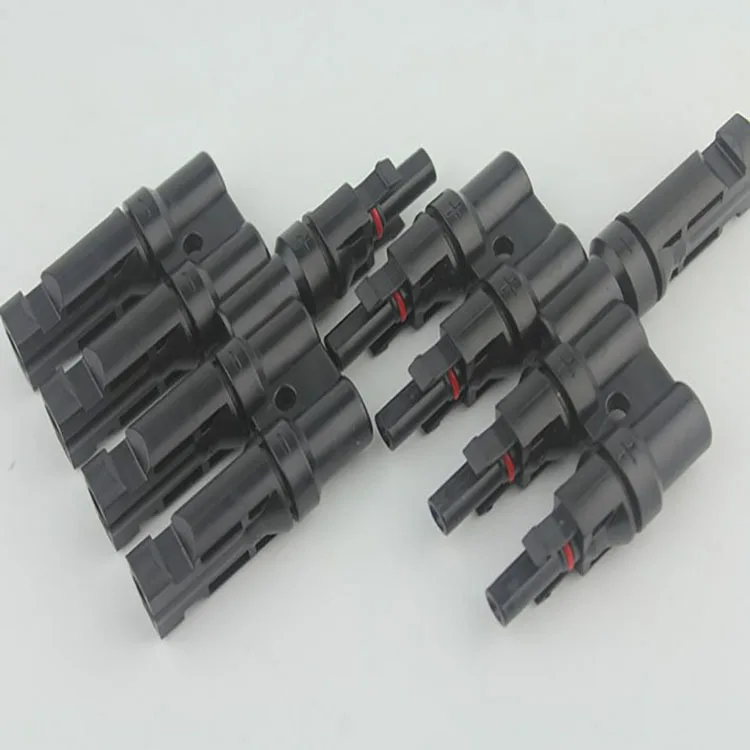

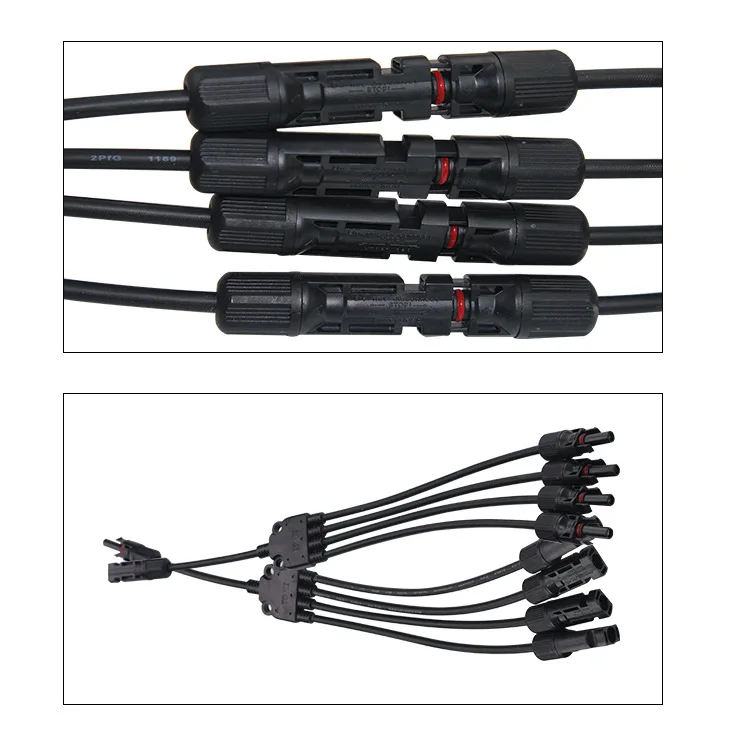

Model | MC4 Male/Female Connector | Y Branch MC4 Connector | Y3 (3 to 1 Y Branch) | Y5(5 to 1 Y Branch) |
Rated Current | ≤30 A | ≤30 A | ≤40 A | ≤30 A |
Rated Voltage | ≤DC1000 V | ≤DC1000 V | ≤DC1000 V | ≤DC1000 V |
Temperature Range | -40℃~125℃ | -40℃~125℃ | -40℃~110℃ | -40℃~110℃ |
Contact Material | Copper Tin Plating | Copper Tin Plating | Copper Tin Plating | Copper Tin Plating |
Insulation Material | PPO | PPO | PPO | PPO |
Withdrawal Force | ≥89 N | ≥50 N | ≥50 N | ≥50 N |
Insertion Force | ≤60 N | ≤50 N | ≤50 N | ≤50 N |
Waterproof Degree | IP67 | IP67 | IP67 | IP65 |
Safe Class | CATIII/2 | CATIII/2 | CATIII/2 | CATIII/2 |
Flame Class | UL94-V0 | UL94-V0 | UL94-V0 | UL94-V0 |
Suitable Cable | 2.5 mm², 4 mm², 6 mm² (AWG14, AWG12, AWG10) | 2.5 mm², 4 mm², 6 mm² (AWG14, AWG12, AWG10) | 2.5 mm², 4 mm², 6 mm² (AWG14, AWG12, AWG10) | 2.5 mm², 4 mm², 6 mm² (AWG14, AWG12, AWG10) |

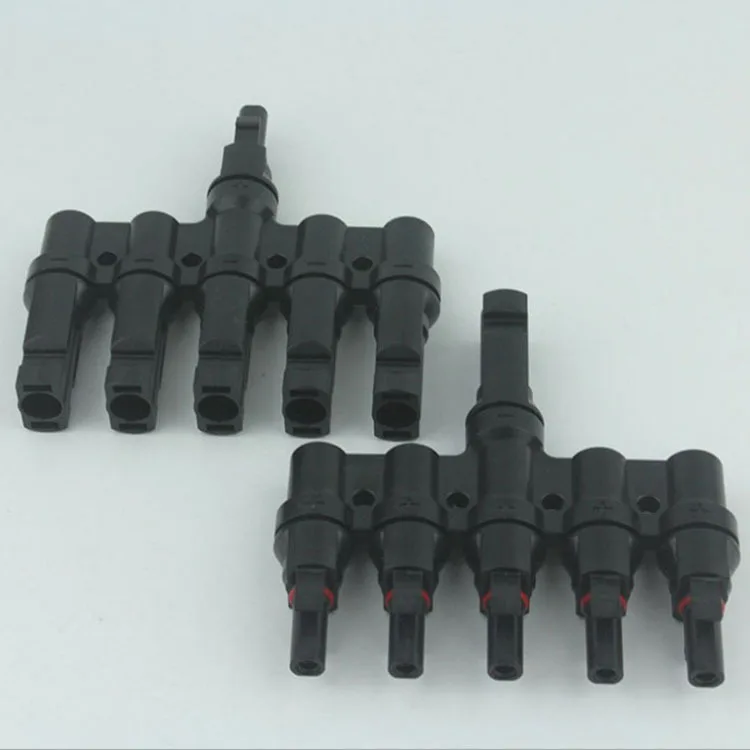

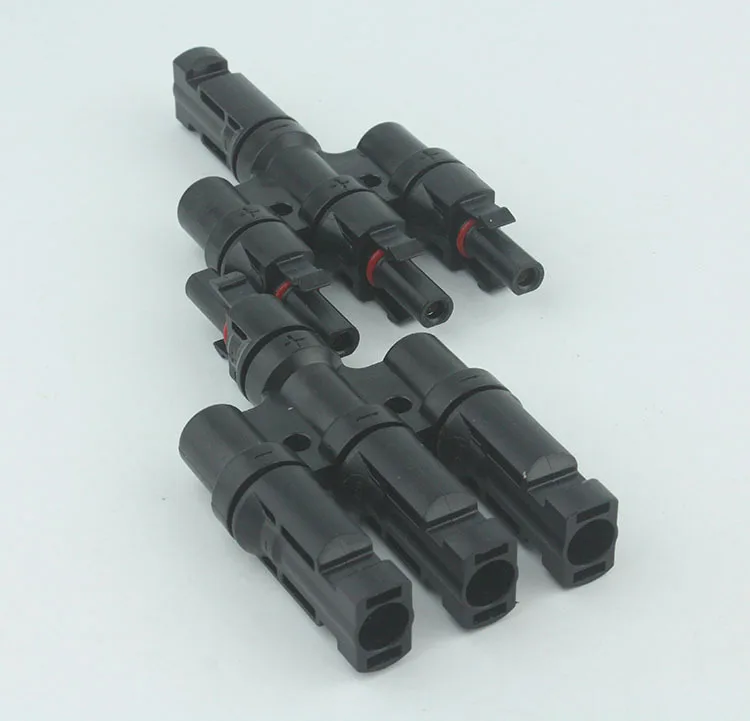

Model | T Branch MC4 Connector | T3(3 to 1 T Branch) | T4 (4 to 1 Y Type) | T5(5 to 1 T Branch) |
Rated Current | ≤30 A | ≤40 A | ≤30 A | ≤30 A |
Rated Voltage | ≤DC1000 V | ≤DC1000 V | ≤DC1000 V | ≤DC1000 V |
Temperature Range | -40℃~125℃ | -40℃~125℃ | -40℃~110℃ | -40℃~85℃ |
Contact Material | Copper Tin Plating | Copper Tin Plating | Copper Tin Plating | Copper Tin Plating |
Insulation Material | PPO | PPO | PPO | PPO |
Withdrawal Force | ≥89 N | ≥50 N | ≥50 N | ≥50 N |
Insertion Force | ≤60 N | ≤50 N | ≤50 N | ≤50 N |
Waterproof Degree | IP67 | IP65 | IP67 | IP67 |
Safe Class | CATIII/2 | CATIII/2 | CATIII/2 | CATIII/2 |
Flame Class | UL94-V0 | UL94-V0 | UL94-V0 | UL94-V0 |
Suitable Cable | 2.5 mm², 4 mm², 6 mm² (AWG14, AWG12, AWG10) | 2.5 mm², 4 mm², 6 mm² (AWG14, AWG12, AWG10) | 2.5 mm², 4 mm², 6 mm² (AWG14, AWG12, AWG10) | 2.5 mm², 4 mm², 6 mm² (AWG14, AWG12, AWG10) |
Product details
Company profile
Since its establishment in 2010,Suzhou Chichuang Intelligent Technology Co.,Ltd Specializing in stylish storage and cleaning organization items.We have established two factories in Suzhou City,Jiangsu Province.Our products are widely praised by global buyers and are exported to Russia,the United States,the United Kingdom,Japan and other countries.
Many of our partners are branded retailers such as Hausland,Houseables,Tesco,B&M.PRIMARK,ROSSMAN,ZEBRA,JYSK and BIG LOTS.
We specialize in products for family life,and we have also created product lines specifically designed for children.We also welcome OEM and ODM orders,and our professional 10-person R&D department can meet all buyers'requirements.
Many of our partners are branded retailers such as Hausland,Houseables,Tesco,B&M.PRIMARK,ROSSMAN,ZEBRA,JYSK and BIG LOTS.
We specialize in products for family life,and we have also created product lines specifically designed for children.We also welcome OEM and ODM orders,and our professional 10-person R&D department can meet all buyers'requirements.
1.Injection molding workshop
There is a special person to monitor the whole process
2.Press workshop
High precision automatic die stamping is used for copper production
High precision automatic die stamping is used for copper production
3.assembly shop
We have a group of professional production and assembly personnel
We have a group of professional production and assembly personnel
4.Finished product inspection
Every batch of finished products is subject to sampling inspection to ensure the qualified rate of finished products
Every batch of finished products is subject to sampling inspection to ensure the qualified rate of finished products
Q: What is the advantage about your company?
A: Our company has professional team and professional production line
Q:Why should I choose your products? A: Our products are high quality and low price.
Q: The logo and the color can be customized? A: Yes, we welcome you to sample custom.
Q: Any other good service your company can provide? A: Yeswe can provide good after-sale and fast delivery.
A: Our company has professional team and professional production line
Q:Why should I choose your products? A: Our products are high quality and low price.
Q: The logo and the color can be customized? A: Yes, we welcome you to sample custom.
Q: Any other good service your company can provide? A: Yeswe can provide good after-sale and fast delivery.
