Высокотемпературный экструдированный датчик давления расплава/10 МПа преобразователь Давления Расплава для

Описание и отзывы

Трекер стоимости

Характеристики

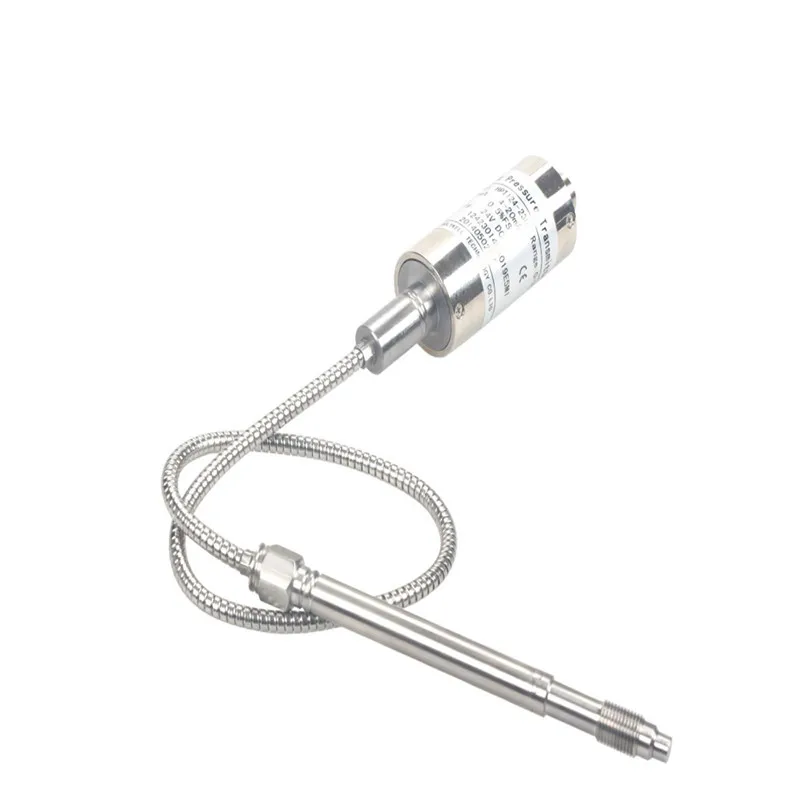

High temperature melt pressure sensor/transducer/transmitter with high quality  elt pressure sensor pressure sensor Transducer

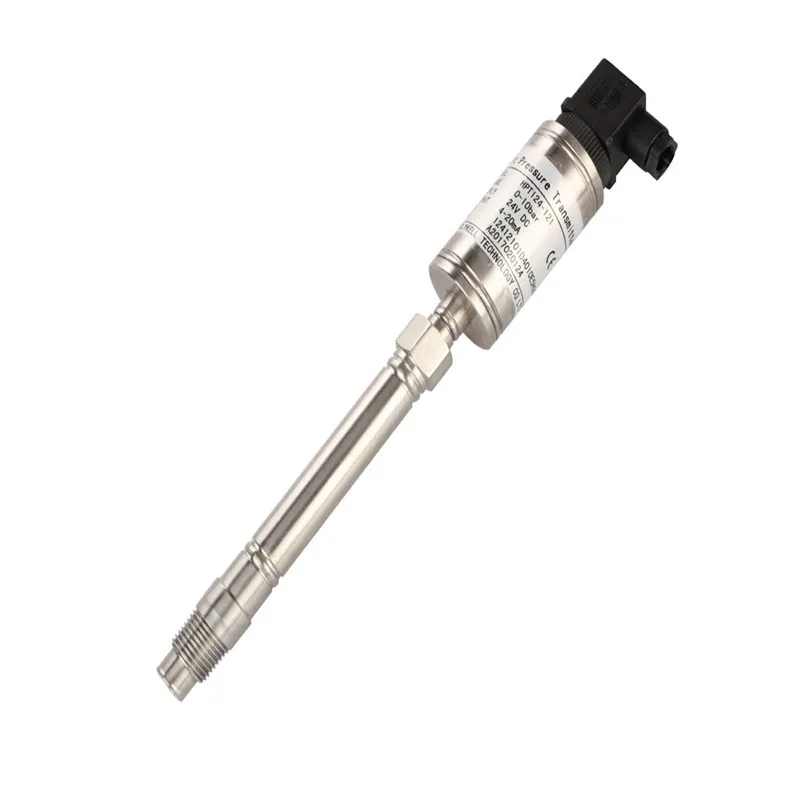

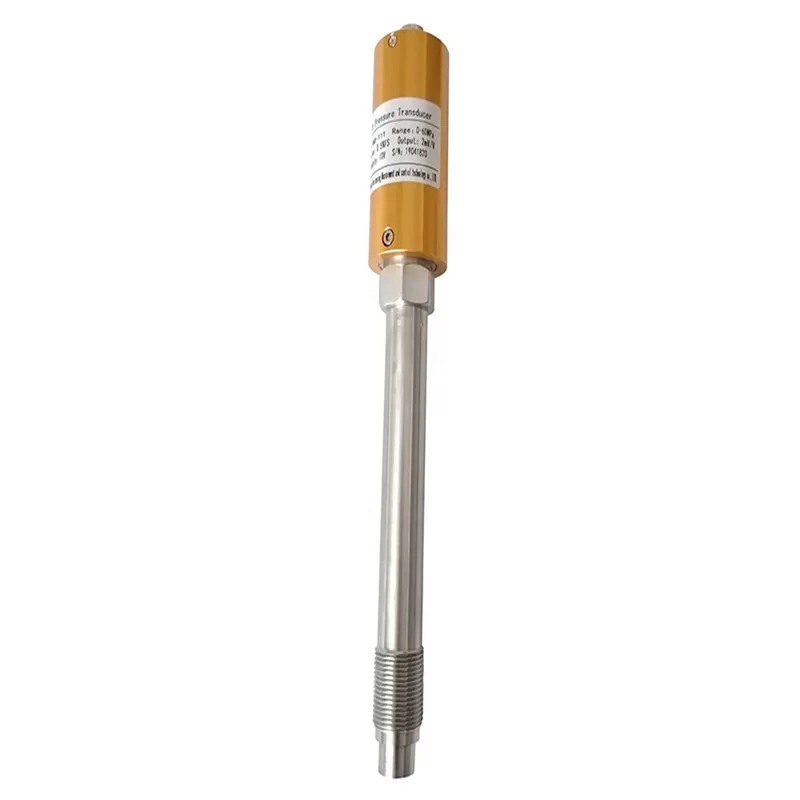

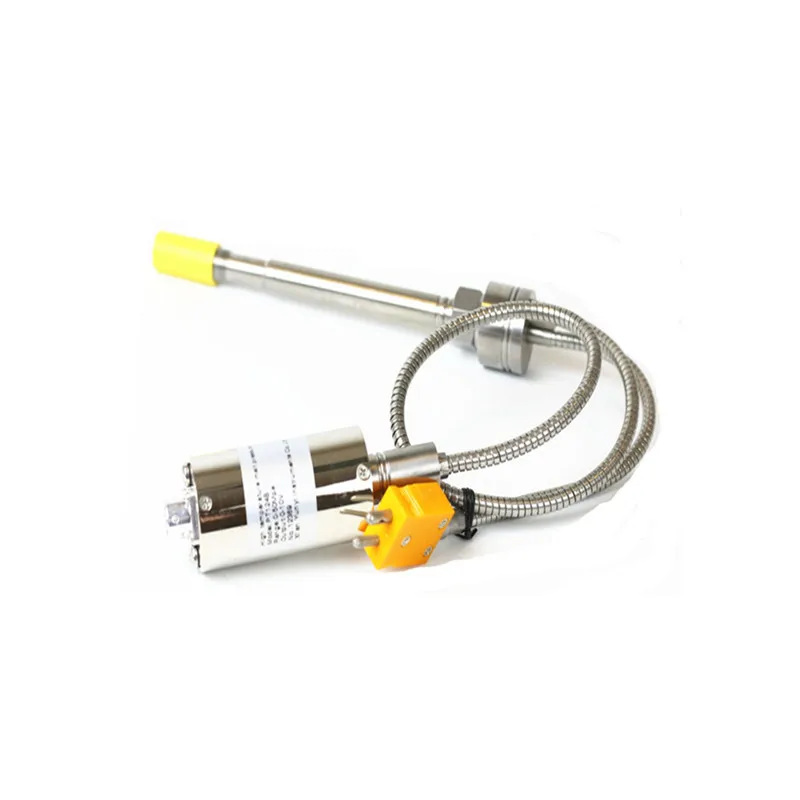

DMP standard pressure transducer/transmitter, is a straight rod melt pressure transducer/transmitter introduced by our company for the domestic market, in which DMP-T is equipped with thermocouple to measure pressure and temperature at the same point. This series of products can be matched with PY500 series intelligent digital pressure instruments of our company and the same type of domestic and foreign press instruments. Its advantage is that the pressure measurement is accurate and reliable, and the amplified signal is directly entered into the PLC control system, 80% inner calibration, simple installation and high cost ratio. It is widely used in high temperature pressure monitoring of chemical fiber and plastic extrusion industry.

Application♦Chemical fiber Equipment ♦Plastic and Rubber manufacturing Equipment ♦Pharmaceutical, food processing, packaging equipment

Feature 80% inner calibration Accuracy is better than that of 1%FS Excellent stability and repeatability Zero & full span can be adjustable Standard diaphragm is 15-15PH SS Other diaphragms are available upon request

Technical specifications

Ordinary	Data		Remarks
Pressure range	0-3.5MPa...0-300MPa		0-500psi...0-43511 psi
Combined Accuracy	±0.5%FS±1.0%FS (including linear; repeatability & hysteretic nature)		including linear; repeatability & hysteretic nature
Output	Transducer	Transmitter
	3.33 mV/V. 2mV/V	4-20mA, 0-10V. 0-5V
Input Voltage	10VDC (9-12V)	24VDC (12-36V)
Repeatability	± 0.2%FS
OutputImpedance	350 Ohms ±10%
Internal Shunt Calibration	80% FS ± 1 %
Max Diaphragm Temperature	400℃
Diaphragm Material	15-5PHwith Coated Stainless Steel Shell
Electrical connector	5 PIN,6 PIN connector
Process connector	1/2" -20UNF, M14 x 1.5, M18 x 1.5.M22 x 1.5,customer design

Example of ordering

DMP		Electrical connector	Mounting screw thread	Transducer/ Transmitter	Hard rod/Flexible pipe	Range	Output signal	Temperature difference
Empty:Single function type T:Double function type
(F)5PIN(S)6PIN
(14)M14x1.5,(12)1/2-20UNF, (18)M18x1.5, (22)M22x1.5 optional
(empty)Transducer:(B) Transmitter

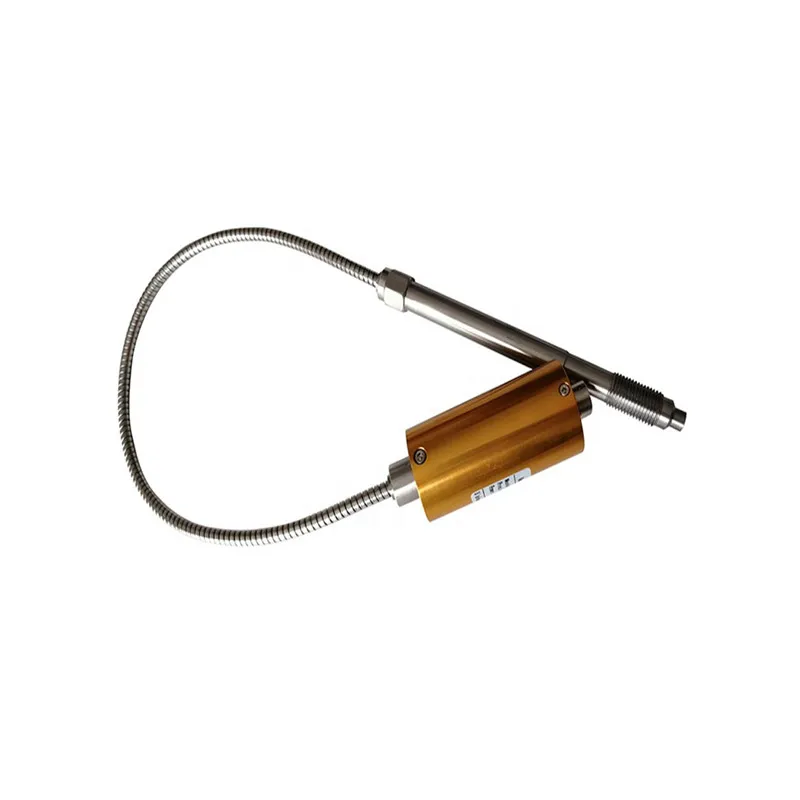

Hard rod length:S: 6" (152mm), 9" (230mm), 12 (305mm) Flexible pipe length:N: 18" (460mm), 30" (762mm)
(3.5-200) 0-3.5MPa-0-200MPa for example 35MPA=35
(M2)2mV/V, (M3) 3.33mV/V (M)4-20mA (V)0-10V
J:Grading number is J; K:Grading number is K; E:Grading number is E; P:Pt100platinum resistor

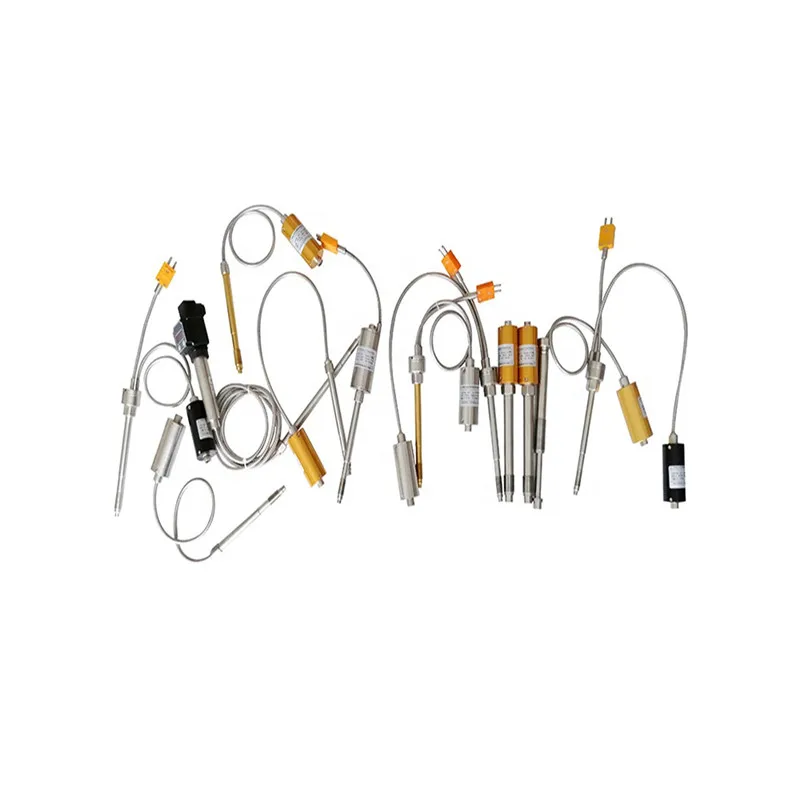

  Product details   sensor for machine



  Dimension



   Example of ordering



  Companyintroduction

Changsha Luosen Automation Technology Co., Ltd. is headquartered in Changsha, Hunan, and the company is based on Promesstec. It is a technology-oriented enterprise specializing in R&D, production and sales services of A.S (automatic sensing technology). Changsha Luosen is committed to building domestic high-tech sensing technology products, combining German core sensing technology with China's localized market demand, contributing its own meager strength to the domestic sensor market, especially in the field of process automation..

Changsha Luosen's clients include Fortune 500 companies, government agencies, integrated divisions and distributors to meet the diverse market needs of manufacturing and industry. Changsha Luosen's products are mainly used in: plastic machinery, chemical fiber machinery, petrochemical, water treatment engineering, power plants, aerospace, air compressors, air conditioners, automobiles, plastics, packaging. Medical, electronics, chemical, rubber, textile and food packaging. All of our customers have a common need: to get reliable products from trusted companies. Our products have been successfully applied in many fields in Italy, the United States, Germany, Canada, the United Kingdom, Austria, Malaysia, India, Pakistan, Singapore, Japan, Australia, etc. This proves that we have reliable products and quality products. service.

Changsha Luosen will continue to attach importance to the reliability, stability and accuracy of its products, helping customers to achieve tangible needs, win-win cooperation and create value
