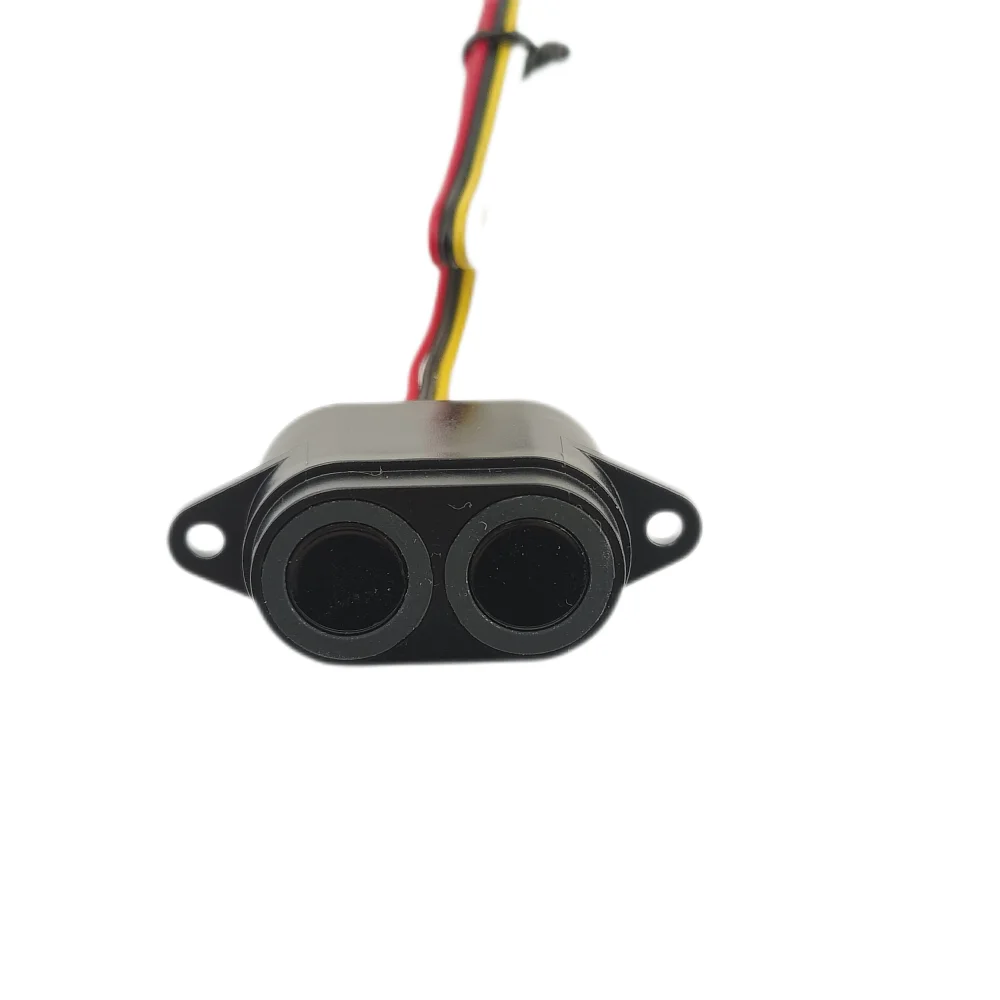

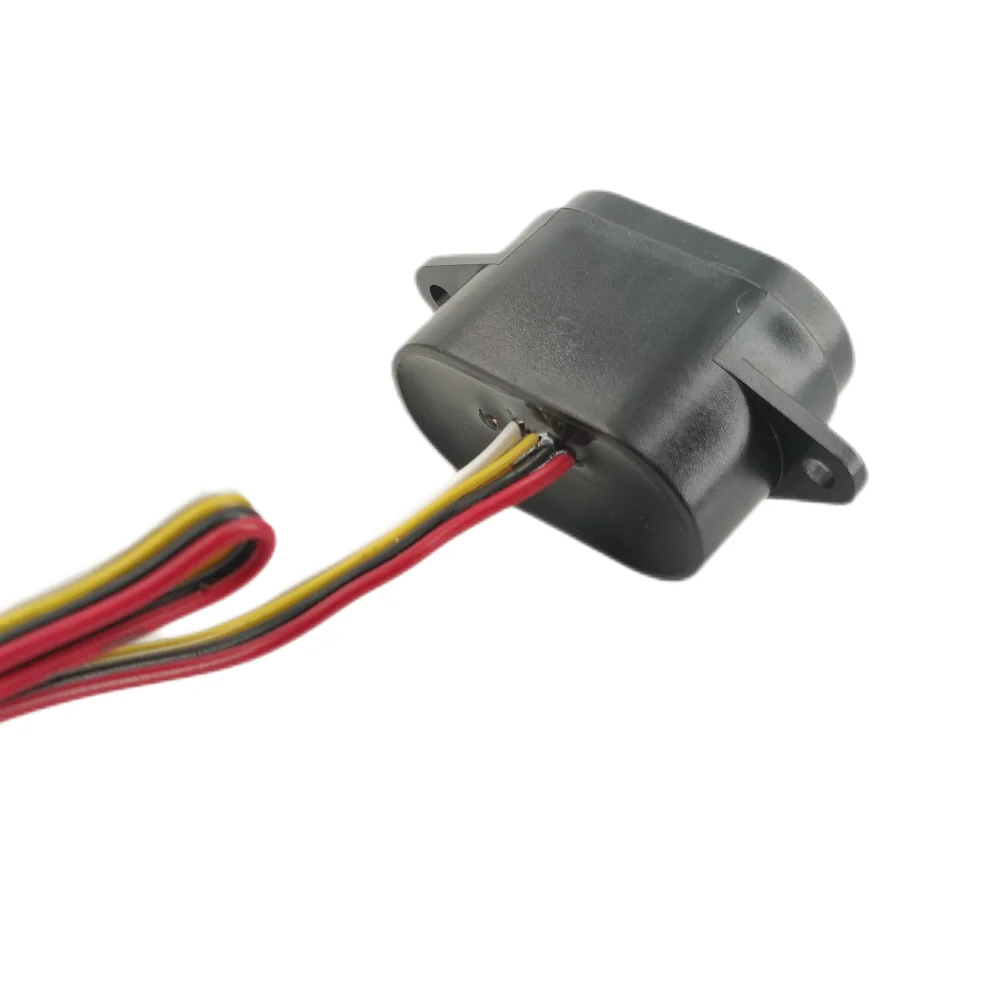

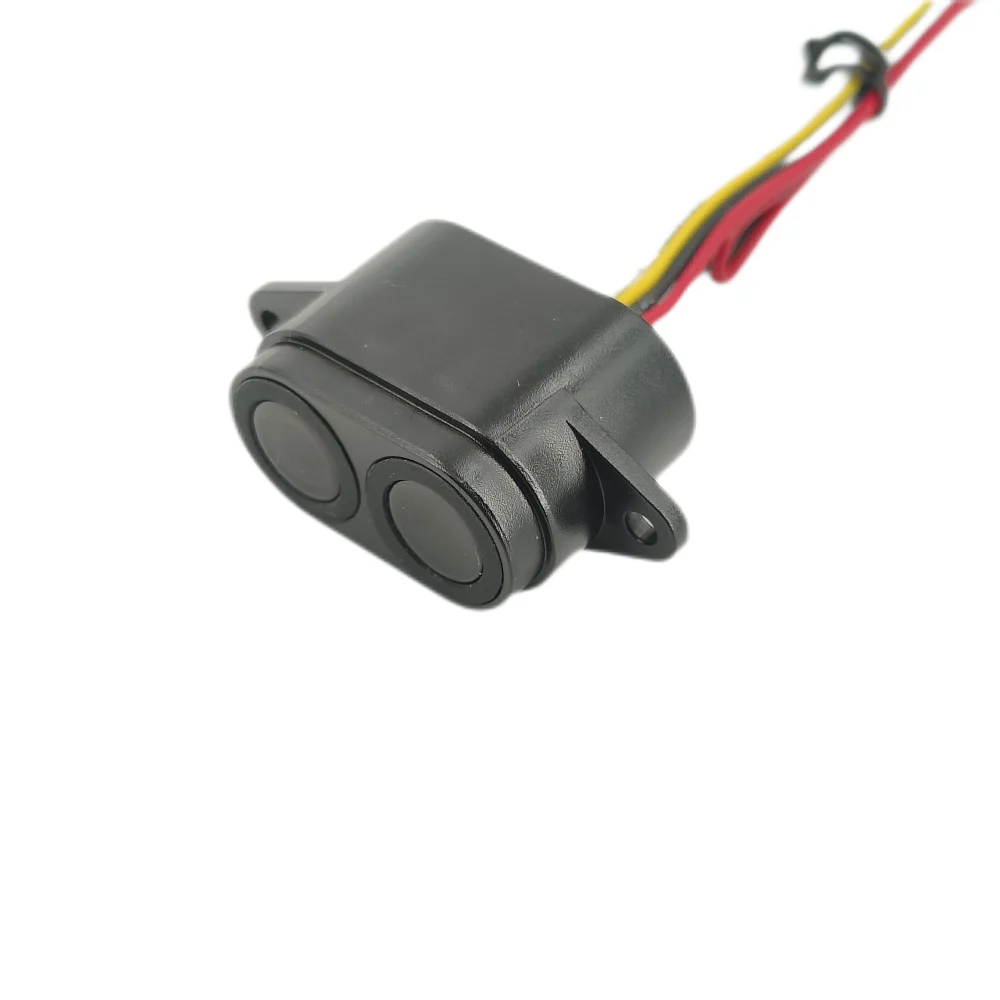

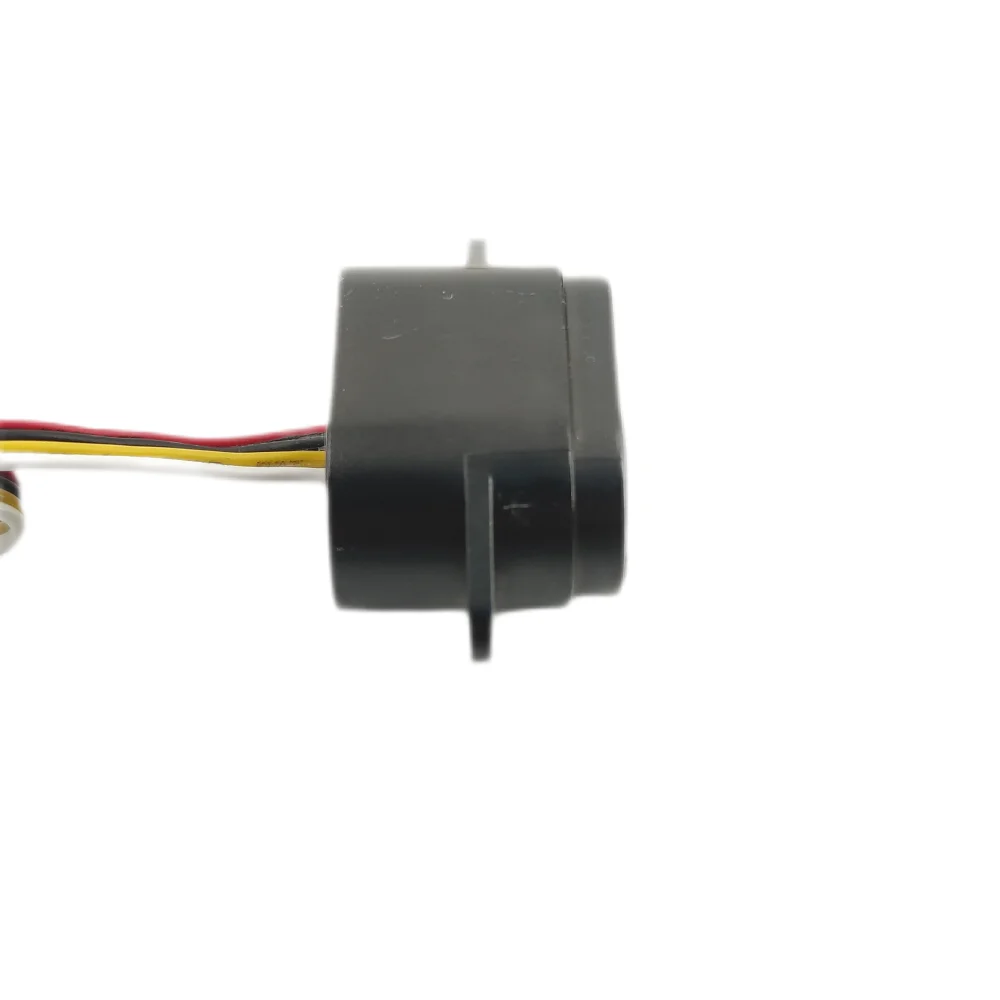

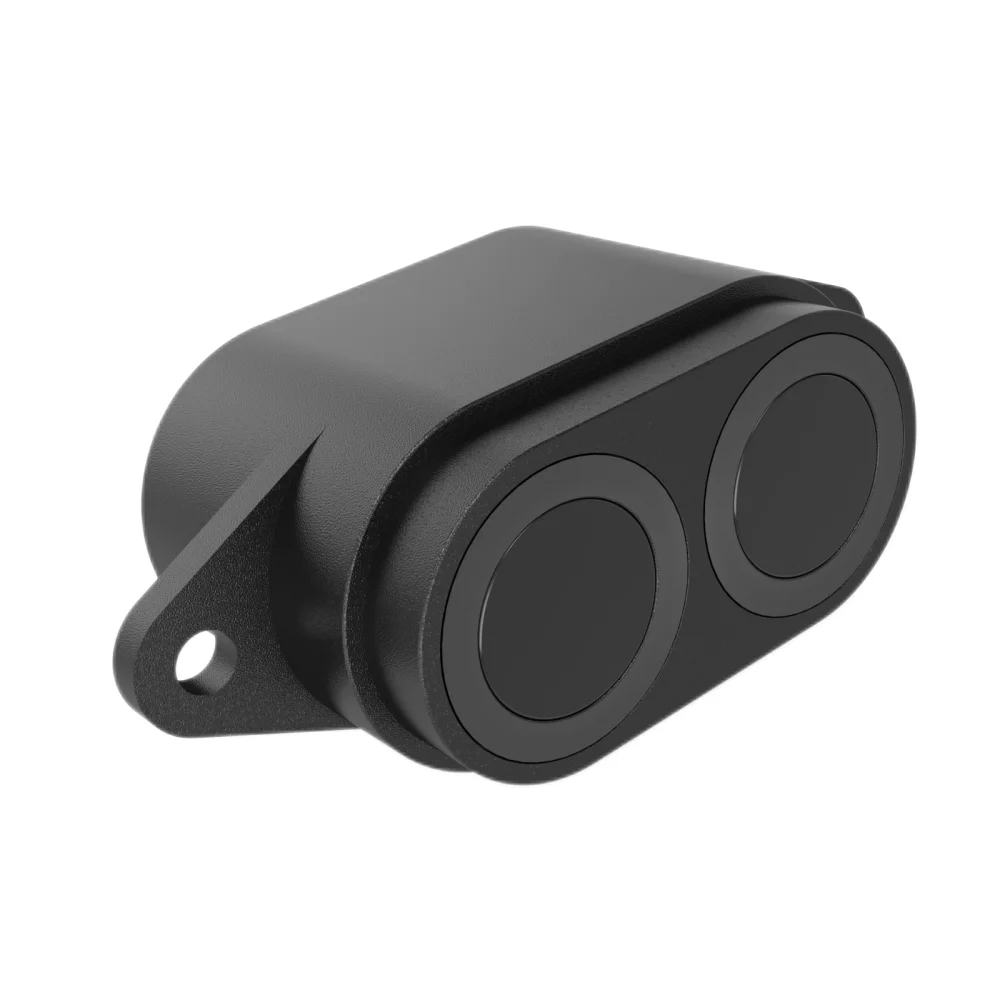

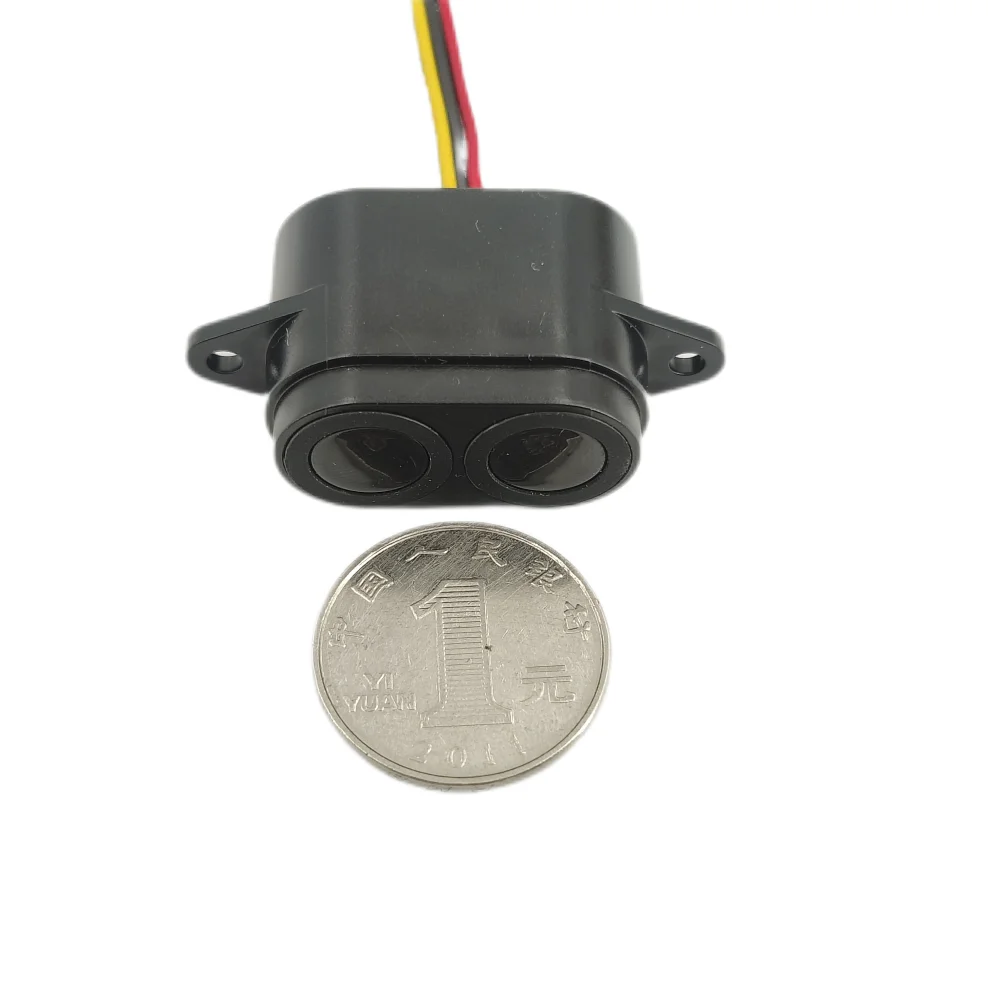

A22 ультразвуковой датчик обхода препятствий для гоночного дрона робота
- Категория: Sensors >>>
- Поставщик: Shenzhen,Dianyingpu,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-20-2025 | 11.26 $* | 11.35 $* |
| Jul-20-2025 | 9.72 $* | 9.71 $* |
| Jun-20-2025 | 11.1 $* | 11.68 $* |
| May-20-2025 | 11.91 $* | 11.27 $* |
| Apr-20-2025 | 9.67 $* | 9.75 $* |
| Mar-20-2025 | 11.8 $* | 11.35 $* |
| Feb-20-2025 | 11.26 $* | 11.21 $* |
| Jan-20-2025 | 11.66 $* | 11.28 $* |
Характеристики
Product Description
Specification
Model | A22 |
Product Name | Split waterproof ultrasonic ranger |
Advantage | (1) Wide voltage power input supported. (2) Multiple output modes. (3) Waterproof sensor. (4) Strong anti-interference, anti-static abilities. (5) Data output stable and reliable. (6) Tiny size, easy to install. (7) Long measurement range, high accuracy. (8) Automatic output mode, not occupy hardware resources. (9) Controlled output mode, low power consumption |
Operating Voltage | DC 3.3-12 v |
Operating Current | <8 mA |
Standby Current | <5 uA |
Peak Current | <40 mA |
Blind Area Distance | 2 cm |
Measuring Range | 2-300 cm |
Accuracy | 10 mm |
Working Period | UART 100ms / Switch 100ms |
Output Method | PWM pulse/UART controlled/UART automatic/Switch/RS485/IIC |
Frequency | 40 KHz |
Temperature Compensation | Yes (PWM no compensation) |
Scope of Application
Liquid Level Measurement in Small Bottles
Loop control
Diameter Sensing and Strip Speed Control
Contour Recognition
Quality Control
Vehicle Sensing and Positioning
Wire or Rope Breakage Monitoring
Stack height sensing
Bottle Counting
Breakage Sensing
People Sensing, Human body Height measurement
Liquid Level Measurement in Large Vessels(Tanks, Silos)
Flat Object sensing or detection
Anti-Collision, Proximity Alarm
Height Sensing
Company Profile
Our Advantages
Product packaging
FAQ
。1. Are you a manufacturer or trading company?
DYP is a manufacturer, our factory approved by ISO9001:2008, ISO14001:2004 standard.
2. Does your products can be ODM or OEM?
Yes, we provide ODM/OEM services, we can customize the product according to your requirement, after estimated by our R&D team, We
can build the product you need on the basis of existing products, or build a brand new product.
3. What's warranty of your product?
We provide 1 year warranty, any defective items, please send back to us, we will repair/replace for you.
4. What is the terms of payment?
for the sample order, we suggest place order on alibaba directly. for the large order, we accept TT or LC.
5. Do you provide technical support?
Yes, we have our own R&D department, we can provide you technical support at any time. you can call us or write email to us.
6. How to choose the right ultrasonic sensor?
First of all, clarify the installation conditions:
a. Medium to be measured;
b. Installation location;
c. Measurement range;
d. Measurement accuracy;
e. Sensor resolution;
f. potential interference;
g. Whether vessels has pressure.
Select the corresponding series of products according to the medium, and then select the product suitable for the conditions according to the Range, Accuracy, Angle etc parameters.
DYP is a manufacturer, our factory approved by ISO9001:2008, ISO14001:2004 standard.
2. Does your products can be ODM or OEM?
Yes, we provide ODM/OEM services, we can customize the product according to your requirement, after estimated by our R&D team, We
can build the product you need on the basis of existing products, or build a brand new product.
3. What's warranty of your product?
We provide 1 year warranty, any defective items, please send back to us, we will repair/replace for you.
4. What is the terms of payment?
for the sample order, we suggest place order on alibaba directly. for the large order, we accept TT or LC.
5. Do you provide technical support?
Yes, we have our own R&D department, we can provide you technical support at any time. you can call us or write email to us.
6. How to choose the right ultrasonic sensor?
First of all, clarify the installation conditions:
a. Medium to be measured;
b. Installation location;
c. Measurement range;
d. Measurement accuracy;
e. Sensor resolution;
f. potential interference;
g. Whether vessels has pressure.
Select the corresponding series of products according to the medium, and then select the product suitable for the conditions according to the Range, Accuracy, Angle etc parameters.
