Старые гаражные двери Andis пружинный ролик для затвора пружинные спиральные
- Категория: Springs >>>
- Поставщик: Tianjin,Wangxia,Spring,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 5.47 $* | 5.71 $* |
| Aug-16-2025 | 5.93 $* | 5.26 $* |
| Jul-16-2025 | 4.87 $* | 4.61 $* |
| Jun-16-2025 | 5.17 $* | 5.78 $* |
| May-16-2025 | 4.94 $* | 4.53 $* |
| Apr-16-2025 | 5.95 $* | 5.31 $* |
| Mar-16-2025 | 5.30 $* | 5.21 $* |
| Feb-16-2025 | 4.53 $* | 4.26 $* |
| Jan-16-2025 | 4.27 $* | 4.50 $* |
Характеристики
Products Description

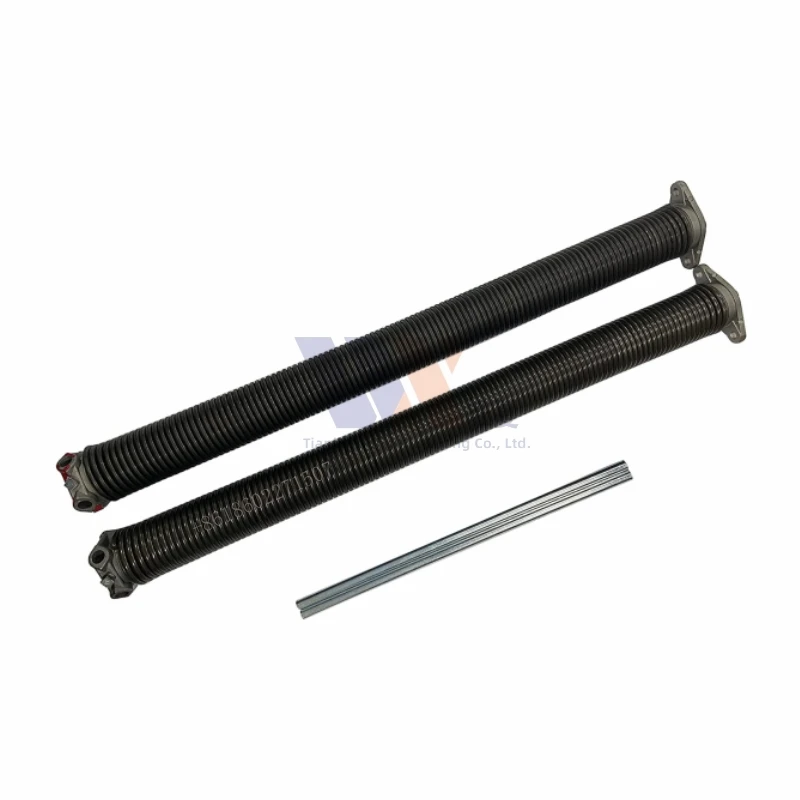

Product Name | Torsion Spring |
Surface Treatment | Olied;Galvanzied;Electrophoresis Coating;Oxide Coating |
Specifications | Customer requirment |
Material | Steel, Carbon steel,77B, 82B or other requirment |
Accessory | Preinstall or send with goods |
Painting LOGO | As customer requirment |
OEM | Accept |
Technology | Tempering;Drawing-back |
S-N Test | 15000 times |
Product Details

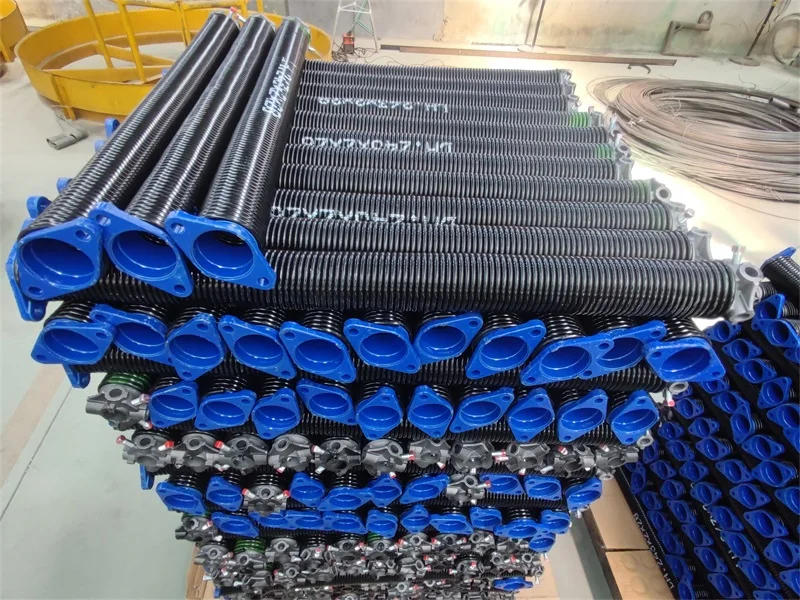

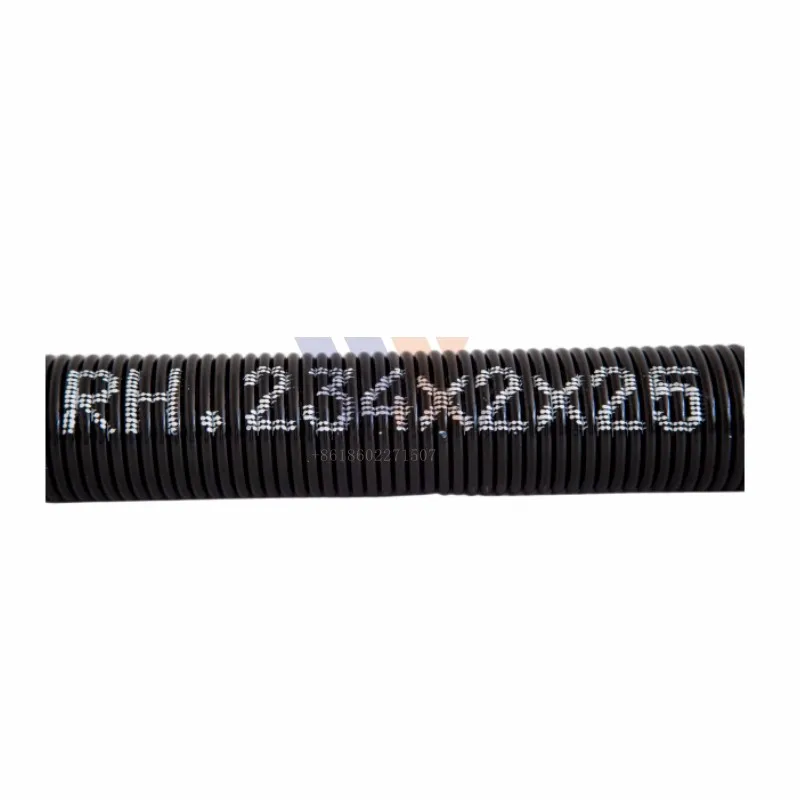

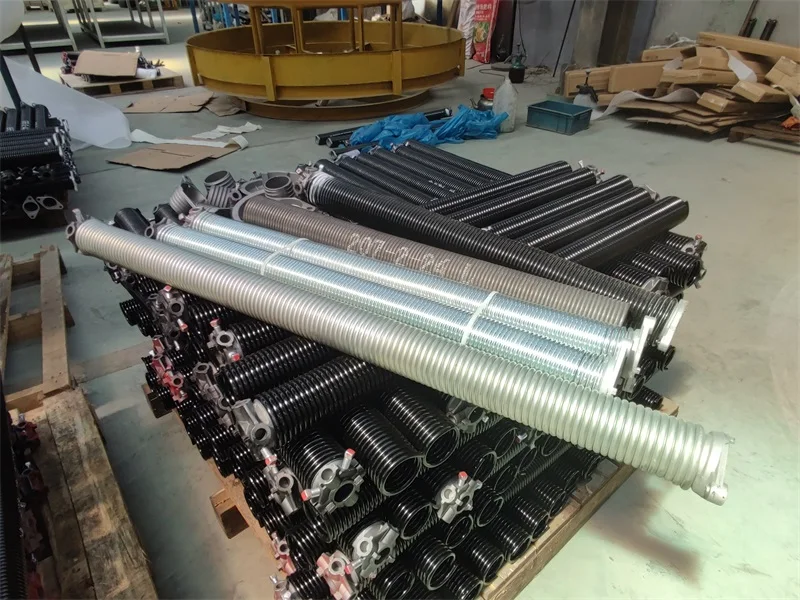

Production Name | Olied Torsion Spring | Galvanized Torsion Spring | Painting Torsion Spring | ||
Material | Steel, Carbon steel,77B, 82B | ||||
Wire Diameter | 5.26~10.3mm (207~406inch) or customer requirment | ||||
Inner Diameter | 44~152mm(1 3/4~6 inch) or customer requirment | ||||
Length | As customer requirment | ||||
Surface Treatment | Olied | Galvanzied | Electrophoresis Coating Oxide Coating | ||
Place of Origin | Tianjin,China | ||||
Brand Namen | Wangxia | ||||
Useage | Garage Door/Shutter Door/Rolling Door/Roller-up window | ||||
OEM | Accept | ||||
Deliveryed Date | Within 20 days | ||||
Certification | ISO9001-2008 | ||||
Sample Cost | Negotiation between both parties | ||||
Payment Type | T/T;Wester Union;Cash;Alibaba Credit Insurance | ||||
WARNING
Torsion springs, extension springs, and other garage door hardware can cause serious injury or death if not handled and installed properly.
Professional installation is recommended. Do NOT attempt to install springs or hardware yourself unless you have the proper tools, reasonable mechanical aptitude and experience, and upper arm strength. Read and understand all instructions before you begin work.
Extension and torsion springs, along with attached hardware, are under extreme tension at all times. All tension must be released from springs before any work is performed.
Professional installation is recommended. Do NOT attempt to install springs or hardware yourself unless you have the proper tools, reasonable mechanical aptitude and experience, and upper arm strength. Read and understand all instructions before you begin work.
Extension and torsion springs, along with attached hardware, are under extreme tension at all times. All tension must be released from springs before any work is performed.

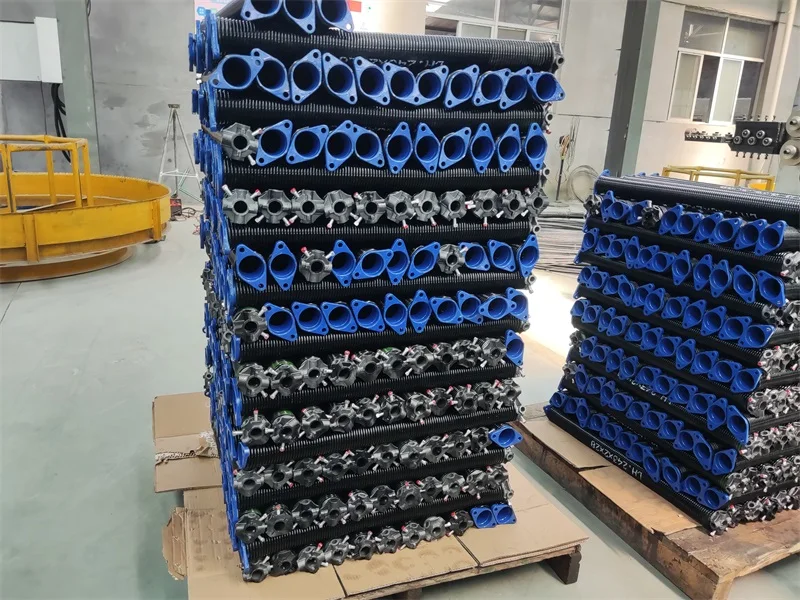

Product Packaging
ITEM | Size Length*Wide*High (CM) |
1 | 1420*950*750 |
2 | 1060*1060*930 |
3 | 1420*1000*930 |
4 | 1200*1000*770 |
5 | 1650*1000*980 |
Outer Box Material:
Paper Box or Wooden Box
(as customer requirments)
Outer Box Size:1420*950*750
1060*1060*930
1420*1000*930
1200*1000*770
1650*1000*980
(as customer requirments)
Fill Goods:
1)Lined with waterproof plastic cloth;
2)Fill the goods in the box;
3)Cover wooden cover.
Tie Up:
1)Fasten with PET plastic steel belt;
2)Wrap the box with waterproof film to prevent water from entering.
Product Usage
How to Fix Garage Door Spring
Part 1
Removing the Old Springs
1.Unplug the garage door opener and clamp the door to the track.
Disconnect the garage door opener so the door remains closed. Use locking pliers or a C-clamp to secure the door to the track to keep it from opening when you release the tension on the springs.
2.Loosen the set screws while holding each spring with a winding bar.
Position a sturdy ladder to the side of the springs, rather than working directly in front of them, for safety reasons. Put on eye protection and leather gloves. Push a winding bar into the bottom hole of the winding cone on the outside of 1 spring. Use a wrench to loosen the 2 set screws. Keep a firm grip on the bar as the the spring will expand powerfully as the screws are released. Repeat on the other side.
-If you don’t have winding bars, you can make your own. Purchase 2 pieces of 18 in (46 cm) long metal bar stock with a 1⁄2 inch (1.3 cm) diameter. To ensure the bars fit securely into the winding cone holes, file down the ends.
-Using a screwdriver, pin punch, or plier handles to unwind the bars could result in serious injury, as these tools aren’t designed to hold the spring in place.
-Avoid standing on a bucket or chair to reach the springs. Use a sturdy ladder to minimize the risk of injury.
3.Unwind each spring with the help of 2 winding bars.
Position the second winding bar into a hole on the winding cone at a perpendicular angle to the first. Unwind the spring ¼ turn at a time, moving 1 winding bar to the next open perpendicular position after each ¼ turn. Repeat on the other spring.
4.Remove the nuts and bolts, then slide the springs to the end bracket.
Using a wrench, remove the 2 nuts and bolts that secure each spring cone to the center bracket. Then, slide each spring toward the end bracket.
5.Secure the tube and remove the springs, cables, and cable drums.
Use locking pliers or a C-clamp to secure the torsion tube to the center bracket to keep it from moving. Then, use a wrench to loosen the set screws on both lift cable drums. Disconnect the lift cables, then slide the cable drums and springs off the torsion tube.
-Securing the tube is an essential step that will prevent the tube from moving around and potentially injuring you, so be sure to fully lock the tube in place.
6.Measure the length of the relaxed spring.
Unfortunately, you can’t measure the springs while they’re installed as the tension on them would provide you with the wrong measurement. Now that you’ve removed the springs, use a tape measure to find the length of the entire spring, from one end to the other. You’ll need this information in inches to order replacement springs.
-If one spring is broken, measure the other one for the most accurate numbers.
7.Determine the inside diameter of the spring and the size of the coils.
Run a tape measure across the opening at one end of the spring. Carefully measure the inside diameter of the spring so you can provide the supplier with this information. Then, use a tape measure to find the length of 10 coils on the spring. Divide the length by 10 to determine the measurement of a single coil.
-Coil sizes range from 0.0135 to 0.625 inches (0.034 to 1.588 cm).
-The standard inside diameter of a torsion spring is 2 inches (5.1 cm). Many torsion springs are 24 inches (61 cm) long.
-If you suspect the coils are the wrong size, which could be contributing to the issues you’re having with the garage door, use the size and weight of the door to calculate the correct size from a spring weight manual.
8.Order replacement springs.
Many manufacturers and distributors only provide torsion springs to professionals, and won’t sell them directly to the customer. Luckily, they are available on the Internet, so search online to find replacement springs. Make sure they match the coil size, length, and interior diameter of the springs you removed. Also, be sure to order both a "left-hand" and a "right-hand" spring as the coils are wound in different directions.
-It’s best to purchase double-life springs, which are stronger and last longer than standard springs.
-Ask the supplier for a recommendation on how many times to turn the springs to apply the right amount of tension when reinstalling them.
9.Check for other worn or rusted components.
While the tension is off the door, inspect the other components. If you notice any worn or rusted pieces, replace them before installing the new springs.
-For instance, if you spot a frayed cable, replace it now to avoid taking the door apart again later.
Part 2
Installing the New Springs
1.Check for other worn or rusted components.
While the tension is off the door, inspect the other components. If you notice any worn or rusted pieces, replace them before installing the new springs.
-For instance, if you spot a frayed cable, replace it now to avoid taking the door apart again later.
2.Slide the left spring onto the tube and add the cable drum.
When your new springs arrive, put the new left spring (the 1 with the end facing up and to the left) on the torsion tube, making sure that the stationary cone on the end of the spring faces the center bracket. After sliding the new spring into place, replace the cable drum and insert the torsion bar into the left bearing bracket.
3.Install the center bearing and the right spring, then secure the cones.
Slide the torsion bar to the left then add the center bearing. Slide the right spring onto the bar and press the bearing into the stationary cone. Connect both of the stationary cones to the center bracket with the nuts and bolts you removed previously. Remove the locking pliers or clamp from the center bracket.
4.Thread the cables and tighten the drums.
Run the lift cable between the roller and the doorjamb. Slip the lift cable stop through the cable slot on the drum. Then, attach locking pliers to the torsion tube to secure it in place. Spin the drum to wind the cable into the grooves, then tighten the set screws. Repeat on the other side, leaving the locking pliers in place.
-For the door to operate properly, you need the same amount of tension on both sides, so take care to tighten each side evenly.
5.Wind the springs.
Insert 2 winding bars into the winding cone so they are perpendicular to each other. Use the bars to turn the spring ¼ turn at a time, moving the bars to new holes in the cone as necessary. Follow the supplier’s recommendation for the number of turns to complete. Repeat on the other spring.
-Generally, you’ll need 30 quarter-turns for a 7 ft (2.1 m) tall door and 36 quarter-turns for an 8 ft (2.4 m) tall door.
-Winding the spring too tight could cause it to break and injure you, so be sure to follow the supplier’s recommendation and don’t over-wind the spring.
6.Stretch the springs out 1⁄4 inch (0.64 cm).
When the spring is fully wound, leave 1 winding bar in a slot of the cone that is perpendicular to the floor. Tap the winding bar with a hammer to stretch the spring 1⁄4 inch (0.64 cm) out from the center. Repeat on the other side.
7.Tighten the set screws.
Use your fingers to tighten each set screw until it contacts the torsion tube. Then, tighten each screw ½ to ¾ turn more. Tightening the screws more than this could distort or puncture the torsion tube, so be sure to make less than 1 full rotation once the screws touch the torsion tube.
8.Lubricate the springs.
Slide a grocery bag or piece of cardboard behind the spring to protect the garage door. Spray each spring with garage door lubricant. Wipe off any excess, then repeat the process on the other side.
9.Remove the clamps or pliers.
It is now safe to remove the clamps or pliers you used to hold both the torsion bar and the garage door itself in place.
Our Advantages
1. Are you trading company or manufacturer ?
We are 8 years factory in Tianjin China, adjacent Xingang port .
2. What's the payment term?
We accept TT,30% deposit and 70% balance against copy of B/L
3. How's the delivery time ?
It will take 10-25 days for 20ft container
4. Tell me the standard of package?
Normally are cartons,we can also packing as your request.
We are 8 years factory in Tianjin China, adjacent Xingang port .
2. What's the payment term?
We accept TT,30% deposit and 70% balance against copy of B/L
3. How's the delivery time ?
It will take 10-25 days for 20ft container
4. Tell me the standard of package?
Normally are cartons,we can also packing as your request.
5. Does sample free?
Sample usually is free if amount is not too much,only afford the freight. Normally samples will be done within 5-7 Workdays (garage door spring , car spring, machining parts)
Sample usually is free if amount is not too much,only afford the freight. Normally samples will be done within 5-7 Workdays (garage door spring , car spring, machining parts)
6 : What are your payment terms?
T/T, L/C, Western Unions,Cash;Alibaba Credit Insurance
7. Would you accept to make mold as our request
Yes,we do and mold cost can be return when you reach the enough quantity.
T/T, L/C, Western Unions,Cash;Alibaba Credit Insurance
7. Would you accept to make mold as our request
Yes,we do and mold cost can be return when you reach the enough quantity.
Company Profile
Tianjin Wang Xia Spring CO., LTD.

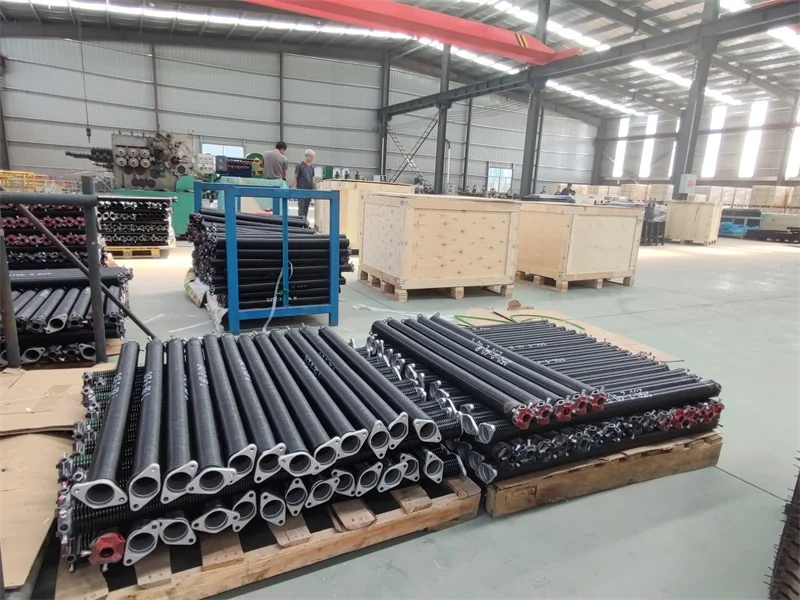

Our company was founded in 2005 and is located in Jinghai County, Tianjin, China. We are very convenient for transportation east of Tianjin port. Our company is a professional manufacturer which combines a set of spring manufacturing, R & D with surface treatment. more 20+ years of history, our company has a variety of automatic computer spring coiling machines, computer spring grinding machines, continuous mesh belt Quenching furnaces, furnaces, spring tensions, compression testing machines, spring fatigue testing machines, hot coil spring equipment, production testing equipment, and advanced production technology. We have been specializing in the main production of various compression springs, extension springs, helical springs, torsion springs, rubber springs, disc springs, spiral springs, leaf springs, shaped springs, and various springs. We can process steel with the diameter of 0.2 - 20mm, and the diameter of 20-90mm. We have 60Si2MnA, 65Mn, 50CrvA, SUS304 and other types of high quality spring steel, which are widely used for the automotive industry, motorcycle industry, elevator industry, electronic industry, mining machinery, crushing machinery, recreational facility and other machinery. We have been adhering to the principle of quality first, the use of advanced equipment, advanced technology, high quality materials and sticking to the attitudes of seriousness and responsibility, carefulness and meticulousness, so we can produce high-quality products. At the same time, we can provide personalized services and have won numerous customers' recognition.
