Product Description

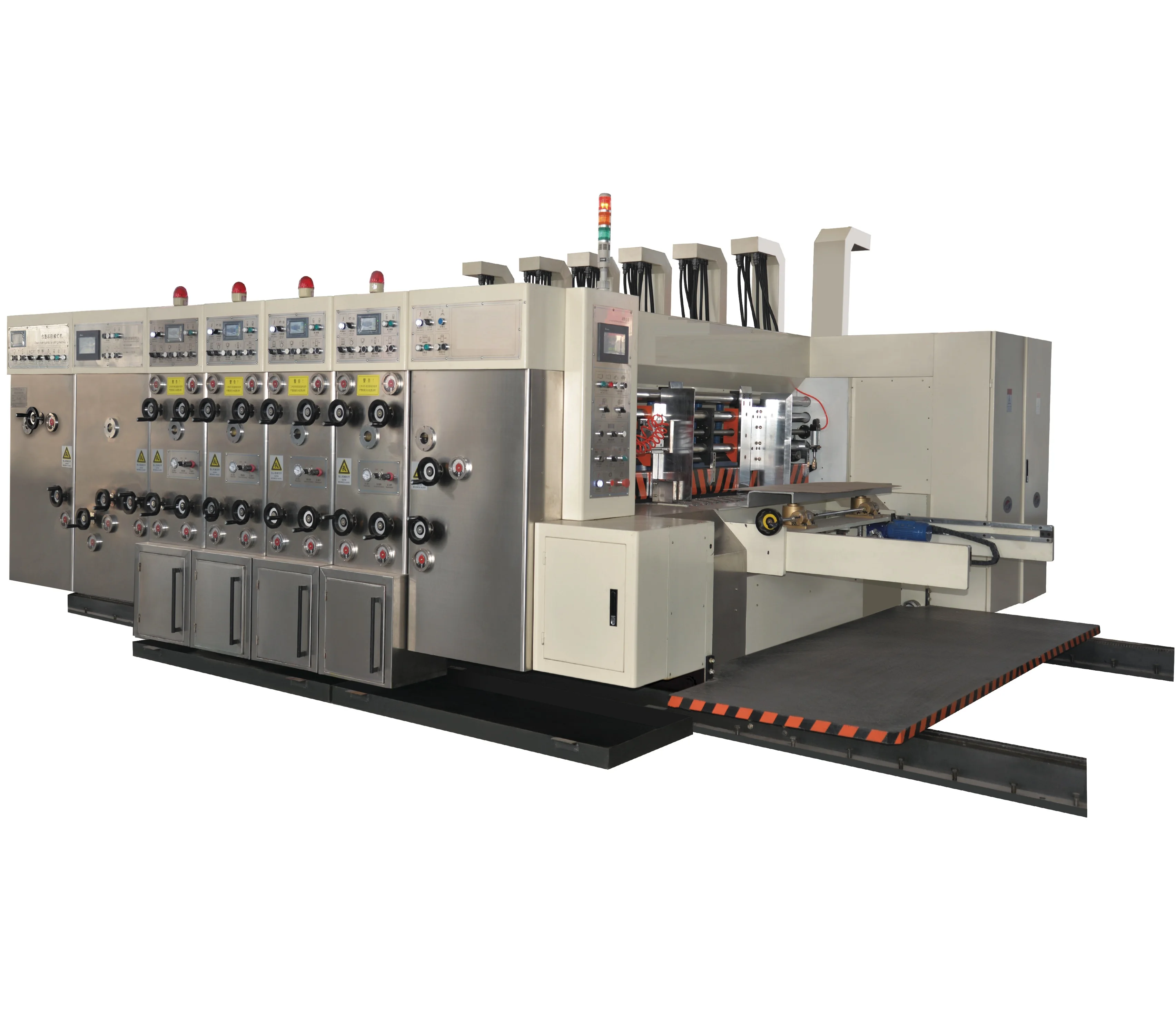

Machine introduction:
1. This machine is component with the feeding unit, printing unit, slotting unit, rotary die-cutting unit and stacker, can accomplish the process of the corrugate paperboard printing, slotting and die-cutting.
2. The materials of the body is HT250,thickness of body is 60mm,after second stage annealing ,making by CNC machine, with high strength and high precision.
3. All the transmission gear is spiral gear, with low noise and high precision, gears after high frequency heating and grinding,adopt automatic circle lubrication.
4. The gear material is 20CrMnti alloy steel, after high frequency heating and grinding. and the main transmission gear and roller adopt expansion sleeve connection.
5. Bearing adopt the famous brand made in China like HRB and WANXIANG.
6. The mail motor adopt frequency converters adjust, the frequency is “Delta” brand made in Taiwan, the PLC also adopt “Delta” brand made in Taiwan, the contactor adopt “Seimens” brand.
7. The rubber roller adopt Jizhou Chunfeng Yinxing rubber roller, famous brand in China.
8. Anilox roller adopt “Haili” brand, famous brand in China.
2. The materials of the body is HT250,thickness of body is 60mm,after second stage annealing ,making by CNC machine, with high strength and high precision.
3. All the transmission gear is spiral gear, with low noise and high precision, gears after high frequency heating and grinding,adopt automatic circle lubrication.
4. The gear material is 20CrMnti alloy steel, after high frequency heating and grinding. and the main transmission gear and roller adopt expansion sleeve connection.
5. Bearing adopt the famous brand made in China like HRB and WANXIANG.
6. The mail motor adopt frequency converters adjust, the frequency is “Delta” brand made in Taiwan, the PLC also adopt “Delta” brand made in Taiwan, the contactor adopt “Seimens” brand.
7. The rubber roller adopt Jizhou Chunfeng Yinxing rubber roller, famous brand in China.
8. Anilox roller adopt “Haili” brand, famous brand in China.

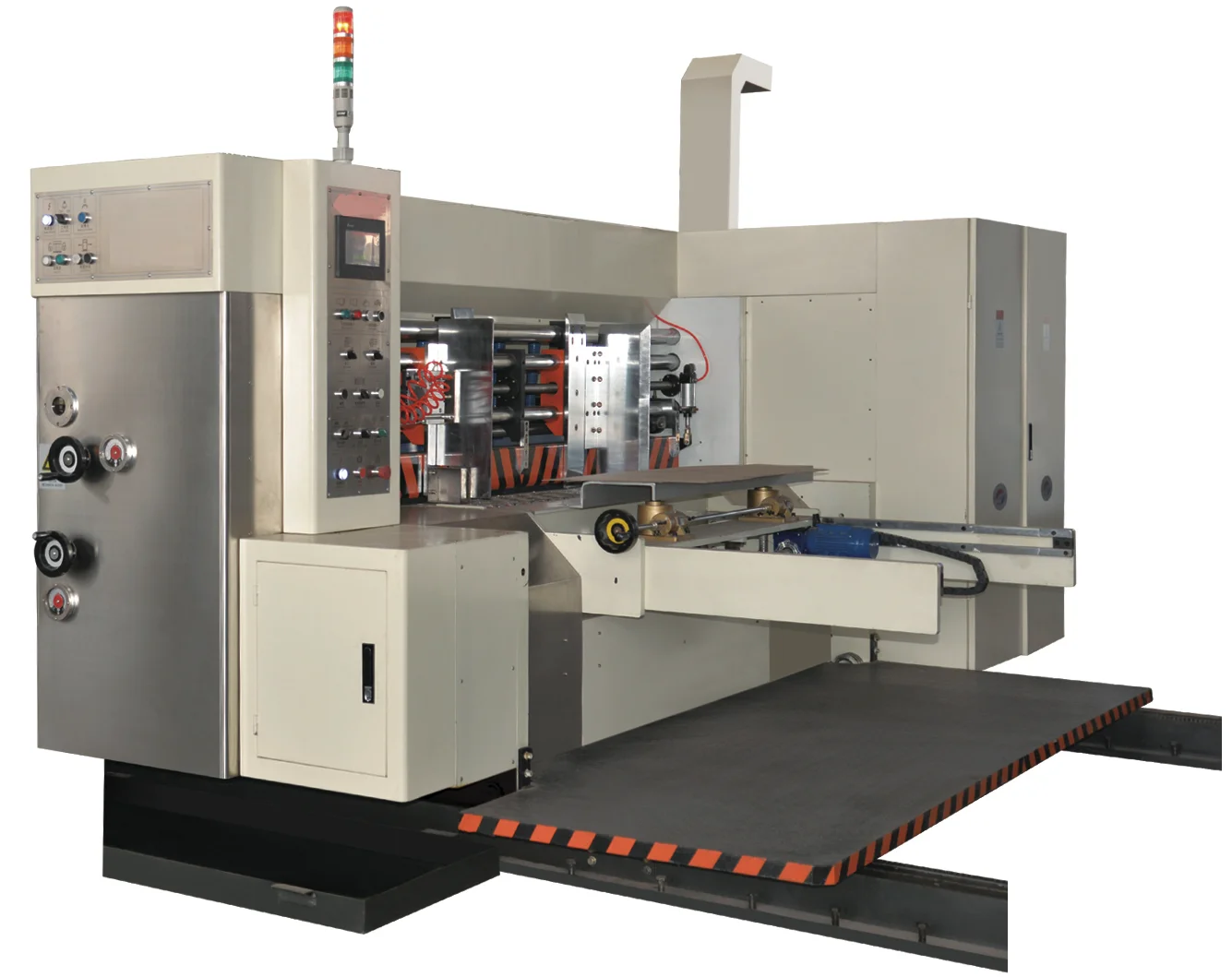

Cardboard feeding unit
* Unit moving.
* Each unit is electric moving left and right with warning bell. When unit moving, the bell will be warning to make sure the operator safe. The moving motor with constant torsional moment which can buffer the impact of the two units when the operation is wrong.
* After all the units closed, each part is pneumatic locked. There is also lead locked cylinder which can make each part locked with bottom-track lock. If the cylinder is not locked, the main motor will not work.
* Lead edge feed system.
* The Lead edge feed unit is made in Shanghai, with long life,and high precision for feeding.
* Wind absorbing auxiliary paperboard feeding, can make the cardboard feed favoringly. The volume of the wind can be adjusted accord the camber of the paperboard.
* Electric and PLC control the side baffles move left and right.electric control the behind baffles move back and front.The distance between the frontal baffles and the feed table is synchronous manual adjust.
* With colorful touch screen show the produce quatity and can be input the production plan and also show the produce sheets number. Once the plan is finished, the counter system stops the feeding part and warns.999 order can store in the touch screen.
* Dust clean.
* Brush dust-removal equipment with dust-absorption blower. This equipment can clear the dust on the surface of the cardboard,improve the printing quality.
* Each unit is electric moving left and right with warning bell. When unit moving, the bell will be warning to make sure the operator safe. The moving motor with constant torsional moment which can buffer the impact of the two units when the operation is wrong.
* After all the units closed, each part is pneumatic locked. There is also lead locked cylinder which can make each part locked with bottom-track lock. If the cylinder is not locked, the main motor will not work.
* Lead edge feed system.
* The Lead edge feed unit is made in Shanghai, with long life,and high precision for feeding.
* Wind absorbing auxiliary paperboard feeding, can make the cardboard feed favoringly. The volume of the wind can be adjusted accord the camber of the paperboard.
* Electric and PLC control the side baffles move left and right.electric control the behind baffles move back and front.The distance between the frontal baffles and the feed table is synchronous manual adjust.
* With colorful touch screen show the produce quatity and can be input the production plan and also show the produce sheets number. Once the plan is finished, the counter system stops the feeding part and warns.999 order can store in the touch screen.
* Dust clean.
* Brush dust-removal equipment with dust-absorption blower. This equipment can clear the dust on the surface of the cardboard,improve the printing quality.

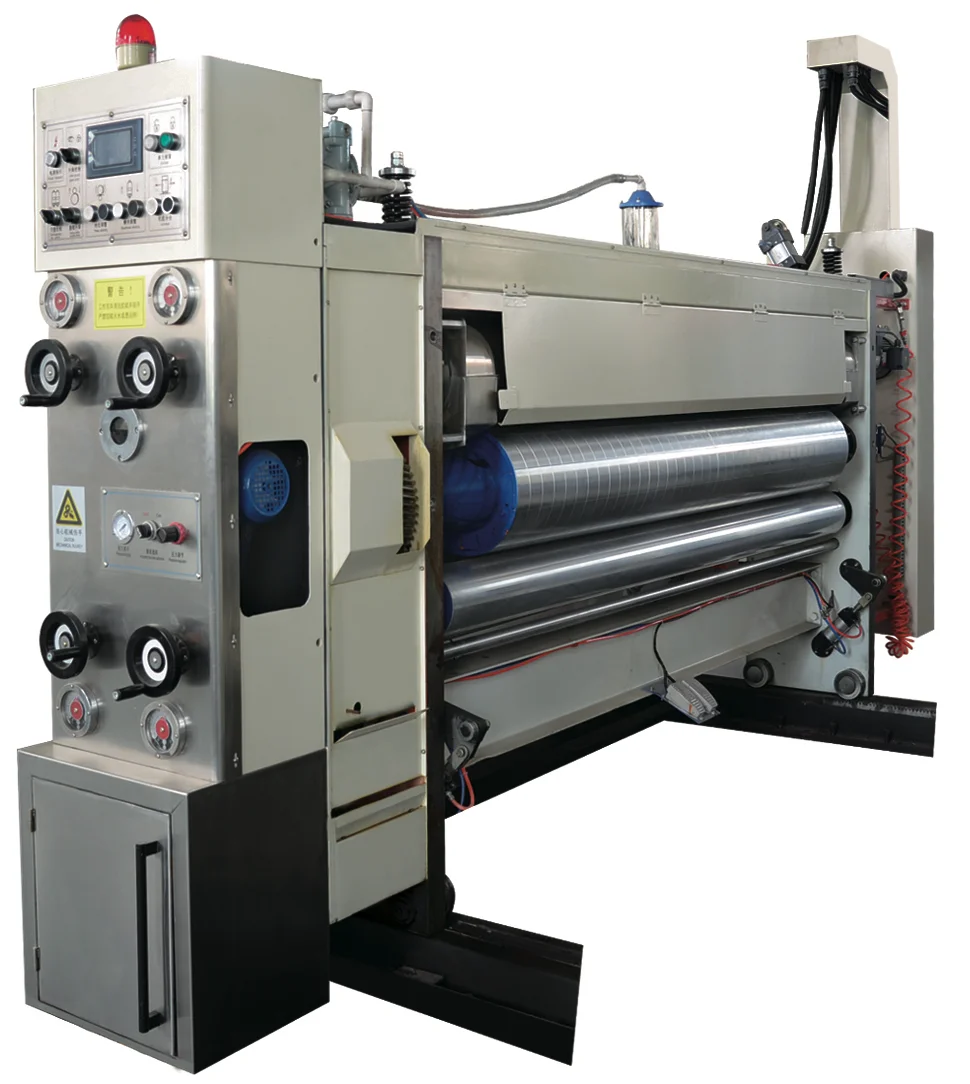

The printing Unit
* The printing roller.
* The printing roller is steel material, after balance correction.
* The surface of the printing roller is grinded, polished and hard chromium plating.
* The-printing-plate-reel structure is adopted. The pedal switch control the printing roller run clockwise and anticlockwise,makes change printing plate easy.
* A complete slot in the printing roller for hung the printing plate,the size of the slot is 9mm×3mm.
* The down press printing roller.
* The down press printing roller adopt steel tube without gaps, after balance correction.
* The surface of the down press printing roller is grinded, polished and hard chromium plating.
* The distance between the printing roller and down press printing roller is adjusted by hands,while the dial show the adjust date,the adjusting scope is 2-12mm.The printing and down press printing roller adopt the crosshead connect with the drive gears,when adjust the distance between the two rollers,the distance between the two driver gears of the two rollers will not changed.
* The printing roller is steel material, after balance correction.
* The surface of the printing roller is grinded, polished and hard chromium plating.
* The-printing-plate-reel structure is adopted. The pedal switch control the printing roller run clockwise and anticlockwise,makes change printing plate easy.
* A complete slot in the printing roller for hung the printing plate,the size of the slot is 9mm×3mm.
* The down press printing roller.
* The down press printing roller adopt steel tube without gaps, after balance correction.
* The surface of the down press printing roller is grinded, polished and hard chromium plating.
* The distance between the printing roller and down press printing roller is adjusted by hands,while the dial show the adjust date,the adjusting scope is 2-12mm.The printing and down press printing roller adopt the crosshead connect with the drive gears,when adjust the distance between the two rollers,the distance between the two driver gears of the two rollers will not changed.

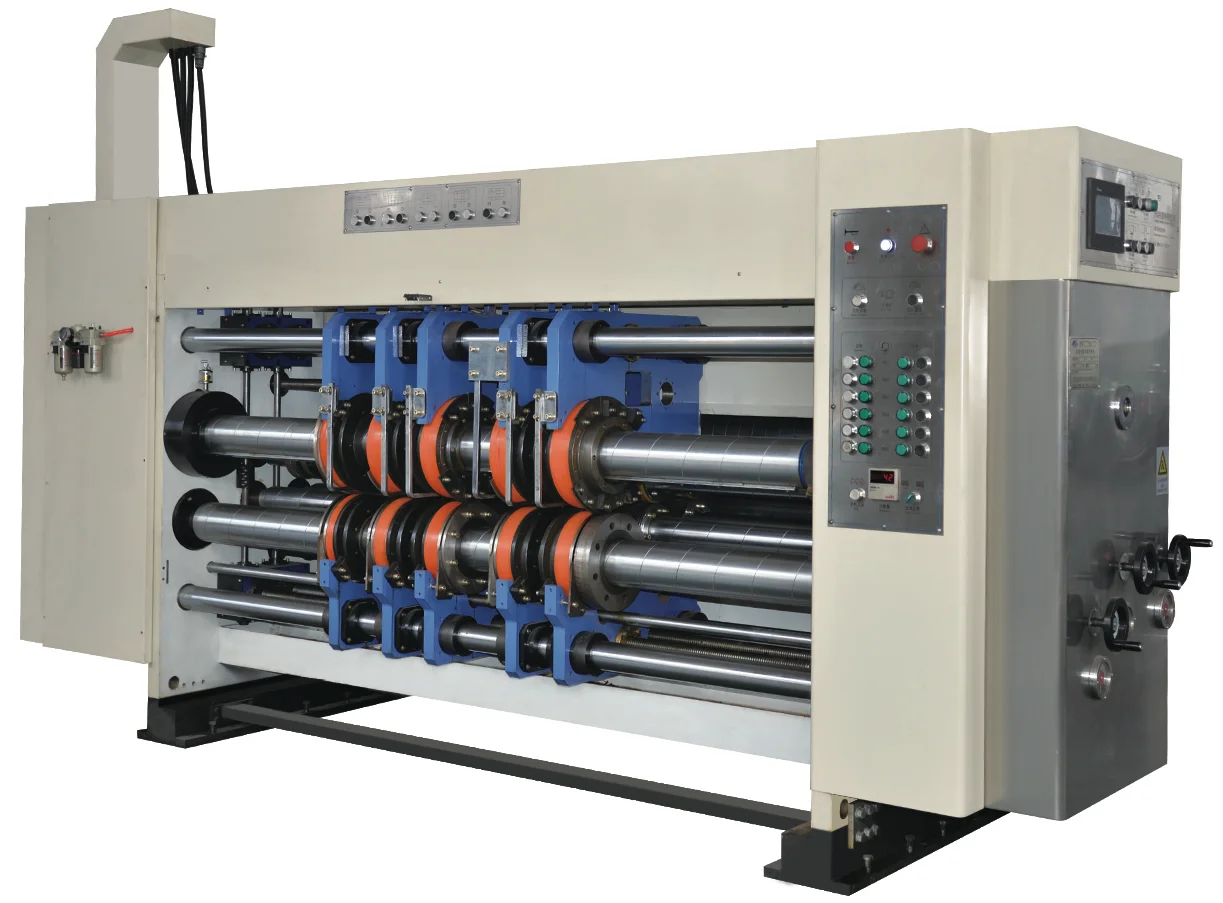

The slotting unit
* The line creasing device.
* The material of the line creasing wheel roller is steel tube with out gaps.
* The surface of the creasing wheel roller is grinded, polished and hard chromium plating. And after balance corrective.
* The distance between the up and down line creasing wheel roller is adjusted by hands,while the dial show the adjust date,the adjusting scope is 2-12mm.The up and down line creasing wheel roller adopt the crosshead connect with the drive gears,when adjust the distance between the two rollers,the distance between the two driver gears of the two rollers will not changed.
⑵．The slotting knife plate moving device。.
* The slotting knife plate roller is after two times grinded.Be polished and hard chromium plating.
* The width of the slot is 7mm.
* The slotting knife is sawtooth type, adopt alloy steel material and after heat treatment and grinded, more hardwearing and sharp-edged.
* The cardboard cutting knife is adopted alloy material after heat treatment and grinded, more hardwearing,sharp-edged and high precise.
* The slotting knife plate and line creasing wheel are synchronous move left and right, be adjusted by hand.
* The four slotting knives are synchronous moving for adjust the high of the carton box, be adjusted by hand.
* The distance between the up and down slotting knife plate roller is adjusted by hands,while the dial show the adjust date,the adjusting scope is 2-12mm.The up and down slotting knife plate roller adopt the crosshead connect with the drive gears,when adjust the distance between the two rollers,the distance between the two driver gears of the two rollers will not changed.
* The material of the line creasing wheel roller is steel tube with out gaps.
* The surface of the creasing wheel roller is grinded, polished and hard chromium plating. And after balance corrective.
* The distance between the up and down line creasing wheel roller is adjusted by hands,while the dial show the adjust date,the adjusting scope is 2-12mm.The up and down line creasing wheel roller adopt the crosshead connect with the drive gears,when adjust the distance between the two rollers,the distance between the two driver gears of the two rollers will not changed.
⑵．The slotting knife plate moving device。.
* The slotting knife plate roller is after two times grinded.Be polished and hard chromium plating.
* The width of the slot is 7mm.
* The slotting knife is sawtooth type, adopt alloy steel material and after heat treatment and grinded, more hardwearing and sharp-edged.
* The cardboard cutting knife is adopted alloy material after heat treatment and grinded, more hardwearing,sharp-edged and high precise.
* The slotting knife plate and line creasing wheel are synchronous move left and right, be adjusted by hand.
* The four slotting knives are synchronous moving for adjust the high of the carton box, be adjusted by hand.
* The distance between the up and down slotting knife plate roller is adjusted by hands,while the dial show the adjust date,the adjusting scope is 2-12mm.The up and down slotting knife plate roller adopt the crosshead connect with the drive gears,when adjust the distance between the two rollers,the distance between the two driver gears of the two rollers will not changed.

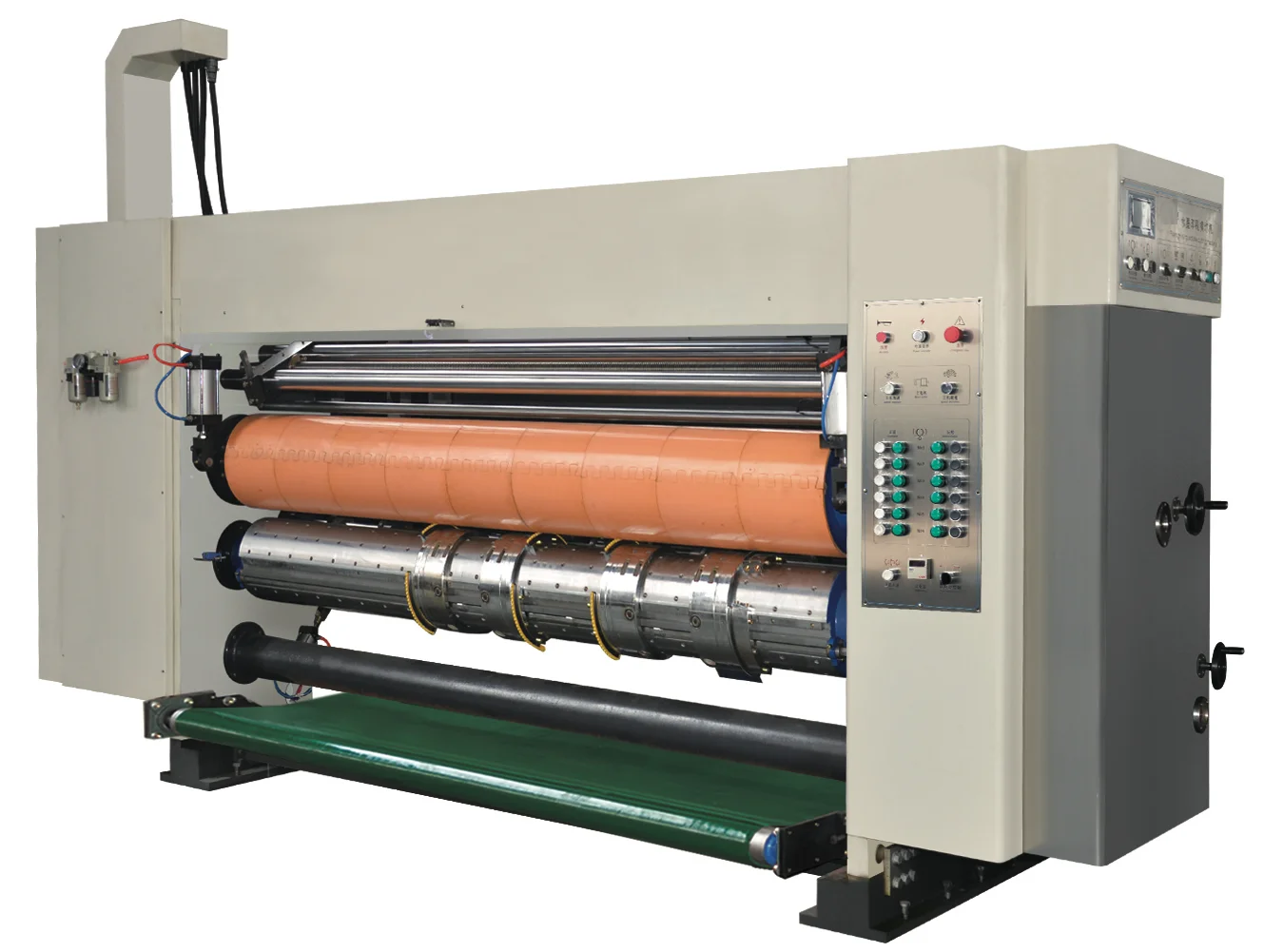

The die-cutting unit
* The rubber cushion roller.
* The rubber cushion roller is steel material,the surface is grinded and hard chromium plating.
* The rubber cushion roller after balance correction.
* Rubber cushion adopt fastening-type excellent rubber.Easy to install and uninstall. Long service life,can be cutted 4million to 6million times.
* Adopting mechanical control the position move left and right of the rubber cushion roller.The movement distance is 40mm. This structure makes the rubber covers equally wear,which can increase the use time.
* The automatic Pneumatic control Up-down device of the rubber cushion roller is synchronous with the cardboard feeding system.(when the cardboard is fed,the rubber cushion roller is go down and cut the cardboard,when cardboard feeding is stop,the rubber cushion roller will go up and separated from the die. )
* The unique speed compensation device can make the fine rubber cushion roller rolling running with the die,no matter how the diameter of the rubber cushion changed,the surface speed of the rubber cushion is completely controlled by the die.This could make the shape of the carton sheet absolutely equal to the die pattern without people operation.
* There is a rubber cushion repair device with the machine,the rubber cushion can be used again after be repaired.
* The die roller.
* The die roller is steel material,the surface is grinded and hard chromium plating.After balance correction.
⑶. The clockwise and anticlockwise phase adjustment of the die-cutting unit.
* Adopt satellite gear structure for adjust the clockwise and the anticlockwise phase of the die roller.
* The clockwise and the anticlockwise phase of the die roller is adjusted by the PLC and electricity,360° could be adjusted while the machine running or stop running.
* The rubber cushion roller is steel material,the surface is grinded and hard chromium plating.
* The rubber cushion roller after balance correction.
* Rubber cushion adopt fastening-type excellent rubber.Easy to install and uninstall. Long service life,can be cutted 4million to 6million times.
* Adopting mechanical control the position move left and right of the rubber cushion roller.The movement distance is 40mm. This structure makes the rubber covers equally wear,which can increase the use time.
* The automatic Pneumatic control Up-down device of the rubber cushion roller is synchronous with the cardboard feeding system.(when the cardboard is fed,the rubber cushion roller is go down and cut the cardboard,when cardboard feeding is stop,the rubber cushion roller will go up and separated from the die. )
* The unique speed compensation device can make the fine rubber cushion roller rolling running with the die,no matter how the diameter of the rubber cushion changed,the surface speed of the rubber cushion is completely controlled by the die.This could make the shape of the carton sheet absolutely equal to the die pattern without people operation.
* There is a rubber cushion repair device with the machine,the rubber cushion can be used again after be repaired.
* The die roller.
* The die roller is steel material,the surface is grinded and hard chromium plating.After balance correction.
⑶. The clockwise and anticlockwise phase adjustment of the die-cutting unit.
* Adopt satellite gear structure for adjust the clockwise and the anticlockwise phase of the die roller.
* The clockwise and the anticlockwise phase of the die roller is adjusted by the PLC and electricity,360° could be adjusted while the machine running or stop running.
Items/model | RYKM950 | RYKM1226 | RYKM1426 |
Max. Feeding size | 950×2200mm | 1270×2600mm | 1400×2600mm |
Min. Feeding size | 380×600mm | 380×600mm | 380×700mm |
Max. Printing Area | 950×2000mm | 1200×2400mm | 1400×2400mm |
Skip Feeding | 1100×2200mm | 1450×2600mm | 1600×2600mm |
Min. Slotting space (mm) | 280×80×280×80mm (Normal knife) 160X160X160X160 (Reverse knife) | 280×80×280×80mm (Normal knife) 160X160X160X160 (Reverse knife) | 280×80×280×80mm(Normal knife) 160X160X160X160(Reverse knife) |
Max. Slotting depth | 230mm | 320mm | 350mm |
Printing plate thickness | 7.2mm | 7.2mm | 7.2mm |
Paperboard thickness | 2-11mm | 2-11mm | 2-11mm |
Max. Machine speed (pcs/m) | 200pcs/min | 180 pcs/min | 180 pcs/min |
Economical Running speed (pcs/m) | 180pcs/min | 150pcs/min | ±1.0mm |
Feeding precision | ±1.0mm | ±1.0mm | ±0.5mm |
Printing precision | ±0.5mm | ±0.5mm | ±1.5mm |
Slotting precision | ±1.5mm | ±1.5mm | ±1.0mm |
Die-cutting precision | ±1.0mm | ±1.0mm | ±1.0mm |
