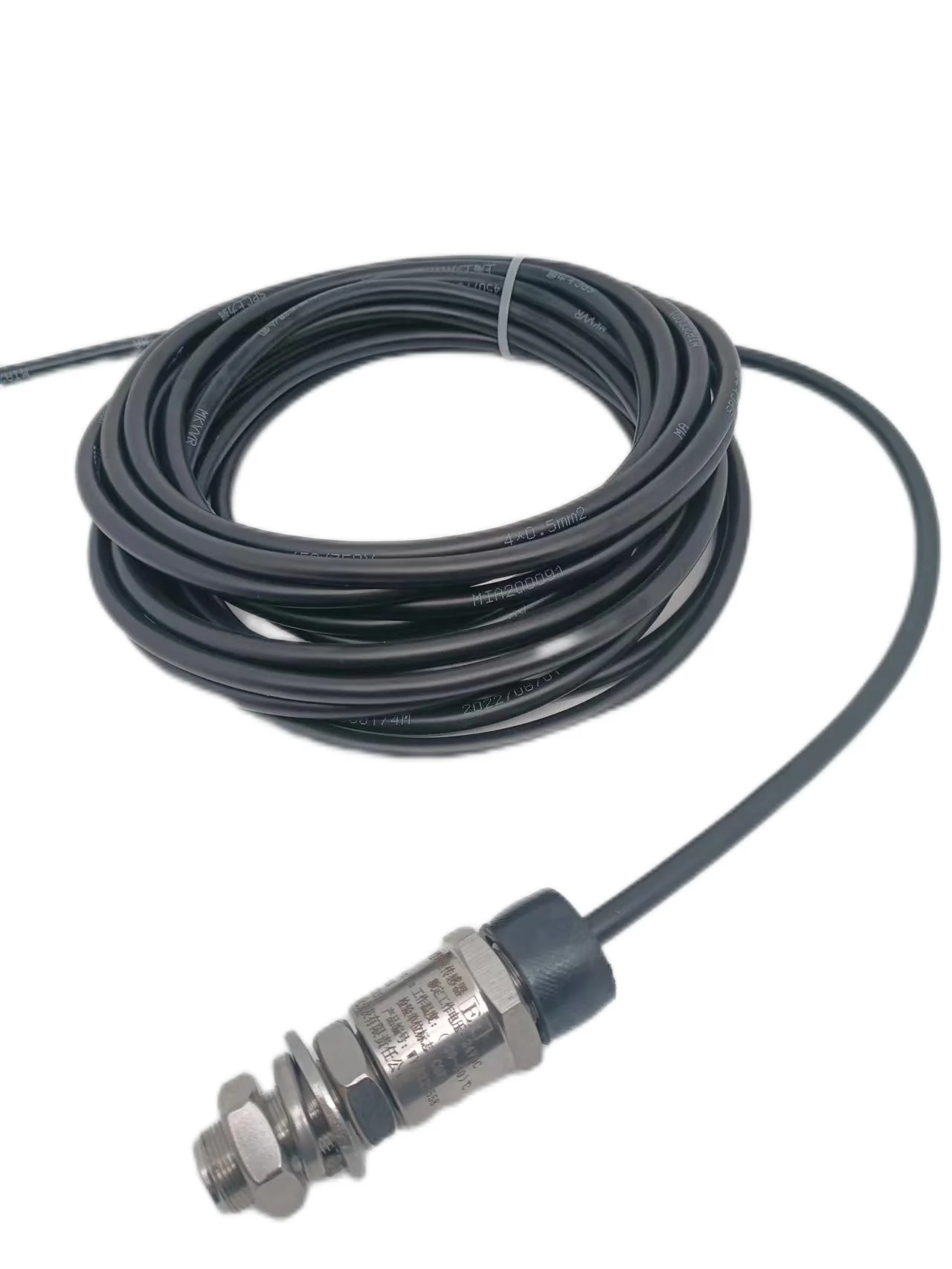

NPN PNP Датчик Холла из нержавеющей стали подземный горный Взрывозащищенный
- Категория: Speed Measuring Instruments >>>
- Поставщик: Yichang,Zhaofeng,Automation,Instrument,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 83.15 $* | 87.49 $* |
| Aug-19-2025 | 83.21 $* | 87.21 $* |
| Jul-19-2025 | 69.29 $* | 72.27 $* |
| Jun-19-2025 | 81.78 $* | 85.3 $* |
| May-19-2025 | 71.74 $* | 75.44 $* |
| Apr-19-2025 | 80.71 $* | 84.86 $* |
| Mar-19-2025 | 79.74 $* | 83.54 $* |
| Feb-19-2025 | 78.55 $* | 82.62 $* |
| Jan-19-2025 | 78.10 $* | 82.52 $* |
Характеристики
Specification
Anti-explosion speed sensor for mining equipment | ||
Working voltage | 8 to 36 VDC | |
Rated voltage | 24V.DC | |
Working currency | ≤120mA.DC | |
Speed detection range | 0 to 3000 r/min (maximum output pulse frequency≤10kHz) | |
Ex-mark | Exd I Mb | |
Enclosure protection class | IP54 | |
Sensor | Hall element | |
Intrinsic error | ±3 r/min | |
Power consumption | <1W | |
Anti-seismic performance | <20 m/s² | |
Signal output | Rated voltage: high level output≥21.0VDC, low level output≤1.0VDC Frequency output signal: high/low level signal (No driven) or triode switch signal (NPN/PNP, drive current≤100mA) | |
Mounting clearance | 0.8 to 3.5mm, standard: 2mm. Detecting distance for magnetic object: 1 to 10mm | |
Tested gear parameter | Height≥5mm, width≥2mm, pitch≥2mm | |
Net weight | 0.8KG | |
Models specification
Model No. | Range | Signal output |
GSC3000 | 0-3000 r/min | Square signal with equal amplitude and different frequency |
Electrical connection
Product Description
Applications
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

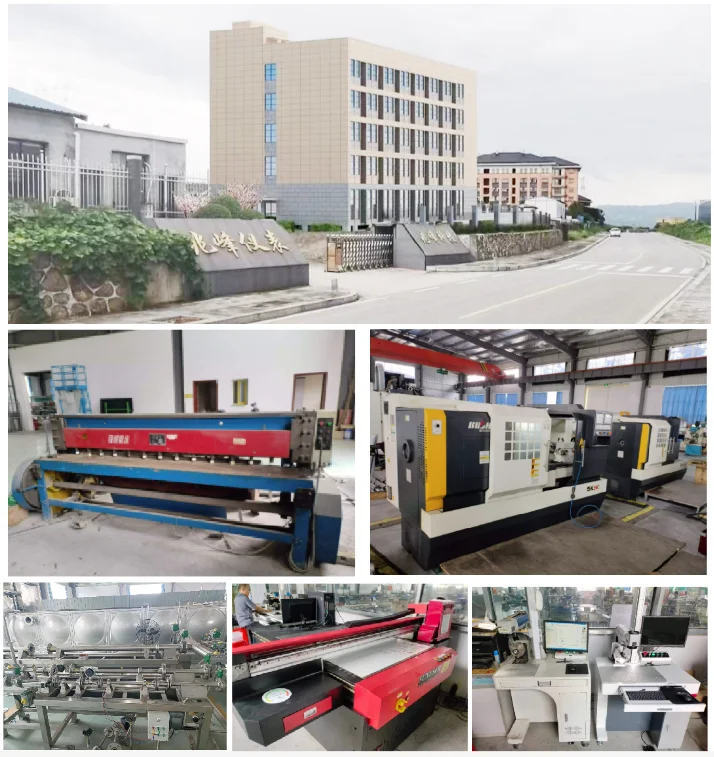

Company Profile
Yichang Zhaofeng Automation Instrument Co., Ltd., founded in 2000, is a professional manufacturer of automation instruments. Awarded as national high-tech enterprise, now is one of the domestic leading companies in automation instrument industry.

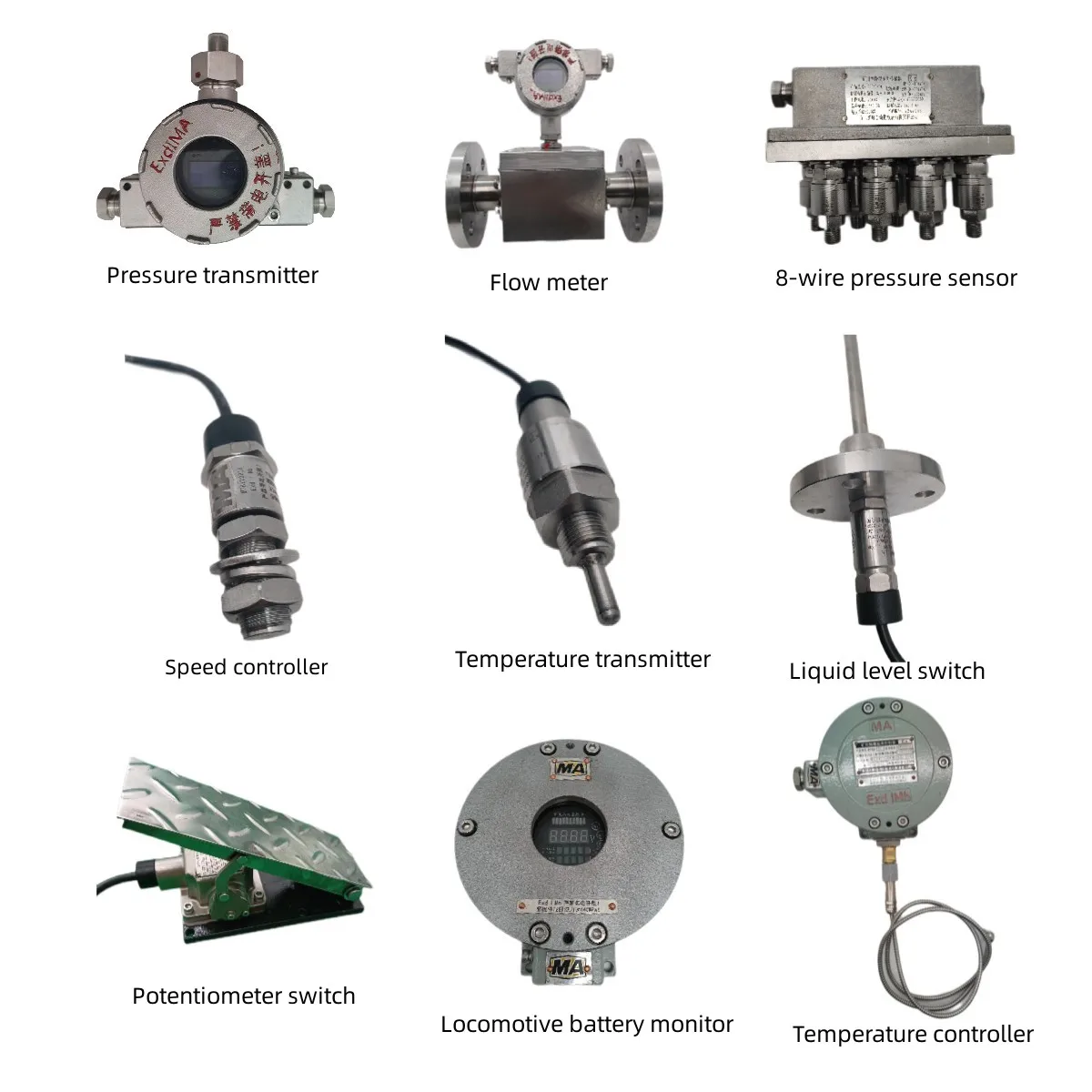

Product catalog:
* Display instrument: pressure gauge, differential pressure gauge;
* Controllers: explosion-proof pressure controller, differential pressure controllers, display controllers;
* Electronic automation instrument: pressure transmitter, differential pressure transmitter, liquid level, flow transmitter,
temperature sensors/transmitter, digital display and control instruments, etc.
40+ series up to 1000 varieties of products, 2 series of which had been patented. With factory area of 12,300 ㎡, and production area of 4,500 ㎡, 100 sets of various production equipment and 50 sets of inspection equipment. Products are widely applied in machinery, petroleum, chemical industry, metallurgy, electric power and military industry, etc.
Product catalog:
* Display instrument: pressure gauge, differential pressure gauge;
* Controllers: explosion-proof pressure controller, differential pressure controllers, display controllers;
* Electronic automation instrument: pressure transmitter, differential pressure transmitter, liquid level, flow transmitter,
temperature sensors/transmitter, digital display and control instruments, etc.
40+ series up to 1000 varieties of products, 2 series of which had been patented. With factory area of 12,300 ㎡, and production area of 4,500 ㎡, 100 sets of various production equipment and 50 sets of inspection equipment. Products are widely applied in machinery, petroleum, chemical industry, metallurgy, electric power and military industry, etc.
FAQ
1.what can you buy from us?
Mining equipment, industrial, petroleum, chemical, natural gas related pressure/differential pressure transmitter,
temperature/liquid level/flow instrument.
2. what services can we provide?
We can do both OEM and ODM, whichever you like.
Language Spoken:English, Spanish
3. Can you get a free sample?
Yes, sample is free, customer just needs to pay the freight cost.
Mining equipment, industrial, petroleum, chemical, natural gas related pressure/differential pressure transmitter,
temperature/liquid level/flow instrument.
2. what services can we provide?
We can do both OEM and ODM, whichever you like.
Language Spoken:English, Spanish
3. Can you get a free sample?
Yes, sample is free, customer just needs to pay the freight cost.
