6000 Вт напряжение постоянного тока промышленное оборудование импульсный источник питания 6 кВт микроволновый генератор
- Категория: Power Supplies >>>
- Поставщик: Zhuhai,Pindom,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 26620.78 $* | 27951.72 $* |
| Aug-15-2025 | 26397.84 $* | 27717.96 $* |
| Jul-15-2025 | 22146.4 $* | 23253.73 $* |
| Jun-15-2025 | 25949.67 $* | 27246.99 $* |
| May-15-2025 | 22594.99 $* | 23724.10 $* |
| Apr-15-2025 | 25502.75 $* | 26777.67 $* |
| Mar-15-2025 | 25278.57 $* | 26542.9 $* |
| Feb-15-2025 | 25054.95 $* | 26307.46 $* |
| Jan-15-2025 | 24831.91 $* | 26073.44 $* |
Характеристики
Specification
item | 6000W Voltage DC Industrial Machinery Equipment Switching Power Supply 6KW Microwave Frequency Generator | |||
Input voltage | Three-phase AC380V±10%, 50Hz±2Hz | Three-phase four-wire | ||
microwave power | ≥6kW | continuous wave | ||
microwave frequency | 2450MHz±15MHz | |||
microwave conversion rate | ≥65% | |||
Microwave power adjustment | 10%~100% continuous adjustment | |||
Output Interface | BJ26 | |||
control method | Local control/communication | |||
Protect | Filament undercurrent, overcurrent; anode overvoltage, overcurrent; magnetic field overcurrent; ignition; magnetron overtemperature; water flow protection, reflection protection, etc. | |||

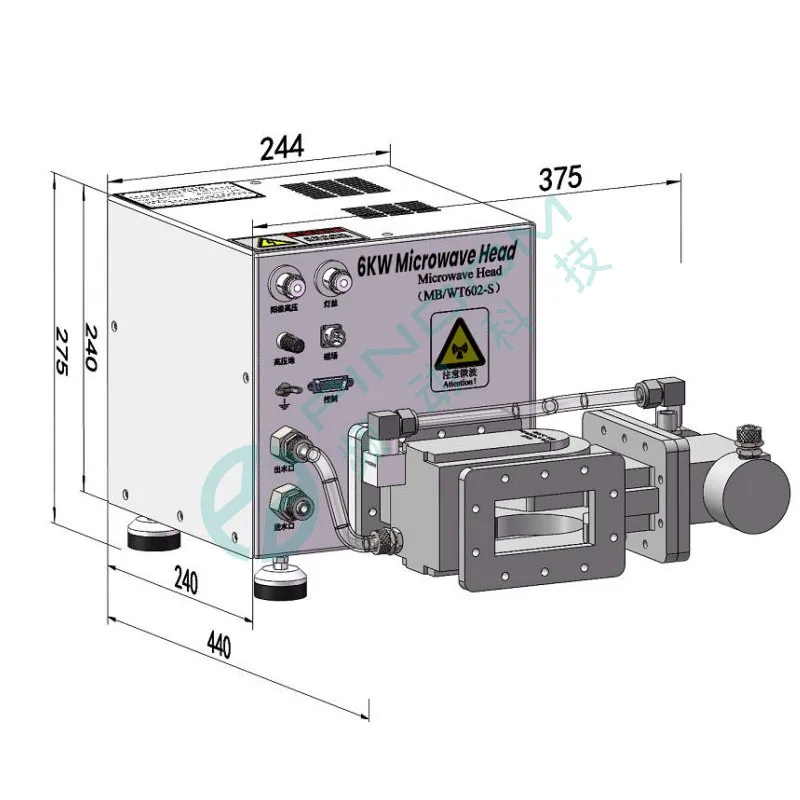

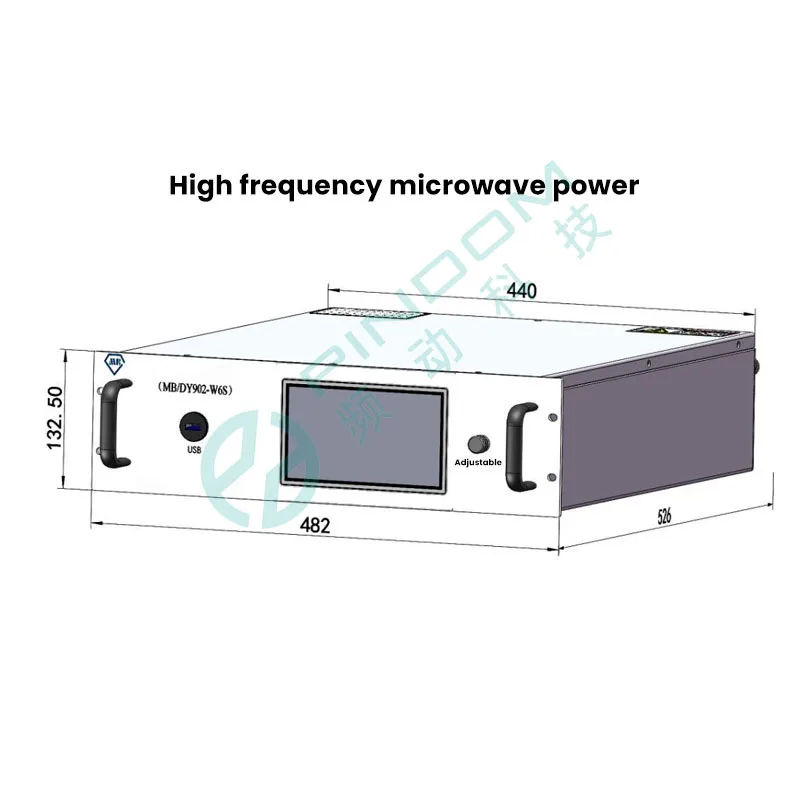

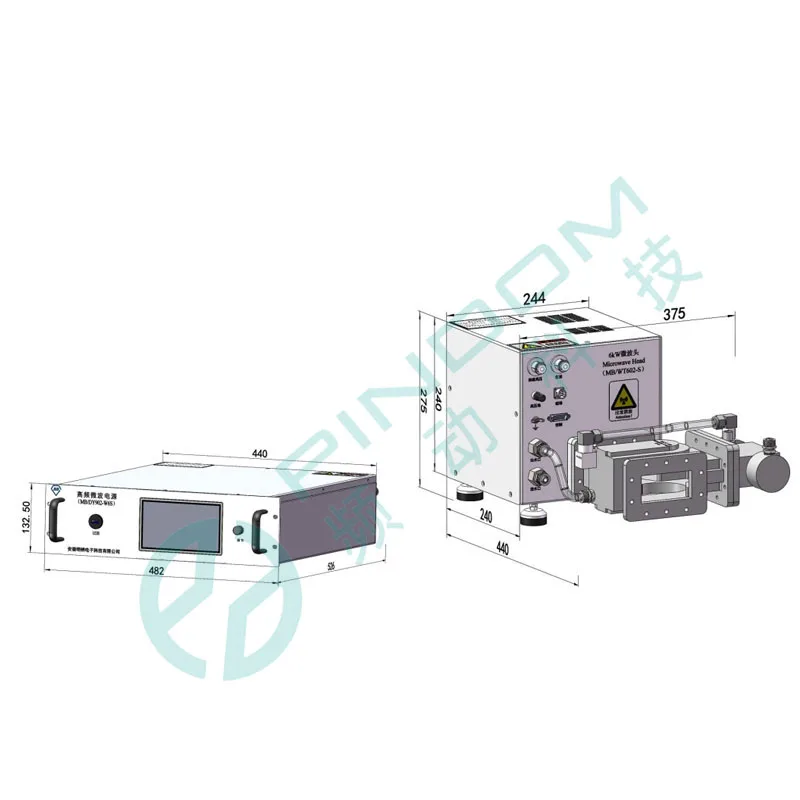

volume | High frequency power supply(including filament magnetic field): 482mm*132.5mm*526mm Microwave head: 375mm*275mm*440mm | width*height*depth | ||
Use environment | Working temperature: -10~40℃ Storage temperature: -20~50℃ Humidity: 95% non-condensing Altitude: less than 3000m | Antifreeze is required below 0°C | ||
cooling method | water cooling | Provided outside the equipment; high frequency power supply is not less than 5L/min; microwave head is not less than 10L/min | ||
Product Description

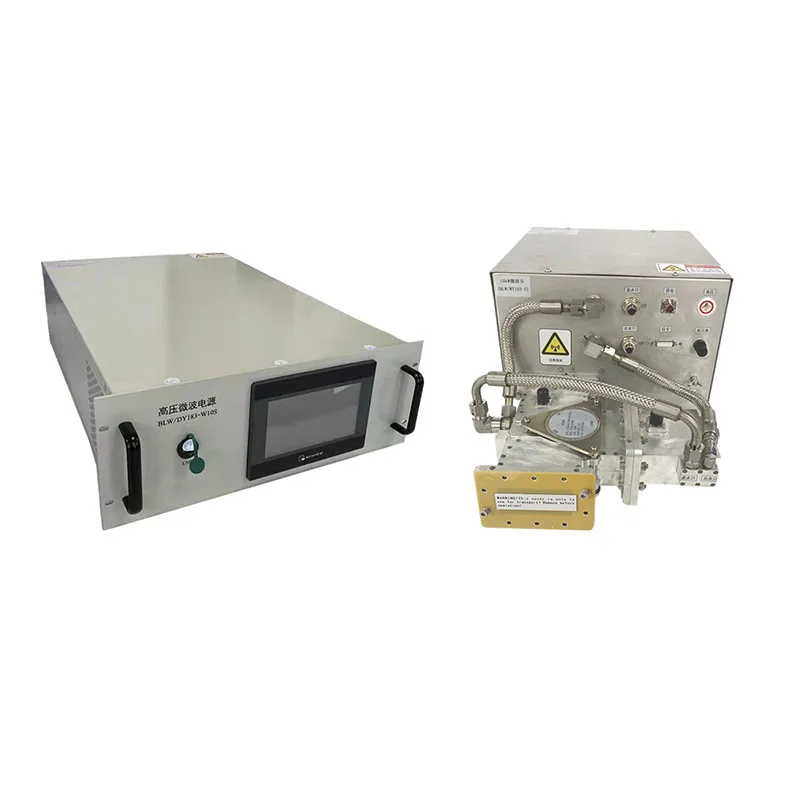

The product uses a continuous wave magnetron to realize a microwave generator with a microwave power of 6kW (microwave frequency 2450 ± 15 MHz). High-frequency power supply includes anode high-voltage power supply, filament power supply, magnetic field power supply and control system, etc.; microwave head includes magnetron, excitation cavity, etc.; microwave system includes circulator, etc.

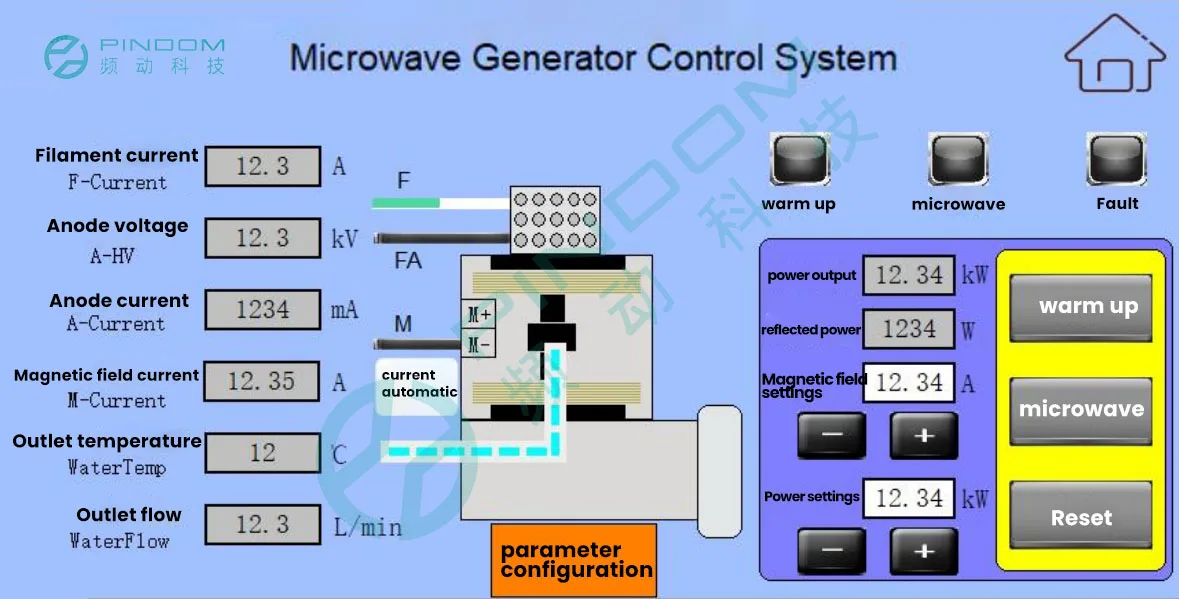

supply is equipped with a touch screen, which has a visual operation interface and data display and storage. The system can realize arbitrary adjustment of microwave power within the range of 10% to 100%. The output spectrum width is narrow (about 1.0M), with high reliability, safety, high efficiency, high stability, low EMI and other characteristics
2 Main features of the product
2.1 Control method
The diversity of microwave generator control modes can meet the needs of different users. The microwave generator has two control modes, which are local touch screen and remote RS485 communication, both of which can control the microwave generator. Increase the control operation function according to the actual use needs of customers, which is convenient to use
2.2 Data Storage
The system has the function of real-time parameter storage. When the high-frequency power supply or the magnetron load is in an abnormal state, the historical data storage records can be viewed, and the cause of the failure can be analyzed to better troubleshoot the cause of the failure.
The system has the function of real-time parameter storage. When the high-frequency power supply or the magnetron load is in an abnormal state, the historical data storage records can be viewed, and the cause of the failure can be analyzed to better troubleshoot the cause of the failure.
2.3 Fire resistance
The stability of the high-frequency power supply determines the stability of the working state of the magnetron, so the requirements for the high-frequency power supply are high. The mature series-parallel resonance method is adopted here. It is a constant current source under a fixed input voltage and can work in a short circuit, so it has a strong ability to resist short-circuit ignition.
The stability of the high-frequency power supply determines the stability of the working state of the magnetron, so the requirements for the high-frequency power supply are high. The mature series-parallel resonance method is adopted here. It is a constant current source under a fixed input voltage and can work in a short circuit, so it has a strong ability to resist short-circuit ignition.
Title goes here.
2.4 Quick Protection
The fast protection against faults of the high-frequency power supply minimizes the possibility of damage. The protection measures adopted by this microwave generator are full hardware high-speed protection. Each fault protection of the equipment can cut off the power output within 50μs, and the ignition protection can cut off the power output within 5μs.
The fast protection against faults of the high-frequency power supply minimizes the possibility of damage. The protection measures adopted by this microwave generator are full hardware high-speed protection. Each fault protection of the equipment can cut off the power output within 50μs, and the ignition protection can cut off the power output within 5μs.
2.5 Modularity
When equipment fails, product repair time is related to the recovery of production line productivity. The internal control functions and power supply of the high-frequency power supply are highly modular, and the replacement is very convenient.
When equipment fails, product repair time is related to the recovery of production line productivity. The internal control functions and power supply of the high-frequency power supply are highly modular, and the replacement is very convenient.
2.6 High Efficiency
The high efficiency of the microwave generator can reduce the system loss, prolong its service life on the basis of energy saving, and greatly improve the reliability. Under the full power output of the microwave generator, the microwave conversion efficiency is as high as 65.9%.
2.7 Spectral width

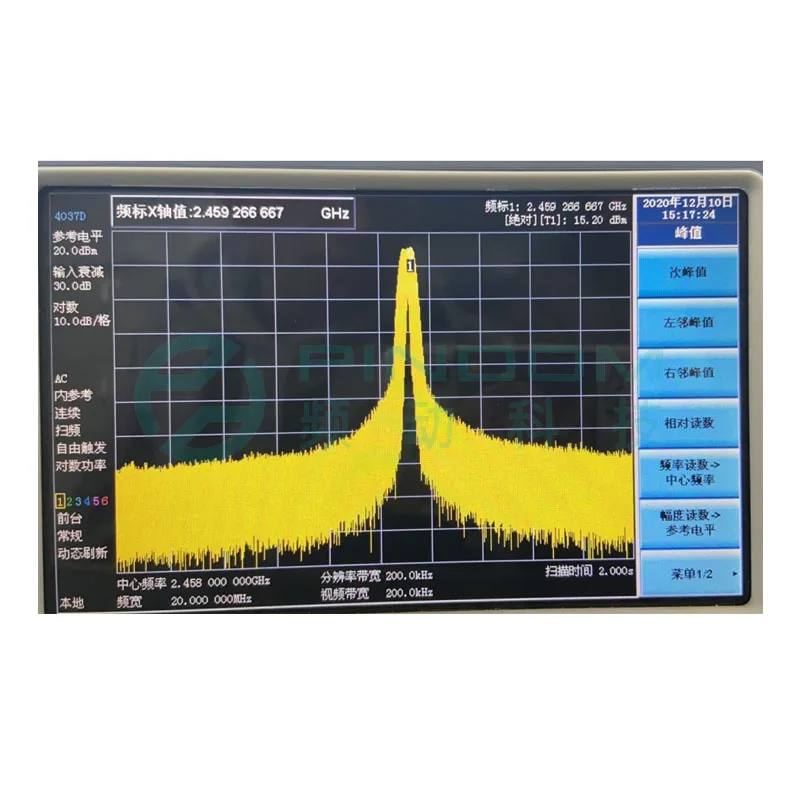

High-end applications in scientific research have higher requirements on the output spectrum width of magnetrons. When the microwave generator outputs 6kW at full power, the output frequency is 2459MHz, and the spectrum width is about 1.0MHz.
The high efficiency of the microwave generator can reduce the system loss, prolong its service life on the basis of energy saving, and greatly improve the reliability. Under the full power output of the microwave generator, the microwave conversion efficiency is as high as 65.9%.
2.7 Spectral width
High-end applications in scientific research have higher requirements on the output spectrum width of magnetrons. When the microwave generator outputs 6kW at full power, the output frequency is 2459MHz, and the spectrum width is about 1.0MHz.
