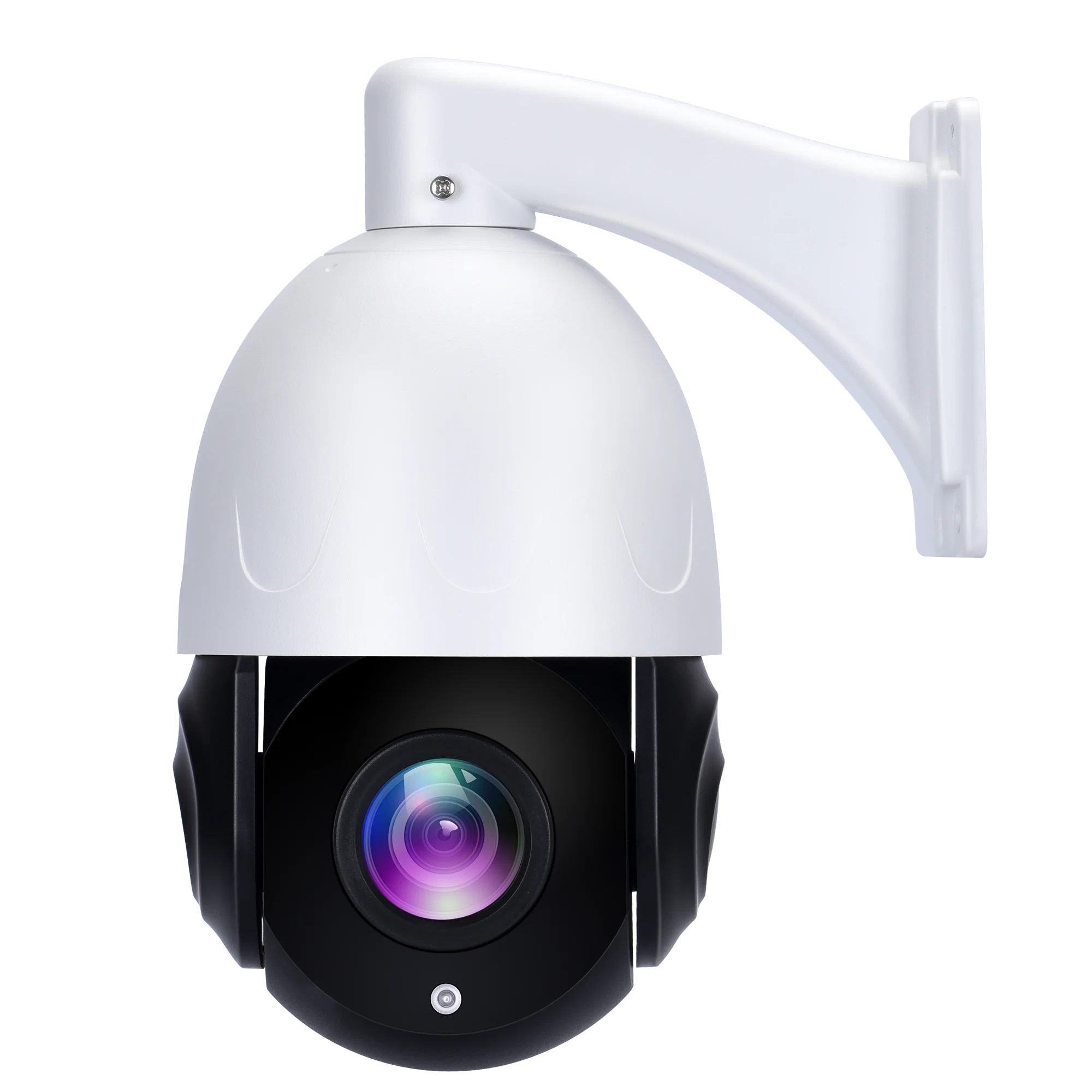

H.265 4K 30X оптический зум Сеть IP POE PTZ 120 м наружная Водонепроницаемая CCTV наблюдение за человеческим отслеживанием двухстороннее аудио
- Категория: Surveillance Systems >>>
- Поставщик: Shenzhen,Mars,Work,Industrial,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 177.95 $* | 181.51 $* |
| Jul-16-2025 | 143.17 $* | 146.70 $* |
| Jun-16-2025 | 174.59 $* | 177.86 $* |
| May-16-2025 | 172.11 $* | 175.23 $* |
| Apr-16-2025 | 138.32 $* | 141.48 $* |
| Mar-16-2025 | 170.61 $* | 173.13 $* |
| Feb-16-2025 | 168.24 $* | 171.71 $* |
| Jan-16-2025 | 167.22 $* | 170.3 $* |
Характеристики
Products Description
Key Features
v 8MP HD Black light illumination resolution,clear and fine images;
v HD resolution 3840*2160;
v Support 2 channels of video and 1 channel of audio, two channels independent, 20 frames per second active video (8MP).
v Embedded Web Server, fully supports Internet Explore monitoring, configuration, and upgrade.
v H.264/H.265/H.265+ video compression standard, G.711/G711A audio compression standard;
v Support wide dynamic range, backlight compensation, strong light suppression, digital noise reduction and image inversion;
v Support DHCP, easily realize dynamic IP address;
v Support movement detection (settable area and sensitivity), humanoid detection and input and output alarms.
v The video bit rate is continuously adjustable from 64Kbps-6Mbps, and the frame rate (5-20) is continuously adjustable;
v Support JPEG capture;
v Support up to 5 users to access at the same time;
v Support sound linkage alarm and voice customization.
v Support regular maintenance function;
v Support IP filtering;
v Support ONVIF;access third party;
v Support various mobile monitoring(iPhone,Android);
v TF card slot,support max 128GB
v P2P APP:Danale..
v PC Software: LMS.
v 20X Zoom Auto Focus Lens 4.7-94mm
v 6pcs Array Infrared LEDs. 100m IR Night Vision.
v Built-in Microphone&Speaker,Support Two Way Audio Talk Back.
v Pan tilt rotation, horizontal:360° & vertical:90°.
v Support Cruise Zoom Tracking.Support 8 cruise lines, up to 128 preset points cruise,zoom lens status can be saved during the
preset .
v Metal Housing Material,Outdoor Use,Waterproof IP66.
v Humanoid Tracking(4K 8MP Only).
v HD resolution 3840*2160;
v Support 2 channels of video and 1 channel of audio, two channels independent, 20 frames per second active video (8MP).
v Embedded Web Server, fully supports Internet Explore monitoring, configuration, and upgrade.
v H.264/H.265/H.265+ video compression standard, G.711/G711A audio compression standard;
v Support wide dynamic range, backlight compensation, strong light suppression, digital noise reduction and image inversion;
v Support DHCP, easily realize dynamic IP address;
v Support movement detection (settable area and sensitivity), humanoid detection and input and output alarms.
v The video bit rate is continuously adjustable from 64Kbps-6Mbps, and the frame rate (5-20) is continuously adjustable;
v Support JPEG capture;
v Support up to 5 users to access at the same time;
v Support sound linkage alarm and voice customization.
v Support regular maintenance function;
v Support IP filtering;
v Support ONVIF;access third party;
v Support various mobile monitoring(iPhone,Android);
v TF card slot,support max 128GB
v P2P APP:Danale..
v PC Software: LMS.
v 20X Zoom Auto Focus Lens 4.7-94mm
v 6pcs Array Infrared LEDs. 100m IR Night Vision.
v Built-in Microphone&Speaker,Support Two Way Audio Talk Back.
v Pan tilt rotation, horizontal:360° & vertical:90°.
v Support Cruise Zoom Tracking.Support 8 cruise lines, up to 128 preset points cruise,zoom lens status can be saved during the
preset .
v Metal Housing Material,Outdoor Use,Waterproof IP66.
v Humanoid Tracking(4K 8MP Only).
Technical Parameters
Model:AP42 | ||
System structure | MSTAR SSC338Q | |
Sensor | 8.0M 1/2.8" IMX415 Black light illumination CMOS sensor,color 0.0001Lux F1.2,black/white 0.0001Lux F1.2 | |
Shutter Speed | 1/50(1/60)s to 1/10,000s | |
Image output | Main stream:3840*2160 20fps,3072*2048/2592*1944/2560*1440/2304*1296/1080P/720P 30fps,sub-stream:720*480/D1/VGA/640*360 30fps | |
Day and night | Support IR-CUT. | |
Noise reduction | Support 2D/3D | |
Wide dynamic | Support digital Wide dynamic | |
Lens | ||
Focal length | F=4.7-94mm lens, 20X optical zoom+10X Digital Zoom | |
Zoom Speed | Approx 4s | |
Angel of view | 58.9°(wide)~2.1°(tele) | |
Max.Aperture | F1.6-F3.5 | |
PTZ | ||
Pan Range | 360° | |
Pan speed | Configurable,from 6– 40°/s,preset speed:40°/s | |
Tilt Range | 0-90° | |
Tilt Speed | Configurable,from 6– 30°/s,preset speed:30°/s | |
Proporational Zoom | Yes | |
Preset | 128 | |
Cruise | 8 cruises lines,up to 16 presets for each cruise line | |
Power off memory | yes | |
Action mode | Preset/Cruise/Track/Auto Scan/Random Scan | |
Video | ||
Max.Resolution | 3840*2160 | |
Main Stream | 3840*2160 20fps,3072*2048/2592*1944/2560*1440/2304*1296/1080P/720P 30fps | |
Sub Stream | 720*480/D1/VGA/640*360 30fps | |
Video compression | H.265/H.265/H.264 video coding. support dual stream,AVI;0.1M~12Mpbs variable;1~20f/s variable | |
SVC | yes | |
Audio | ||
Audio compression | G.711/G711A audio compression standard | |
Audio interface | 1ch input,level:2Vp-p,impedance:1kΩ,support sound pick-up input;1ch output,impedance:16Ω,30mw,support microphone | |
Smart Features | ||
Intelligence analysis | Supporting humanoid detection, | |
Network | ||
Network Support | 2.4 GHz to 2.4835 GHz/IEEE802.11b. 802.11g. 802.11n Draft | |
Security Measures | Authenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access, IP address filter | |
Client | LMS | |
Web Browser | IE 10+, Chrome 57+, Firefox 52+, Safari 12+ | |
ONVIF | Yes | |
Interface | ||
Communication Interface | 1*RJ45 10/100M adaptive Ethernet port; Support HTTP/DHCP/NTP/ONVIF/P2P and other network protocols, optional GB28181, RTMP and multiple NVR docking protocols | |
POE | Yes | |
Supplement Light | ||
IR Distance | 100m | |
Smart IR | yes | |
General | ||
Power | DC 12V/ POE 48V | |
Operating Conditions | Temperature: -40°C to 70°C (-40°F to 158°F), Humidity: ≤ 95% | |
Size(mm) | 239*137*215 | |
Weight(kg) | 1.8KG | |
Package Size(mm) | 250*150*300 | |
Package Weight(kg) | 2.5KG | |
Web Client Language | 12 languages: Simplified Chinese,traditional Chinese,English, Russian,German,Italian,French,,Portuguese, Spanish, Korean, Portuguese (Brazil),Czech | |
Approval | ||
Protection | Lightning Protection, Surge Protection and Voltage Transient Protection, ±6kV Line to Gnd, ±3kV Line to Line, IEC61000-4-5, IP66 Standard | |
Products Application
