Рифленые резиновые накладки для

Категория: Railway Parts & Accessories >>>
Поставщик: Henan,Zongxiang,Heavy,Industry,Import,&,Export,Co.,Ltd.

Цена:1,20 $ - 5,50 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Aug-16-2025	1.19 $*	1.82 $*
Jul-16-2025	1.16 $*	1.72 $*
Jun-16-2025	1.92 $*	1.55 $*
May-16-2025	1.55 $*	1.78 $*
Apr-16-2025	1.56 $*	1.39 $*
Mar-16-2025	1.36 $*	1.81 $*
Feb-16-2025	1.40 $*	1.79 $*
Jan-16-2025	1.1 $*	1.83 $*

Характеристики

Product Description

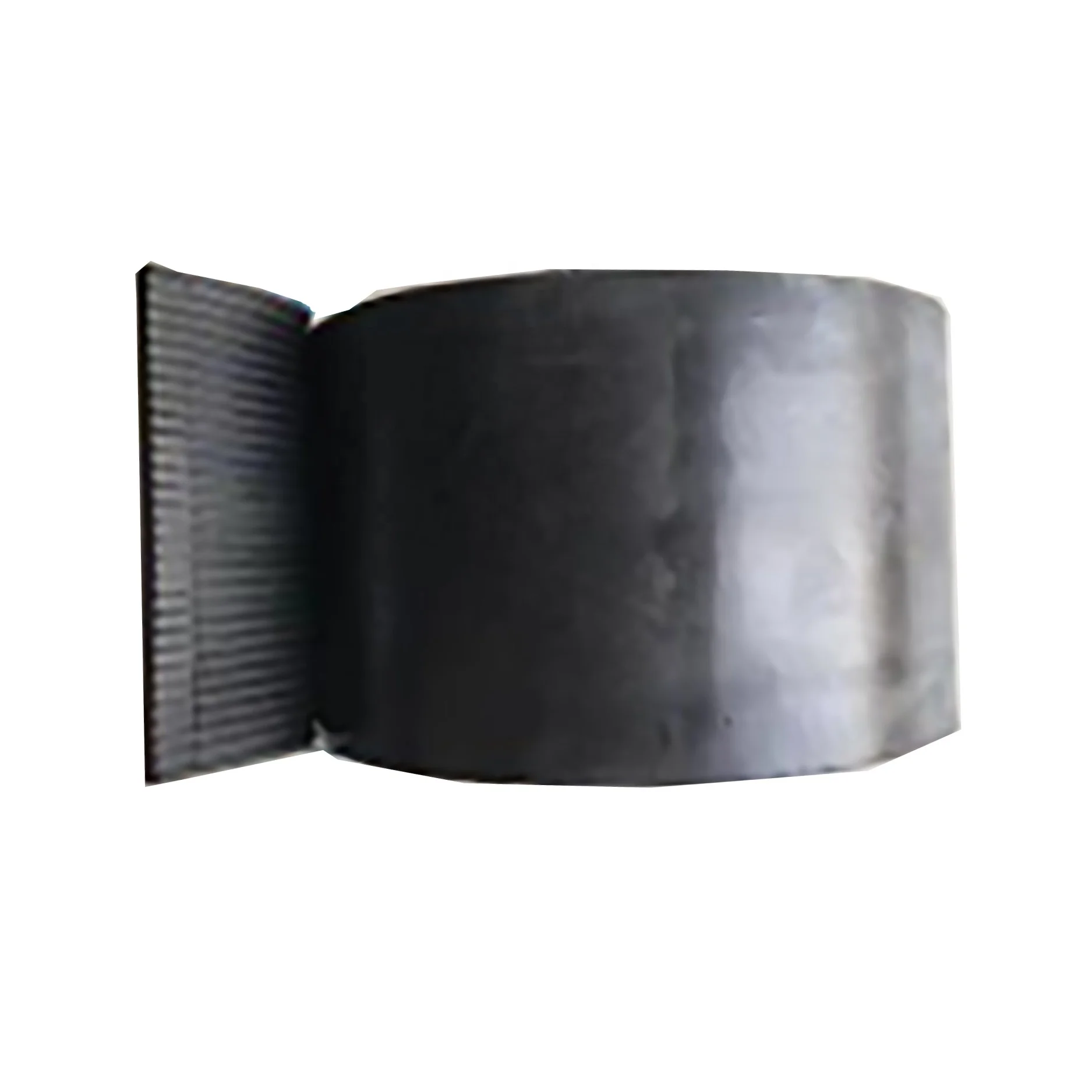

Product name	rubber pad
Other name	railway rubber
Material	rubber
Size	12m per roll, width suit for steel rails bottom
Standard	GB/T5574-1994 standard

rail accessories rubber pad under steel rails:

Size: 12m per roll, width suit for steel rails bottom.

Application:

Rubber pad is an important part in track structure, installation between steel and concrete sleeper, its main function is generated when the buffer by rail vehicle high speed vibration and impact, protect the roadbed and the sleeper, and signal system for electrical insulating.
Standard: Rubber pads use oil resistant rubber,the performance should conform to GB/T5574-1994 standard .
Technical Parameter:
-The bond stress between steel and rubber of composite rubber pad >1 N/mm²
-Shore Hardness:75°±A 5(DIN53505)
-Tensile Strength:(ASTMD412C)leave factory 12.5N/mm²^2—aging 10.5N/mm^2
-Elongation: leave factory 250%—aging 200%
-Long Deformation(According to BS903 part A6)leave factory less than 5%,aging less than 20%
-Allowable Compression Stress:80N/mm^2=80MPa
-Operating Temperature: from -25℃ to100℃
-Noise and Vibration Reduction:Noise average reduction 10% DBA,vibration average reduction 48%

Installation Instructions：

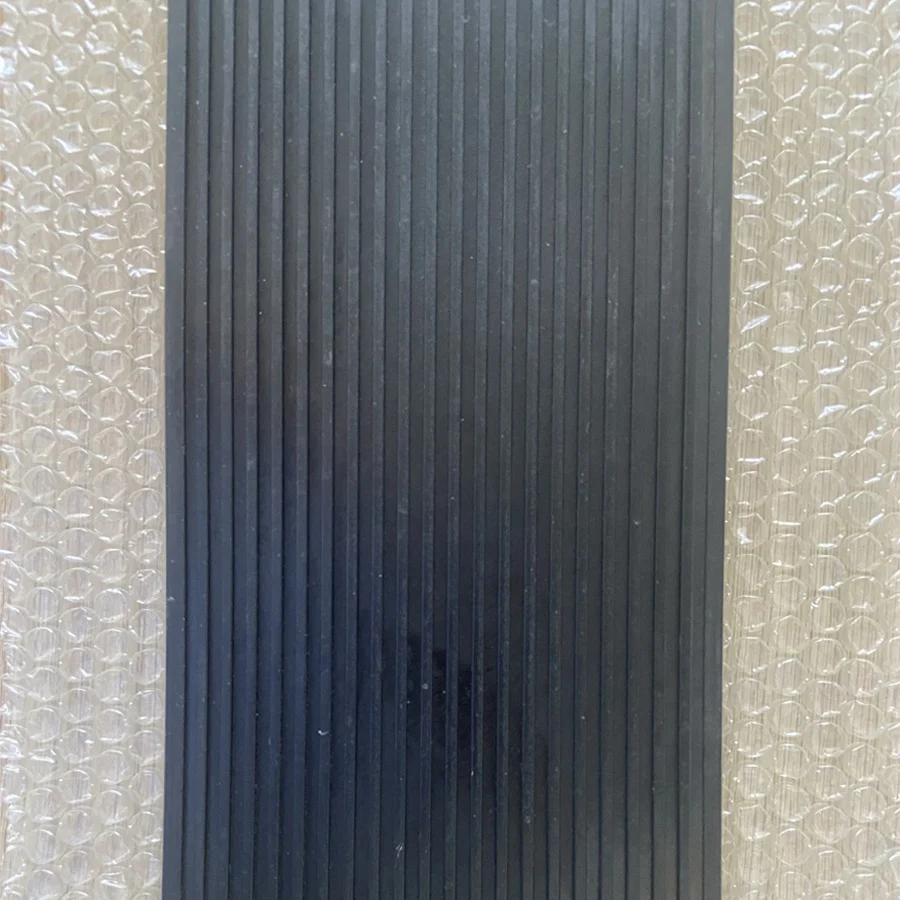

Rail pad should be narrower than the rail it supports (normally by 5mm).The pad is normally supplies in 12 meter length. The flutes of the pad are placed facing upwards. The pad may be cut to precise length of rail. It can be cut with a hacksaw or jigsaw. No installed length of pad should be less than the spacing between three pairs of crane rail fixing clips. Before installing Mark 5 pad, the supporting area should be clean and free of oil, grease or any projections likely to damage the pad. It is preferable that the steel stricture below the pad is not painted. If the rail is to be welded the pad should be protected from excessive heat during welding by being protected with a thermal barrier.

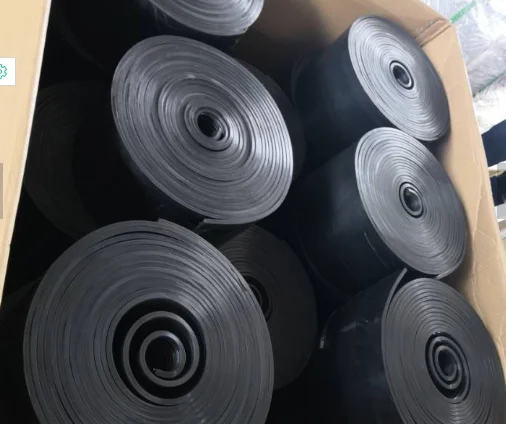

Packaging and Shipping

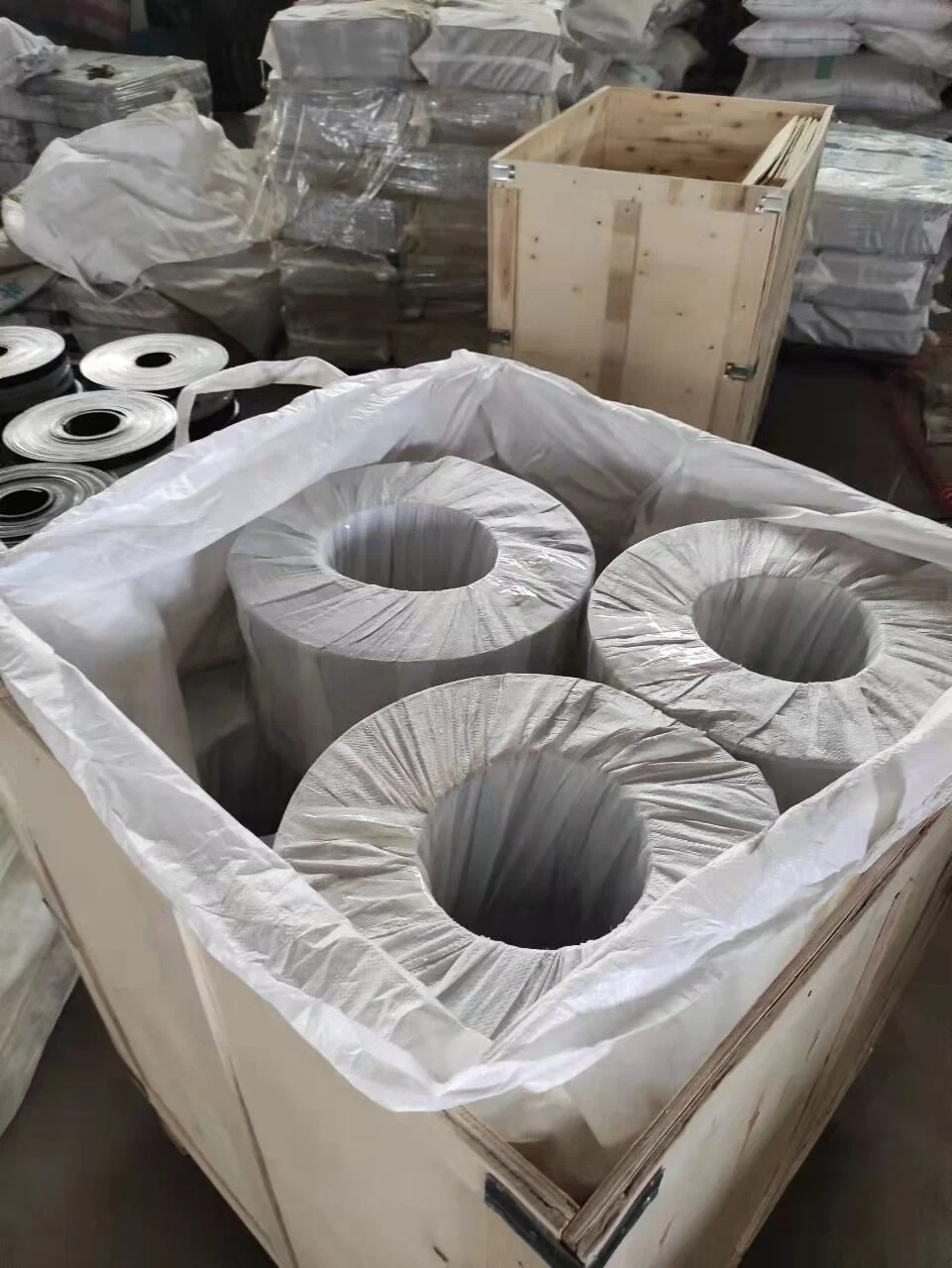

We will pack it up in wooden box/pallet or according to customers' requirement.

Our products are shipped to all parts of the world, and will be shipped as soon as possible after receiving your order, and we

will promptly tell you about all the movements of the products.

Company Information

Introduction

Henan Zongxiang Heavy Industry Import & Export Co., Ltd, established by experienced crew on the rail & track field, is a professional & reliable supplier that provides all kinds of rail & track accessories. As an international trade subsidiary of Zhongxiang Steel Group Inc., was founded in 1997. We have more than two decades experience on this field, covering an area of 33,000 square meters, with about 300 employees, 4 production lines, 2 R & D department, and 5 quality control staff. With advanced technology, powerful processing capacity and excellent service, our products have been well recognized by our customers from domestic & overseas market.

Our products mainly used by railroads, mining companies, heavy industries, overhead crane, railroad and tunneling industry, transit authorities, and operators of port facilities. We have the inventory, resources, and experience to meet your needs.

We try our best to treat every customer with the importance they deserve. We pride ourselves on being conscientious, reliable, and doing the right thing in every situation.

Certification

Zongxiang Heavy Industry established a comprehensive Quality Assurance (Q.A) System.It is regularly tested,approved and audited by independent Q.A auditor. This complies with internationally standards ISO 9001: 2008.

Why Choose Us

1 Abundant capital and strong productivity

We have registered capital of 10 million yuan and fixed assets of 300 million yuan. The annual turnover is more than 1 billion yuan and rolled steel turnover is 300,000 tons/year.

2 Multiple product types

Our products cover four series, involving steel rail sales, mining support material sales and processing, steel sales and processing, machinery parts manufacturing, etc. It is the largest mining support material processing, sales, logistics distribution base in China.

3 Extensive Export experience

Our products have exported to many countries, including Poland, Sudan, Israel, South Korea, Thailand, Australia, Russia, etc

4 Large stock

We have adequate supply and complete specifications. The perennial raw material inventory is more than 20,000 tons per year,

5 High quality

We adhere to ISO 9001-2008 quality control system. We have also obtained the production license of railway products from The Ministry of Railways of China.

Customer Photos

Our products have exported to many countries, including Poland, Sudan, Israel, South Korea,Thailand, Australia, Russia, etc.
