Черные 65Mn шлицевые Пружинные штифты сдвоенные эластичные цилиндрические металлические

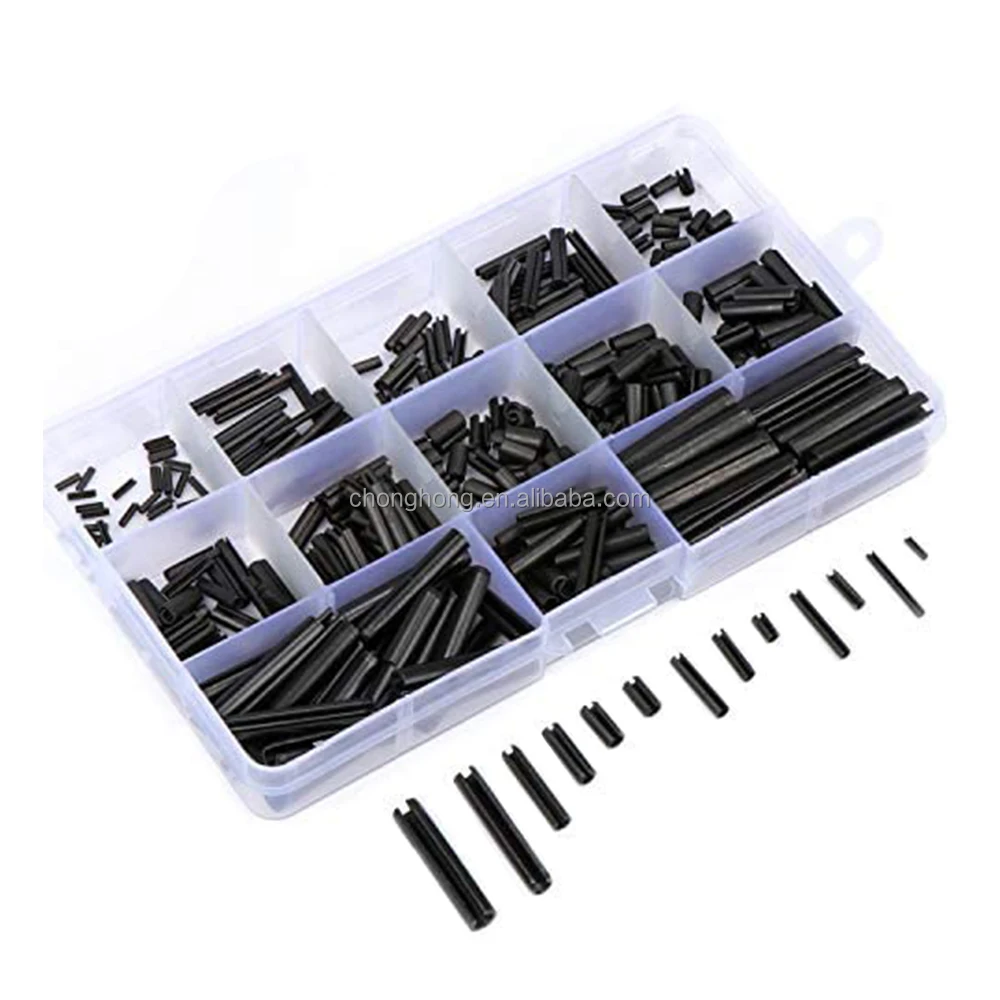

Factory Price Black 65Mn Slotted Spring Pin,Also Available in Stainless Steel,Spring Steel Split Spring Dowel Tension Roll Pins Elastic Cylindrical Cotter Pin Metal Hardware Assortment Kit

• Place of Origin:China



• Brand Name:CHONGHONG


• Product name:Slotted Spring Pin



• Material:Stainless Steel,Spring Steel,65Mn


• Size: 1/16" - 3/4"


• Length: Customization


• Color:Black,Silver or Customization


• Packaging:Polybag, carton or as per customer's requirements


• Special specifications can also be produced according to drawing and sample.

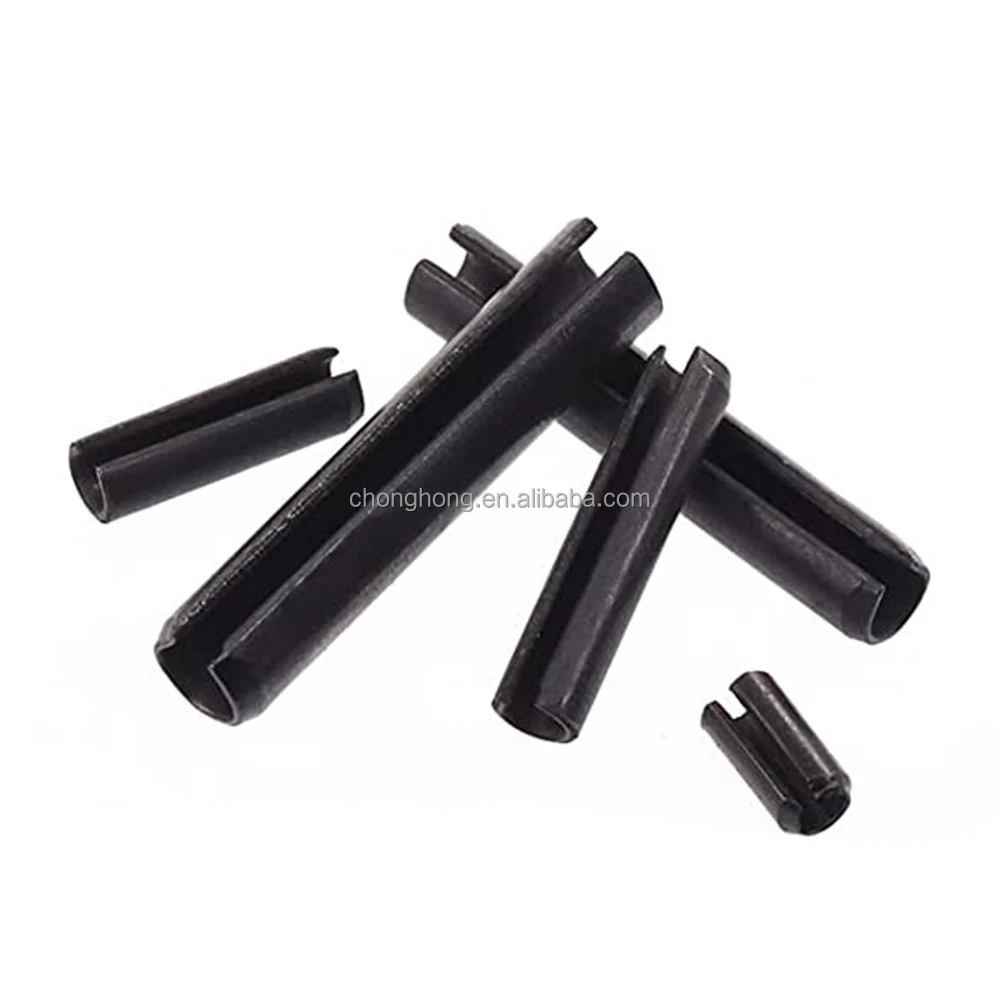

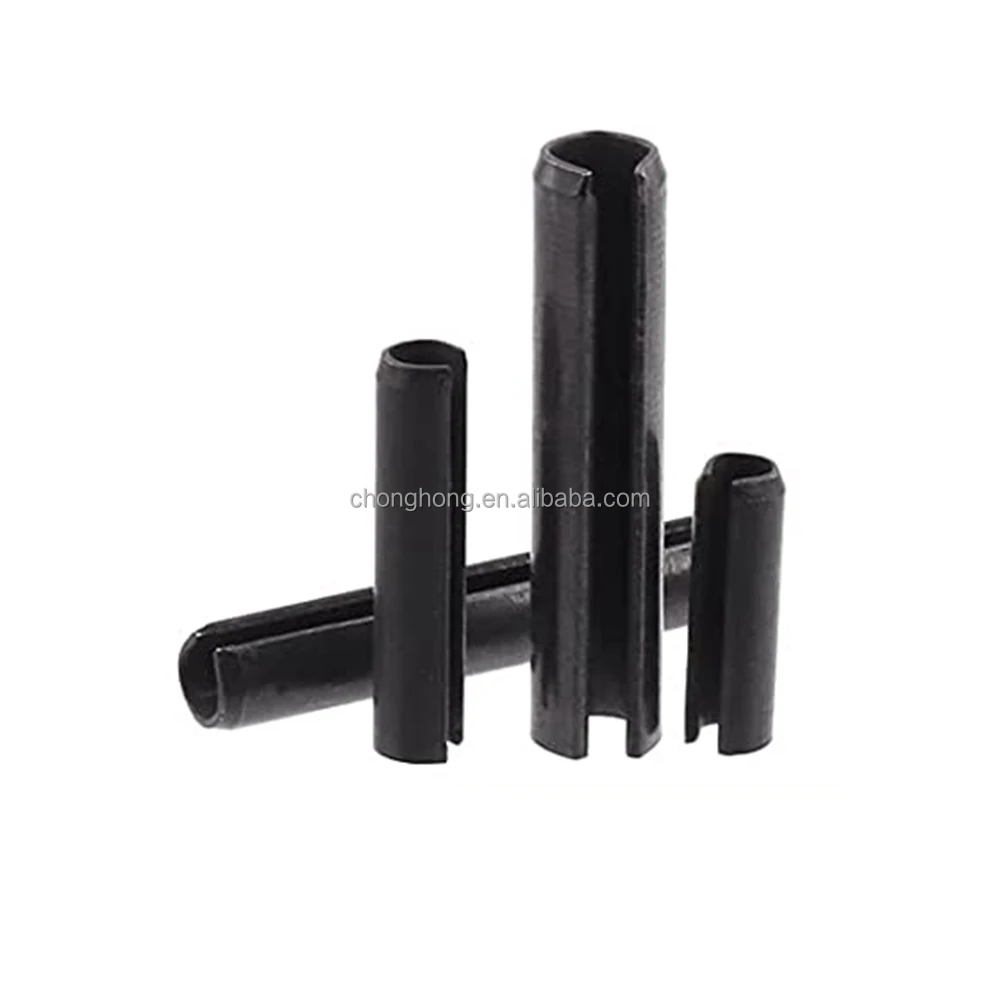

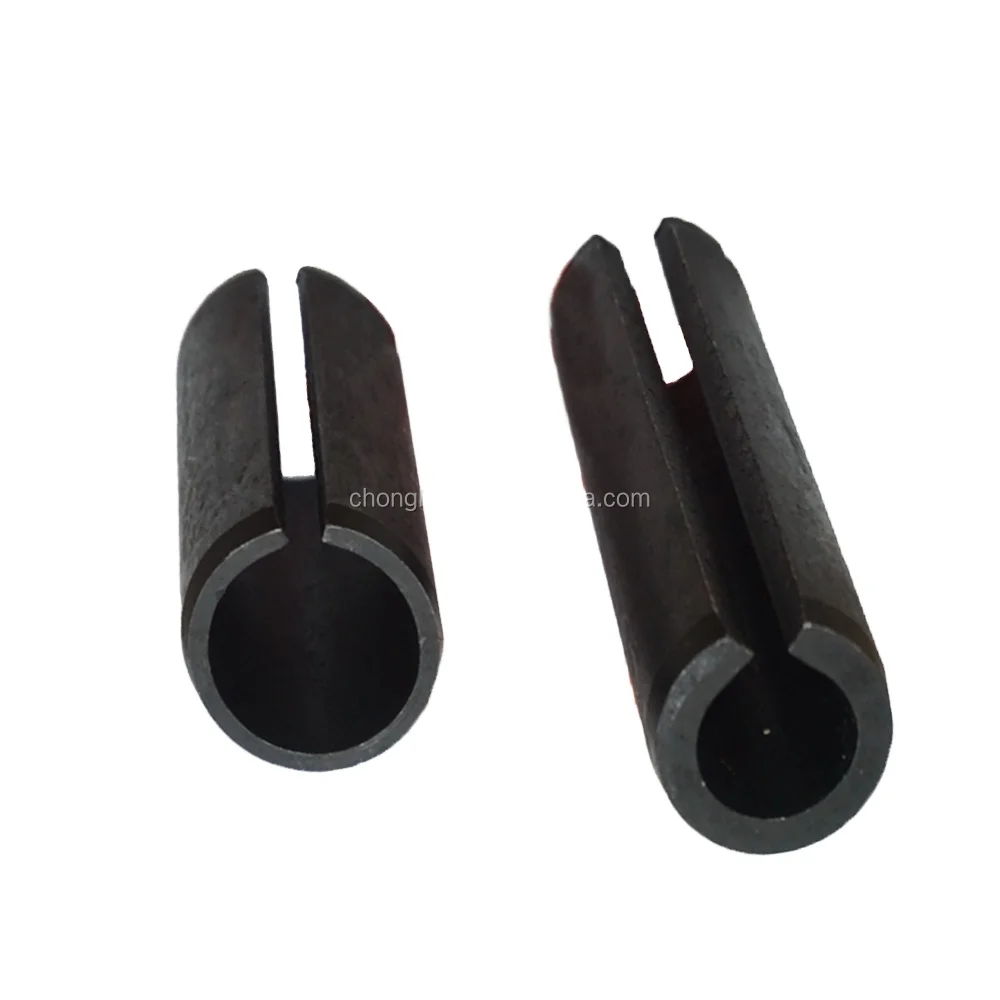

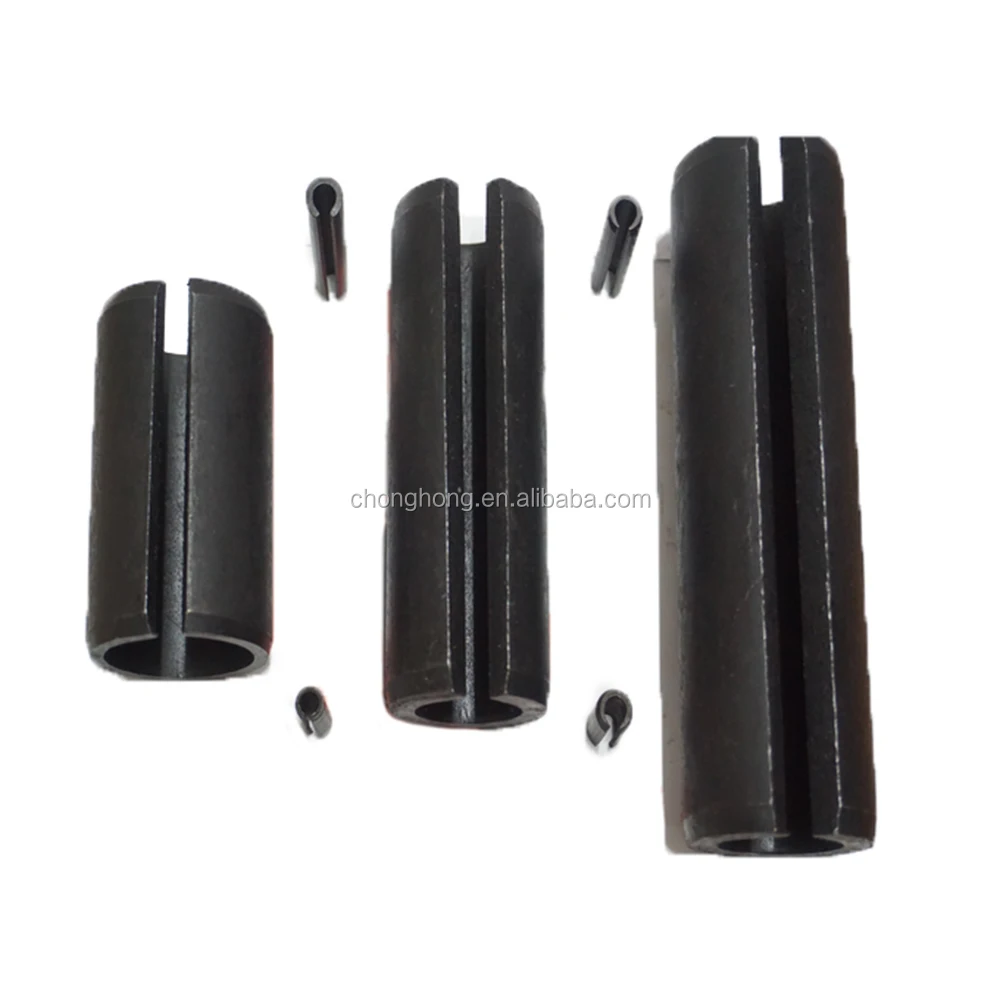

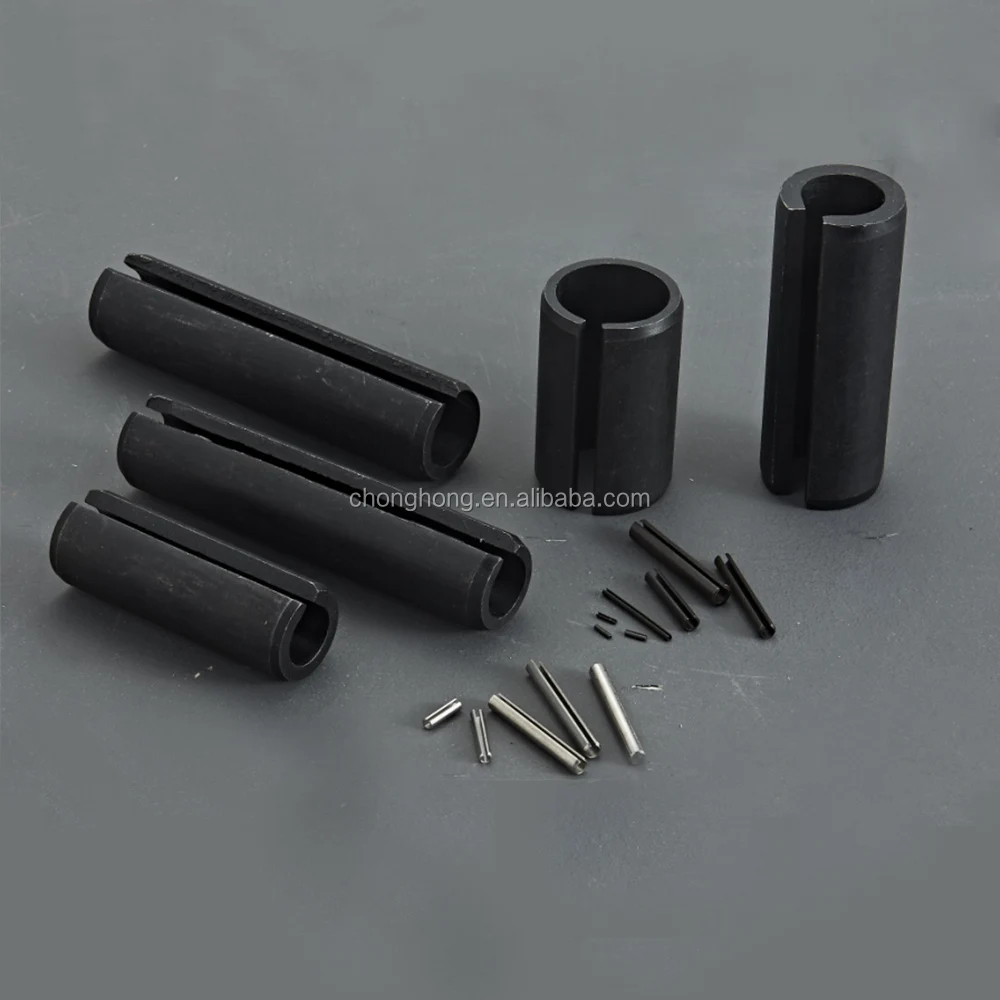

    A Spring Pin is a type of fastener that secures the position of two or more parts of a machine relative to each other. Slotted Spring Pins are cylindrical pins rolled from a strip of material with a slot to allow the pin to have some flexibility during insertion. Slotted spring pins are also known as roll pins. Spring pins have a body diameter which is larger than the hole diameter. Spring Pins are chamfered to help start the pin into the hole. The spring action of the pin allows it to compress as it adapts to the diameter of the hole. The force exerted by the pin against the hole wall keeps it in place.  A Spring Pin is considered a self-retaining fastener and is designed for use in double shear applications.

Chonghong supply a huge range of stainless steel wire rope,lifting, marine, rigging hardware and fittings. Under ISO 9001 standard and over 20 years of manufacturing, we are very sure that our best quality control, prompt delivery and after service will be fully satisfied with you.

Chonghong is specialized in producing, supplying, developing Anchors, Anchor Connectors, Marine Hardware Cleats, Hinges, Hold Down Clamps, Rigging Hardware like Snap Hooks, Quick Links, Spring Snaps, Spring Hooks, Turnbuckles, Shackles, Snap Shackles, Wire Rope Thimbles, Wire Rope Clips, Wire Ropes, Swivels, Pulleys, Tri-glides, Belt Buckles, Swage Sleeves, Eye Bolts, Eye Nuts, Eye Plates, S Hooks, O Rings, D Rings, Triangle Rings, Brass Hardware, Chains,Gas Spring, Gas Spring accessories and so on.

Chonghong also has ability to make the customized products for you. You are welcome to send us your drawings or samples for tooling with us. We are very, very happy to deal with everybody with the same level of good old fashioned service.

Please feel free to contact us if you need any information or have any comment.
