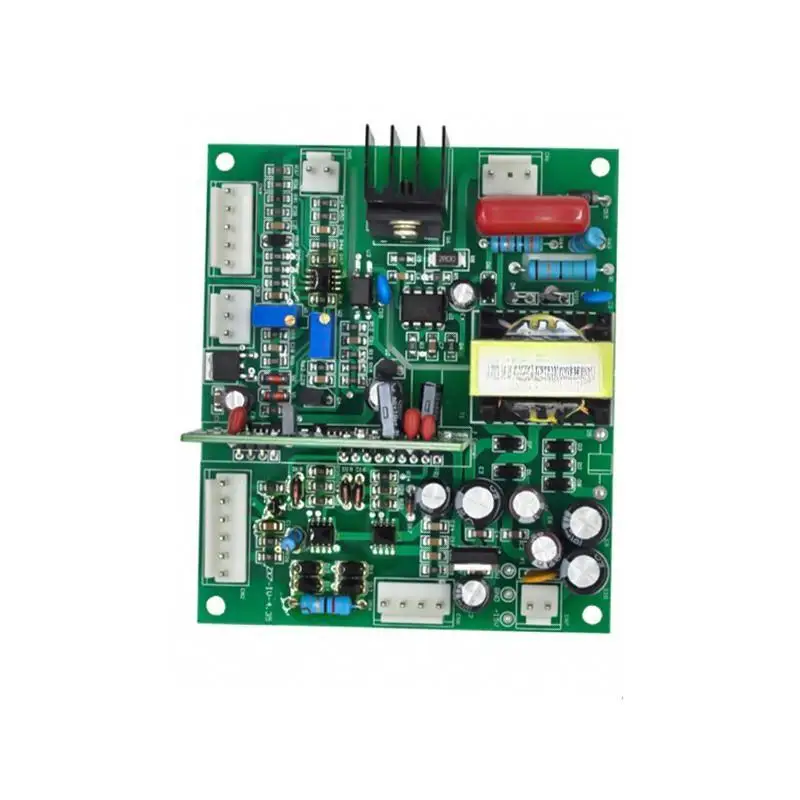

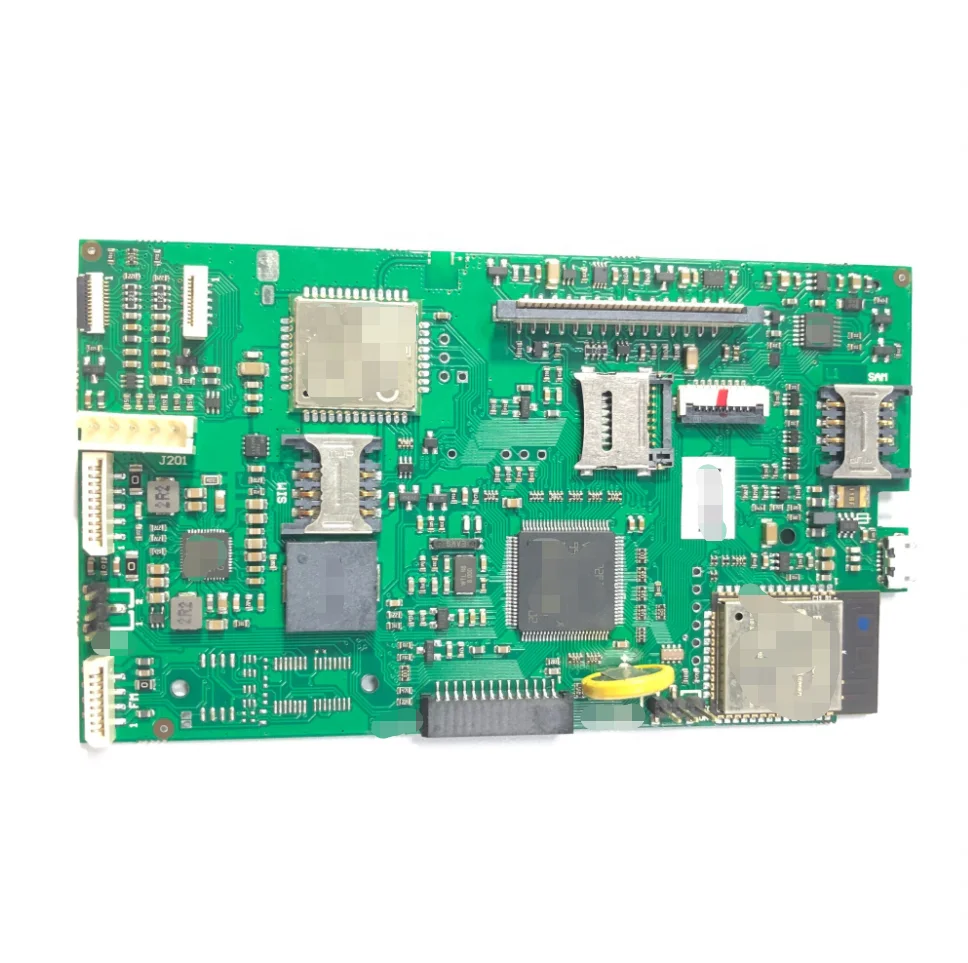

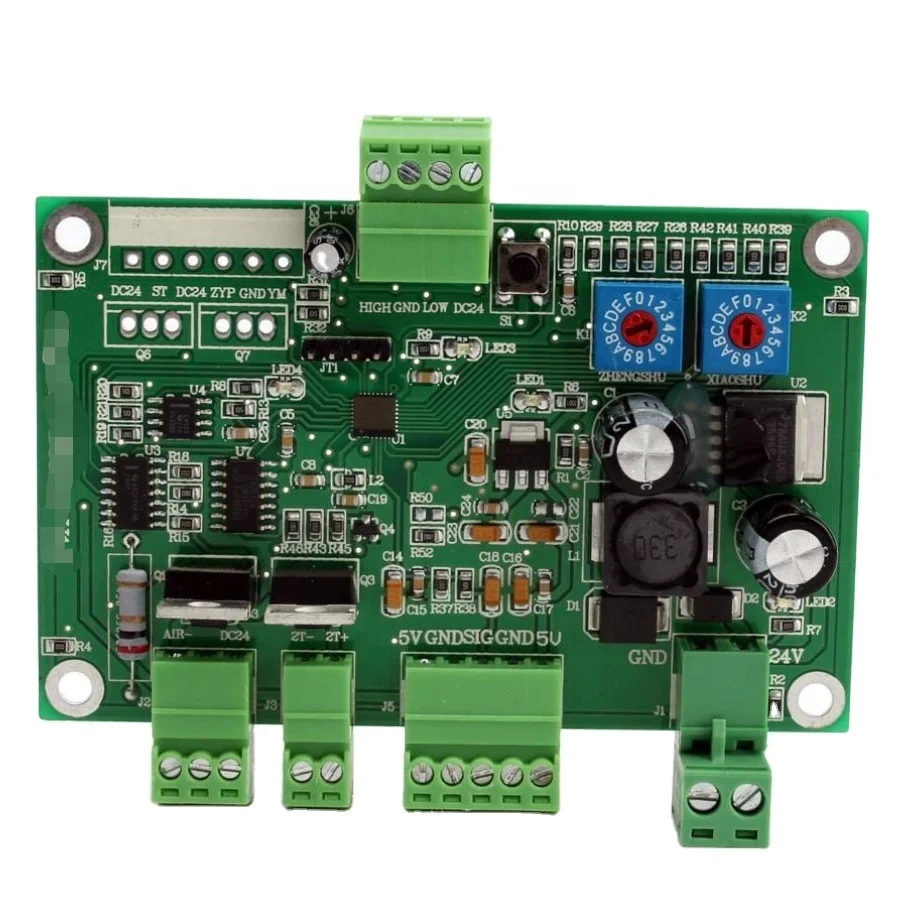

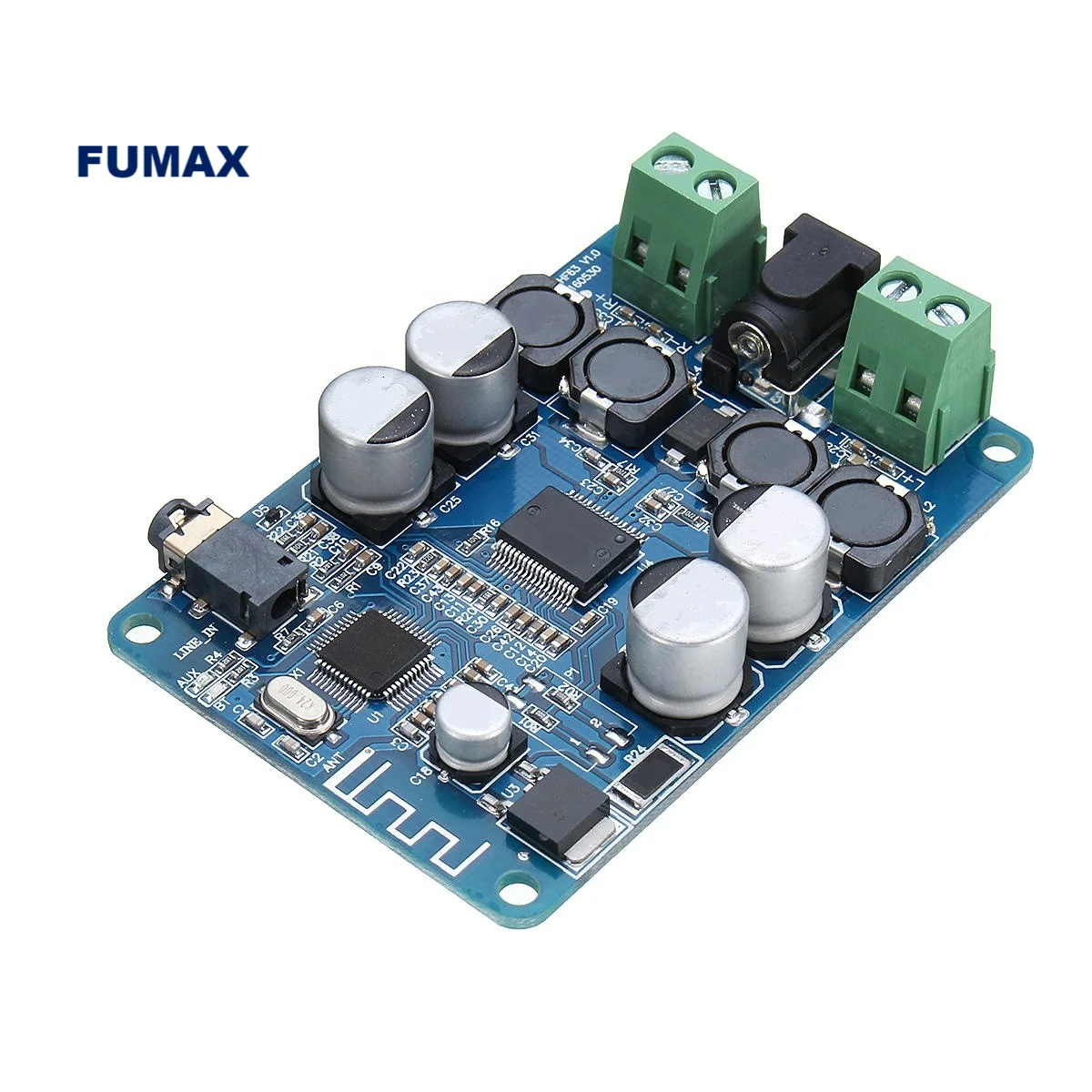

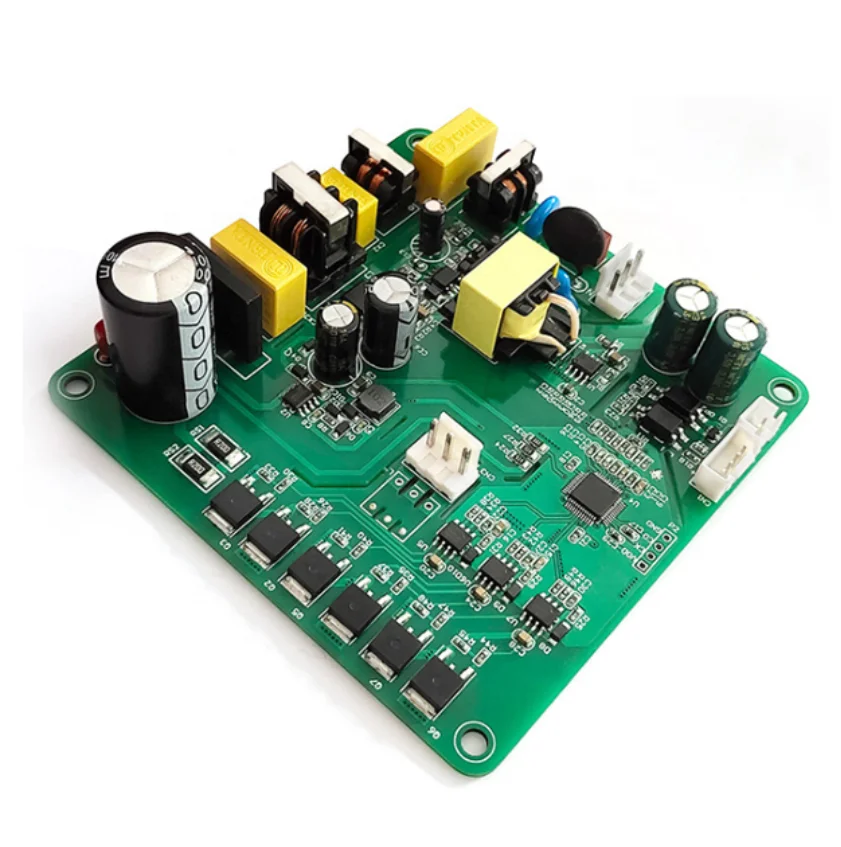

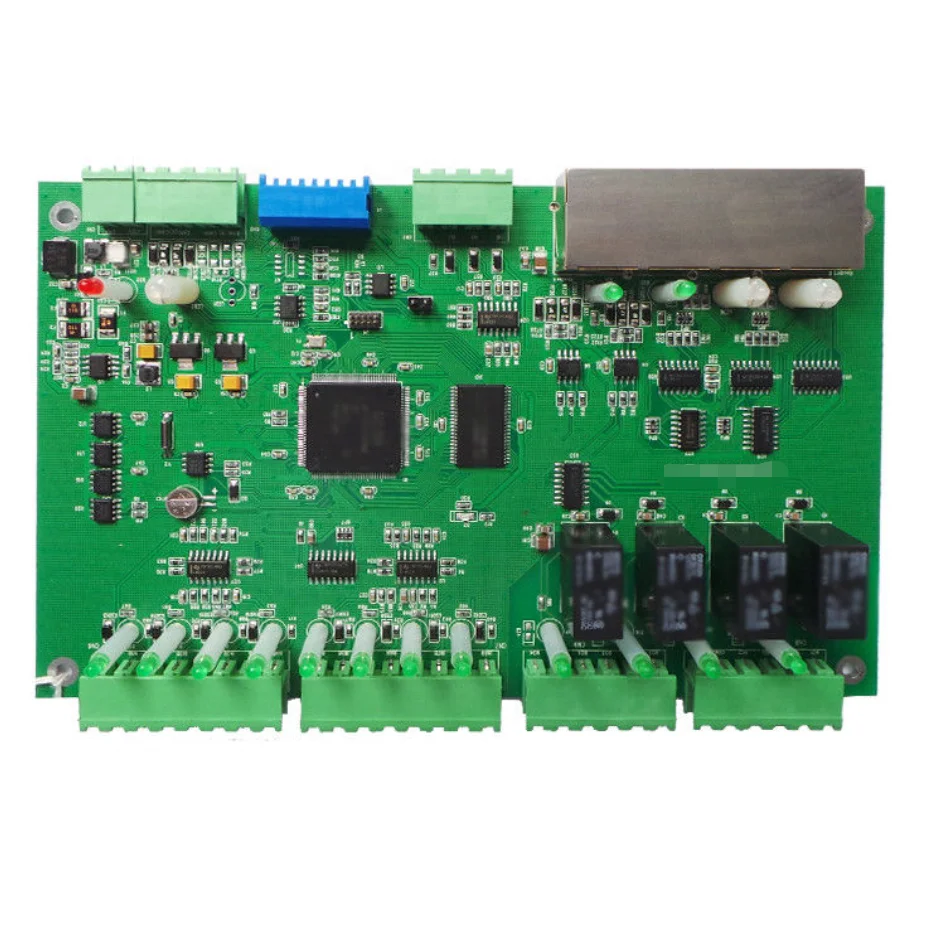

OEM электронная печатная плата в сборе от производителя печатных плат на заказ
- Категория: PCB & PCBA >>>
- Поставщик: Shenzhen,Fumax,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.82 $* | 0.9 $* |
| Aug-18-2025 | 0.81 $* | 0.91 $* |
| Jul-18-2025 | 0.78 $* | 0.26 $* |
| Jun-18-2025 | 0.90 $* | 0.13 $* |
| May-18-2025 | 0.57 $* | 0.3 $* |
| Apr-18-2025 | 0.28 $* | 0.0 $* |
| Mar-18-2025 | 0.16 $* | 0.28 $* |
| Feb-18-2025 | 0.72 $* | 0.71 $* |
| Jan-18-2025 | 0.20 $* | 0.1 $* |
Характеристики
Video Description
Our Main Services
OEM : We manufacture according to your design
ODM : We design and manufacture for you
Our Services | One-stop PCB and PCBA electronic manufacturing services |
1.PCB manufacturing service | Need Gerber file, PCB files, etc |
2.Components sourcing services | BOM list included detailed Part Number and Designator |
3.PCB assembly services | The above files and Pick & Place files, Schematic |
4.Programming & Testing services | Program, instrouction and test method etc. |
5.Housing assembly services | 3D drawing, steps or others |
6.Reverse engineering services | Samples, target price or others |
7.Cable & wire assembly services | Specification or others |
8.Others services | Value-added services |
Product Description
PCB Technical Capacity
Layers | Mass production: 2~50 layers |
Max. Thickness | Mass production: 472mil (10mm) |
Material | FR-4 (Standard FR4, Mid-Tg FR4,Hi-Tg FR4, Lead free assembly material) , Halogen-Free, Ceramic filled , Teflon, Polyimide, BT, PPO, PPE, Hybrid, Partial hybrid, etc. |
Min. Width/Spacing | Inner layer: 3mil/3mil (HOZ), Outer layer: 4mil/4mil(1OZ) |
Max. Copper Thickness | UL certificated: 6.0 OZ / Pilot run: 12OZ |
Min. Hole Size | Mechanical drill: 8mil(0.2mm) Laser drill: 3mil(0.075mm) |
Max. Panel Size | 1150mm × 560mm |
Aspect Ratio | 18:1 |
Surface Finish | HASL,Immersion Gold, Immersion Tin, OSP, ENIG + OSP, Immersion Silver, ENEPIG, Gold Finger |
Special Process | Buried Hole, Blind Hole, Embedded Resistance, Embedded Capacity, Hybrid, Partial hybrid, Partial high density, Back drilling, and Resistance control |
PCBA Technical Capacity
Position accuracy: 20 um | |
Components size: 0.4×0.2mm(01005) —130×79mm, Flip-CHIP, QFP, BGA, POP | |
Max. component height: 25mm | |
Max. PCB size: 680×500mm | |
Min. PCB size: no limited | |
PCB thickness: 0.3 to 6mm | |
PCB weight: 3KG | |
Wave-Solder | Max. PCB width: 450mm |
Min. PCB width: no limited | |
Component height: Top 120mm/Bot 15mm | |
Metal type: part, whole, inlay, sidestep | |
Metal material: Copper, Aluminum | |
Surface Finish: plating Au, plating sliver, plating Sn | |
Air bladder rate: less than 20% | |
Press range: 0-50KN | |
Max. PCB size: 800X600mm | |
Testing | ICT, Probe flying, burn-in, function test, temperature cycling |
Our Certificate
We are awarded ISO 9001:2000 certificate.
Products are compliance with UL, CE, FCC, ROHS, REACH…etc international certificate.
Our mission at Quality Concept is to provide the highest quality products to achieve highest customer satisfaction.
Our mission at Quality Concept is to provide the highest quality products to achieve highest customer satisfaction.
Quality Management
Complete RoHS manufacturing processes | ISO9001:2008 certification |
Complete process quality control | ESD-safe work environment |
100% traceability assurance | ESD-safe packaging and shipping |
100% electrical test | Assembly, labeling and packging the boards or system according to the customer's packaging requirements |
100% functional testing | We can do functional testing for boards according to the customer's test instructions, and we can provide test summary report to help customers locate the source of the failure. |
100% software testing |
Company Profile
Fumax is a design & contract manufacturing company focused on consumer electronics, tele-communications industries, wireless industries, medical and other industries where product quality and reliability are most critical.
We help worldwide customers develop, design and manufacturing for PCB assembly, cables, plastics, metals and other custom parts, subsystems and complete finished products.
We employ more than 800 highly qualified skilled workers, with manufacturing facility covering a total area of 35,000sqm. From China manufacturing and OEM/ODM base in Shenzhen, Fumax serves as a global partner to worldwide customers.
Our dedication to cutting-edge technology, product excellence, consistent quality, competitive pricing, unsurpassed service and customer satisfaction has brought us outstanding recognition in these industries.
We help worldwide customers develop, design and manufacturing for PCB assembly, cables, plastics, metals and other custom parts, subsystems and complete finished products.
We employ more than 800 highly qualified skilled workers, with manufacturing facility covering a total area of 35,000sqm. From China manufacturing and OEM/ODM base in Shenzhen, Fumax serves as a global partner to worldwide customers.
Our dedication to cutting-edge technology, product excellence, consistent quality, competitive pricing, unsurpassed service and customer satisfaction has brought us outstanding recognition in these industries.
Customer Visits
Packing & Delivery
PCB : Vacuum and Bubble package
PCB Assembly : ESD package with bubble protected
PCB Assembly : ESD package with bubble protected
You can choose any express companies you have with your account or our account.
Seaway shipping is also available for heavier packages.
FAQ
Q1. What is needed for quotation?
A: PCB file, Quantity, Gerber file and Technique requirements (material, surface treatment, copper thickness, board thickness)
Q2. What file formats do you accept for production?
A: Gerber file: CAM350 RS274X
PCB file: Protel 99SE, P-CAD 2001 PCB
BOM: Excel (PDF, word, txt)
Q3. Are my files safe?
A: We will keep your files completely confidential and never disclose the contents of your files to any third party.
Q4. What is the MOQ?
A: 1PCS is available. We can provide small and large volume production according to your needs.
Q5. Shipping cost?
A: The shipping cost is determined by the destination, weight, packing size of the goods. Please let us know if you need us to quote you the shipping cost.
A: PCB file, Quantity, Gerber file and Technique requirements (material, surface treatment, copper thickness, board thickness)
Q2. What file formats do you accept for production?
A: Gerber file: CAM350 RS274X
PCB file: Protel 99SE, P-CAD 2001 PCB
BOM: Excel (PDF, word, txt)
Q3. Are my files safe?
A: We will keep your files completely confidential and never disclose the contents of your files to any third party.
Q4. What is the MOQ?
A: 1PCS is available. We can provide small and large volume production according to your needs.
Q5. Shipping cost?
A: The shipping cost is determined by the destination, weight, packing size of the goods. Please let us know if you need us to quote you the shipping cost.
