Our Main Products GFT110 Planetary Gear Box

Factory Price GFT24 GFT36 GFT60 GFT80 GFT110 GFT Series Planetary Gear box Travel Reducer

Product Description:

   GFT110 Planetary Gear Box is composed of built-in multi-disc brake, planetary reducer and functional valve block. The product adopts the company's excellent design concept and advanced processing technology, which effectively guarantees high bearing capacity and operational reliability. It is characterized by high working efficiency, good reliability, compact structure, high working pressure and variable speed drive. It is the output of the shell, which can be directly connected to the wheel or crawler drive, and can also be used to drive hydraulic winches, hydraulic winches, or in transmission devices such as the power head drive of roadheaders and milling machines.



The products have been widely used in rotary driling rig, crawler and wheeled and crawler crane driving, driving milling machine, coal mine roadheader driving, road roller, rail vehidles, aerial wheel drive, crawwler self-propelled rig, horizontal rig crawlen drive engineering MACHINERY and marine MACHINERY.



Specal Features

1.Compact, space-saving, two-or three-stage planetary gear design

2. Robust bearing system absorbing the forces exerted by the ring geal

3. Simple mounting

4. Easy oil change

5. Integrated multiple-disk holding brake

6. Low-noise running



Technical Sheet



Max output torque Tmax N·M	Ratio i	Max input rotating rpm	Static brake torque TBmax N·M	Brake working pressure MPa	Hydraulic motor	Weight Kg	Model
7000	25	500 2000	400	1.8-5	2K A2F28-Z	52	GFT07T2
10000	25.2  37.6 52.3	500 2000	450	1.8-5	2K A2F45-Z	61	GFT10T2
13000	16.3 22.6   32.1  37.6	2500	450	1.8-5	A2FE45-Z A2FE56-Z A2FE63-Z	85	GFT13T2
17000	26.4  32.1 45.4  54	2500	450	1.8-5	A2FE45-Z A2FE56-Z A2FE63-Z	90	GFT17T2
17000	78   88.2 102.6  106.8	2500	450	1.8-5	A2FE45-Z A2FE56-Z A2FE63-Z	116	GFT17T3
24000	90.1  102.6  120.5  130.3	2500	450	1.8-5	A2FE56-Z A2FE63-Z	128	GFT24T3
36000	67 79.4 92.2  100   116.3  139.8	2500	700	1.8-5	A2FE80-Z A2FE90-Z	166	GFT36T3
60000	86.5 94.8 105.5 119.8 140  170	2500	800	1.8-5	A2FE107-Z A2FE125-Z	260	GFT60T3
80000	76.7 99 110.9 149.9 185.4	2500	800	1.8-5	A2FE107-Z A2FE125-Z A2FE160-Z	390	GFT80T3
110000	95.8  114.8  128.6  147.2  173.9  215	2500	800	1.8-5	A2FE125-Z A2FE160-Z A2FE180-Z	450	GFT110T3
220000	188.9  246.1  293	2500	1000	1.8-5	A2FE160-Z A2FE180-Z	830	GFT220T3

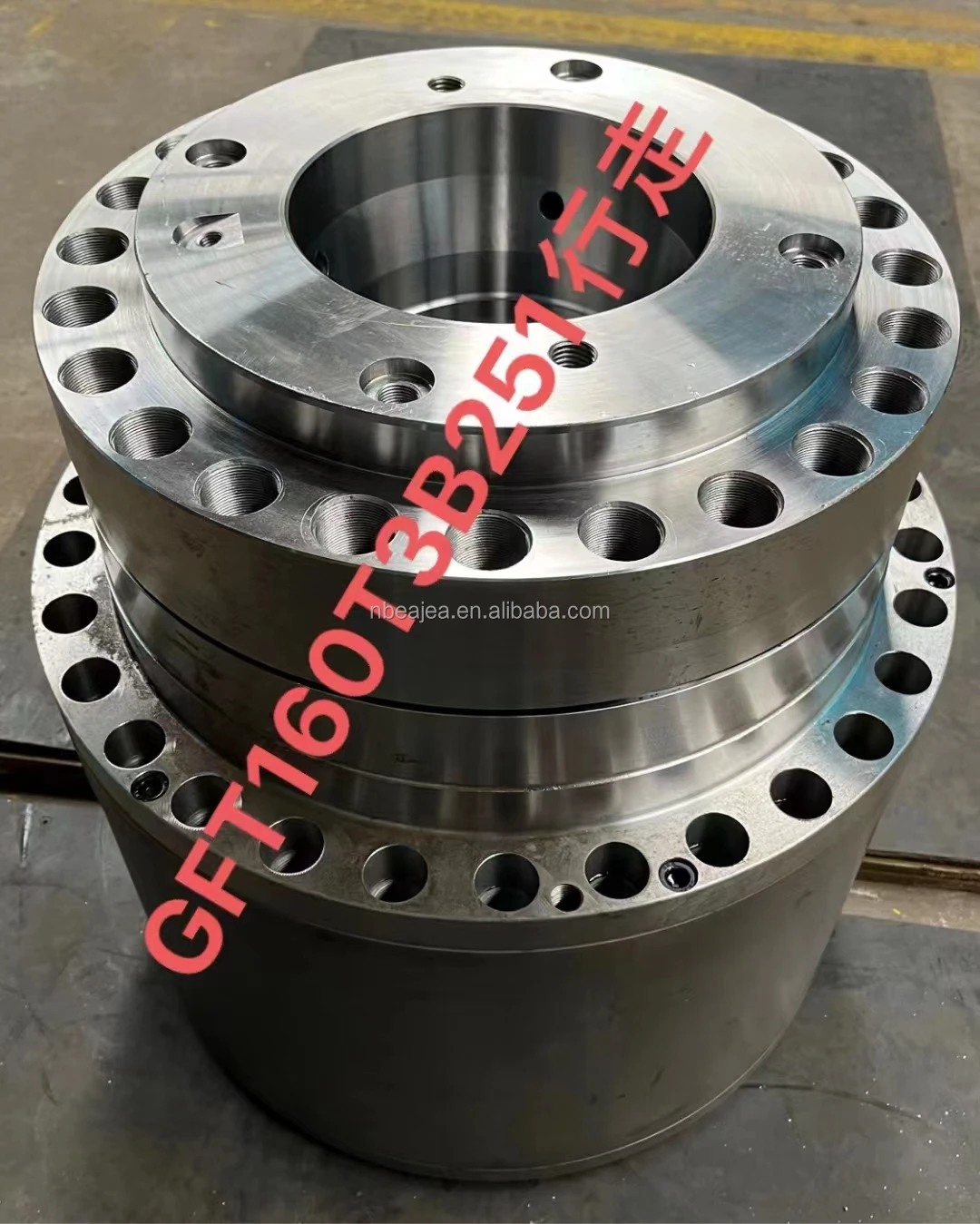

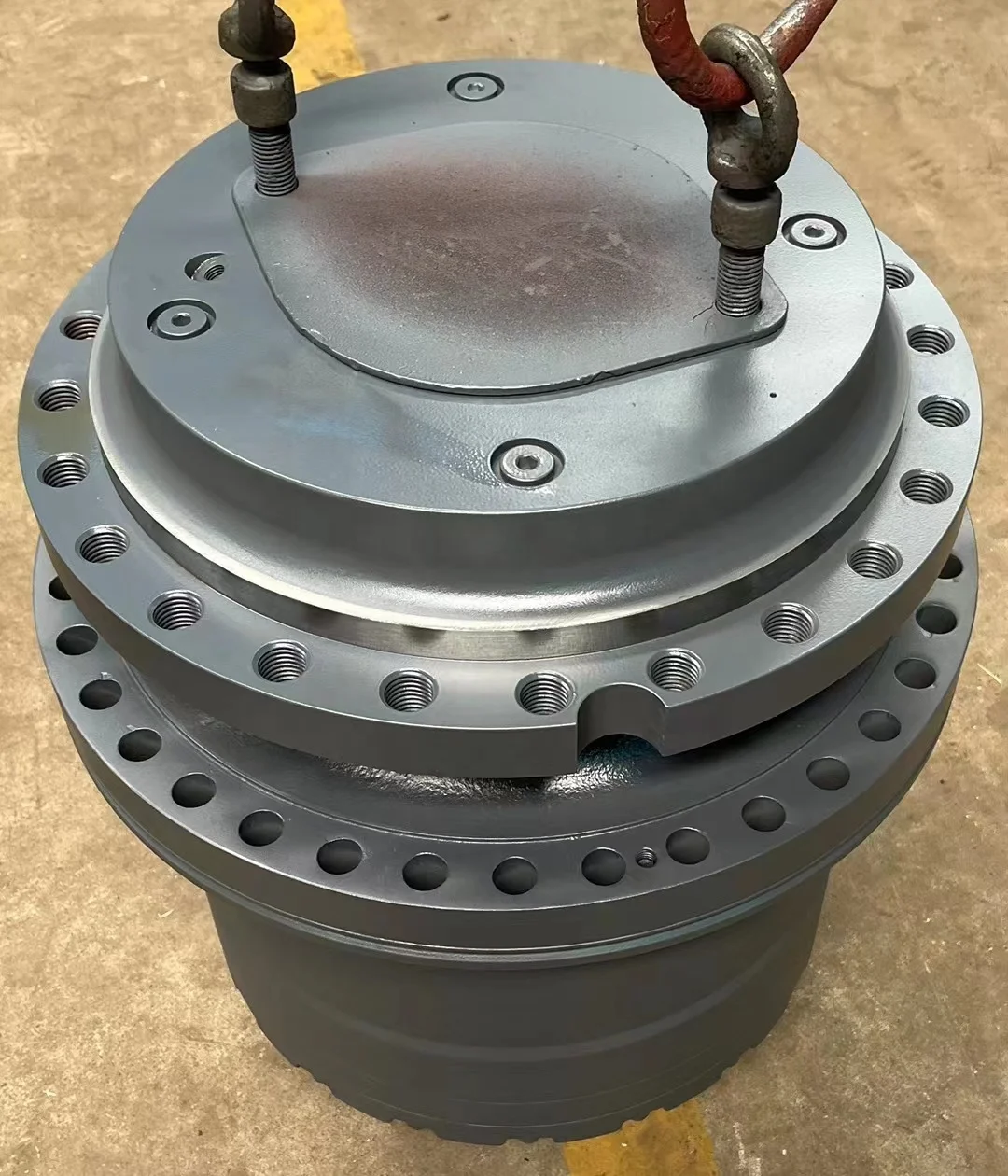

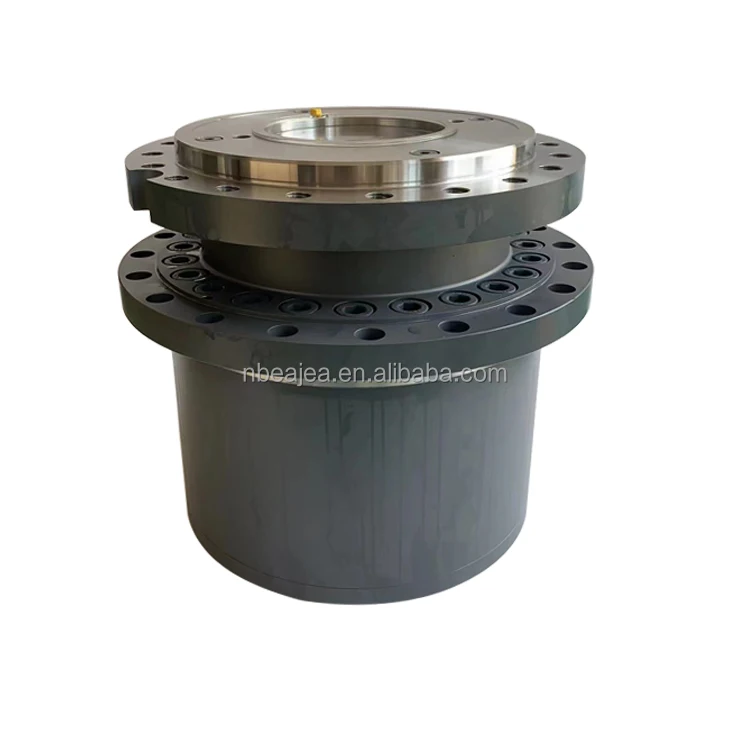

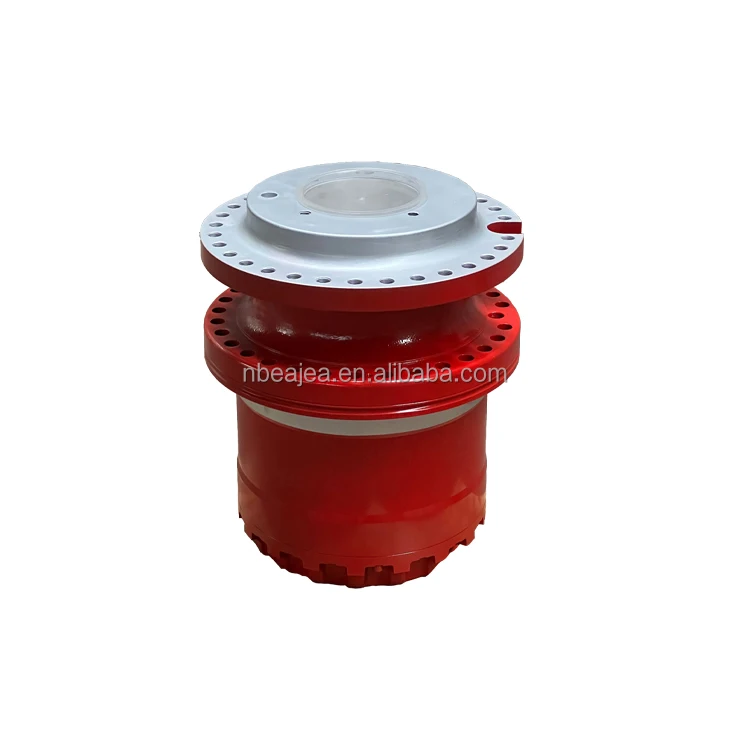

Products Picture:

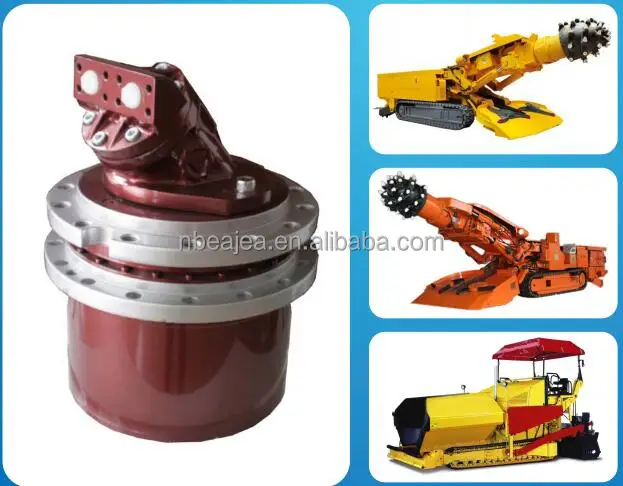

Applications:



 Our Factory : Goods Instock

Packing & Shipping : all goods with wooden box packing will more safe
