Полностью Керамический шарикоподшипник ZrO2 626 626CE 626HC0 626-ZrO2
- Категория: Bearings >>>
- Поставщик: Jinan,RHD,Bearing,Co.,Ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.92 $* | 0.68 $* |
| Aug-19-2025 | 0.72 $* | 0.4 $* |
| Jul-19-2025 | 0.46 $* | 0.92 $* |
| Jun-19-2025 | 0.87 $* | 0.46 $* |
| May-19-2025 | 0.39 $* | 0.78 $* |
| Apr-19-2025 | 0.90 $* | 0.1 $* |
| Mar-19-2025 | 0.51 $* | 0.24 $* |
| Feb-19-2025 | 0.35 $* | 0.78 $* |
| Jan-19-2025 | 0.4 $* | 0.8 $* |
Характеристики

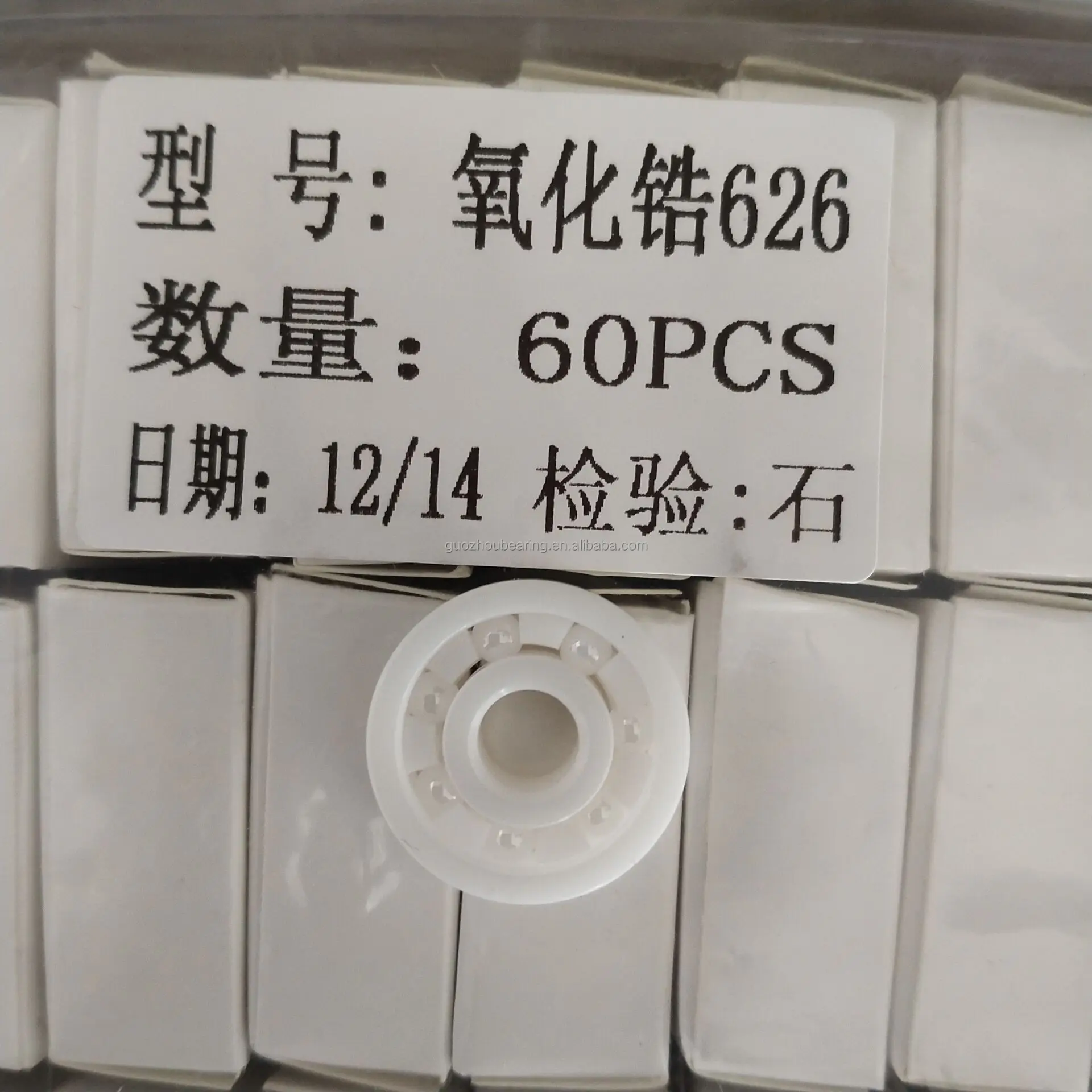

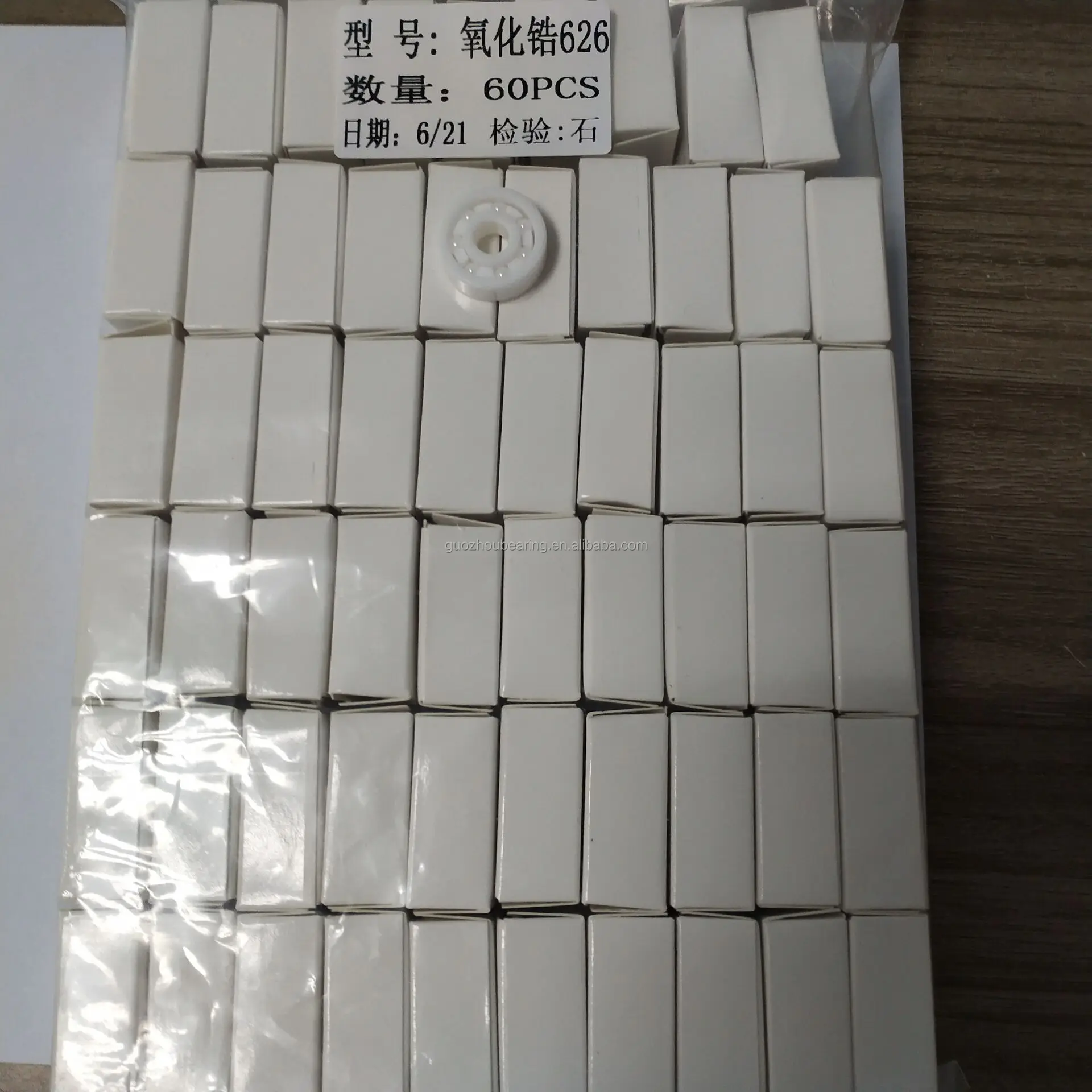

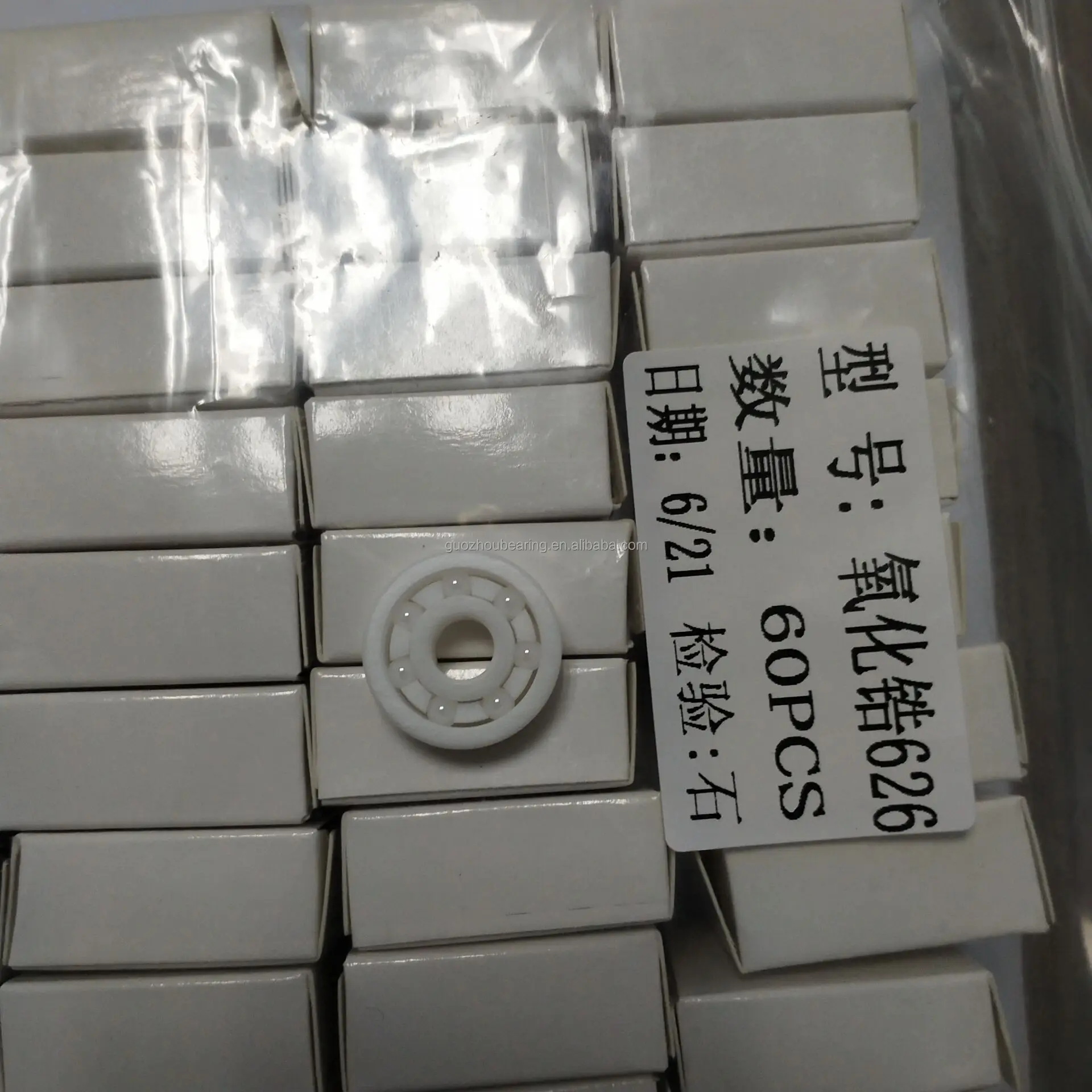

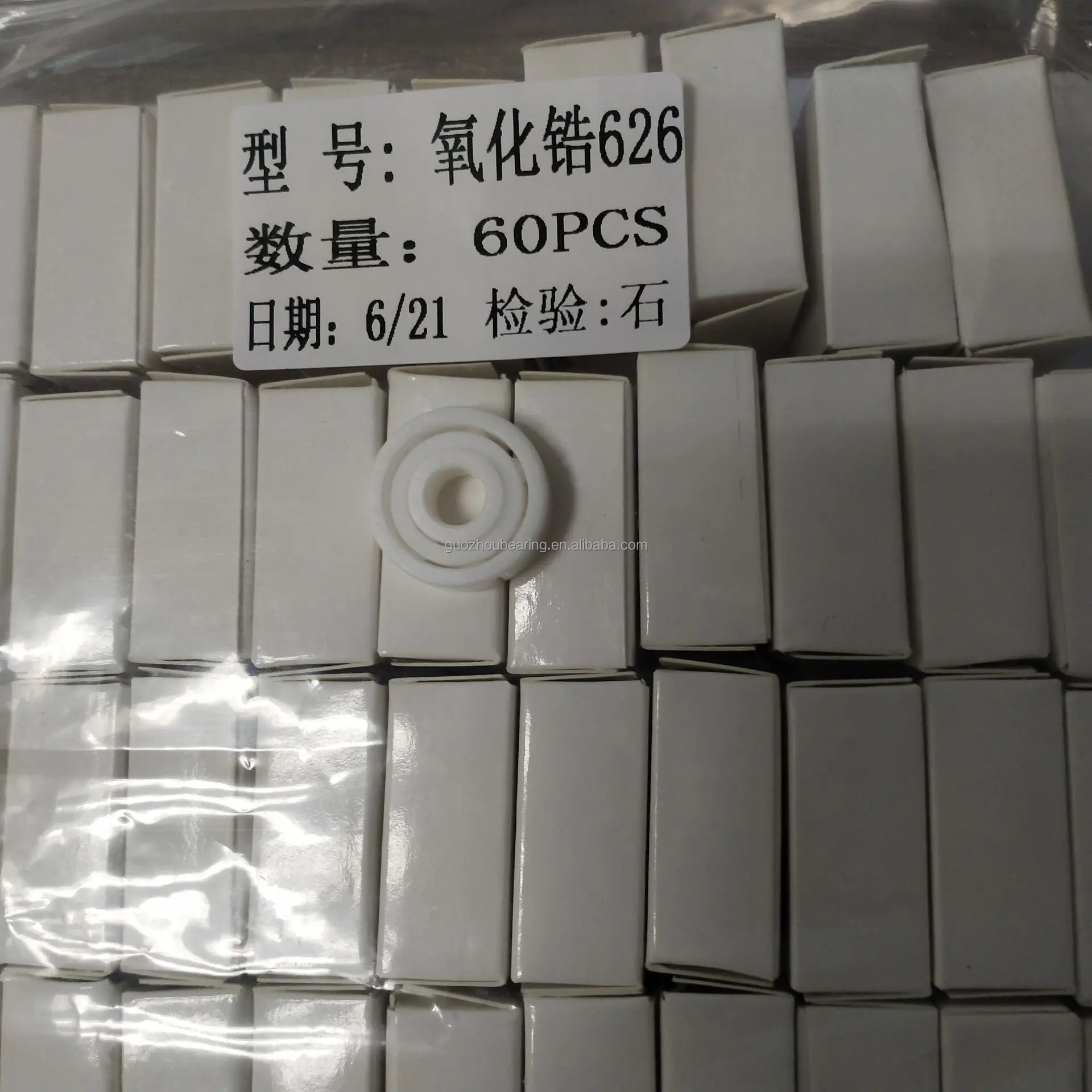

Full ceramic bearing ZrO2 626 626CE 626HC0 full ceramic deep groove ball bearing 626-ZrO2 6X19X6mm
Ceramic Deep groove ball bearing relative series
deep groove ceramic ball bearing | ||||||||||
| Dimension(mm) | Mount Dimension(mm) | Weight | ||||||||
| Model | da | da | Da | ra | (kg) (ref) | |||||
| d | D | B | r (min) | min | max | max | max | ZrO2 | Si3N4 | |
| 684CE | 4 | 9 | 2.5 | 0.1 | 4.8 | / | 8.2 | 0.1 | 0.0005 | 0.0003 |
| 694CE | 11 | 4 | 0.15 | 5.2 | / | 9.8 | 0.15 | 0.0013 | 0.0007 | |
| 604CE | 12 | 4 | 0.2 | 5.6 | / | 10.4 | 0.2 | 0.0017 | 0.0009 | |
| 624CE | 13 | 5 | 0.2 | 5.6 | / | 11.4 | 0.2 | 0.0023 | 0.0013 | |
| 634CE | 16 | 5 | 0.3 | 6 | / | 14 | 0.3 | 0.0040 | 0.0022 | |
| 685CE | 5 | 11 | 3 | 0.15 | 6.2 | / | 9.8 | 0.15 | 0.0009 | 0.0005 |
| 695CE | 13 | 4 | 0.2 | 6.6 | / | 11.4 | 0.2 | 0.0019 | 0.0010 | |
| 605CE | 14 | 5 | 0.2 | 6.6 | / | 12.4 | 0.2 | 0.0027 | 0.0015 | |
| 625CE | 16 | 5 | 0.3 | 7 | / | 14 | 0.3 | 0.0038 | 0.0021 | |
| 635CE | 19 | 6 | 0.3 | 7 | / | 17 | 0.3 | 0.0066 | 0.0036 | |
| 686CE | 6 | 13 | 3.5 | 0.15 | 7.2 | / | 11.8 | 0.15 | 0.0015 | 0.0008 |
| 696CE | 15 | 5 | 0.2 | 7.6 | / | 13.4 | 0.2 | 0.0030 | 0.0016 | |
| 606CE | 17 | 6 | 0.3 | 8 | / | 15 | 0.3 | 0.0046 | 0.0025 | |
| 626CE | 19 | 6 | 0.3 | 8 | / | 17 | 0.3 | 0.0063 | 0.0034 | |
| 636CE | 22 | 7 | 0.3 | 8 | / | 20 | 0.3 | 0.0108 | 0.0058 | |
| 687CE | 7 | 14 | 3.5 | 0.15 | 8.2 | / | 12.8 | 0.15 | 0.0017 | 0.0009 |
| 697CE | 17 | 5 | 0.3 | 9 | / | 15 | 0.3 | 0.0040 | 0.0022 | |
| 607CE | 19 | 6 | 0.3 | 9 | / | 17 | 0.3 | 0.0059 | 0.0032 | |
| 627CE | 22 | 7 | 0.3 | 9 | / | 20 | 0.3 | 0.0098 | 0.0053 | |
| 637CE | 26 | 9 | 0.3 | 9 | / | 24 | 0.3 | 0.0185 | 0.0100 | |
| 688CE | 8 | 16 | 4 | 0.2 | 9.6 | / | 14.4 | 0.2 | 0.0025 | 0.0014 |
| 698CE | 19 | 6 | 0.3 | 10 | / | 17 | 0.3 | 0.0056 | 0.0030 | |
| 608CE | 22 | 7 | 0.3 | 10 | / | 20 | 0.3 | 0.0093 | 0.0050 | |
| 628CE | 24 | 8 | 0.3 | 10 | / | 22 | 0.3 | 0.013 | 0.0072 | |
| 638CE | 28 | 9 | 0.3 | 10 | / | 26 | 0.3 | 0.022 | 0.012 | |
| 689CE | 9 | 17 | 4 | 0.2 | 10.6 | / | 15.4 | 0.2 | 0.0027 | 0.0015 |
| 699CE | 20 | 6 | 0.3 | 11 | / | 18 | 0.3 | 0.0065 | 0.0035 | |
| 609CE | 24 | 7 | 0.3 | 11 | / | 22 | 0.3 | 0.011 | 0.0060 | |
| 629CE | 26 | 8 | 0.3 | 11 | / | 24 | 0.3 | 0.015 | 0.0081 | |
| 639CE | 30 | 10 | 0.6 | 13 | / | 26 | 0.6 | 0.028 | 0.015 | |
| 6800CE | 10 | 19 | 5 | 0.3 | 12 | 12 | 17 | 0.3 | 0.004 | 0.0021 |
| 6900CE | 22 | 6 | 0.3 | 12 | 12.5 | 20 | 0.3 | 0.007 | 0.0038 | |
| 6000CE | 26 | 8 | 0.3 | 12 | 13 | 24 | 0.3 | 0.014 | 0.0075 | |
| 6200CE | 30 | 9 | 0.6 | 14 | 16 | 26 | 0.6 | 0.025 | 0.013 | |
| 6300CE | 35 | 11 | 0.6 | 14 | 16.5 | 31 | 0.6 | 0.040 | 0.022 | |
| 6801CE | 12 | 21 | 5 | 0.3 | 14 | 14 | 19 | 0.3 | 0.005 | 0.0025 |
| 6901CE | 24 | 6 | 0.3 | 14 | 14.5 | 22 | 0.3 | 0.008 | 0.0042 | |
| 16001CE | 28 | 7 | 0.3 | 14 | / | 26 | 0.3 | 0.015 | 0.0079 | |
| 6001CE | 28 | 8 | 0.3 | 14 | 15.5 | 26 | 0.3 | 0.017 | 0.0092 | |
| 6201CE | 32 | 10 | 0.6 | 16 | 17 | 28 | 0.6 | 0.028 | 0.015 | |
| 6301CE | 37 | 12 | 1 | 17 | 18 | 32 | 1 | 0.046 | 0.025 | |
| 6802CE | 15 | 24 | 5 | 0.3 | 17 | 17 | 22 | 0.3 | 0.005 | 0.0029 |
| 6902CE | 28 | 7 | 0.3 | 17 | 17 | 26 | 0.3 | 0.012 | 0.0063 | |
| 16002CE | 32 | 8 | 0.3 | 17 | / | 30 | 0.3 | 0.021 | 0.011 | |
| 6002CE | 32 | 9 | 0.3 | 17 | 19 | 30 | 0.3 | 0.024 | 0.013 | |
| 6202CE | 35 | 11 | 0.6 | 19 | 20.5 | 31 | 0.3 | 0.035 | 0.019 | |
| 6302CE | 42 | 13 | 1 | 20 | 22.5 | 37 | 1 | 0.064 | 0.035 | |
Company Information
Guozhou bearing Co., Ltd. is a professional bearing manufacturer. We are engaged in producing high quality bearings. We can supply various kinds of bearings according to customers' requirements. Our products enjoy great popularity in the worldwide markets Asia, Europe and USA and so on.
Our products includ Deep groove ball bearings, Angular contact ball bearing, Thrust ball bearing, Taper roller bearings, Cylindrical roller bearings, Spherical roller bearings, Thrust roller bearings. We also supply special linear bearing, ceramic bearing, plastic bbearings, textile bearing rotor bearing complete, excavator bearing and so on.
Products are extensively used in machinery, excavator, hydropower, engineering, railways, automobiles, electric power, textiles, metallurgy, mine, papermaking, sports equipment and precision instruments.
Our Service
1.Customer service:
Any questions to be sent will get response within 24 hours.
2.Lead Time:
Sample Lead-times: generally 1-3 workdays.
Production Lead-times: 17 workdays after getting your deposit.According to the model and quantity.
3.Delivery
For small weight or Urgent, goods will be sent by Express DHL/FedEX/UPS/TNT/EMS
For max production,goods will be shipped by sea/by air.
According to client’s requirements.
After-sales service:
Before shippment ,products will be strictly inspection on our factory QC Process System.Just in case,there is abnormal.Please contact us at first time, Customer Complaint handling procedure will be boot at once.Implementation of the scheme will be come out within 48 hours.We will negotiate with customer to find a reasonable way to resolve and compensate.
Our Advantage
1. More than ten years Bearing exporting experiences.
2. OEM and non-standard Bearing Reqirement acceptable.
3. within 24 hours delivery after deposit or full payment for most Bearing Items
4. All products, we provide our customer one year warranty.
Our Factory
Payment and Delivery
Our main product
We specialized in deep groove ball bearings, self-aligning ball bearing, cylindrical roller bearings, spherical roller bearings, tapered roller bearings, angular contact ball bearings,thrust ball bearing,thrust roller bearing,wheel bearings,pillow block bearings,rolling mill bearings,linear guide bearings,ball screw bearings etc.
