Полностью автоматическая гофрированная картонная коробка LKS ПЛК-контроль свинцовая кромка питательный ротационный штамповочный станок
- Категория: Carton\u00A0Printing\u00A0Slotting\u00A0Die-Cutting\u00A0Machinery >>>
- Поставщик: Shandong,Lukes,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 35700.36 $* | 37485.83 $* |
| Aug-16-2025 | 35400.32 $* | 37170.96 $* |
| Jul-16-2025 | 29700.20 $* | 31185.97 $* |
| Jun-16-2025 | 34800.88 $* | 36540.40 $* |
| May-16-2025 | 30300.73 $* | 31815.14 $* |
| Apr-16-2025 | 34200.14 $* | 35910.92 $* |
| Mar-16-2025 | 33900.54 $* | 35595.24 $* |
| Feb-16-2025 | 33600.17 $* | 35280.72 $* |
| Jan-16-2025 | 33300.74 $* | 34965.52 $* |
Характеристики
Products Description

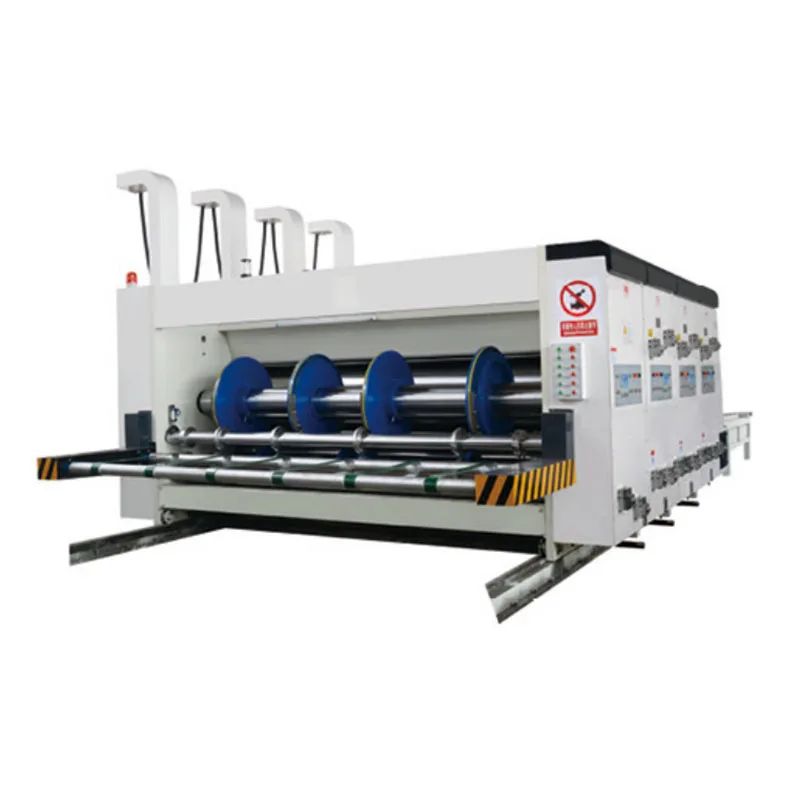

Carton Printing Machine
This carton printing machine adopts the chain feeding method, the maximum speed can reach 6000s/h, the high speed mode is stable
and the noise is low. The main drive motor adopts frequency conversion speed regulation motor, combined with advanced technology
at home and abroad, it can continuously feed paper at high speed and paper feed.
Model | LKS-1224 | |
Design speed | 100 | |
Maximum paper feed size | 1200x2400mm | |
Minimum paper feed size | 350x600mm | |
Interlace feed size | 1500x2900mm | |
Maximum printing area | 1200x2760mm | |
Overprint accuracy | ±0.5mm | |
Standard plate thickness | 7.2mm | |
Printable Cardboard Thickness | 2-11mm | |
Adjustment of printing cylinders | 360° | |
Printing cylinder axial adjustment | ±10mm | |
Slotting accuracy | ±1mm | |
Die cutting accuracy | ±1.5mm | |
Die-cutting knife die roll axial adjustment range | ±10mm | |
(If the printing machine is equipped with a folder gluer machine, the size of the folder gluer machine shall prevail) | ||
Features:
* Computer-controlled storage of orders, the operation of changing orders is fast and convenient; the number of stored orders can reach 999.
* Lubricating oil automatic balancing device to keep each unit lubricating oil on the same level.
* All drive rollers are made of high quality steel, hard chrome plated and ground.
* All transmission gears and roller shafts are made of high-quality steel, heat-treated (or hard chrome-plated) and then finely ground;
* The wall panel is made of high-quality steel, which is processed by CNC machining center after removing internal stress.
* Painting process: Before the parts are painted, they go through rust removal - phosphating - painting - baking paint, which can make the paint anti-rust, hard surface and more durable.
* Each unit of the whole machine walks with a bell alarm, and an emergency stop switch is set in each unit to ensure the safety of personnel when entering the machine to operate;
* A large-screen digital display (printing speed) is installed to facilitate the operator to check the running speed of the machine.
Advantage
Feed Sectiom
* Chain-type paper feeding, high-speed and low-speed paper feeding is more accurate.
* Double-roller feeding, quick-change structure for feeding rubber rollers.* The left and right baffles are electrically adjusted, and the side baffles are pneumatically beaten.
* The main drive motor adopts variable frequency speed regulation motor, and the speed adjustment is precise and stable.
Printing Section
* Pneumatic diaphragm pump, stable ink supply, simple operation and maintenance, ink filter, filter impurities.
* PLC control digital display, dynamic and static 360° adjustment, high precision.
* Equipped with an automatic ink distribution device, which automatically distributes the ink when the machine is stopped to prevent the ink from drying up and affecting the printing quality.
Die Cutting Section
* Pre pressing, pressing line wheel, slotting knife seat lateral movement adopt computer and electric digital control.
* Elastic slicing corner structure, three layer, five layer corrugated paperboard without adjustment.
Transmission Gear
* Keyless joint ring, keyless connecting ring is selected to reduce central wear, virtual amplification and maintain long-term printing registration.
Company Profile
1. Q: Are you trading company or manufacturer?
A: We are manufacturer, and also provide the business solution to all the friends.
2. Q: What is your delivery time ?
A: Normal delivery time is 30-55working days beside less stock model after received your deposit .
3. Q: Can you help us to buy other goods?
A: Sure of that, it is our honor to work for you, and control the goods quality.
4. Q: How was your machine warranty ?
A: our all machines has one and half year (18mouthes) guarantee. Beside guarantee we will supply
cost spare parts and free maintenance knowledge .
5. Q: How can you do after sales service ?
A: beside the quality guarantee, our company also regards the after sales service, using a full arrange
of service to solve the problems of clients. We supply multiple channels of service by 7x24 hours on
phone / on site technical support / on site service / preventive maintenance also training again.
6. Q: What’s your payment terms ?
A: 30% deposit by TT , 70 % balance before shipping by TT or at sight L/C, western union /cash are also
accepted for us .
Send your Inquiry Details in the Below, Click "Send" !
we will reply within 24h!
