Характеристики
Product Description
Product Name | All stainless steel tipping bucket Rain Gauge |
Resolution | 0.1mm /0.2mm /0.5mm (Optional) |
Rain inlet size | φ200mm |
Sharp edge | 40～45 degree |
Rain intensity range | 0.01mm~4mm/min (allows maximum rain intensity of 8mm/min) |
Measurement accuracy | ≤±3% |
Resolution | 1mg/Kg(mg/L) |
Output signal | A: Voltage signal (0~2V, 0~2.5V, 0~5V, 0~10V optional) |
B: 4 to 20 mA (current loop) | |
C: RS485 (standard Modbus-RTU protocol, device default address: 01) | |
D: Pulse output | |
Power supply | 5~24V DC (when the output signal is 0~2V, 0~2.5V, RS485) |
12~24V DC (when the output signal is 0~5V, 0~10V, 4~20mA | |
Battery life | 5 Years |
Way of sending | Two-way reed switch on and off signal output |
Working environment | Ambient temperature: -10 ° C ~ 50 ° C |
Relative humidity | <95%(40℃) |
Size | φ216mm×460mm |

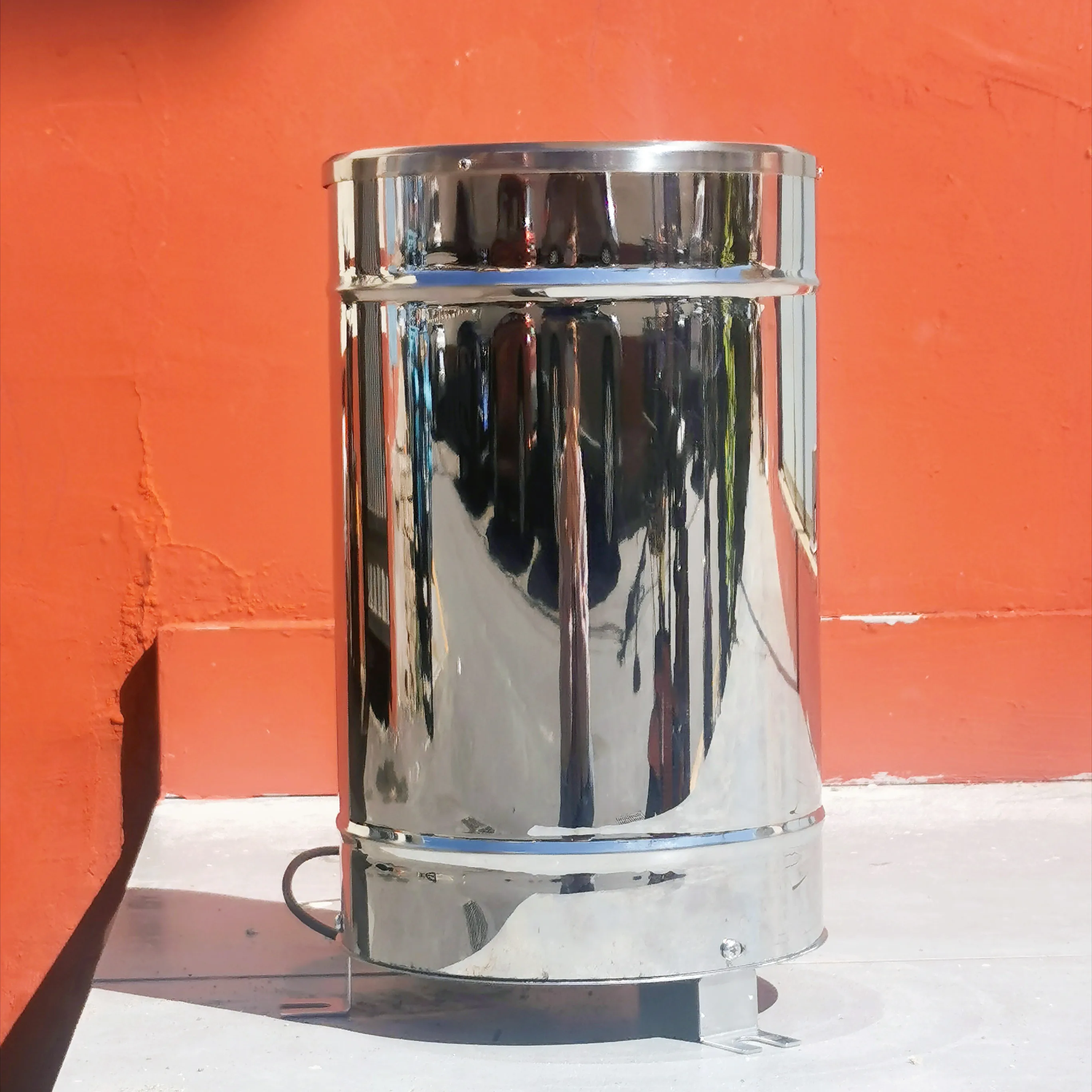

All stainless steel rain gauge housing and internal components are made of stainless steel, compared with plastic, no deformation, no aging, high precision, long service life, and the accuracy will not decrease with the increase of service life.
We can provide supporting modules and software, and a powerful after-sales department will serve you, so you don't have to worry about the later use problems.
Our Advantages
The internal design is precise, all made of stainless steel, with high precision and long service life.
Various signal outputs
Pulse RS485 multi-signal output with 0.1mm, 0.2mm, 0.5mm resolution can be optional.
Model 485 optional ten-element rainfall
1. Rainfall that day from 0:00 am to now
2. Instantaneous rainfall: rainfall between queries
3. Yesterday's rainfall: The amount of rainfall in the 24 hours yesterday
4. Total Rainfall: The total rainfall after the sensor is powered on
5. Hourly rainfall
6. Rainfall last hour
7. 24-hour maximum rainfall
8. 24-hour maximum rainfall period
9. 24 hour minimum rainfall
10. 24-hour minimum rainfall period
1. Rainfall that day from 0:00 am to now
2. Instantaneous rainfall: rainfall between queries
3. Yesterday's rainfall: The amount of rainfall in the 24 hours yesterday
4. Total Rainfall: The total rainfall after the sensor is powered on
5. Hourly rainfall
6. Rainfall last hour
7. 24-hour maximum rainfall
8. 24-hour maximum rainfall period
9. 24 hour minimum rainfall
10. 24-hour minimum rainfall period

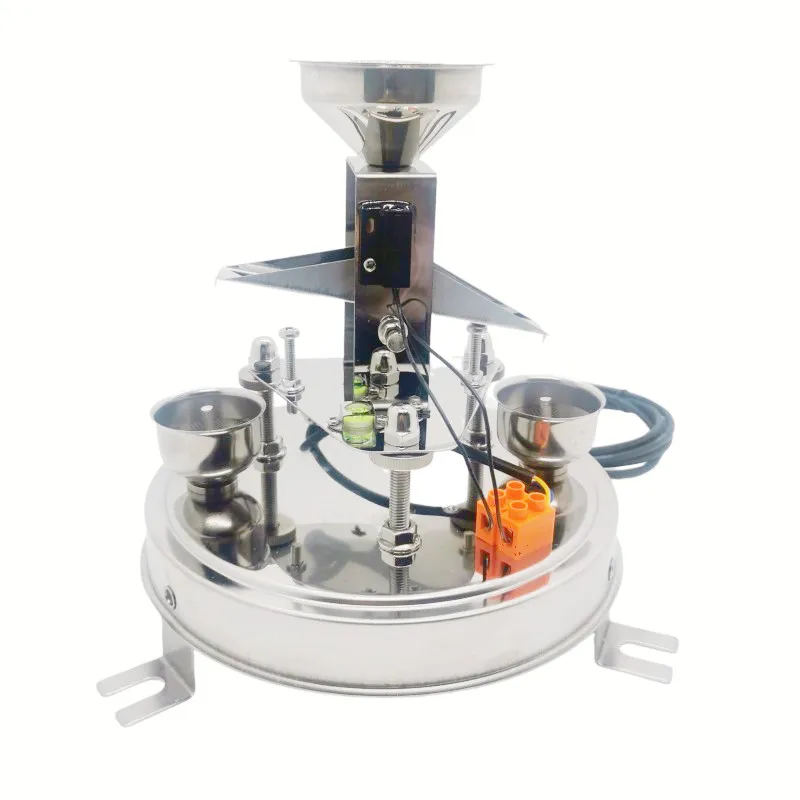

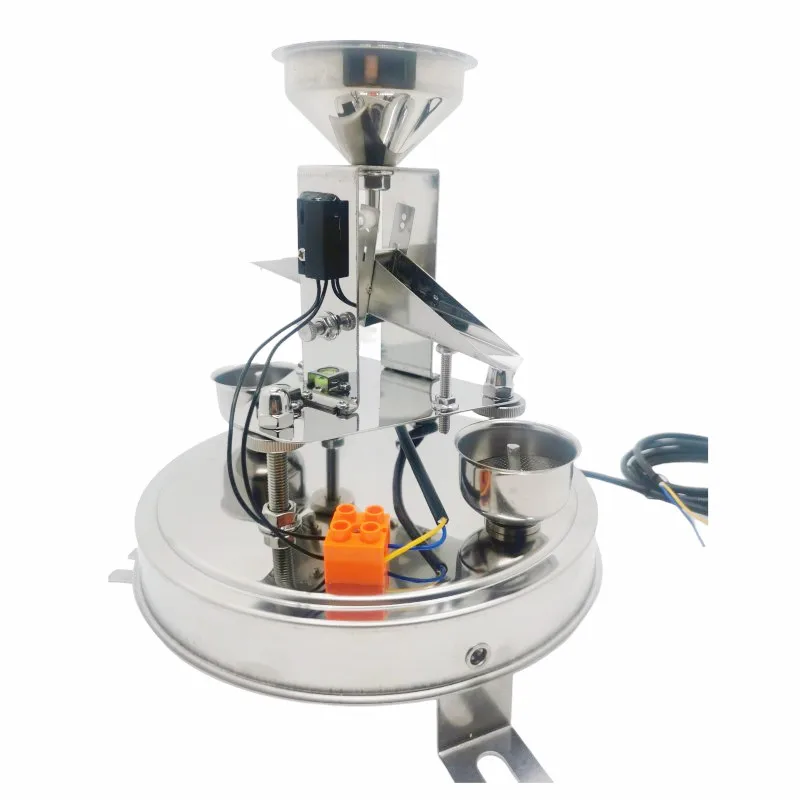

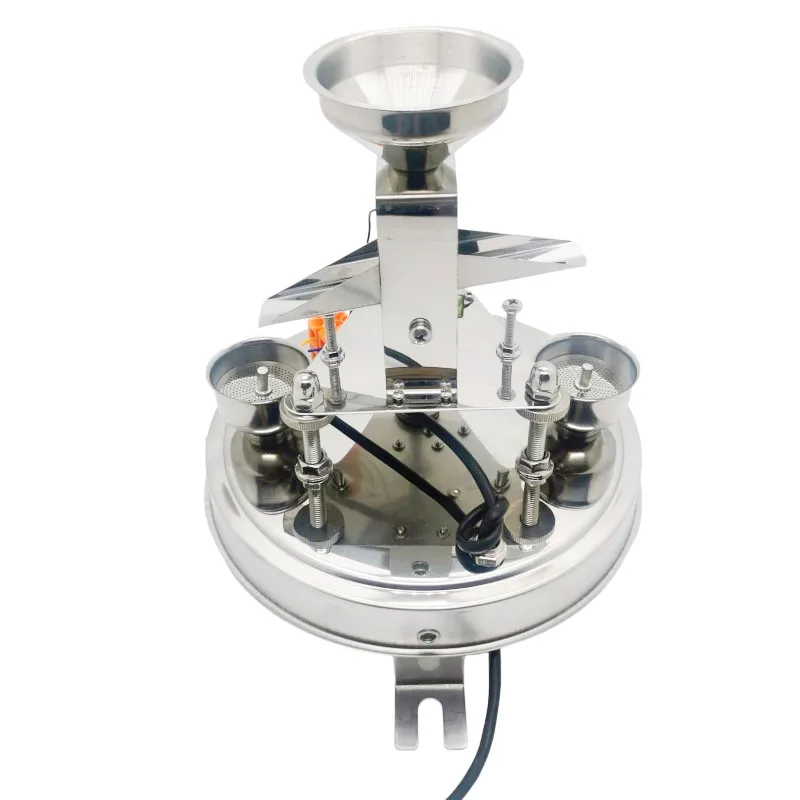

1. Whole rain gauge including the bucket and the inner parts all are made of the
304 stainless steel .
2.High sensitivity tipping bucket, high precision.
3. Bearing steel bearing, durable and wear-resistant.
3. Bearing steel bearing, durable and wear-resistant.

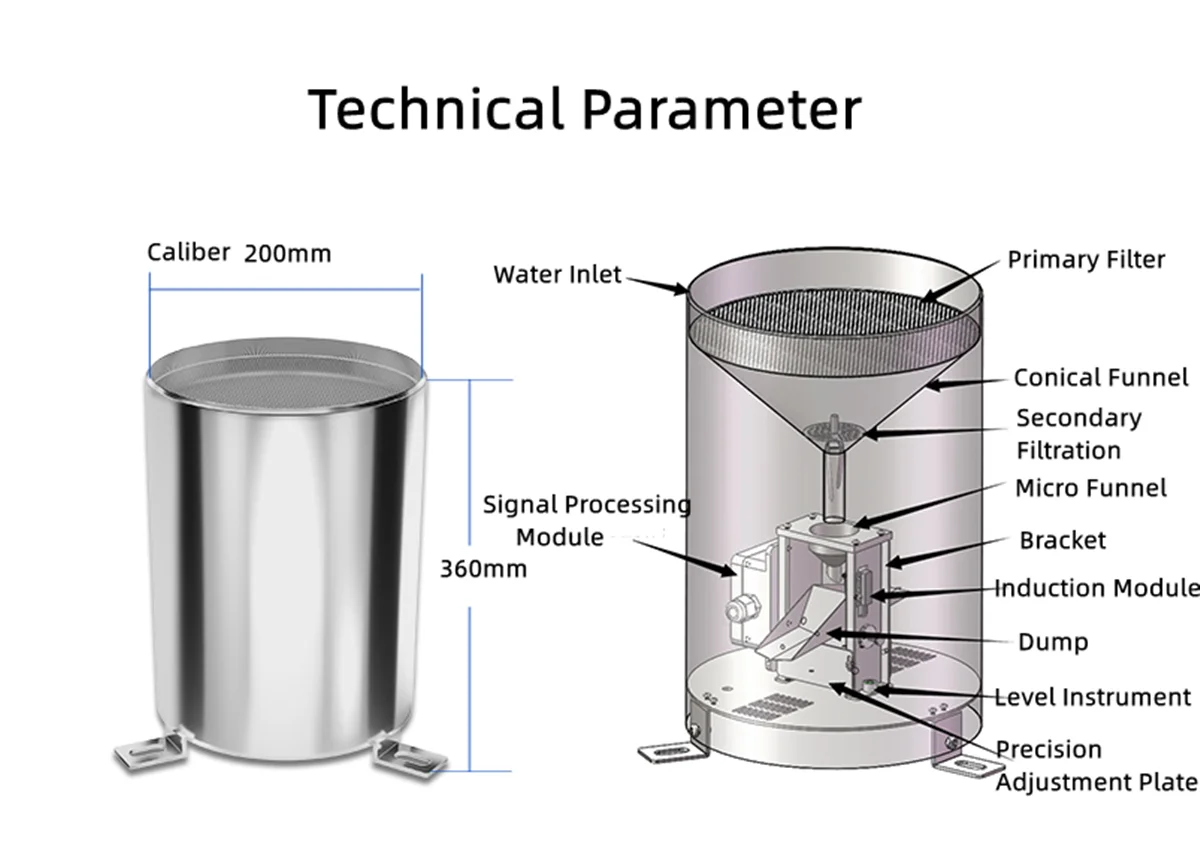

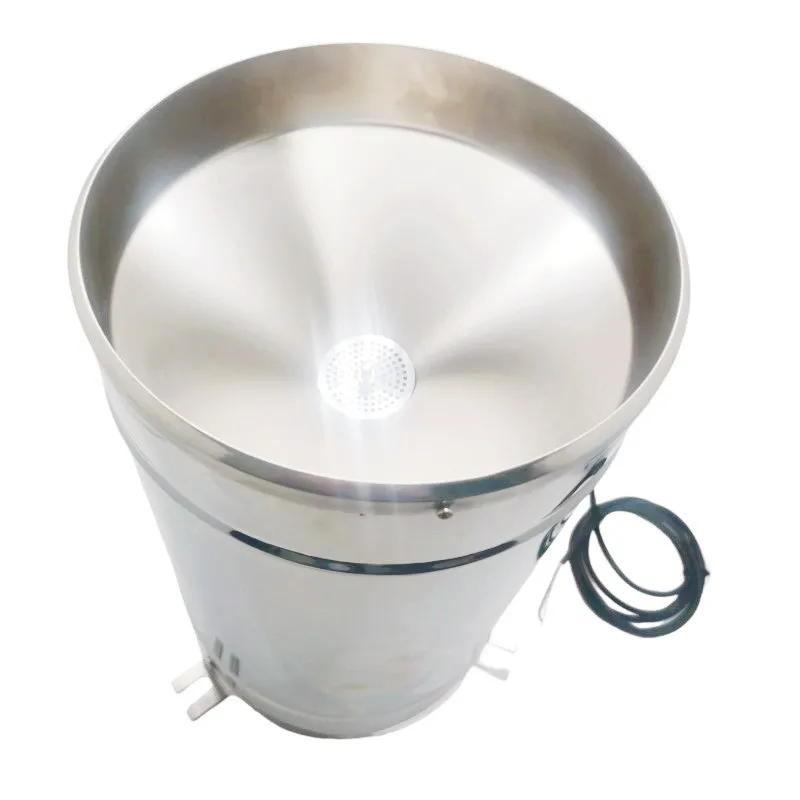

With 200mm diameter and the 45 degree
Sharp edge which In line with international standards
.
Eliminate random errors and make measurements more accurate.
Related Products
Packing&Shipping
Company Introduction
Honde Technology CO.,LTD founded in the year of 2011, adheres to the business philosophy of technology making our
life better. Our company is an IOT company dedicated to the R&D, production, sales of smart water equipment, smart
agriculture equipment and smart environmental equipment and the related solutions provider.The products sell well
in more than 70 countries, serve thousands of customers around the world, and have received unanimous praise.
We are looking forward to working with you to make our life better due to the blessing of science and technology.
life better. Our company is an IOT company dedicated to the R&D, production, sales of smart water equipment, smart
agriculture equipment and smart environmental equipment and the related solutions provider.The products sell well
in more than 70 countries, serve thousands of customers around the world, and have received unanimous praise.
We are looking forward to working with you to make our life better due to the blessing of science and technology.
FAQ
Q: How can I get the quotation?
A: You can send the inquiry on Alibaba or the below contact information, you will get the reply at once.
Q: What's the main characteristics of this rain gauge sensor?
A:The whole body and internal all parts is made of 304 stainless steel, which is durable and wear-resistant, with high precision and long service life.
A: You can send the inquiry on Alibaba or the below contact information, you will get the reply at once.
Q: What's the main characteristics of this rain gauge sensor?
A:The whole body and internal all parts is made of 304 stainless steel, which is durable and wear-resistant, with high precision and long service life.
Q: What's the resolution of this rain gauge sensor?
A:The measure resolution with 0.1mm, 0.2mm 0.5mm can be optional.
Q: What's the output of the sensor?
A:It can be RS485 or Pulse output.
Q:Could I get samples?
A:Yes,we have materials in stock to help you to get the samples as soon as we can.
Q: May I know your warranty?
A: Yes, usually it’s 1 year.
Q:What's the delivery time?
A: Usually, the goods will be deliveried in 1-3 working days after receiving your payment. But it depends on your quantity.
Q:Could I get samples?
A:Yes,we have materials in stock to help you to get the samples as soon as we can.
Q: May I know your warranty?
A: Yes, usually it’s 1 year.
Q:What's the delivery time?
A: Usually, the goods will be deliveried in 1-3 working days after receiving your payment. But it depends on your quantity.
