Американский стандарт гидравлический шланг стальная проволока Плетеный гибкий
- Категория: Rubber Hoses >>>
- Поставщик: Oriental,Mj,Hydraulic,Machinery,(tianjin),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.93 $* | 0.91 $* |
| Aug-17-2025 | 0.26 $* | 0.99 $* |
| Jul-17-2025 | 0.72 $* | 0.44 $* |
| Jun-17-2025 | 0.23 $* | 0.36 $* |
| May-17-2025 | 0.97 $* | 0.78 $* |
| Apr-17-2025 | 0.0 $* | 0.34 $* |
| Mar-17-2025 | 0.9 $* | 0.80 $* |
| Feb-17-2025 | 0.38 $* | 0.87 $* |
| Jan-17-2025 | 0.32 $* | 0.57 $* |
Характеристики
Hydraulic rubber hose
Product Description

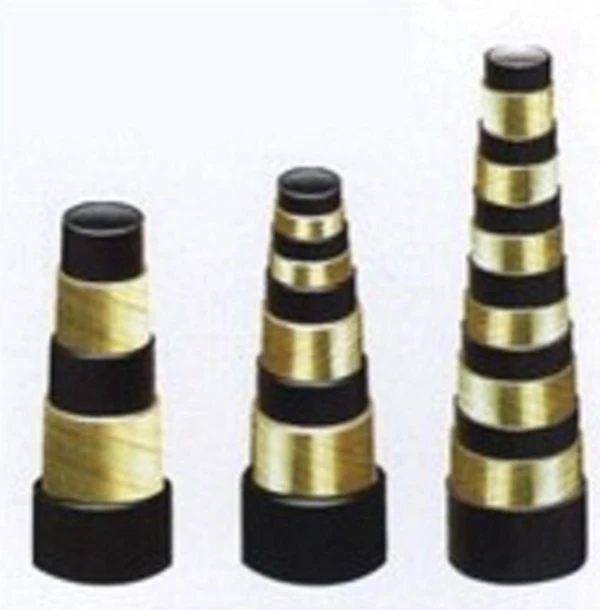

Hydarulic hose Structure
wire braid hydraulic hose Consists of inner tube, middle layer, one or two wire reinforcements and cover. Inner tube is to transmit liquid under pressure and protect wire against corrosion while cover is to protect wire against abrasion, wire layer is the structure materials that providing reinforcement.
Hydraulic hose working temperature
-40°C to +120°C

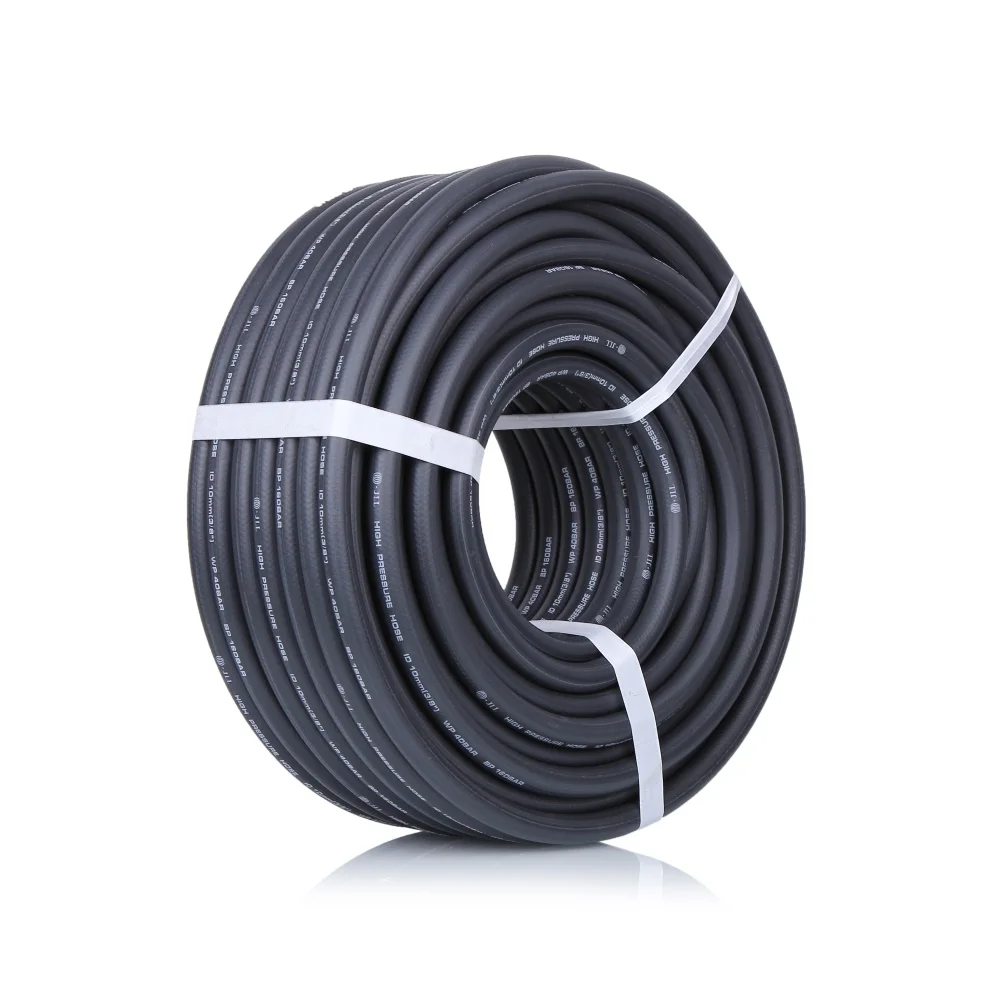

hydraulic rubber hose
Specification of hydraulic hose
Please reference the hose standard
| Wire braided Rubber hose | 1.SAE 100R1AT/EN853 1SN/EN 857 1SC |
| 2.SAE 100R2AT/EN853 2SN/EN 857 2SC | |
| 3.SAE 100R16 | |
| 4.SAE 100R17 | |
| Wire spiralled Rubber hose | 1.SAE 100R9/ EN856 4SP |
| 2.SAE 100R10/ EN856 4SH | |
| 3.SAE 100 R12 | |
| 4.SAE 100 R13 | |
| 5.SAE 100 R15 | |
| Fibre braided Rubber hose | 1.SAE 100R7/EN855 R7 |
| 2.SAE 100R8/EN855 R8 | |
| 3.SAE 100 R3 | |
| 4.SAE 100 R6 |
hydraulic rubber hose
| Choose the suitable hydraulic hose |
| Selection of the proper Hydraulic hose for the application is essential to the proper operation and safe use of the hose and related equipment. In adequate to selection of the hose for your application can result in hose leakage , bursting or other failure,which can cause serious bodily injury or property damage from spraying fluids or flying projectiles. Therefore when choosing hydraulic hose , we should consider below factors: |
1. Hose Size 2. Hose Length 3. Hose Fittings 4. Fluid Conveyed 5. Bends 6. Temperature 7. Hose pressure 8. Static Head Pressure 9. Installation Design |
We also have other bigger size hydraulic hose. If you are interested, you can contact with us. We can product according to your demands. |
How to get quotation for the hydraulic hose:
If you interested in our hydraulic hose,please kindly tell me the information as below,we will send you the details.
| Hose standard | Size | Layers of wire | Quantity | The hose used for |
| SAE/DIN or etc. | Inner diameter | 2SP/4SP or etc. | meters/rolls | hydraulic hose/water hose etc. |
Hydralic hose application
wire braid hydraulic hose Mainly used in mine hydraulic support, oil exploration, suitable to engineer construction, crane transport, forging metallurgy, mining equipment, ships, injection molding machinery, agricultural machinery various machine tools.
hydraulic rubber hose
Related Hose
Production process and workshop
For hose, you can tell us: Size, Layers of wire, Quantity, Use/application
Packaging & Shipping
Packaging Details: By transparent plastic film, woven belt , wooden box fumigation or your request.
Delivery Time: We are responsible for shipping goods to delivery port on time.
Relation production:
1. We still product fitting and ferrule, If you need, you can contact with us. We will send the catalog of fitting and ferrule to you.
How to get quotation for the fitting and ferrule:
If you interested in our fitting and ferrule,please kindly tell me the information as below,we will send you the details.
| Fitting standard | Size | Layers of wire | Quantity | Material |
| BSP/NPT or etc. | Inner diameter of hose | 2SP/4SP or etc. | pieces | Carbon steel/stainless steel |
2. We still product hose crimping machine range from 2mm-300mm(1/4-10inch crimping machine), skiving machine,cutting machine, hose test machine,pipe bending machine and so on.
1) MJ52T (finn power P32 style), with quick change tool and dies bench
2) MJ52 : DX68 model hose crimping machine
