Products Description
Mining Truck Articulated Dump Truck XDA45
1. It adopts a 12-liter large-displacement mine-specific engine, which has fully passed the extreme tests of plateau, high
temperature, and high cold, with excellent performance, stable quality and high reliability
2. Use a dedicated 7-speed gearbox with reliable quality and long service life
3. The flexible structure frame adopts Tonly heavy industry's core patented technology, which has strong ability to absorb and
attenuate impact, and greatly reduces the failure rate of the chassis and chassis
4. The use of IBS only assisted braking control (patented technology) simplifies the main and auxiliary braking operation methods,
and improves the braking reliability and safety of the vehicle when the vehicle is downhill with long distances and heavy loads.
temperature, and high cold, with excellent performance, stable quality and high reliability
2. Use a dedicated 7-speed gearbox with reliable quality and long service life
3. The flexible structure frame adopts Tonly heavy industry's core patented technology, which has strong ability to absorb and
attenuate impact, and greatly reduces the failure rate of the chassis and chassis
4. The use of IBS only assisted braking control (patented technology) simplifies the main and auxiliary braking operation methods,
and improves the braking reliability and safety of the vehicle when the vehicle is downhill with long distances and heavy loads.
Specification
Model | XDA45 |
Overall dimension (L*W*H) | 11070*3950*3846mm |
Wheelbase front-mid | 4450mm |
Wheelbase mid-rear | 1940mm |
Tire center distance front | 2700mm |
Tire center distance mid & rear | 2700mm |
Total weight | 75000kg |
Payload | 41000kg |
Curb weight | 34000kg |
Engine | OM502 |
Rated power | 350kW/1800rpm |
Max torque | 2300Nm/1300rpm |
Drive | 6x6 |
Tires | 29.5R25 |
Max. speed | 51km/h |
Min. turning clearance | 9275mm |
Max. grade ability | 45% |
Min. ground clearance | 530mm |
Fuel | 500L |

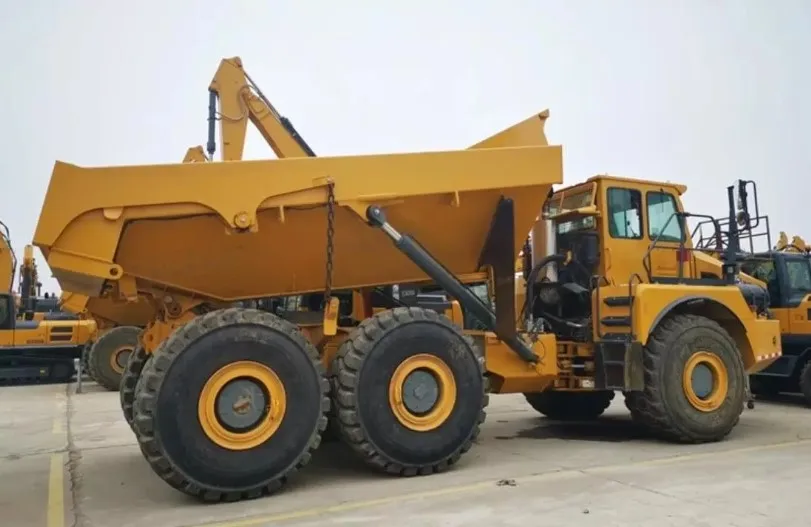

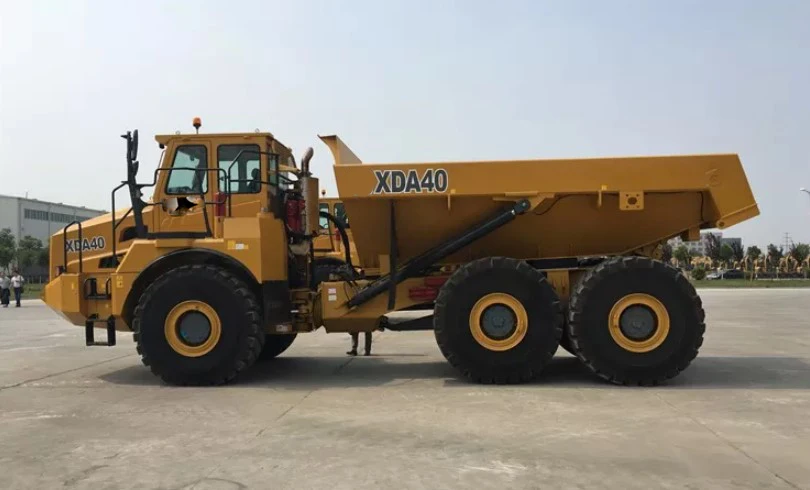

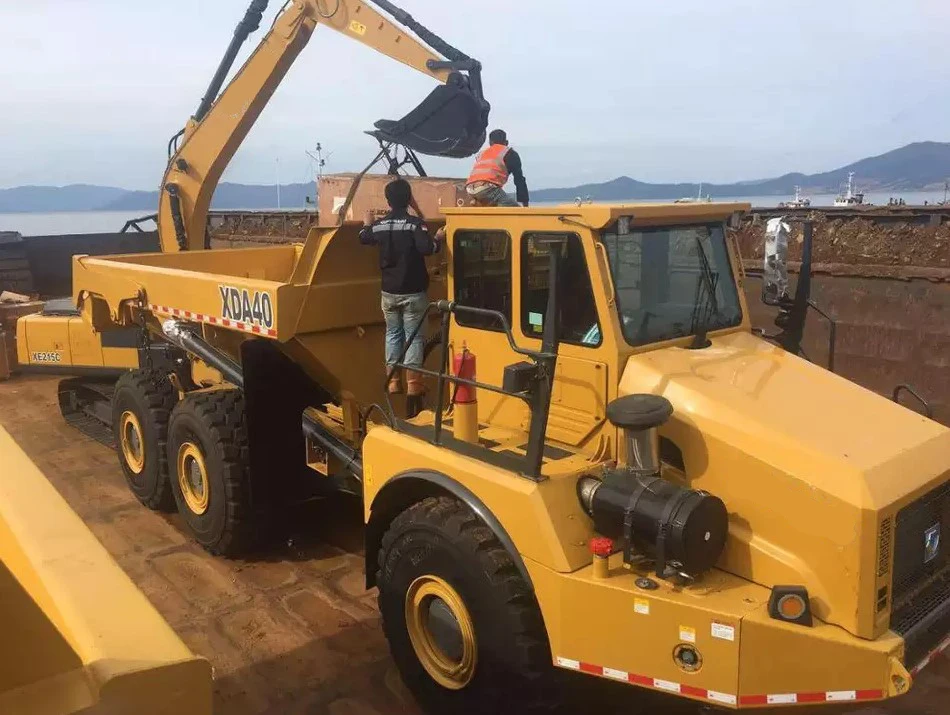

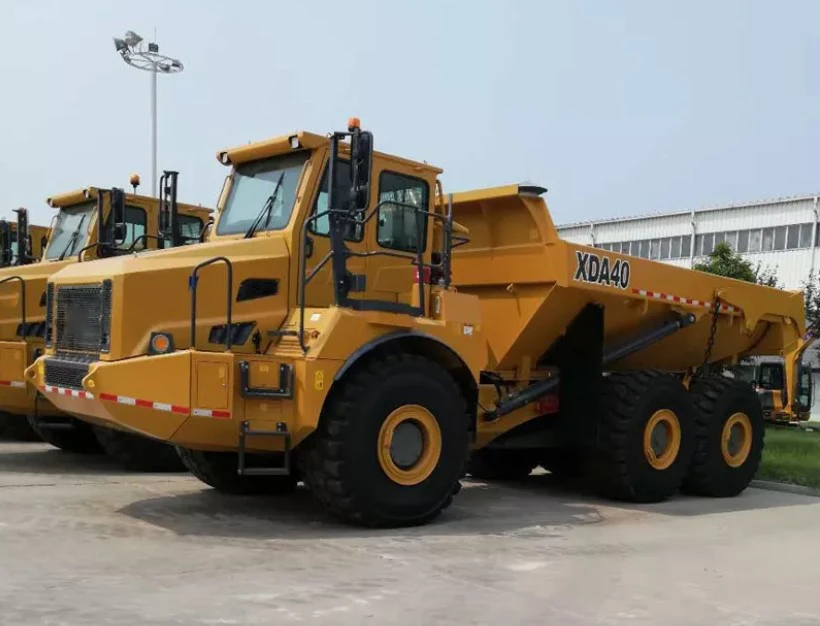

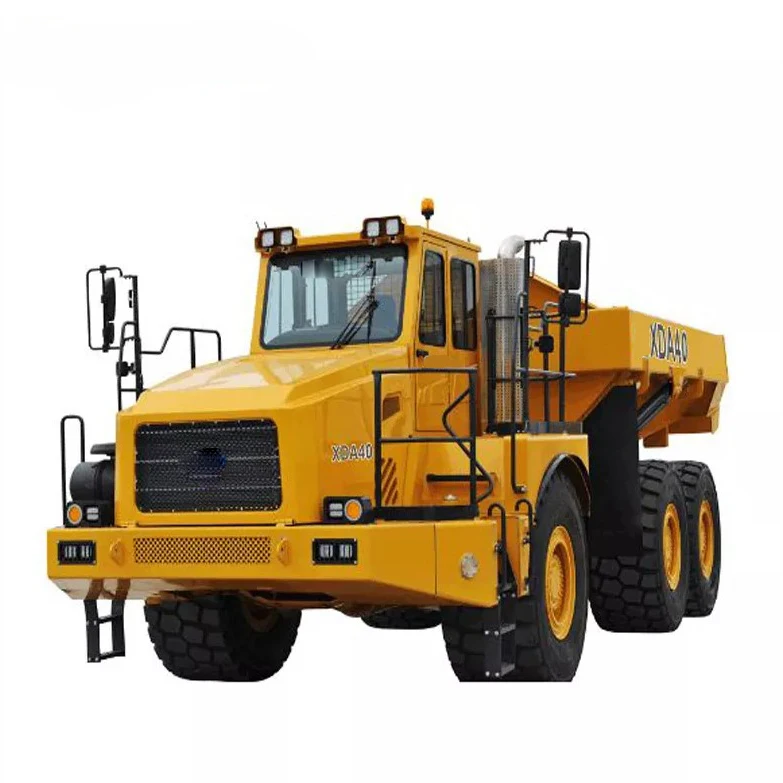

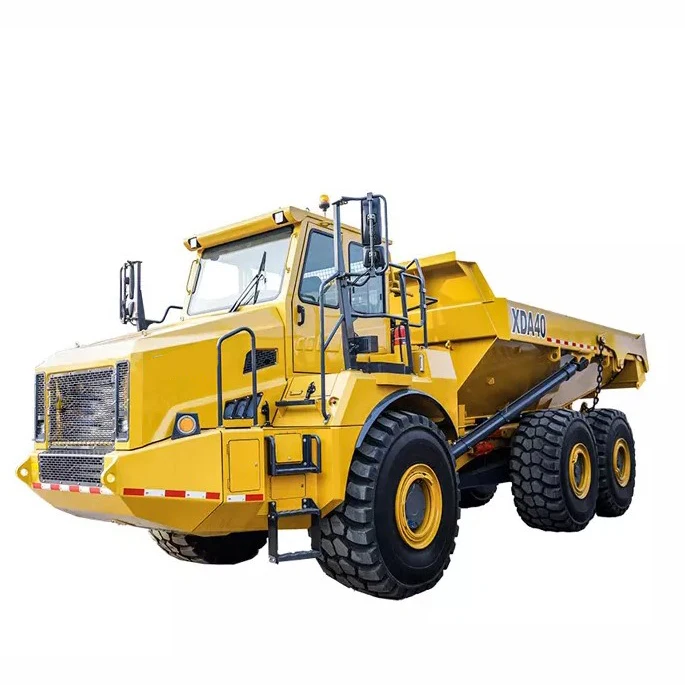

Pictures
