Из водонепроницаемого материала с изображением машинок и автобусов морской 6 переменного тока выключатель светодиодный индикатор 32V DC блок предохранителей держатель
- Категория: Fuse Components >>>
- Поставщик: Dongguan,Onegol,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 10.20 $* | 11.24 $* |
| Aug-18-2025 | 9.48 $* | 9.49 $* |
| Jul-18-2025 | 8.14 $* | 8.77 $* |
| Jun-18-2025 | 9.79 $* | 9.1 $* |
| May-18-2025 | 8.41 $* | 8.39 $* |
| Apr-18-2025 | 9.82 $* | 9.69 $* |
| Mar-18-2025 | 9.4 $* | 9.6 $* |
| Feb-18-2025 | 9.70 $* | 9.14 $* |
| Jan-18-2025 | 9.44 $* | 9.22 $* |
Характеристики
Product Description

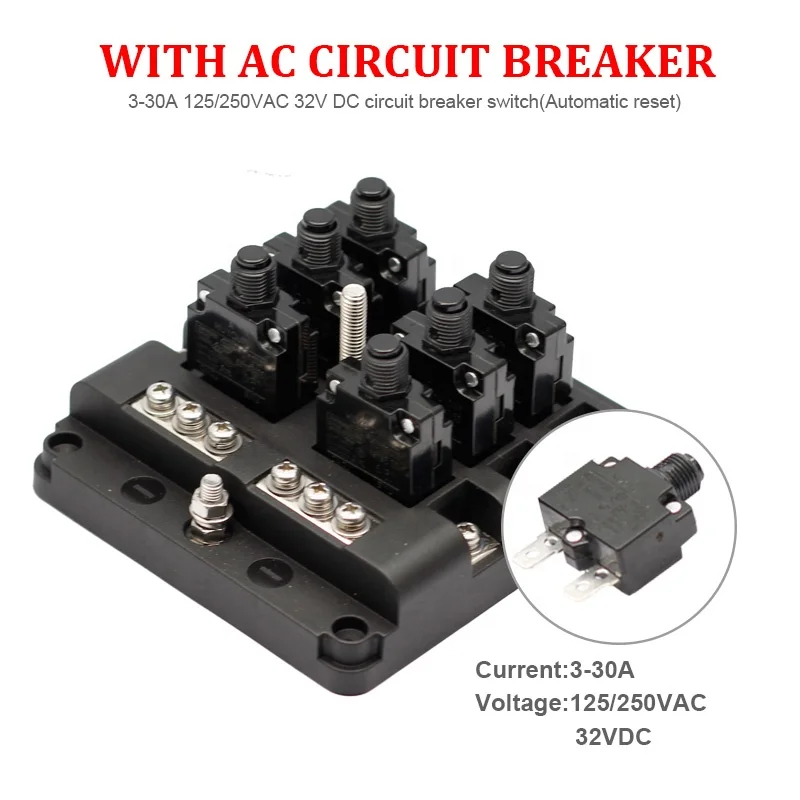

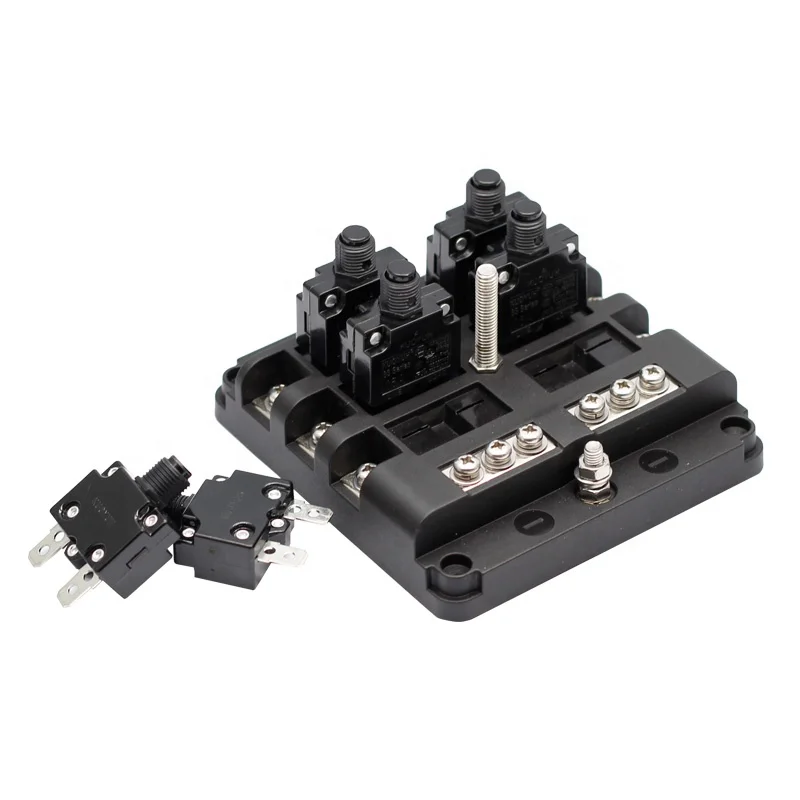

| PRODUCT NAME | 6 way fuse box with circuit breaker |
| Rating current | 3-30A |
| Rating voltage | 125/250VAC |
| Material | plastic |
| Input voltage | 12-32VDC |
| Mounting type | #8(M4)Screw |
| Negative bus | #10-32 stud |
| positive bus | #10-32 stud |

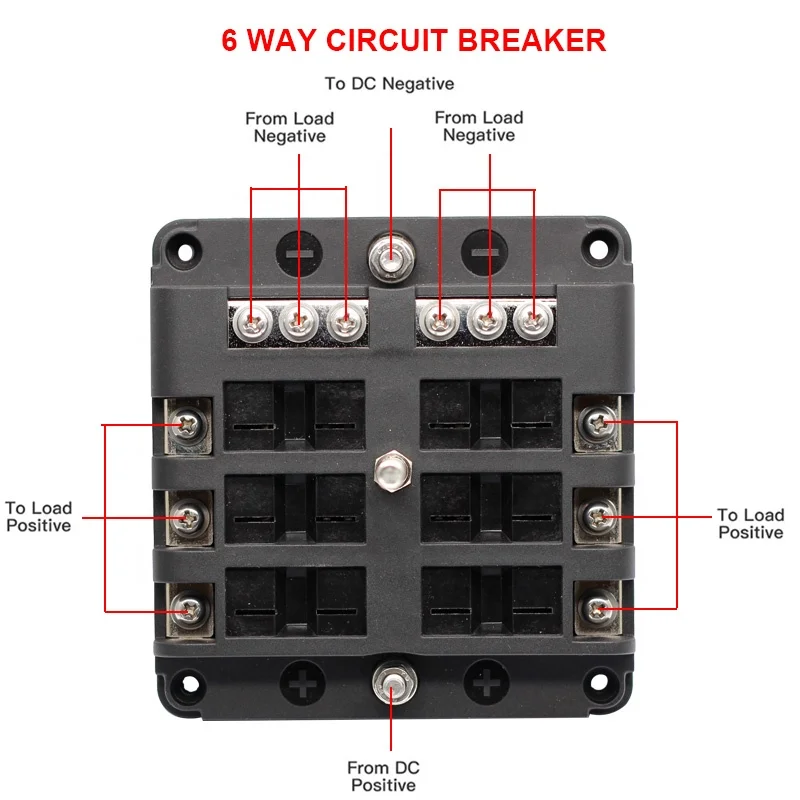

Fuse Block ST Blade 6 Circuit with Ground and Cover, can be used for 6 circuits
Max Amps: 100A per block, 30A per circuit, Max Volts: 32V DC, Mounting :#8 (M4) Screw, Negative bus: #10-32 stud, Positive bus: #10-32 stud, Recommended Stud torque: 24 in-lb, Screw Terminal Torque: 18in-lb, Screw terminal type: #8-32 screws with captive star lock washer
Positive distribution bus with #10-32 stud
Clear insulating cover with label recesses and storage for two fuses, satisfies ABYC/USCG insulation requirements and has a push button latch that is easy to open

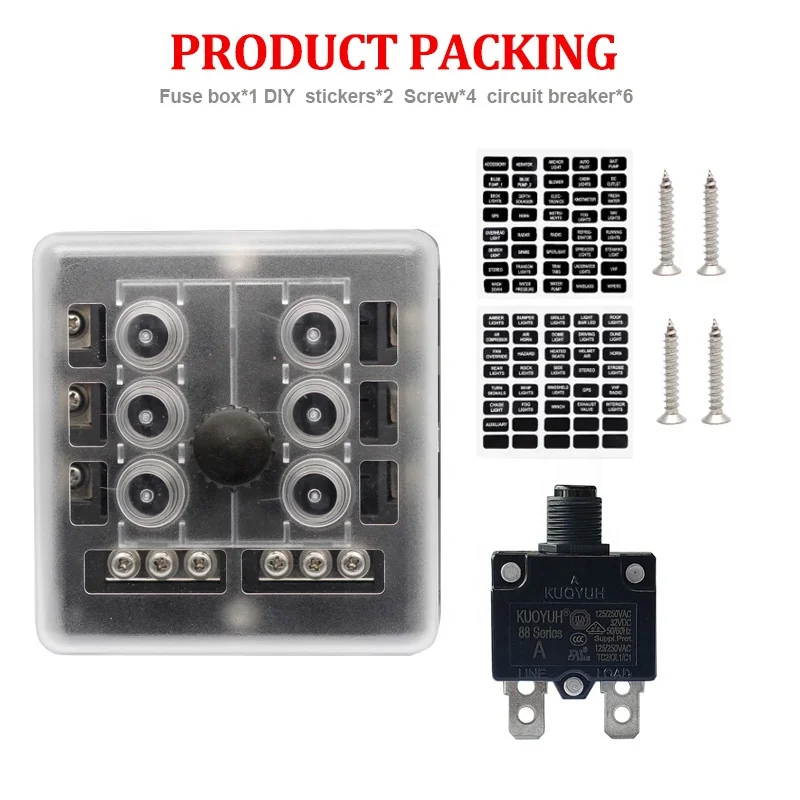

Accepts ring or spade type terminals and ATO/ATC fast acting blade fuses - fuses sold separately. Includes 20 write on circuit labels
Max Amps: 100A per block, 30A per circuit, Max Volts: 32V DC, Mounting :#8 (M4) Screw, Negative bus: #10-32 stud, Positive bus: #10-32 stud, Recommended Stud torque: 24 in-lb, Screw Terminal Torque: 18in-lb, Screw terminal type: #8-32 screws with captive star lock washer
Positive distribution bus with #10-32 stud
Clear insulating cover with label recesses and storage for two fuses, satisfies ABYC/USCG insulation requirements and has a push button latch that is easy to open
Accepts ring or spade type terminals and ATO/ATC fast acting blade fuses - fuses sold separately. Includes 20 write on circuit labels
