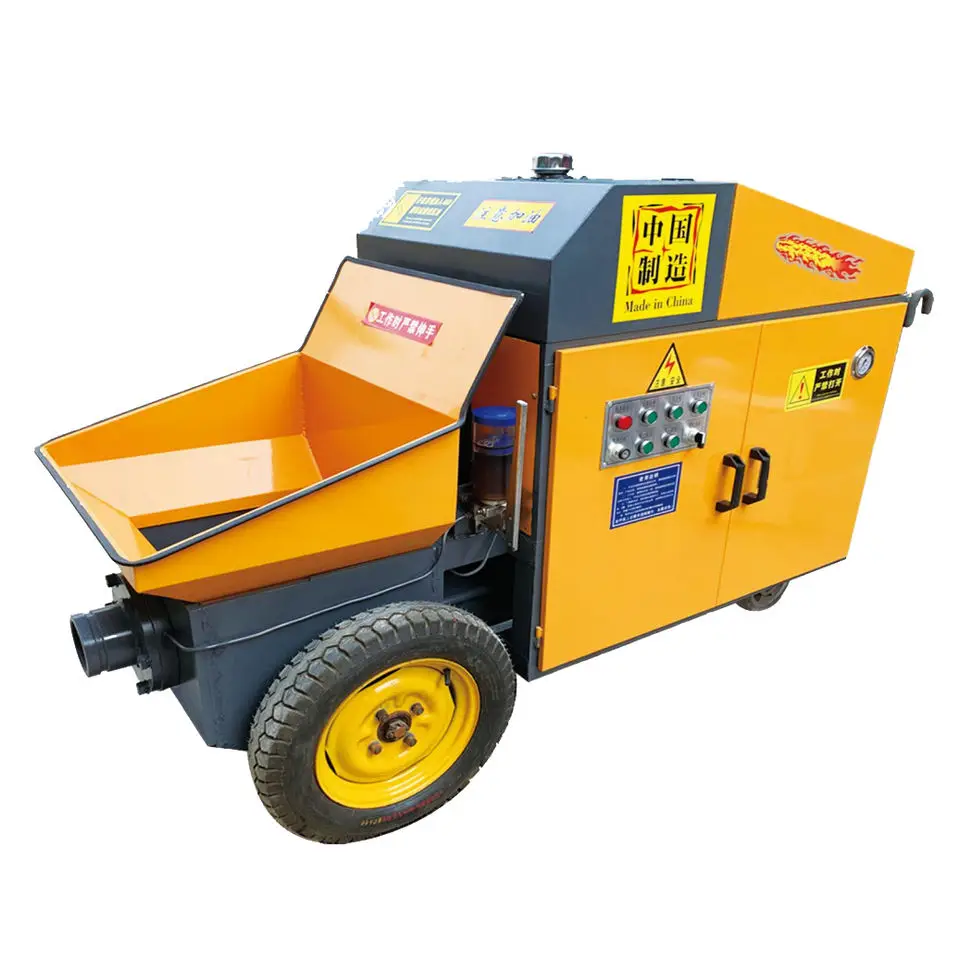

Миниатюрная вторичная конструкция колонка дизельный

Миниатюрная вторичная конструкция колонка дизельный

Категория: Concrete Pumps >>>
Поставщик: Shandong,Wonway,Machinery,Co.,Ltd.

Цена:635,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Aug-16-2025	806.21 $*	822.59 $*
Jul-16-2025	654.11 $*	667.95 $*
Jun-16-2025	794.5 $*	810.85 $*
May-16-2025	787.60 $*	803.54 $*
Apr-16-2025	629.94 $*	642.59 $*
Mar-16-2025	775.72 $*	791.13 $*
Feb-16-2025	768.99 $*	783.11 $*
Jan-16-2025	762.86 $*	777.29 $*

Характеристики

Professional Construction Machinery Supplier

If You Need Construction Machinery, Want To Know More Machinery

§ Please Click To Contact Me §

Products Description

Maximum theoretical concrete delivery volume	7-11m³/h
Maximum pumping concrete pressure	8MPa
Concrete conveying cylinder bore*stroke	Φ120*500mm
Outlet diameter	Φ125mm
rated power	15KW or (4100 diesel engine)
Rated speed	1480r/min
Pumping Xiyong Oil Pressure	18MPa
Hydraulic tank volume	70L
Maximum conveying vertical distance	30m
Maximum conveying horizontal distance	80m
Maximum particles allowed	30mm
Dimensions LW/H	Electric model: 23008001400mm Diesel powered model: 310010001550mm
total mass	Electric power model: 650KG Diesel power models: 850KG

Mobile Portable Cement Concrete Mixer can turn over 360 degree at both sides when it works. The drum revolves for mixing and reverses for discharging.
Power source: diesel and electrical engine.
Features:
1. Mobile Portable Cement Concrete Mixer adds a water pump for water circulation between water tank of the engine and the radiator, which keeps the engine water temperature to be stable.
2. To remove the air sucking point from the back to the front is able to avoid sucking the dust. It will be good to prolong the service life of the engine.
3. It has the advantages of compact structure, higher reliability, mixing evenly, big capacity, easy operation, easily movable between sites, etc. The reverse drum concrete mixing machine is widely used in building site, road and bridge project, and many other construction sites.
