Кран для туалета и кухни TB6120, латунный, 1/2 градусов
US $1.52-$1.64

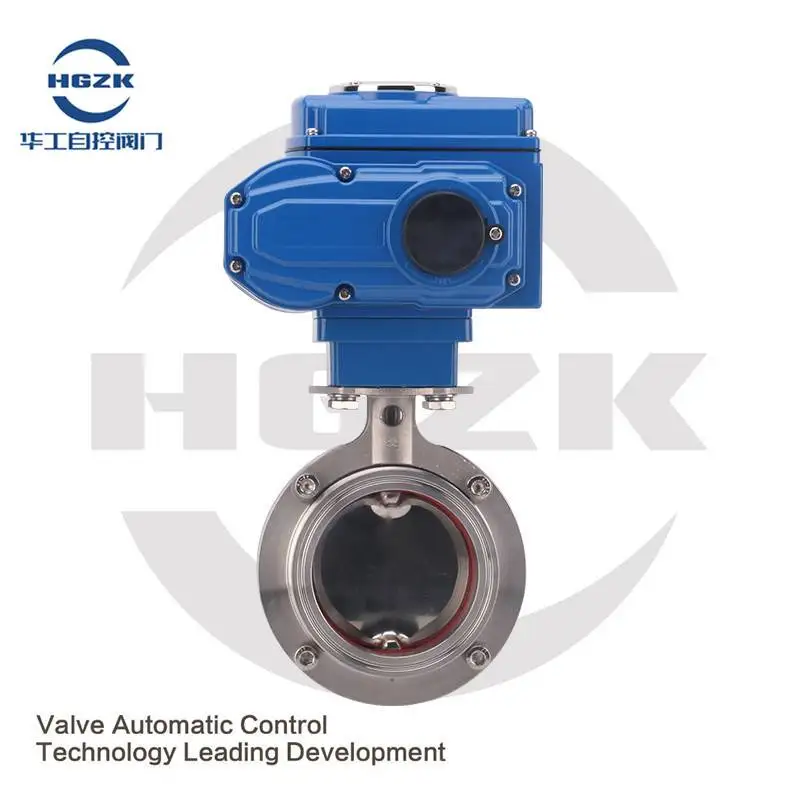

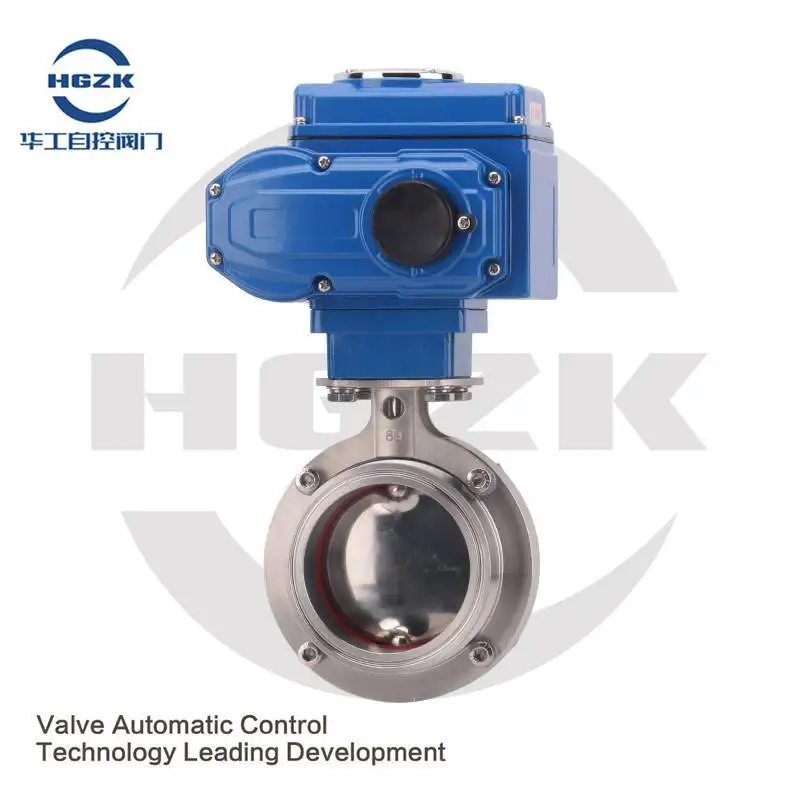

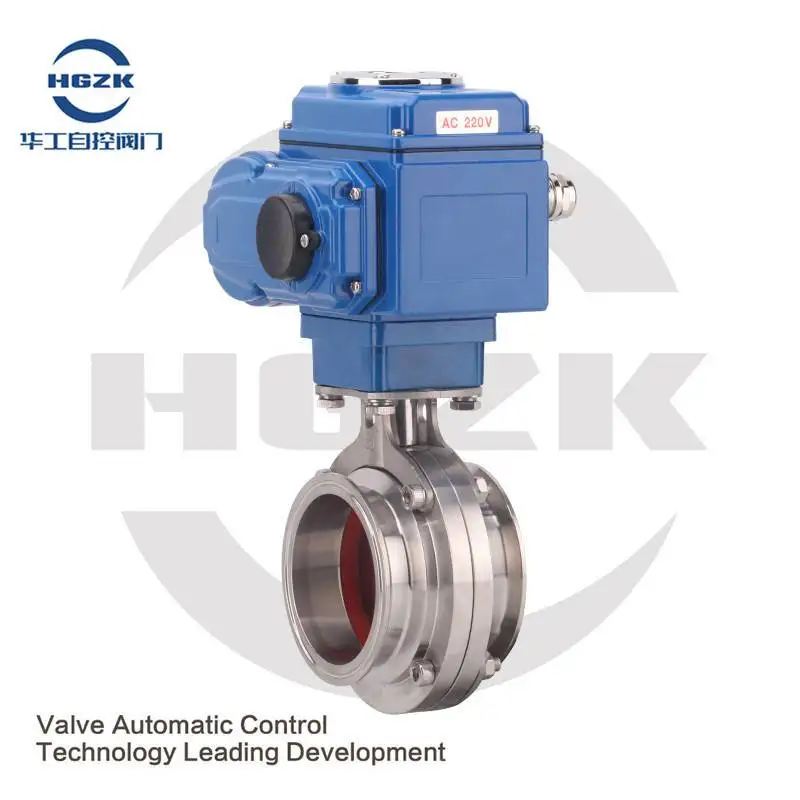

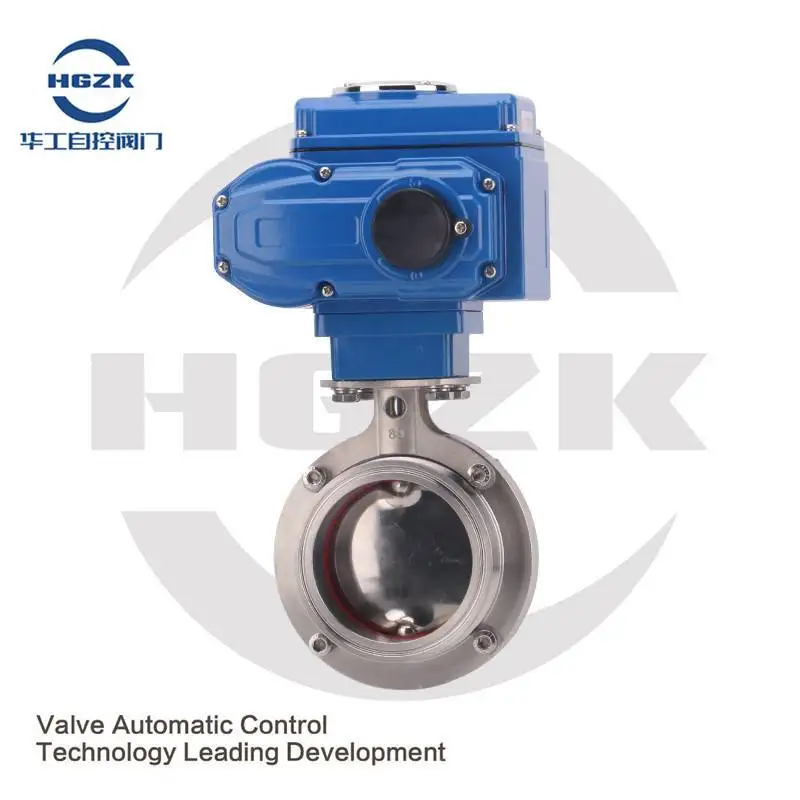

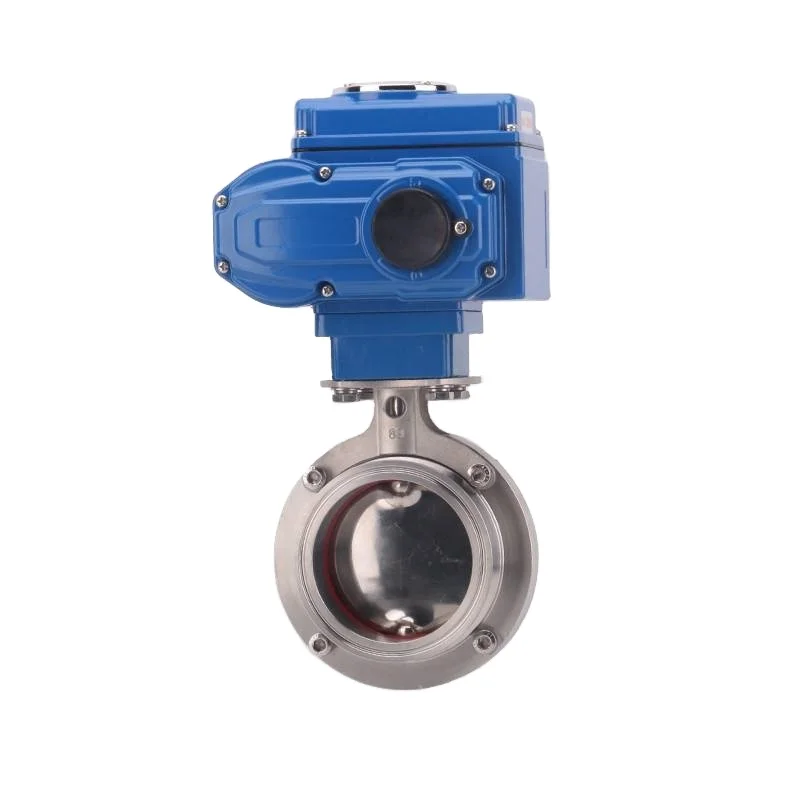

Электрический Зажимной патрон клапана-бабочки HGZK для быстрой установки (пищевого класса) медицинский взрывозащищенный запорный
- Категория: Valves >>>
- Поставщик: Jiangsu,Huagong,Automatic,Control,Valve,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.51 $* | 0.80 $* |
| Aug-17-2025 | 0.41 $* | 0.37 $* |
| Jul-17-2025 | 0.11 $* | 0.68 $* |
| Jun-17-2025 | 0.17 $* | 0.30 $* |
| May-17-2025 | 0.67 $* | 0.18 $* |
| Apr-17-2025 | 0.3 $* | 0.13 $* |
| Mar-17-2025 | 0.87 $* | 0.55 $* |
| Feb-17-2025 | 0.17 $* | 0.28 $* |
| Jan-17-2025 | 0.92 $* | 0.7 $* |
Характеристики
item | value |
Warranty | 1 years |
Type | Butterfly Valves |
Customized support | OEM, ODM |
Place of Origin | China |
Jiangsu | |
Brand Name | HGZK |
Model Number | φ19-φ356 |
Application | food |
Temperature of Media | High Temperature, Low Temperature, Medium Temperature |
Power | Electric |
Media | Water |
Port Size | φ19-φ356 |
Structure | BUTTERFLY |
Product Name | Electric quick installation butterfly valve |
Nominal pressure | 1.6mpa |
Connection mode | Quick loading |
Hand wrench
Switch indication
Electrical interface
Switch type | Only the switch can be controlled，Switch signal. | ||||
Regulating type | The opening can be controlled.Input & Output Signal: DC 4-20mA, DC 0-10V, DC 0-5V | ||||
Field Operation | The Field, Remote Control Switch Regulation and MODBUS, PROFIBUS Field Bus | ||||
Output Torque | 50 - 4000Nm | ||||
Angle of Rotation | 0-90° ± 3° | ||||
Action time | 15S/30S/60S | ||||
Optional Voltage | DC12V , DC24V , AC24V , AC110 , AC220V , AC380V | ||||
Shell Material | Die-Cast Aluminum Alloy | ||||
Protection Class | IP65 | ||||
Ambient Temp | Range from -20°C to +60°C | ||||
Appearance color: | White , Blue or Customize other colors | ||||
More wiring circuit ways contact merchants, support customized control circuits
Jiangsu Huagong automatic control valve Co., Ltd. is a professional manufacturer of pneumatic valves, pneumatic actuators,electric valves, electric actuators and complete sets of valves.
The company has strong technical force, sophisticated testing equipment, complete processing equipment and excellent product performance. The products of the company adopt modern CAD three-dimensional design system to optimize the design, which is not only beautiful in appearance, but also reliable in quality.The equipment adopts a large number of precision machining center machine tools to ensure the accuracy of parts and components and form a mass production capacity. It is widely used in all kinds of regulating valves, ball valves, butterfly valves, gate valves,
slurry valves, stop valves, plug valves and other valves. It is an ideal equipment to realize the remote centralized or separate control of industrial automation pipelines.
slurry valves, stop valves, plug valves and other valves. It is an ideal equipment to realize the remote centralized or separate control of industrial automation pipelines.
Based on the configuration scheme of providing users with system supporting selection and price performance ratio, the company takes high technology as the guide, gives full play to its technical advantages, carries out one-stop scientific management, and constantly introduces high-quality new products. Adhering to the business tenet of "quality for survival, science and technology for progress, variety for development, management for benefit, integrity for market", and implementing the principle of "quality and service are the life of enterprises", we will continue to apply new technologies, new processes, new materials, and actively develop new varieties to provide users with better products and better after-sales services. Strive hard to establish a modern enterprise!
1. Which voltage of the electric actuator?
DC24V ，AC220V
AC24V/AC110VAC380V can be customized.
AC24V/AC110VAC380V can be customized.
2. What type of electric actuator you provide?
ON/OFF type, Regulation type and Intelligent type.
3. What model is selected to control the flow
Regulating type can Control the valve opening through electric signal.
4. Is there any manual override of electric valve?
Yes, every electric valve includes the manual override.
5.Can the electric valve automatically reset (normally open / closed) when power is off?
The electric valve is maintained after power failure and has no automatic reset function. It can be customized with battery to realize power-off reset.
6. Are there any more intelligent products？
Yes, I can introduce it to you according to your needs，You can contact our sales staff.
7.Is the sample order acceptable?
Yes, of course.
8. Can you do OEM for me?
We accept all OEM orders,we can customize different colors, LOGO and so on according to customer's requirements.just contact us and give me your design.we will offer you a reasonable price and make samples for you ASAP.
9.Do you have more valve products？
We produce various valves, such as pneumatic valves, electric valves, control valves, ball valves, butterfly valves, gate valves,globe valves, check valves, etc.
10. Why Us?
Quality assurance: All the products will go through lots of tests carefully before dispatch
Competitive production capacity and fast shipping
Factory direct sale, most competitive price.
Competitive production capacity and fast shipping
Factory direct sale, most competitive price.
