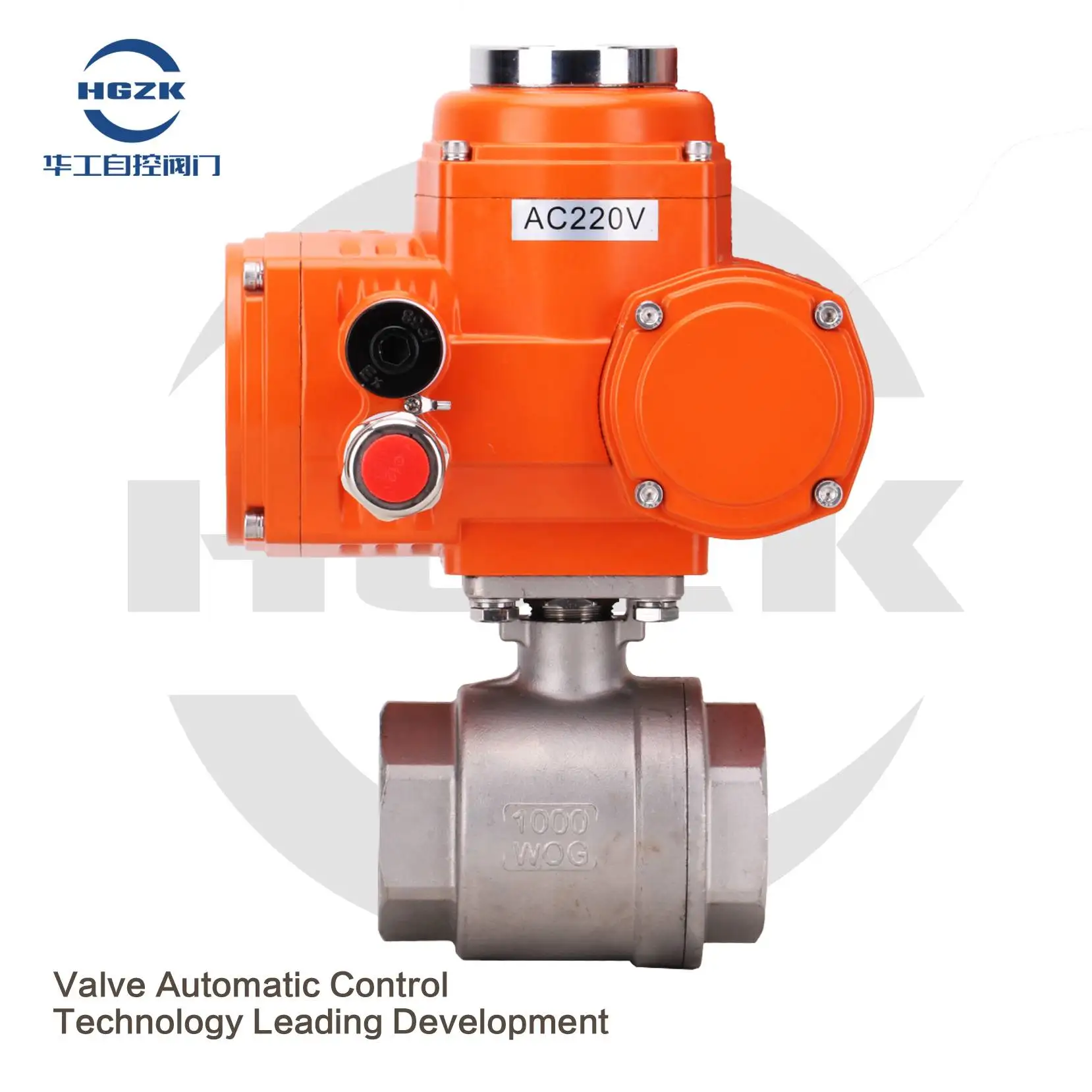

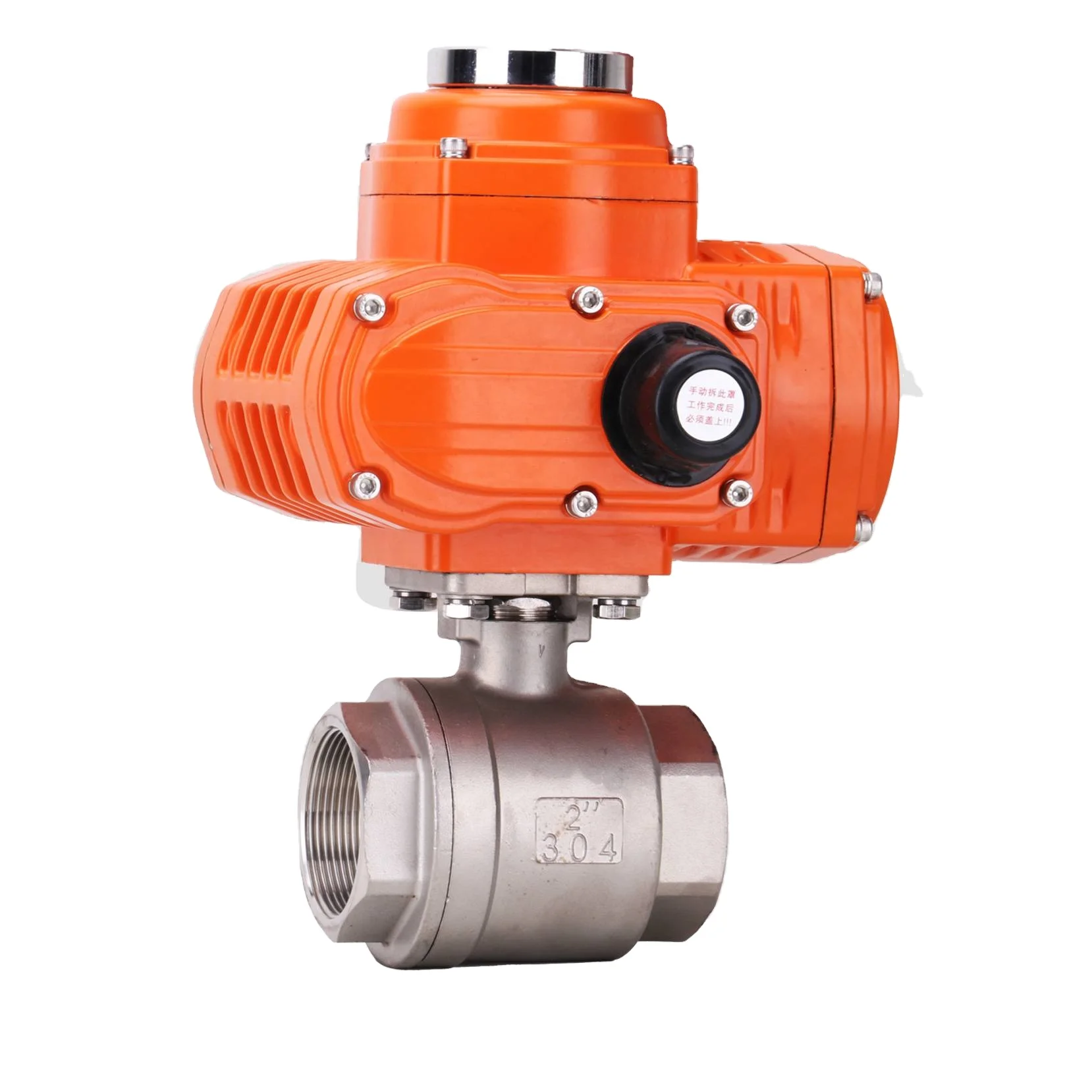

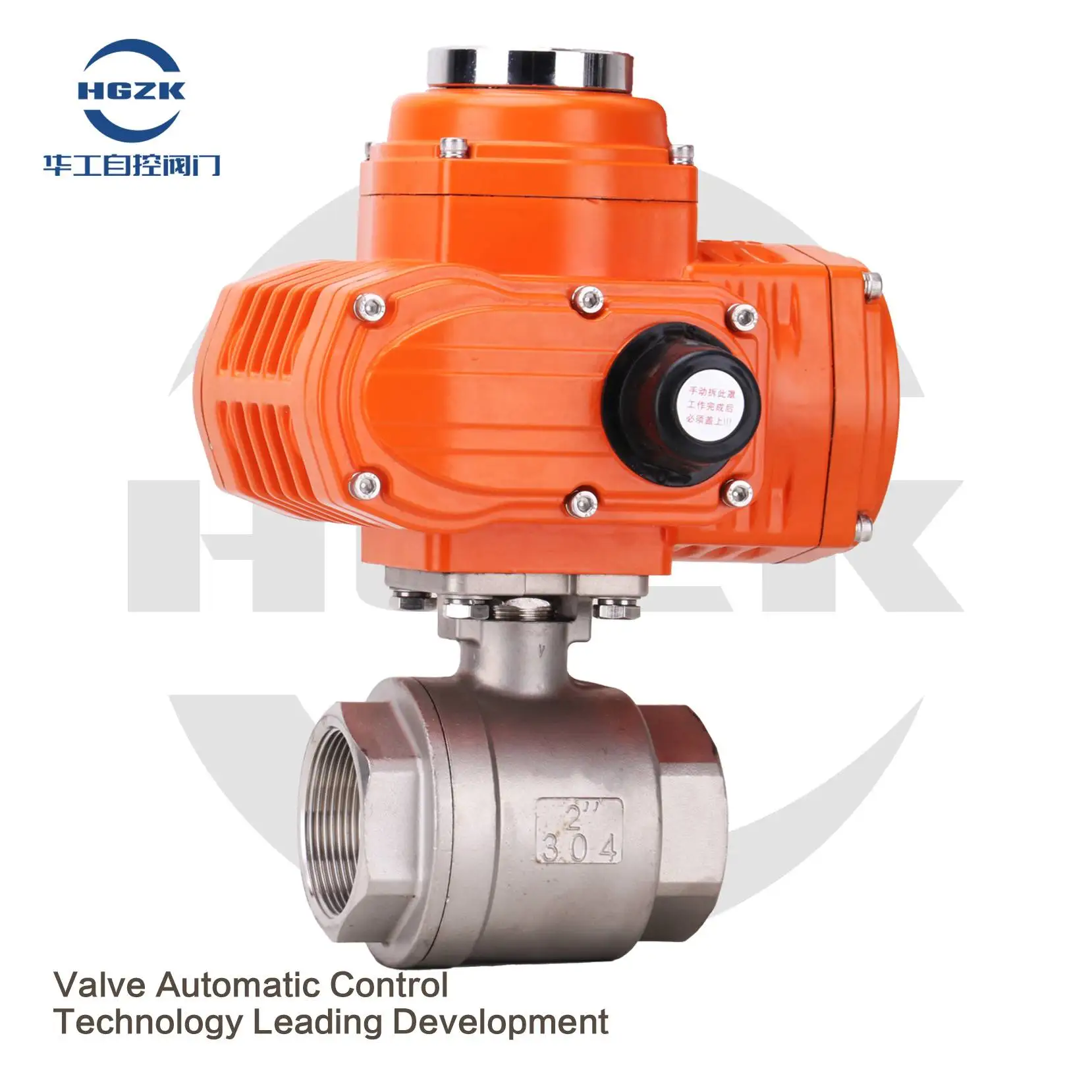

Электрический двухкомпонентный шаровой кран с внутренней резьбой HGZK взрывозащищенный Пневматический высокого давления


Поделиться:


Цена:4 942,98 ₽*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-19-2025 5881.46 $* 6175.34 $*
Aug-19-2025 5832.93 $* 6124.23 $*
Jul-19-2025 4893.42 $* 5138.31 $*
Jun-19-2025 5733.5 $* 6020.14 $*
May-19-2025 4991.58 $* 5241.10 $*
Apr-19-2025 5634.65 $* 5916.85 $*
Mar-19-2025 5584.11 $* 5863.49 $*
Feb-19-2025 5535.89 $* 5812.95 $*
Jan-19-2025 5486.39 $* 5760.42 $*

Характеристики









Type
BALL VALVES, Electric two-piece ball valve
Model Number
DN15-DN100
Power
Electric
Media
Water
Nominal pressure
1.6mpa
Connection mode
Thread






Switch type
Only the switch can be controlled,Switch signal.
Regulating type
The opening can be controlled.Input&Output Signal: DC4-20mA,DC0-10V,DC0-5V
Field Operation
The Field, Remote Control Switch Regulation and MODBUS, PROFIBUS Field Bus
Output Torque
50 - 4000Nm
Rotation Angle
0-90° ± 3°
Action time
15S/30S/60S
Optional Voltage
DC12V , DC24V , AC24V , AC110 , AC220V , AC380V
Shell Material
Die-Cast Aluminum Alloy
Ambient Temp
Range from -20°C to +60°C
Color:
White , Blue or Customize other colors

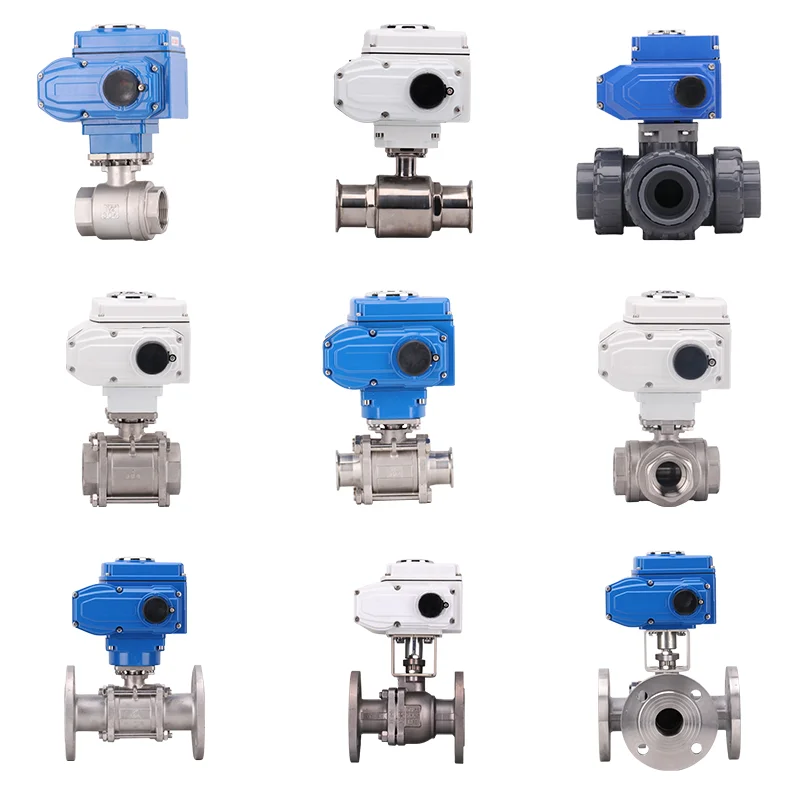

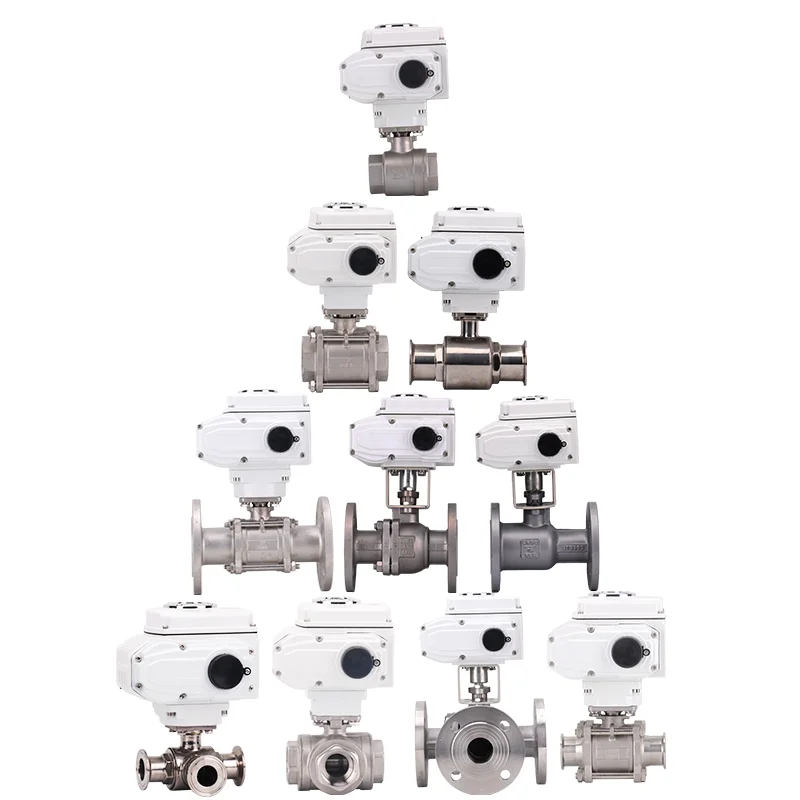

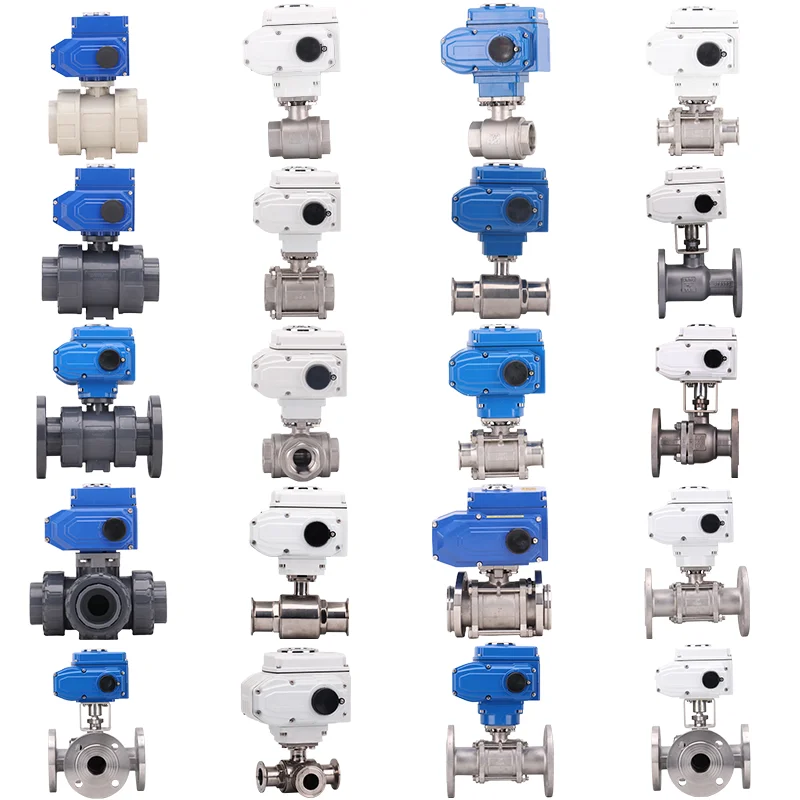

Our electric ball valve series include different kinds of electric actuators and valves,some of the bestsellers have been selected to be displayed below.


Click on the product below you are interested in for more details






























1. Which voltage of the electric actuator?
DC24V ,AC220V
AC24V/AC110VAC380V can be customized.


2. What type of electric actuator you provide?
ON/OFF type, Regulation type and Intelligent type.


3. What model is selected to control the flow
Regulating type can Control the valve opening through electric signal.


4. Is there any manual override of electric valve?
Yes, every electric valve includes the manual override.


5.Can the electric valve automatically reset (normally open / closed) when power is off?
The electric valve is maintained after power failure and has no automatic reset function. It can be customized with battery to realize power-off reset.


6. Are there any more intelligent products?
Yes, I can introduce it to you according to your needs,You can contact our sales staff.


7.Is the sample order acceptable?
Yes, of course.


8. Can you do OEM for me?
We accept all OEM orders,we can customize different colors, LOGO and so on according to customer's requirements.just contact us and give me your design.we will offer you a reasonable price and make samples for you ASAP.


9.Do you have more valve products?
We produce various valves, such as pneumatic valves, electric valves, control valves, ball valves, butterfly valves, gate valves,globe valves, check valves, etc.


10. Why Us?
Quality assurance: All the products will go through lots of tests carefully before dispatch
Competitive production capacity and fast shipping
Factory direct sale, most competitive price.
