Вал 14 мм (E-восходящий против часовой стрелки) механический цифровой индикатор положения стрелки сменный элеса DD51 и SIKO
- Категория: Woodworking Machinery Parts >>>
- Поставщик: Hebei,Jiasi,Machinery,Accessories,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 5.61 $* | 5.91 $* |
| Aug-20-2025 | 5.45 $* | 5.70 $* |
| Jul-20-2025 | 4.2 $* | 4.34 $* |
| Jun-20-2025 | 5.47 $* | 5.7 $* |
| May-20-2025 | 4.94 $* | 4.3 $* |
| Apr-20-2025 | 5.45 $* | 5.41 $* |
| Mar-20-2025 | 5.62 $* | 5.76 $* |
| Feb-20-2025 | 4.96 $* | 4.74 $* |
| Jan-20-2025 | 4.44 $* | 4.72 $* |
Характеристики
Position indicator.
Model 04, 09,10 optional, widely used in woodworking machinery, packaging machinery, labeling machinery, plate
shearing machine, color printing machine, filling machine, etc., can choose different pitch according to the screw pitch, digital
direct display feed, easy to read, accurate reading, no noise, long life, etc..
shearing machine, color printing machine, filling machine, etc., can choose different pitch according to the screw pitch, digital
direct display feed, easy to read, accurate reading, no noise, long life, etc..
Product Description

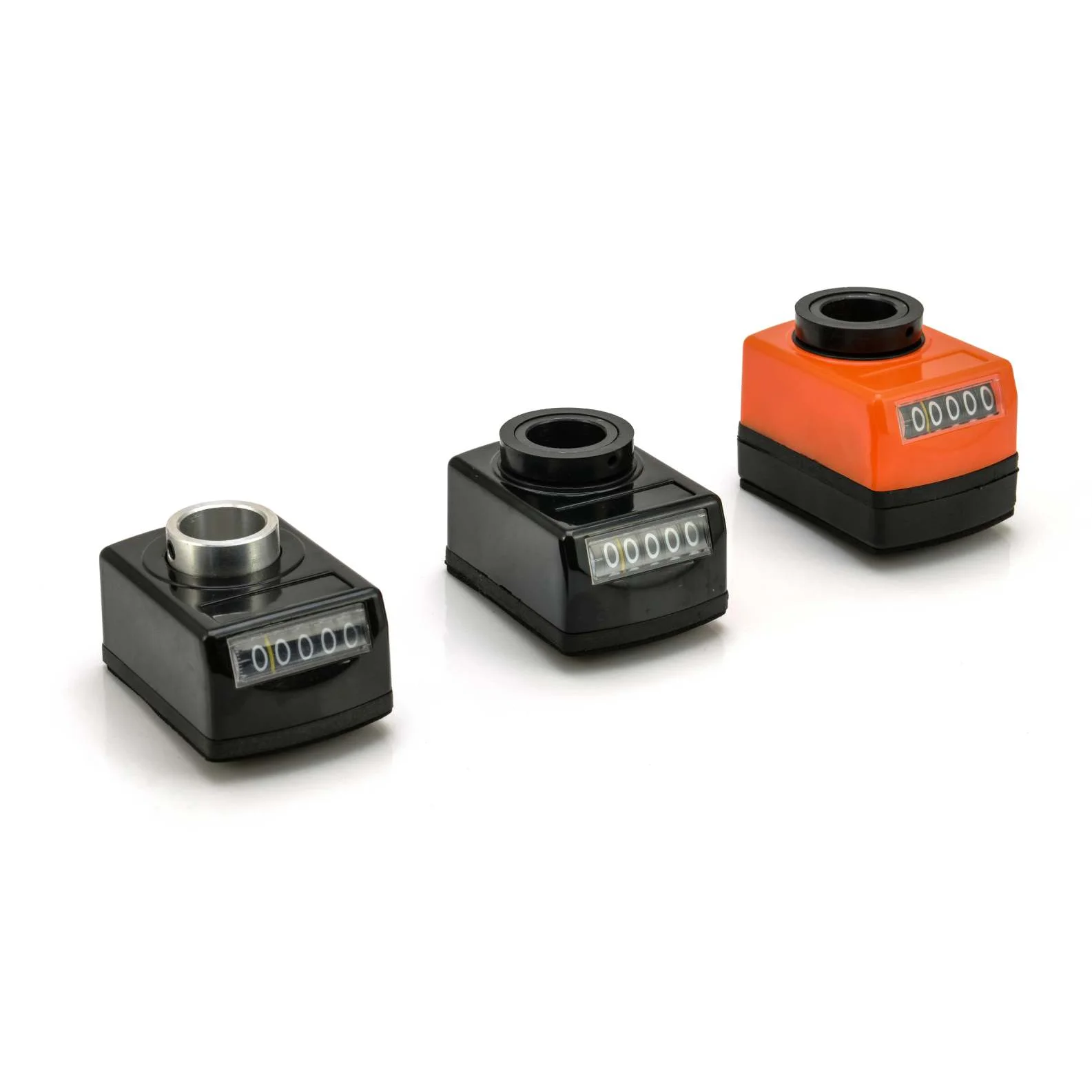

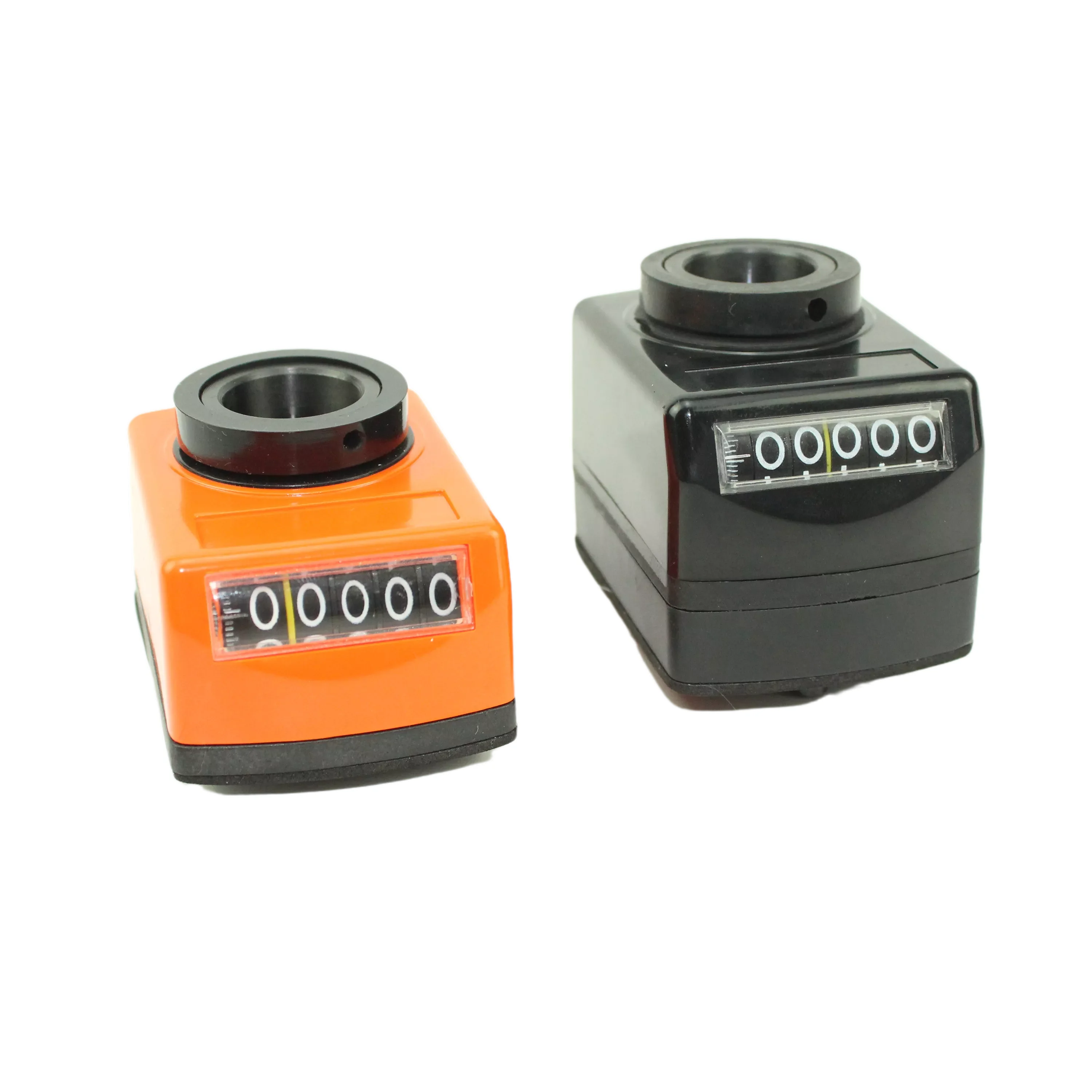

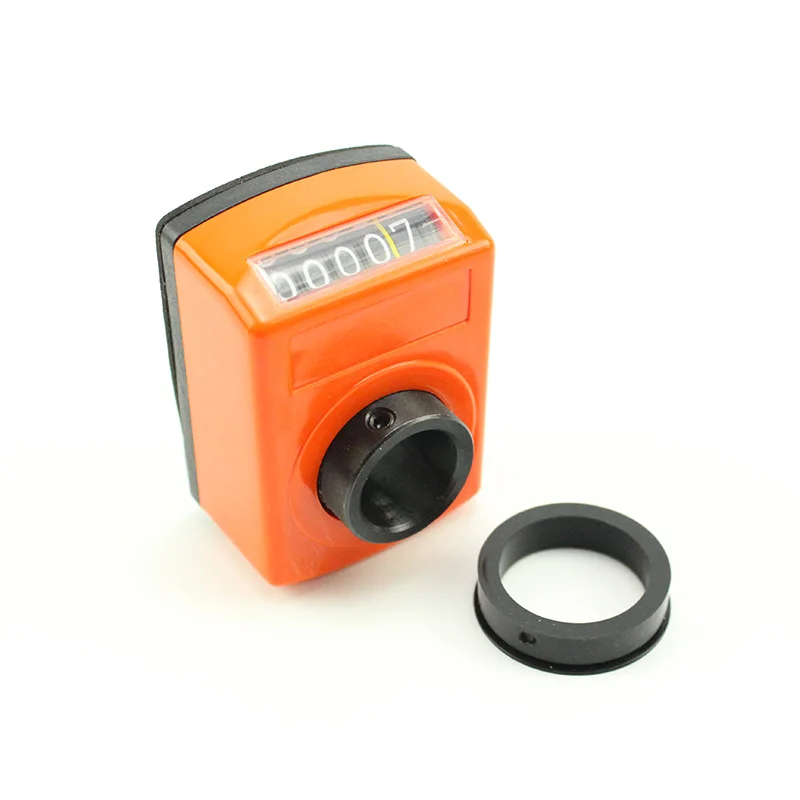

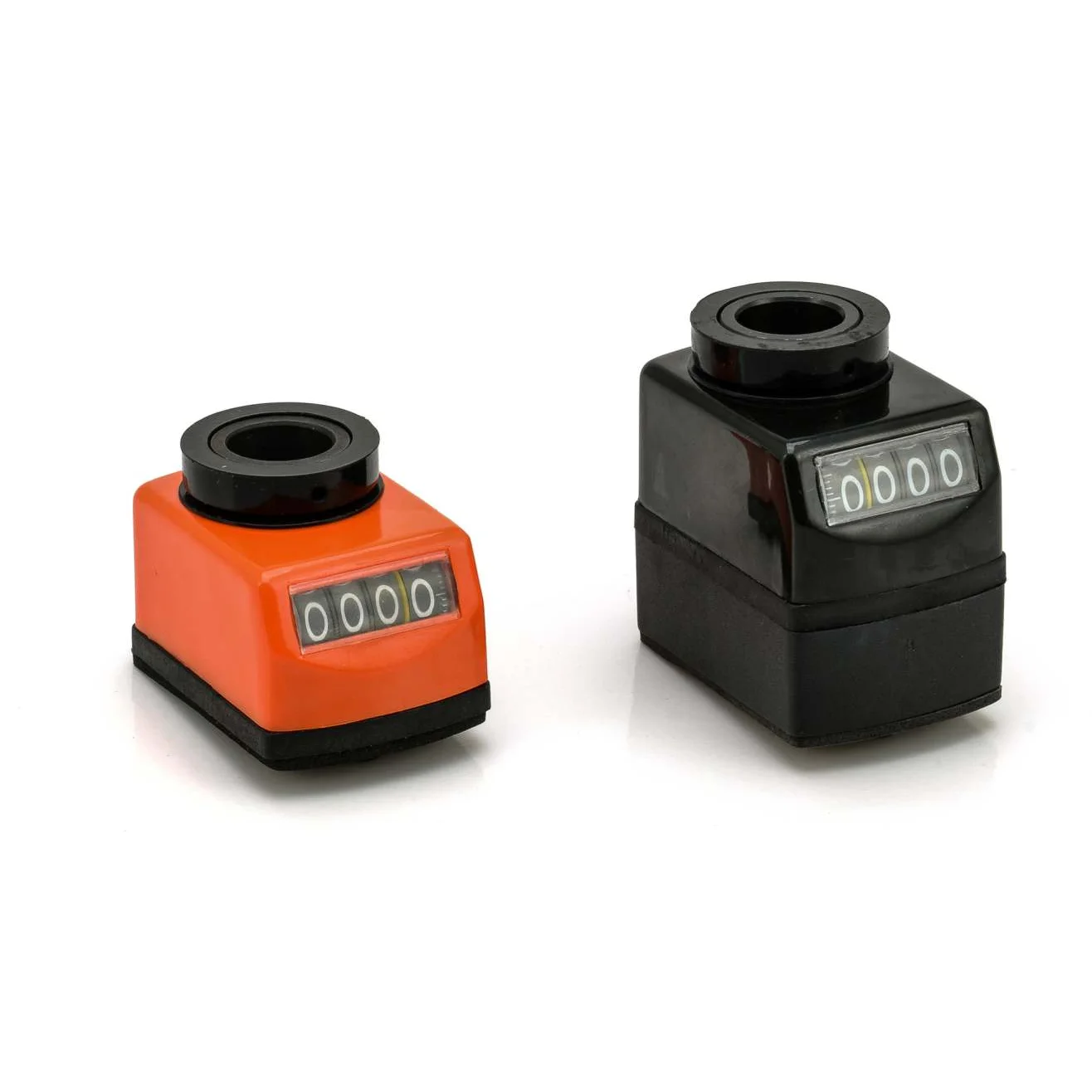

Position indicator axle hole has 04 series φ14mm, 09 series φ20mm, 10 series 25mm and 30mm inner diameter of axle hole.

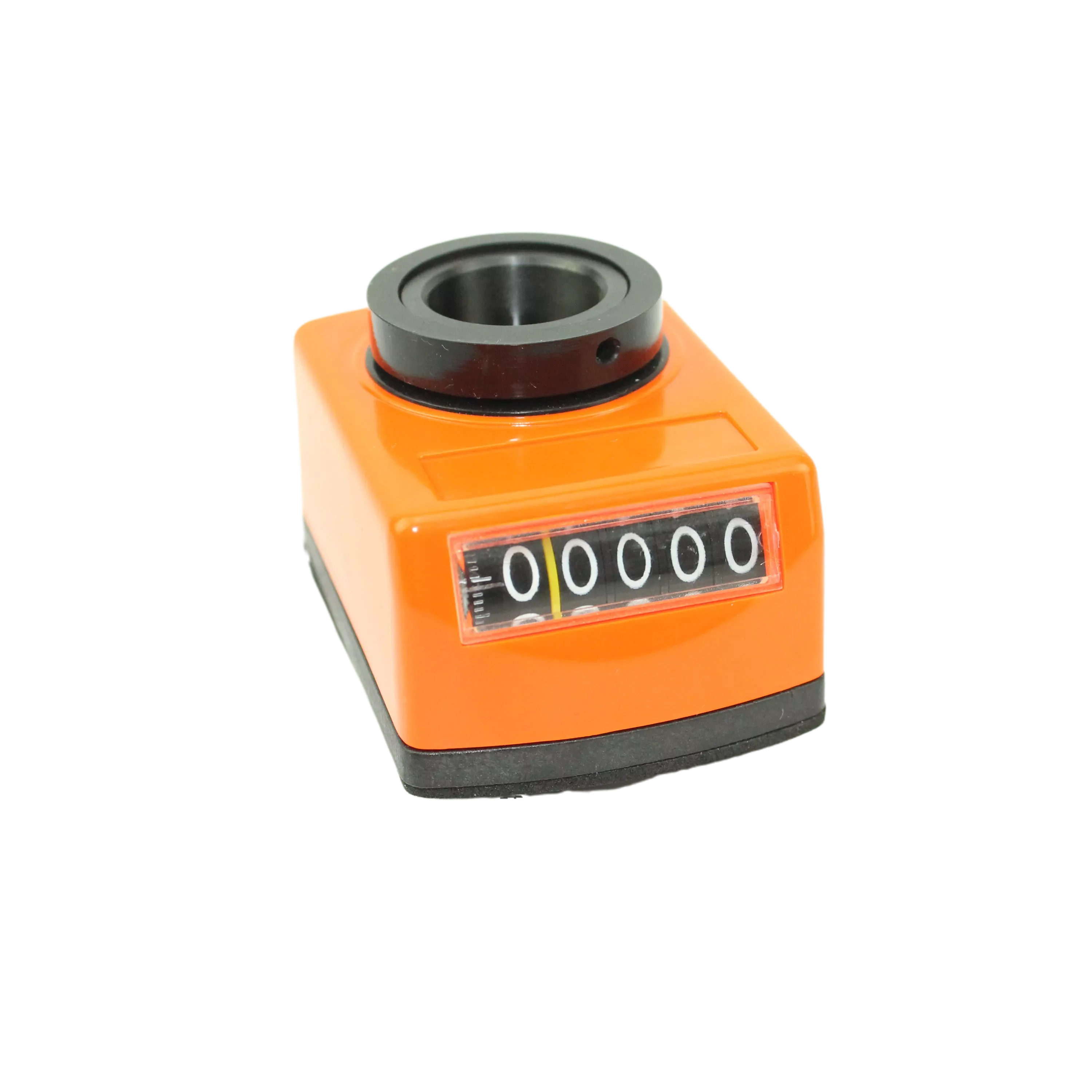

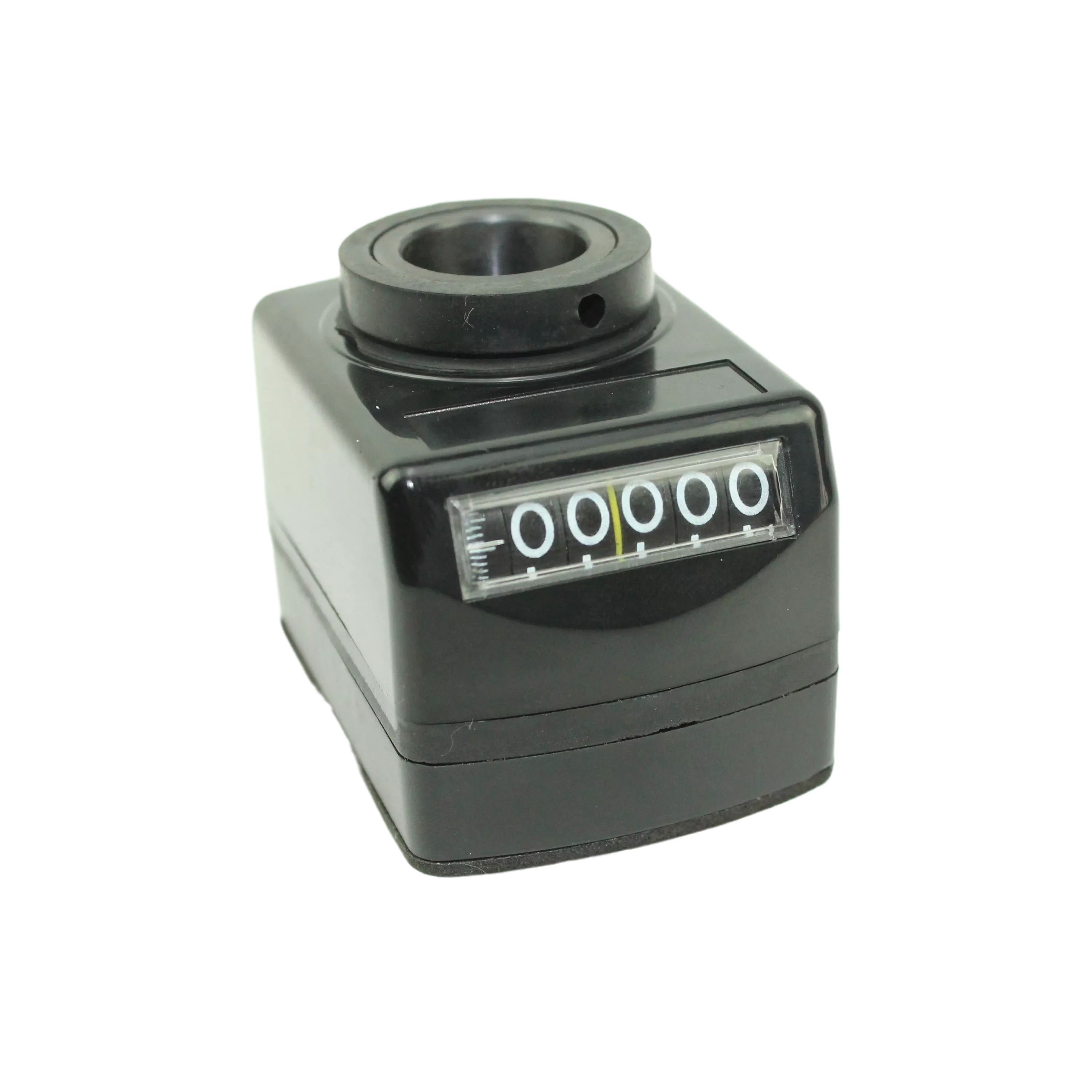

Position indicator color is available in black and orange, base is divided into standard and thickened.
04 series, also known as small position indicator, is a 4-digit position display, the conventional diameter of the inner shaft is 14mm, can do other non-standard diameter of the inner shaft, such as 10mm,8mm, etc.
Specification
A is standard type, B is thickened type
Position indicator spindle rotation direction has clockwise rotation (I) and counterclockwise rotation (E) turn reading increase two kinds.
The spindle pitch of the position indicator (the number displayed by the counter shaft hole after a turn). The commonly used spindle pitch are: 1.0, 1.25, 1.5, 1.75, 2.0, 3.0, 4.0, 5.0, 6.0, 8.0, 10.0. In summary, the accuracy of the pitch with zero behind the decimal point is higher than that with a number behind the decimal point. Secondly, the greater the axial pitch of the spindle, the smaller the maximum speed will be. The maximum speed for spindle axial pitch 1.0 is 1500 RPM and the maximum speed for 1.25 pitch is 1200 RPM... A smaller 150 RPM at 10.0 knots.
item | value |
Condition | New |
Warranty | 1 Year |
Online support | |
After Warranty Service | Online support |
Local Service Location | None |
Video outgoing-inspection | Provided |
Machinery Test Report | Not Available |
Marketing Type | Hot Product 2019 |
Showroom Location | None |
Brand Name | jiasi |
Weight (KG) | 0.2KG |
Key Selling Points | Competitive Price |
Applicable Industries | Machinery Repair Shops, Manufacturing Plant |
Product name | Position indicator |
Application | Woodworking machinery |
Material | plastic |
Type | 04/09/10 |
Usage | Increase clockwise or counterclockwise |
Advantage | High quality and low price |
Application Scenarios
Packing & Delivery
plastic bag, then in carton. Out can be with woven bag. Or as require.
Exhibition
FAQ
1. Q：Are you a trading company or manufacturer?
A: We are A professional manufacturing plant, so you will enjoy guaranteed product quality and competitive price.
2. Q: Do you provide samples? Is it free or extra?
A: Yes, we can provide free samples, but we don't pay for shipping.
3. Q: Do you keep your product in stock?
A: Yes, our standard products are in stock and can be delivered quickly.
4. Q: How long is your delivery time?
A: Generally it is 2-5 days if the goods are in stock. or it is 5-10 days if the goods are not in stock, it is according to quantity.
5. Q: Can you put our logo on your products?
A: Yes, we can provide OEM & ODM service.
6. Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
A: We are A professional manufacturing plant, so you will enjoy guaranteed product quality and competitive price.
2. Q: Do you provide samples? Is it free or extra?
A: Yes, we can provide free samples, but we don't pay for shipping.
3. Q: Do you keep your product in stock?
A: Yes, our standard products are in stock and can be delivered quickly.
4. Q: How long is your delivery time?
A: Generally it is 2-5 days if the goods are in stock. or it is 5-10 days if the goods are not in stock, it is according to quantity.
5. Q: Can you put our logo on your products?
A: Yes, we can provide OEM & ODM service.
6. Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
