Стальные стеллажи для хранения
US $50.00-$75.00
Автоматическая стойка для
- Категория: >>>
- Поставщик: Nanjing,Peter,Logistics,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 1.57 $* | 1.8 $* |
| Jul-18-2025 | 1.18 $* | 1.70 $* |
| Jun-18-2025 | 1.79 $* | 1.45 $* |
| May-18-2025 | 1.96 $* | 1.75 $* |
| Apr-18-2025 | 1.96 $* | 1.17 $* |
| Mar-18-2025 | 1.1 $* | 1.9 $* |
| Feb-18-2025 | 1.82 $* | 1.45 $* |
| Jan-18-2025 | 1.70 $* | 1.77 $* |
Характеристики
Product Description

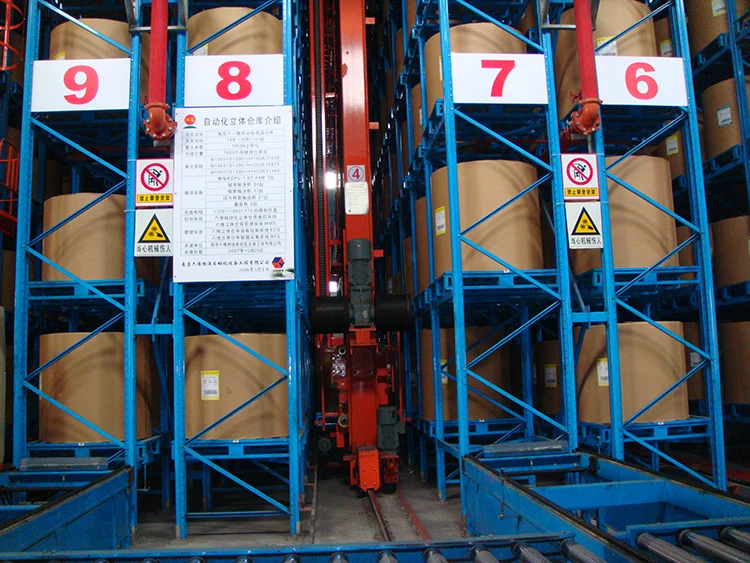

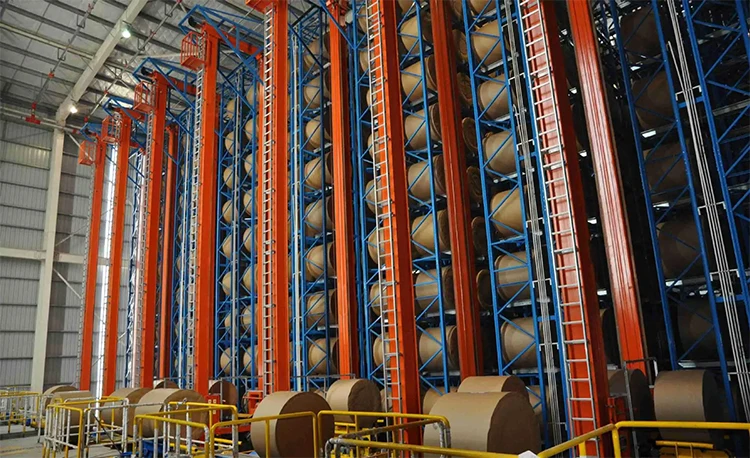

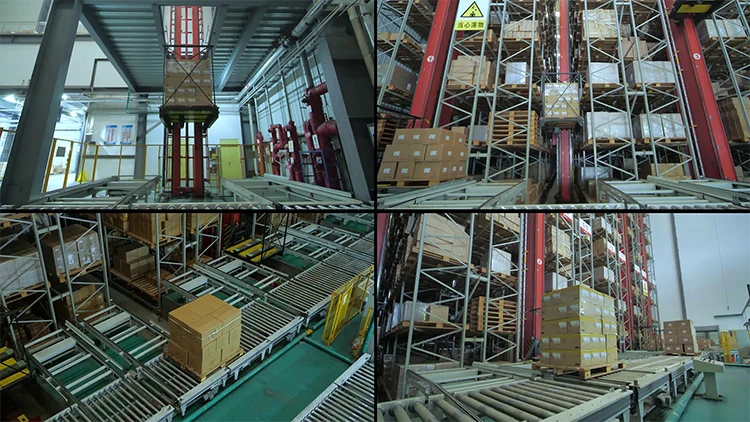

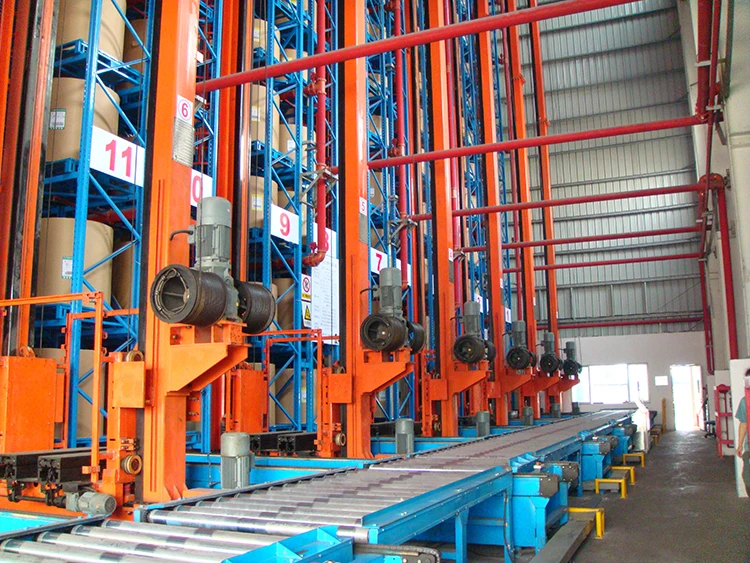

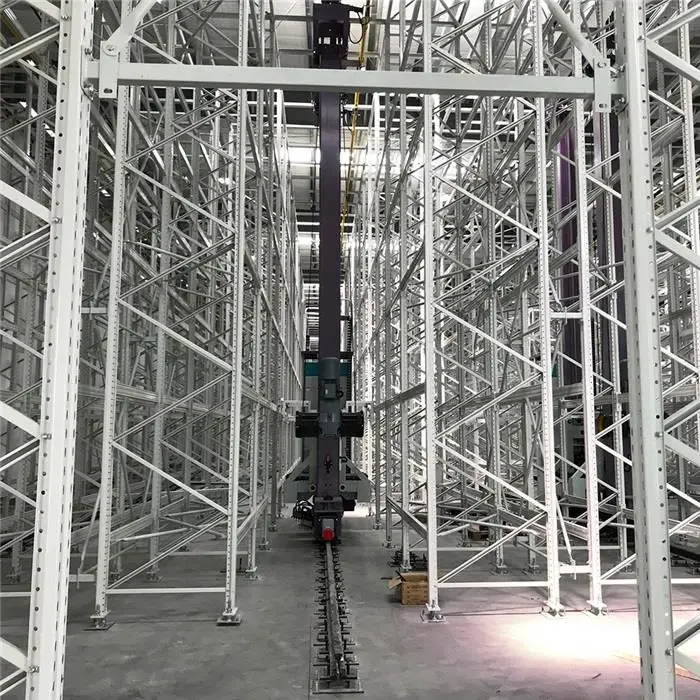

AS/RS System
Advantages:
Peter series double-column stacker crane is used to handle pallet materials, suitable for pallet storage systems under 1500kg
and 25m. The operating speed of the equipment can reach 240m/min and the acceleration is 0.6m/s2, which can meet the operating
environment requirements of continuous high throughput.
* Models: Single-deep and multi-deep models are available
* Pallet weights up to 1500 kg.
* Variable frequency drive motor (IE2), running smoothly.
* Fork units can be customized to handle a variety of loads.
* Models with a height of more than 30 meters can be customized according to requirements.
* The minimum height of the first floor: 700mm (single deep), 800mm (double deep); when the total height of the stacker crane is
within 8 meters, 650mm (single deep), 750mm (double deep).
Peter series double-column stacker crane is used to handle pallet materials, suitable for pallet storage systems under 1500kg
and 25m. The operating speed of the equipment can reach 240m/min and the acceleration is 0.6m/s2, which can meet the operating
environment requirements of continuous high throughput.
* Models: Single-deep and multi-deep models are available
* Pallet weights up to 1500 kg.
* Variable frequency drive motor (IE2), running smoothly.
* Fork units can be customized to handle a variety of loads.
* Models with a height of more than 30 meters can be customized according to requirements.
* The minimum height of the first floor: 700mm (single deep), 800mm (double deep); when the total height of the stacker crane is
within 8 meters, 650mm (single deep), 750mm (double deep).
Name | Code | Standard value (mm) (detailed data is determined according to the project situation) |
Cargo width | W | 400≤W≤2000 |
Cargo depth | D | 500≤D≤2000 |
Cargo height | H | 100≤H≤2000 |
Total height | GH | 5000＜GH≤24000 |
Top ground rail end length | F1, F2 | Confirm according to the specific plan |
Outer width of stacker | A1, A2 | Confirm according to the specific plan |
Stacker distance from the end | A3, A4 | Confirm according to the specific plan |
Buffer safety distance | A5 | A5≥300 (polyurethane), A5≥100 (hydraulic buffer) |
Buffer stroke | PM | PM≥150 (polyurethane), specific calculation (hydraulic buffer) |
Cargo platform safety distance | A6 | ≥165 |
Ground rail end length | B1, B2 | Confirm according to the specific plan |
Stacker wheel distance | M | M=W+2700(W≥1300), M=4000(W＜1300) |
Ground rail offset | S1 | Confirm according to the specific plan |
Top rail offset | S2 | Confirm according to the specific plan |
Pickup Itinerary | S3 | ≤3000 |
Bumper width | W1 | 450 |
Aisle width | W2 | D+200(D≥1300), 1500(D＜1300) |
First floor height | H1 | Single deep H1≥700, double deep H1≥800 |
Top level height | H2 | H2≥H+675(H≥1130), H2≥1800(H＜1130) |
Details Images
Company Introduction
FAQ
1、Q: Are you a factory or trading company?
A: We are manufacture. Our factory has been specializing in warehouse racks and different kinds of display stands.
2、Q: Where is your factory located?
A: Our factory is located in Nanjing.
A: Our factory is located in Nanjing.
3、Q: What is your delivery time?
A: In general, within 20 days,but it also depends on the order quantity and shelves design.
A: In general, within 20 days,but it also depends on the order quantity and shelves design.
4、Q: What is the trade term?
A: In generally, we will use EXW or FOB. Other terms can be negotiated.
A: In generally, we will use EXW or FOB. Other terms can be negotiated.
5、Q: Could you produce according to customers’ design?
A: Sure, we have very rich experience in customizing shelves.
A: Sure, we have very rich experience in customizing shelves.
6、Q: Do you produce shelf with different kinds of materials?
A: Yes,our products are mainly made of metal but we also produce accessory shelves or displays with wood,titanium alloy,acrylic,glass,etc.
7、Q: What are main rack and add on rack?
A: The difference between these two kinds of racks is upright. Main rack is the start rack with 2 uprights and add on rack is the continue rack with only 1 upright. For example, if there are 10 wall racks against the wall, the structure will be 1 main rack+ 9 add on racks.
A: The difference between these two kinds of racks is upright. Main rack is the start rack with 2 uprights and add on rack is the continue rack with only 1 upright. For example, if there are 10 wall racks against the wall, the structure will be 1 main rack+ 9 add on racks.
8、Q: What is the manner of packing?
A: Generally, shelves are flat packed by air bubble film/ film in standard export cartons. Other packing like wooden box are available to clients’ requirement.
A: Generally, shelves are flat packed by air bubble film/ film in standard export cartons. Other packing like wooden box are available to clients’ requirement.
