Машина для прокатки листового металла
US $10000
Машина для формовки рулонных кровельных плит от китайского производителя по низкой
- Категория: Tile Making Machinery >>>
- Поставщик: Hebei,Ironstar,Industry,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.66 $* | 0.76 $* |
| Aug-17-2025 | 0.13 $* | 0.17 $* |
| Jul-17-2025 | 0.0 $* | 0.48 $* |
| Jun-17-2025 | 0.65 $* | 0.66 $* |
| May-17-2025 | 0.70 $* | 0.80 $* |
| Apr-17-2025 | 0.5 $* | 0.42 $* |
| Mar-17-2025 | 0.7 $* | 0.78 $* |
| Feb-17-2025 | 0.74 $* | 0.18 $* |
| Jan-17-2025 | 0.49 $* | 0.40 $* |
Характеристики
Product Description
312 ridge cap roll forming machine | cap ridge roll forming machine | capping roll forming machine | roof ridge cap roll forming machine | hat cap roll forming machine | top hat cap machine
Ridge cap roll forming machine popular sell in many countries. Product thickness common between 0.3-0.8mm, material use PPGI material.Machine work speed reach 3-8 m/min.
Product Show

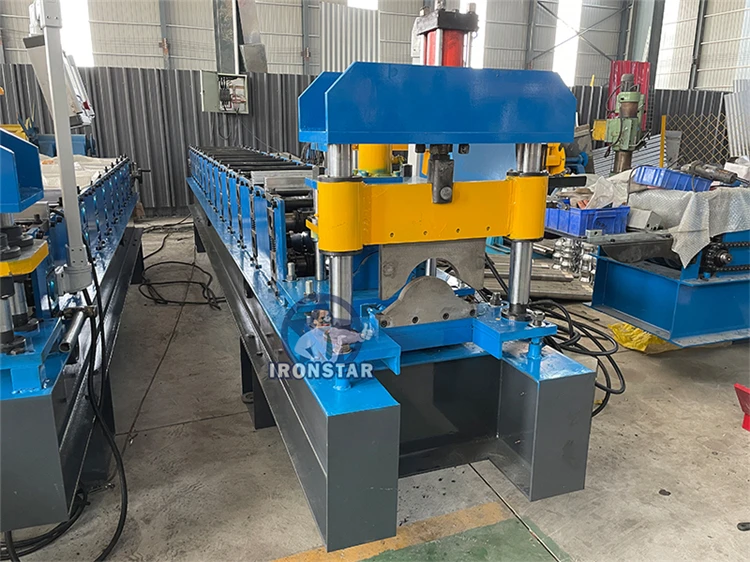

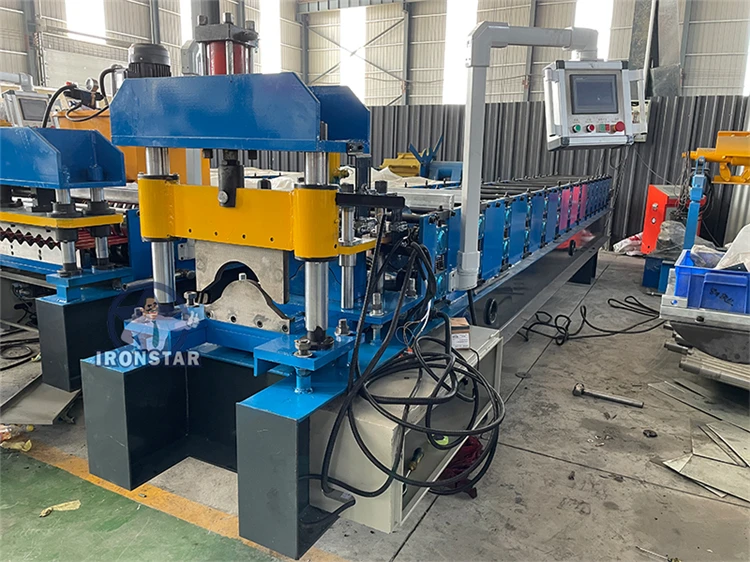

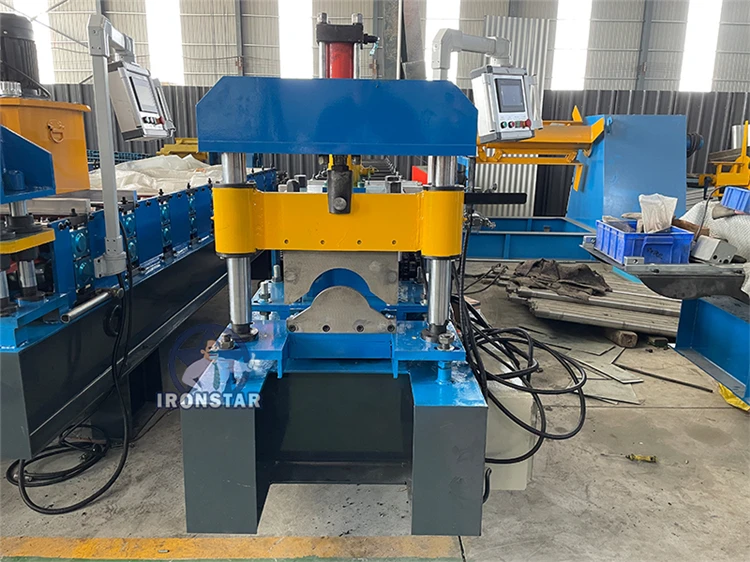

Ridge cap roll forming machine show
Machine Spections
Working flow
Decoiler-roll forming machine-PLC control box-hydraulic cutter-Run out table
| Part Details | Item Name | Specification |
| Material | Raw Material | PPGI material |
| Thickness | 0.3-0.6 mm | |
| Machine | Roller Station | 14 |
| Shaft Material | 70 mm | |
| Shaft Material | 45# steel with 0.05mm chrome | |
| Roller Material | 45# steel with 0.05mm chrome | |
| Machine Size | About 4.5*1*1.3m | |
| Machine Weight | About 2 ton | |
| Machine Color | As customer request | |
| Working Speed | 3-8 m/min | |
| Cutter | Hardness | 50-65 HRC |
| Cutting Tolerance | ± 1mm | |
| Material | CR12 | |
| Operate | Hydraulic cutting | |
| Power | Driving Way | Chain 1 inch |
| Main Power | 4 KW | |
| Pump Power | 5.5 KW | |
| Voltage | 380v 50hz 3P, or Customize as Customer' request | |
| Control System | PLC Brand | Delta made in Taiwan |
| Screen | Touchable Screen | |
| Language | Chinese, English or Add customer' need | |
| Decoiler | Operation | Manual |
| Weight Capacity | 3 ton | |
| Price | Free as gift | |
| Receiving Table | Operation | Manual |
| Length | 3m | |
| Price | Free as gift |
Machine Video
If you want to see machine working video, Please contact with Miaomiao with any way below
More for you choose
Trapezoidal roofing sheet roll forming machine
Corrugated roofing sheet roll forming machine
Glazed tile roofing sheet roll forming machine
Company Information
Hebei Ironstar Industry Co., ltd is one professional roll forming machine manufacturer, 26 years working experience and 400 worker provide service for you. Products mainly include: Trapezoidal steel roof/wall panel machine, Glazed tile roofing roll forming machine, C U channel, Angle bead, Omega and T bar machine, Shutter slat door, door frame roll forming machine, C&Z shape interchangeable machine, Cap ridge, water gutter roll forming machine, cutting, bending, slitting, curving machine, floor deck and other customized machine etc.
We machine sell
FAQ
1. Q: How to visit our company:
A: Fly to Beijing Airport: By fast train From Beijing South station to Cangzhou west station(1hour), then we can pick up you to factory(40min).
A:Fly to Shanghai Airport: By fast train From Shanghai Hongqiao station to Cangzhou west station(4.5 hours), then we can pick up you to factory(40min).
2. Q: What should I provide if I want to customized machine?
A: U need provide profile drawing, material, thickness, voltage and your special requirements.
3. Q: What is the Warranty?
A: Within 36 months, all technical staff are ready to serve you at any time.
4. Q: What can you do if the machine broken?
A: Our machine's warranty period is 24 months, if the broken parts can't repair, we will send new parts replace the broken parts free, but you need pay the express cost if after warranty period. we can negotiate to solve the problem, and we supply the technical support for whole life of equipment.
5. Q: If need technician to workshop to debug and teach, how to do?
A: We sent technician to your country to fix the machine. Buyer should bear cost including: visa, round trip ticket and suitable accommodation, also buyer should pay the salary 100 USD/day.
