Автоматическое изолирующее молекулярное сито для двойных стекол наполнитель распорной детали осушителя
- Категория: Glass Product Making Machinery >>>
- Поставщик: Jinan,Wondec,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 5712.96 $* | 5998.38 $* |
| Aug-17-2025 | 5664.48 $* | 5947.5 $* |
| Jul-17-2025 | 4752.65 $* | 4990.20 $* |
| Jun-17-2025 | 5568.52 $* | 5846.92 $* |
| May-17-2025 | 4848.61 $* | 5090.29 $* |
| Apr-17-2025 | 5472.23 $* | 5746.77 $* |
| Mar-17-2025 | 5424.73 $* | 5695.43 $* |
| Feb-17-2025 | 5376.25 $* | 5645.65 $* |
| Jan-17-2025 | 5328.33 $* | 5594.1 $* |
Характеристики
Our automatic desiccant filling machine can automatically fill desiccant material to the spacer frames just at required amount.
Use this machine to assemble a production insulated glass line.
Products Description

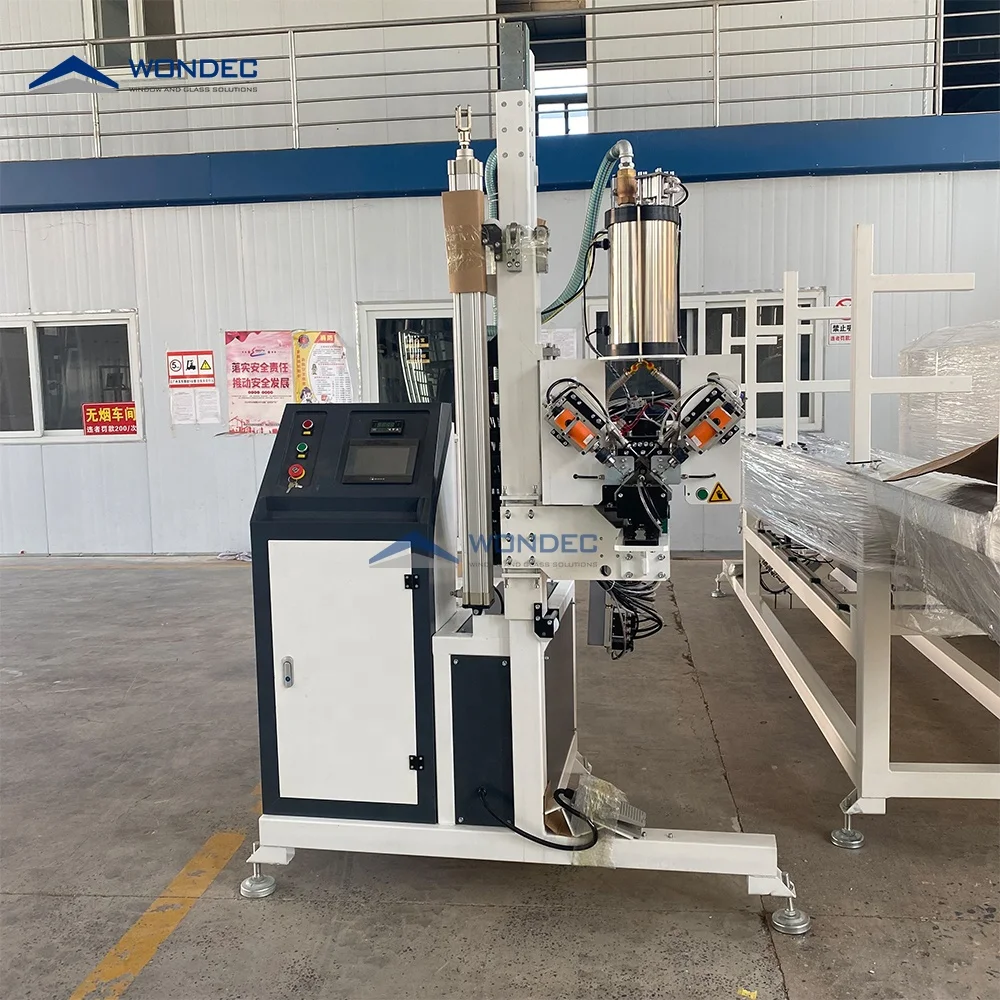

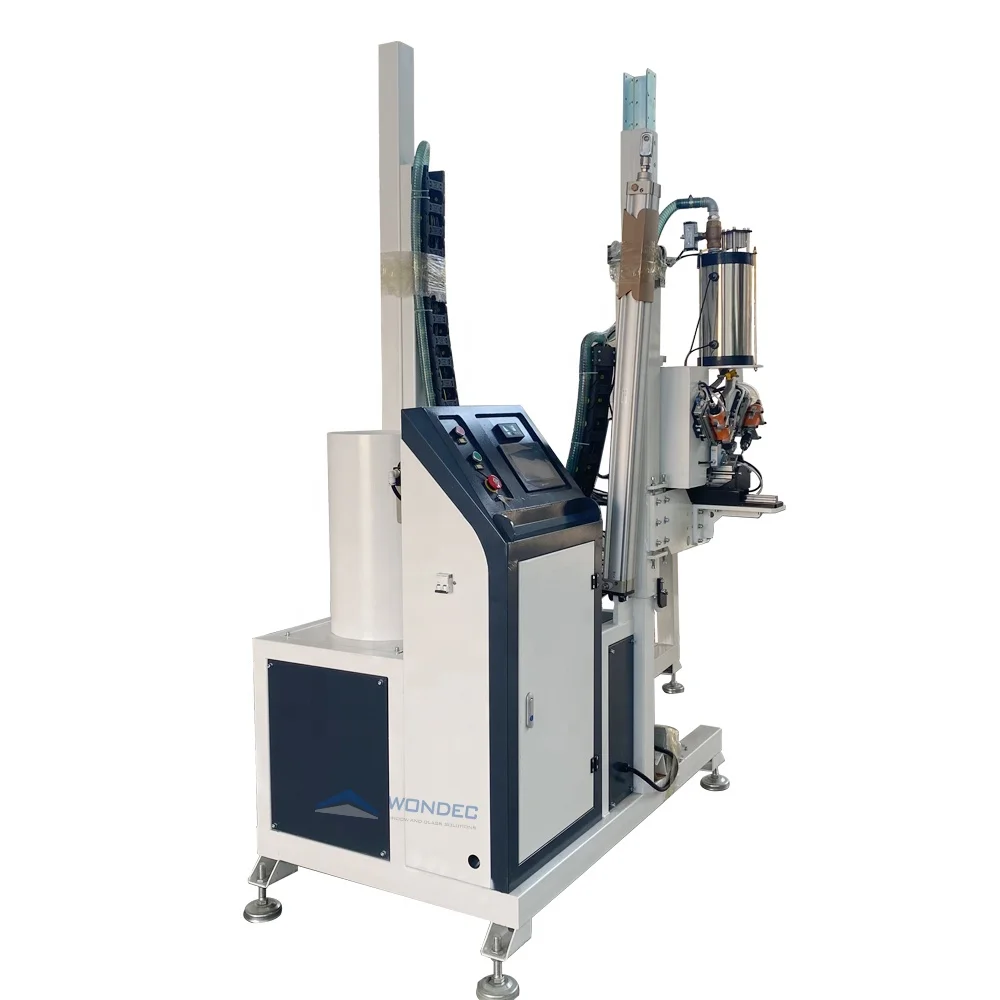

Automatic Desiccant Filling Machine FGJ-05
Features:
1)Can fill desiccant for both bendable spacer frame and spacer frame with corner connectors.
2)Can fill desiccant in closed condition, improved efficiency and IG Unit life.

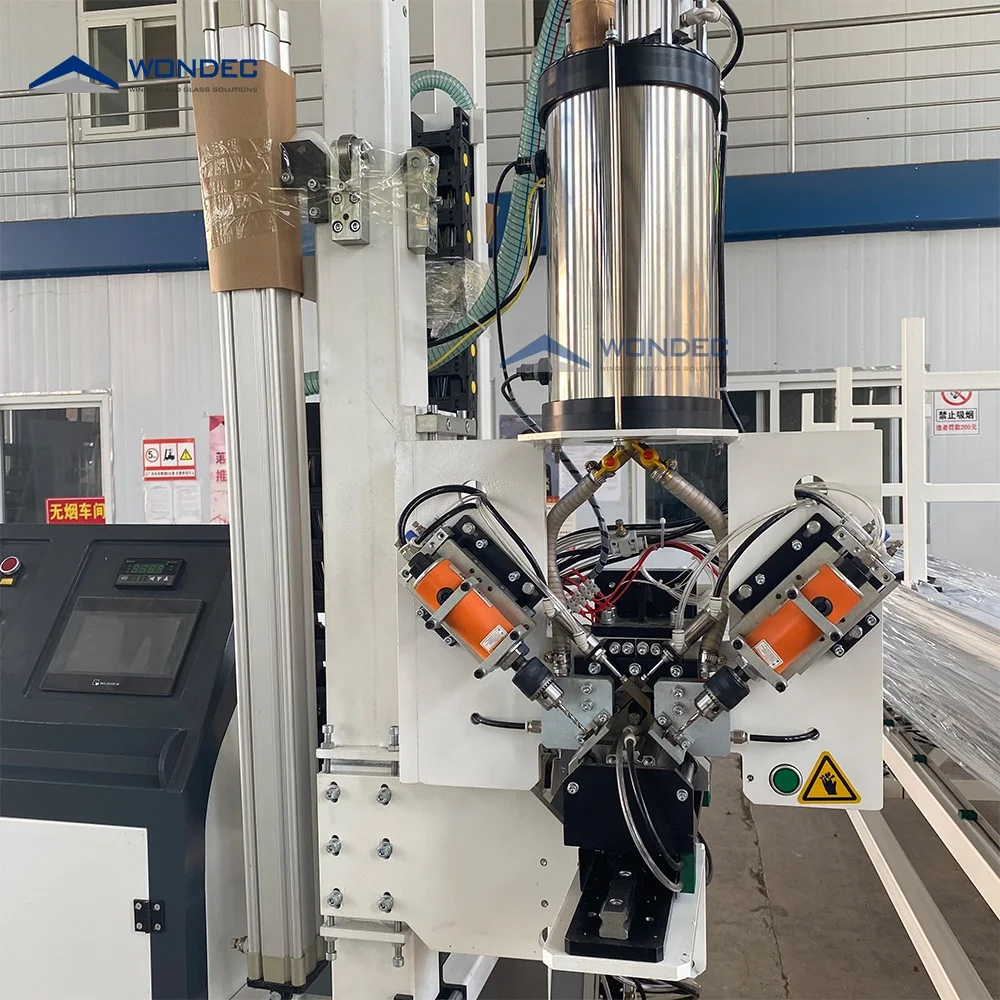

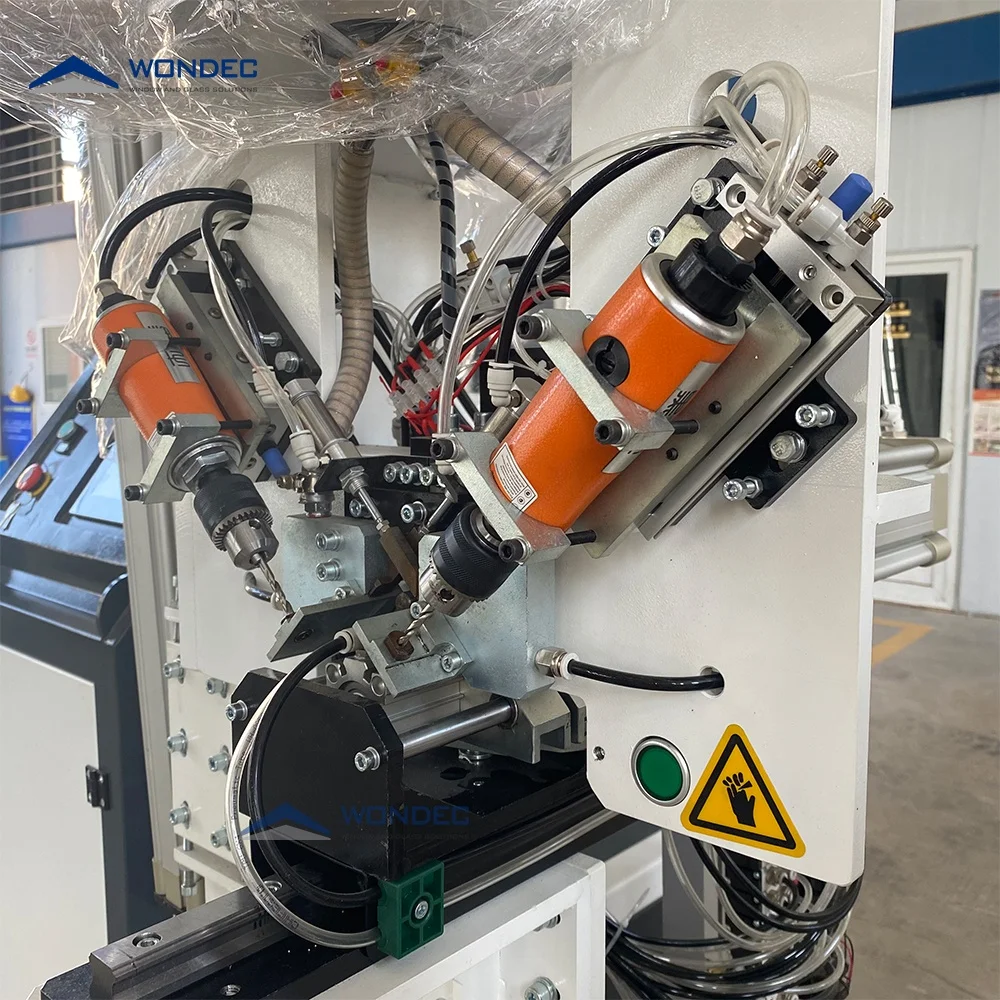

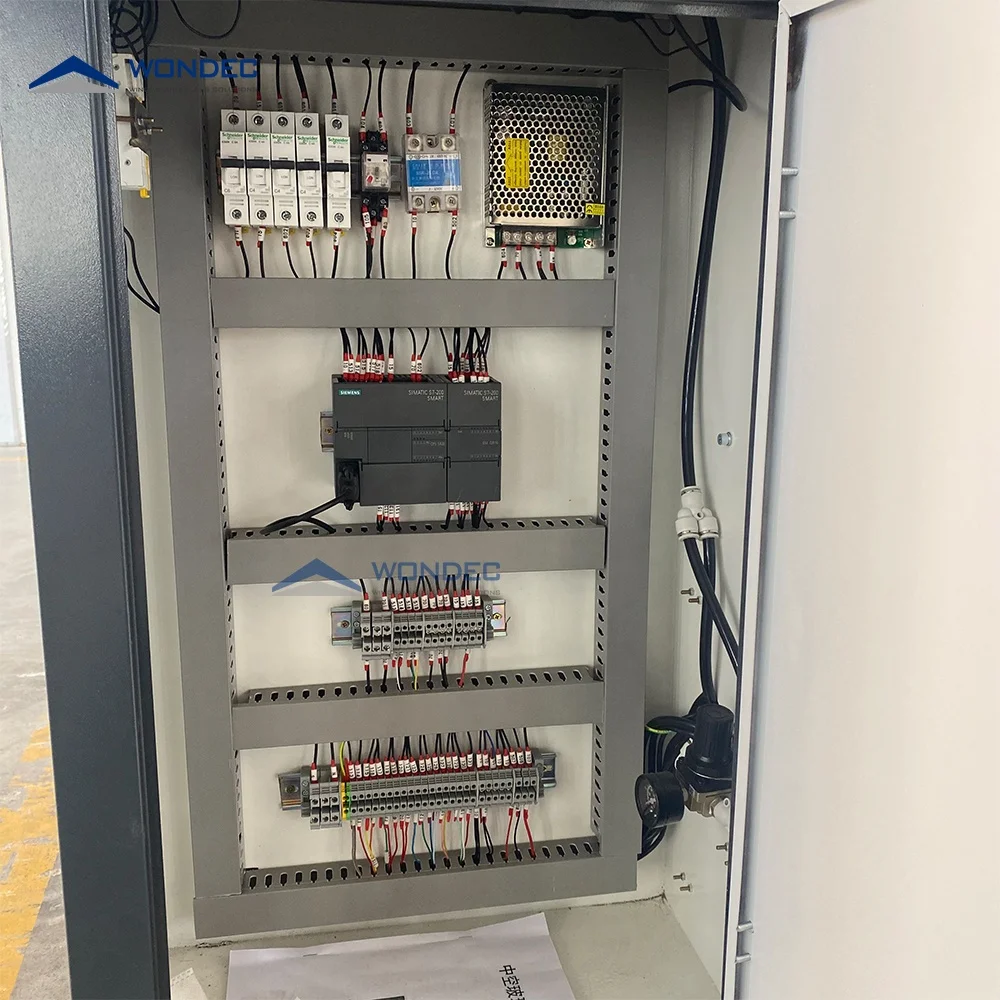

3)PLC control, drilling hole, filling desiccant and sealing hole automatically.
4)Move spacer frame to complete the filling and sealing, more stable.
5)Filling height & filling time be adjustable according to spacer frame size.

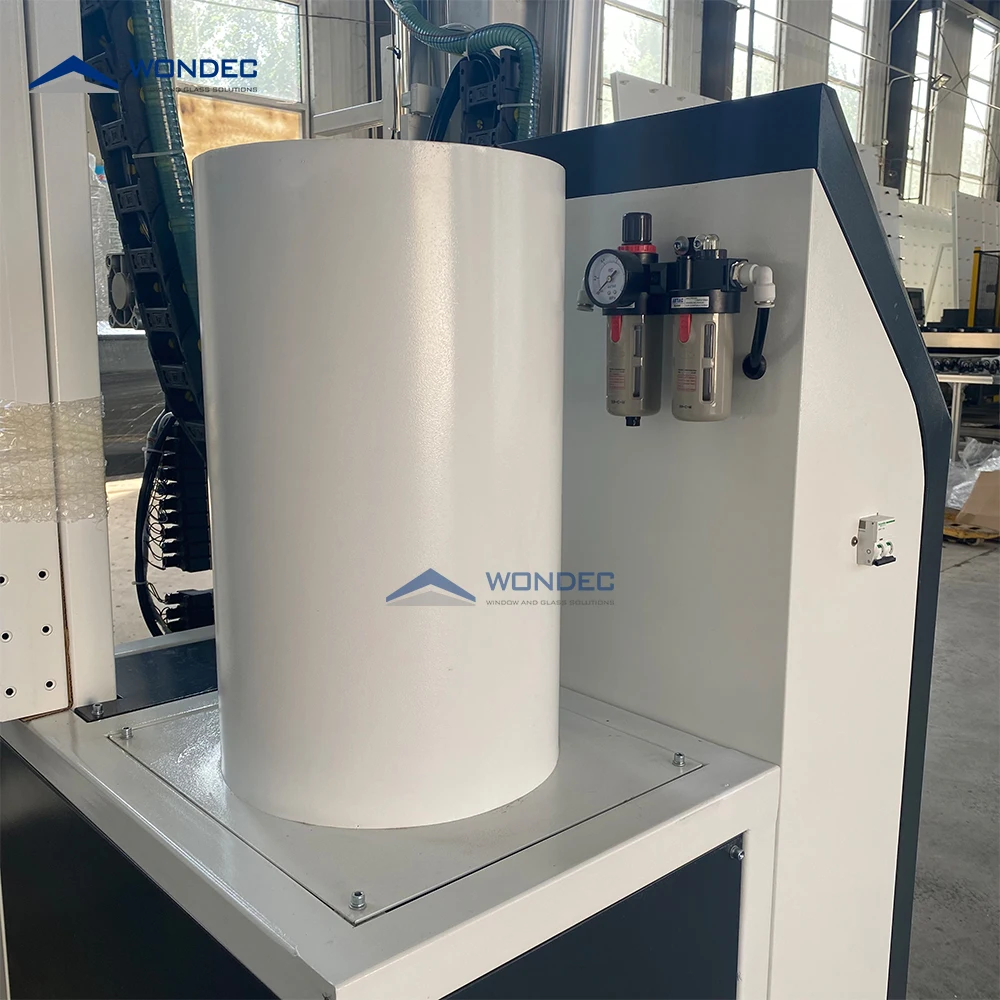

6)Automatic desiccant feeding device, can automatically feed desiccant from the down stock tank.
1)Can fill desiccant for both bendable spacer frame and spacer frame with corner connectors.
2)Can fill desiccant in closed condition, improved efficiency and IG Unit life.
3)PLC control, drilling hole, filling desiccant and sealing hole automatically.
4)Move spacer frame to complete the filling and sealing, more stable.
5)Filling height & filling time be adjustable according to spacer frame size.
6)Automatic desiccant feeding device, can automatically feed desiccant from the down stock tank.
Technical Parameters
Input power | 1KW |
Air pressure | 0.5~0.8Mpa |
Aluminum spacer width | 6A-27A |
Filling speed | 8-12s/frame(1m*1m, 9A) |
Min spacer frame size | 200*250mm |
Max spacer frame size | 2500*2500mm |
Related Products
We provide a complete set of insulating glass processing equipment, can provide customized products and services according to your needs.
For equipment details, please contact us now.
Packaging & Shipping
Packaging:
WONDEC always spray protective oil firstly, then plastic covering and stretch film package inside, to avoid rusting and dusting in long time sea voyage, and steel/wooden pallet or whole wooden box package outside.
Shipping:
Container loading in our factory, machines be fixed well in the container by our own workers, ensure machines be safe in each link.
Delivery time is about 15 days after down payment be received, and all details be confirmed well by both sides.
Why Choose Us
Coopeartion partner
We insist on adopting international first-line brand accessories, and carry out strict quality inspection and screening on each accessory to fundamentally ensure product quality and users interests.
