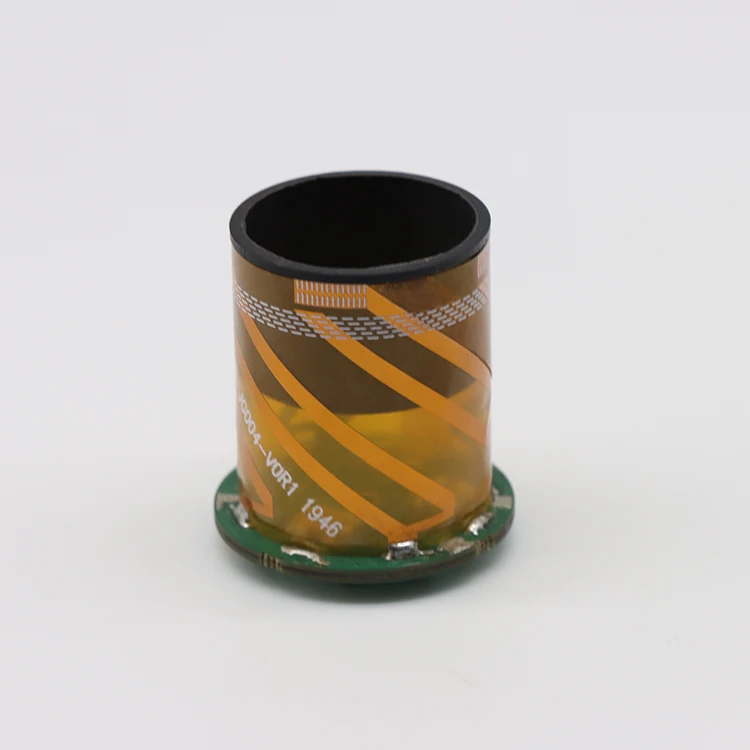

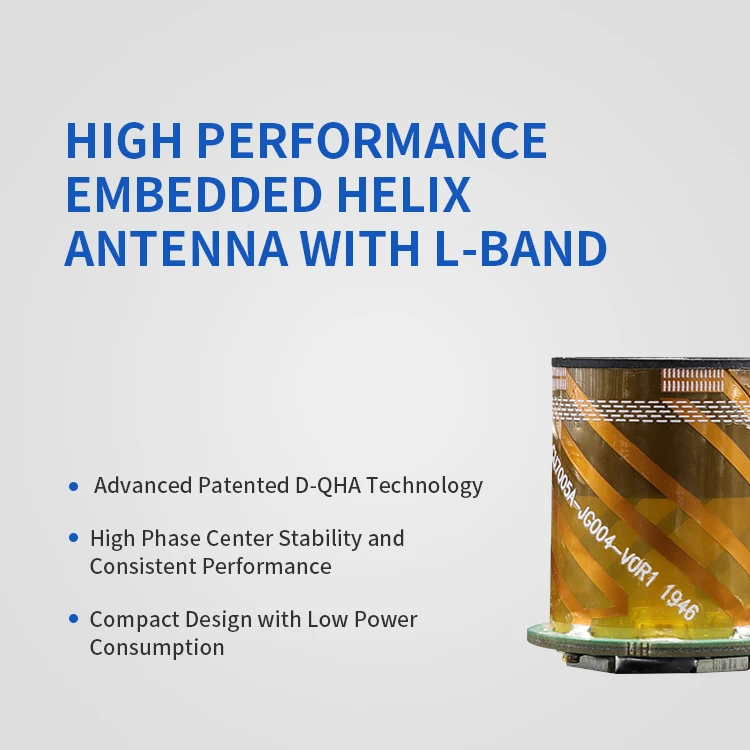

Прямая продажа антенна БПЛА Harxon встроенная Высококачественная легкая
- Категория: Telecommunications >>>
- Поставщик: Harxon,Corporation
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.39 $* | 0.77 $* |
| Aug-18-2025 | 0.31 $* | 0.71 $* |
| Jul-18-2025 | 0.35 $* | 0.24 $* |
| Jun-18-2025 | 0.83 $* | 0.0 $* |
| May-18-2025 | 0.69 $* | 0.84 $* |
| Apr-18-2025 | 0.82 $* | 0.73 $* |
| Mar-18-2025 | 0.0 $* | 0.90 $* |
| Feb-18-2025 | 0.81 $* | 0.8 $* |
| Jan-18-2025 | 0.31 $* | 0.33 $* |
Характеристики
Product Description
Specification
PERFORMANCE | |
Signal Received | GPS L1/L2/L5 GLONASS L1/L2 GALILEO E1/E5a/E5b BDS B1/B2/B3 QZSS L1/L2/L5/L6 IRNSS L5 SBAS L1/L5 L-Band |
Nominal Impedance | 50Ω |
Polarization | RHCP |
Axial Ratio | ≤3dB |
Azimuth Coverage | 360°(Omni-directional) |
Output VSWR | ≤2.0 |
Gain RHCP (maximum) | 1166-1278MHz 2.4dBi (@ Zenith) 1559-1612MHz 2.5dBi (@ Zenith) L-Band 1.0dBi (@ Zenith) |
LNA | |
LNA Gain | 33±2dB |
Noise Figure | ≤2dB |
Output VSWR | ≤2.0 |
Out of Band Rejection | Upper Band: <1400mhz>30dB <1450mhz>33dB <1700MHz>30dB Lower Band: <1000mhz>41dB <1100mhz>40dB <1130mhz>28dB |
Passband Ripple | ±2dB |
Operation Voltage | +3.3V to +12V DC |
Operation Current | ≤55mA |
Differential Propagation Delay | ≤5ns |
MECHANICAL | |

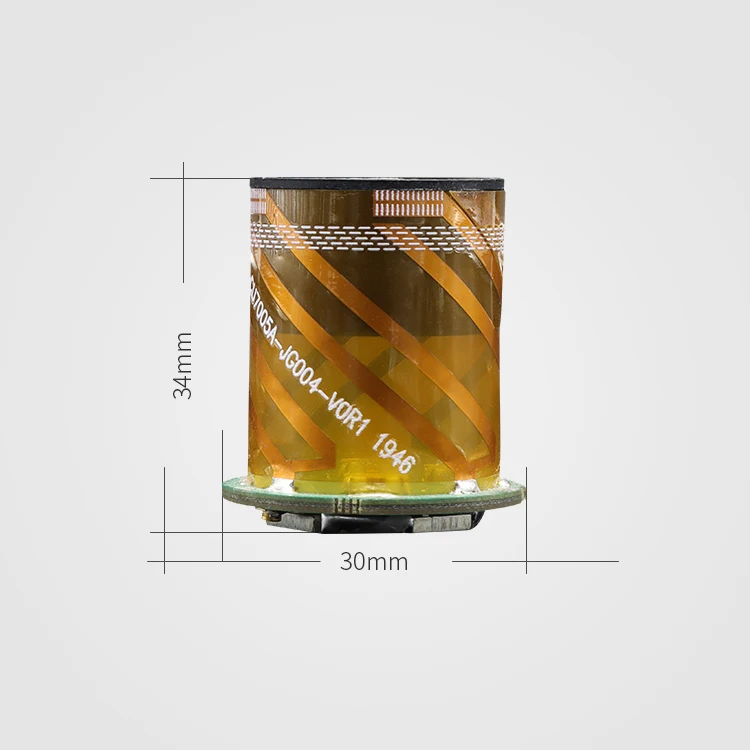

Dimensions | ¢30*34mm |

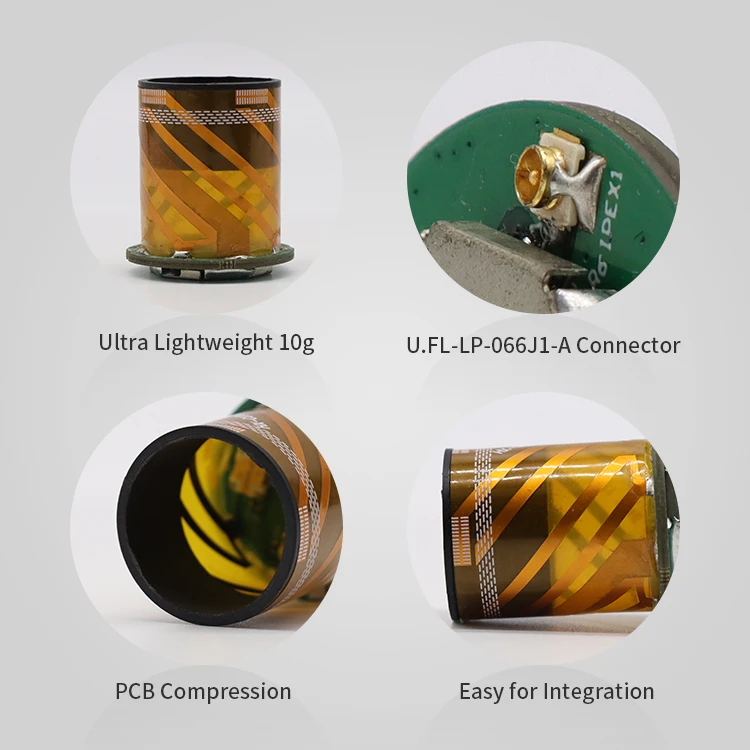

Connector | U.FL-LP-066J1-A |
Weight | ≤10g |
Mounting | PCB compression |
ENVIRONMENTAL | |
Operating Temperature | -40℃ to +70℃ |
Storage Temperature | -55℃ to +70℃ |
Humidity | 95% non-condensing |
FAQ
Q: Are you a manufacturer or a trading company?
A: We have been professional GNSS antenna manufacturer for 14 years.
Q: What can I buy from Harxon on alibaba?
GNSS antenna, vehicle antenna, communication antenna and wireless data radio.
Q: Can I get free sample?
A: No, we do not offer free samples.
Q: What is the minimum order (MOQ)?
A: For automotive antennas and communication antennas, the MOQ is 500; for other products, the MOQ is 1.
Q: What's the delivery time?
A: The delivery time depends on the product category, please consult customer service.
Q: Could I use my own LOGO or design on products?
A: Please contact our sales manager via sales@harxon.com if you have customization requirements.
Q: What is the payment term?
A: T/T, MoneyGram and Western Union.
Q: Does your product have warranty?
A: Yes, we offer 1-year warranty for our products. After-sales service is also available.
A: We have been professional GNSS antenna manufacturer for 14 years.
Q: What can I buy from Harxon on alibaba?
GNSS antenna, vehicle antenna, communication antenna and wireless data radio.
Q: Can I get free sample?
A: No, we do not offer free samples.
Q: What is the minimum order (MOQ)?
A: For automotive antennas and communication antennas, the MOQ is 500; for other products, the MOQ is 1.
Q: What's the delivery time?
A: The delivery time depends on the product category, please consult customer service.
Q: Could I use my own LOGO or design on products?
A: Please contact our sales manager via sales@harxon.com if you have customization requirements.
Q: What is the payment term?
A: T/T, MoneyGram and Western Union.
Q: Does your product have warranty?
A: Yes, we offer 1-year warranty for our products. After-sales service is also available.
