Manufacture alumina ceramic wear plate liner for mining conveying chute
Product Description
Manufacture alumina ceramic wear plate liner for mining conveying chute are sintered on high temperature of more than 1530℃, with high-purity ultra-fine alumina powder as raw material according to optimized formulation design. They are usually installed upon the wear areas of some material conveying equipments, coal preparation equipments and so on to be used as the material contact surface to bear the following abrasion and impact.
Advantages of Manufacture alumina ceramic wear plate liner for mining conveying chute
2. High heat resistance : Alumina ceramic has excellent thermal stability,which means that it is
widely used in areas where resistance to high temperatures is essential.
3. Good wear resistance : Alumina ceramic is the material of choice for alumina wear parts.
4. High electrical resistivity : Alumina is an electrically insulating material.
5. High corrosion resistance : It is insoluble in water and only slightly soluble in strong acid and
alkaline solutions. Good chemical stability of alumina leads to high corrosion resistance.
1. High hardness.
2. High heat resistance : Alumina ceramic has excellent thermal stability,which means that it is
widely used in areas where resistance to high temperatures is essential.
3. Good wear resistance : Alumina ceramic is the material of choice for alumina wear parts.
4. High electrical resistivity : Alumina is an electrically insulating material.
5. High corrosion resistance : It is insoluble in water and only slightly soluble in strong acid and
alkaline solutions. Good chemical stability of alumina leads to high corrosion resistance.

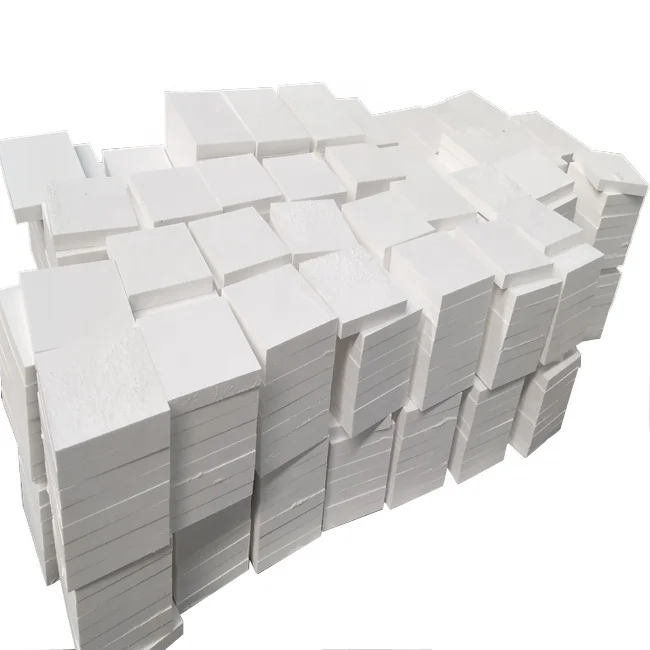

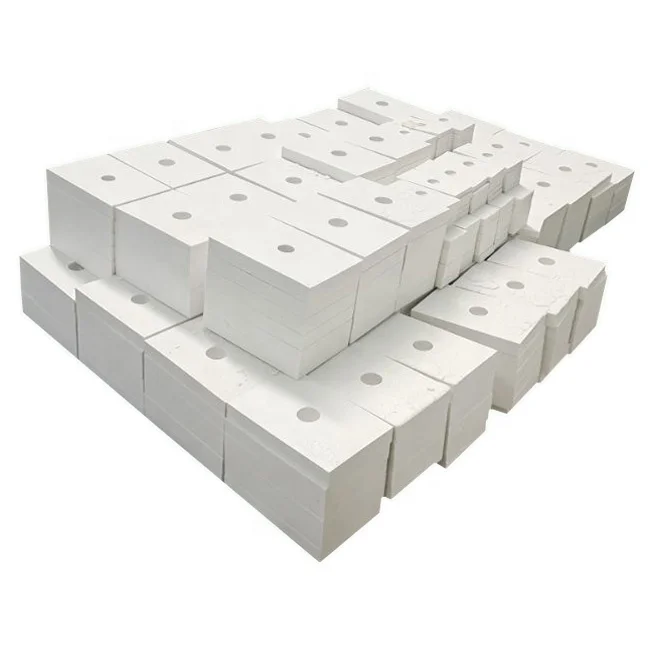

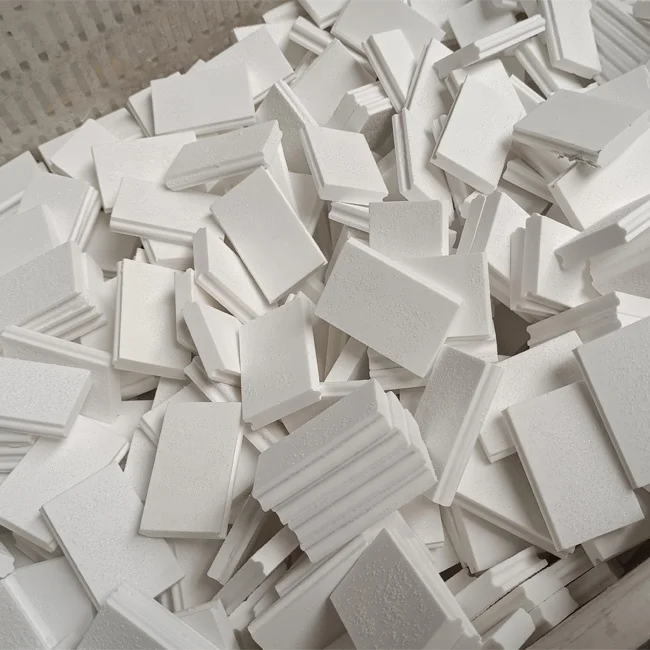

Detailed Images
Beautiful Appearance
Without Any Cracks
Accurate Dimension
With Small Tolerance
Complete Accessories
For Weldable Types

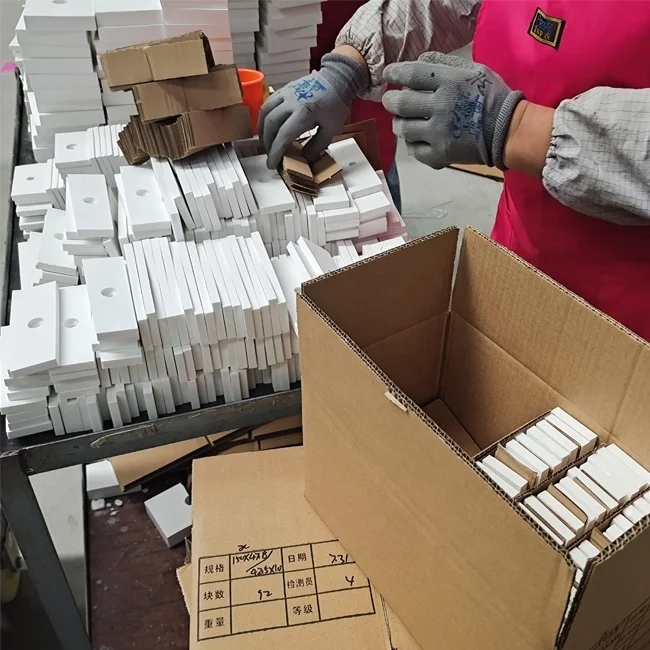

Packing Overview
For Manufacture alumina ceramic wear plate liner for mining conveying chute, we will supply Strong, Safe, Durable, Compact and Environmental Packing for long-time transportation by sea, plane or truck and so on.
Main Technical Data of Manufacture alumina ceramic wear plate liner for mining conveying chute
Item | Index |
Name | Manufacture alumina ceramic wear plate liner for mining conveying chute |
Alumina Content | ≥92% |
Bulk Density | ≥3.63g/cm³ |
Rockwell Hardness (HRA) | ≥90 |
Compressive Strength | ≥850MPa |
Fracture Toughness | ≥4.8MPa.M1/2 |
Bending Strength | ≥290MPa |
Thermal Conductivity 20℃ | 20W/m.K |
Coefficient of thermal expansion | 7.2×10-6m/×m.k |
Young's Modulus 20℃ | 277GPa |
Shear Modulus 20℃ | 113GPa |
Color | White |
Surface Finish: As Fired | 1.27mm |
Application Overview
Manufacture alumina ceramic wear plate liner for mining conveying chute are widely used for serious abrasive environments, such as chute liners, cyclone liners, conveyor skirt liners, processing piping liners, hopper or silo liners, screen equipment liners in the industries including ,but not limited to:
♦ Coal Preparation Plants ♦ Coal Fired Power Stations
♦ Mineral Processing Plants ♦ Cement Plants
♦ Chemical Plants ♦ Steel & Iron Plants
♦ Railway Stations ♦ Ports
♦ Coal Preparation Plants ♦ Coal Fired Power Stations
♦ Mineral Processing Plants ♦ Cement Plants
♦ Chemical Plants ♦ Steel & Iron Plants
♦ Railway Stations ♦ Ports
Best Selling
Company Introduction
Zibo Supereal Industrial Co., Ltd, located in Zhangdian Economic Development Zone in Zibo city is focusing on high alumina ceramic products ( such as Manufacture alumina ceramic wear plate liner for mining conveying chute, rubber backed ceramic plates, wear resistant alumina tiles, abrasive protection ceramic lined pipe, and so on), here you can realize an one-stop shopping for complete wear and erosion protection solutions in wide range of industries including Power Sector, Mining, Cement, Metallurgy, Coal Washing, Steel& Iron Plant, Railway, Port and so on.
As a professional supplier we can promptly supply tailor-made wear protection solutions according to the actual working conditions and requirements to solve the customer’s common problems or particular problems in bulk materials handling or conveying, including to choose the appropriate wear resistant materials, connection method, reasonable and optimum design, stable hand high quality manufactured and perfect after-sales service, all of which are aimed to help users to improve the operational efficiency and service life of devices or equipment.
Our company has a rigorous quality control system to guarantee stable performance and proven quality, our professional inspection team will carry out full course tracking from raw material selection, batching, production process management to semi and finished products test. Based on the strict adherence to ISO9001-2008 or Industry Standard or other International Standard, our products have been approved and accepted by clients and users from Australia, South Korea, India, Russia, South Africa, Turkey, USA, France and etc.
Besides the superior quality, Zibo Supereal Industrial Co., Ltd also earned a good reputation for fast deliveries, competitive
pricing and outstanding customer service.
As a professional supplier we can promptly supply tailor-made wear protection solutions according to the actual working conditions and requirements to solve the customer’s common problems or particular problems in bulk materials handling or conveying, including to choose the appropriate wear resistant materials, connection method, reasonable and optimum design, stable hand high quality manufactured and perfect after-sales service, all of which are aimed to help users to improve the operational efficiency and service life of devices or equipment.
Our company has a rigorous quality control system to guarantee stable performance and proven quality, our professional inspection team will carry out full course tracking from raw material selection, batching, production process management to semi and finished products test. Based on the strict adherence to ISO9001-2008 or Industry Standard or other International Standard, our products have been approved and accepted by clients and users from Australia, South Korea, India, Russia, South Africa, Turkey, USA, France and etc.
Besides the superior quality, Zibo Supereal Industrial Co., Ltd also earned a good reputation for fast deliveries, competitive
pricing and outstanding customer service.
Test and Inspect Devices
Our Services & Strength
◊ Professional: 11 years of experience in production, more than 5 years of experience in foreign trade export, we will supply prompt technical support on pre- and after sales.
◊ High Quality:Based on the strict adherence to ISO9001-2008 or Industry Standard or other International Standard, our inspection engineers carry out full course tracking in the whole production.
◊ Focus on Details: No matter how small questions or problems shall be replied and help to solve by our members timely, even for the small orders.
◊ Price &Discount: We can provide competitive price and discount for large quantity.
◊ OEM : Customized designs, sizes and logos are acceptable.
◊ Focus on Details: No matter how small questions or problems shall be replied and help to solve by our members timely, even for the small orders.
◊ Price &Discount: We can provide competitive price and discount for large quantity.
◊ OEM : Customized designs, sizes and logos are acceptable.
FAQ
1. Can I get free samples?
Yes, free samples 1-2 kg.
Please advise your contact details, such as your company name, address, phone No. etc.
We will arrange sample immediately, you will get it within 5-10 days.
2. What's your payment terms?
30% deposit in advance along with order, 70% balance to be paid against the B/L copy.
3. What's your delivery time?
10-15 days after deposit payment received for common commodity;
Yes, free samples 1-2 kg.
Please advise your contact details, such as your company name, address, phone No. etc.
Or you can click https://zbsupereal.en.alibaba.com/contactinfo.html to contact us for details.
We will arrange sample immediately, you will get it within 5-10 days.
2. What's your payment terms?
30% deposit in advance along with order, 70% balance to be paid against the B/L copy.
3. What's your delivery time?
10-15 days after deposit payment received for common commodity;
30-45days after deposit payment received for customized products.
4. Can we visit your company?
Yes, our company in Zibo city, Shandong Province ,China.
4. Can we visit your company?
Yes, our company in Zibo city, Shandong Province ,China.
Welcome to visit us any time!
