 Introduction

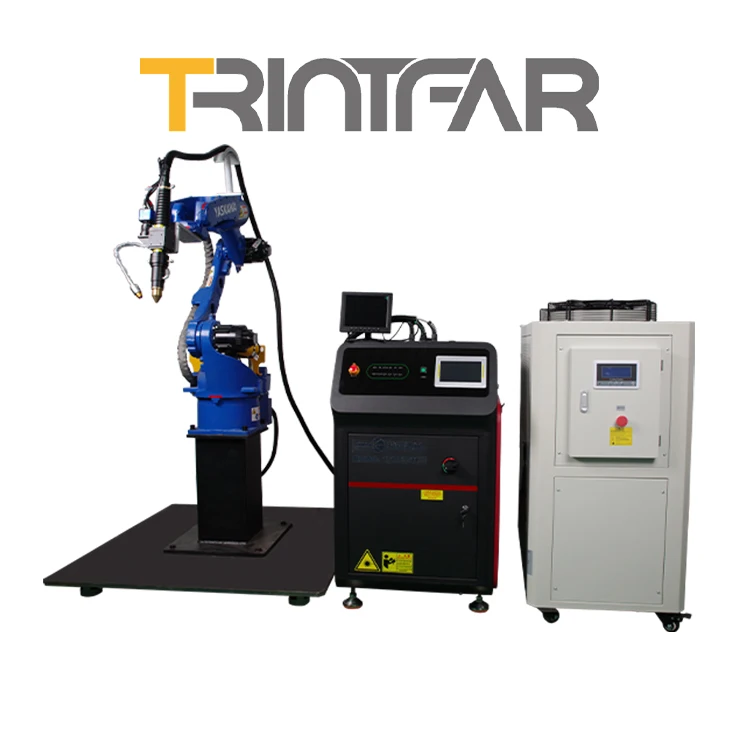

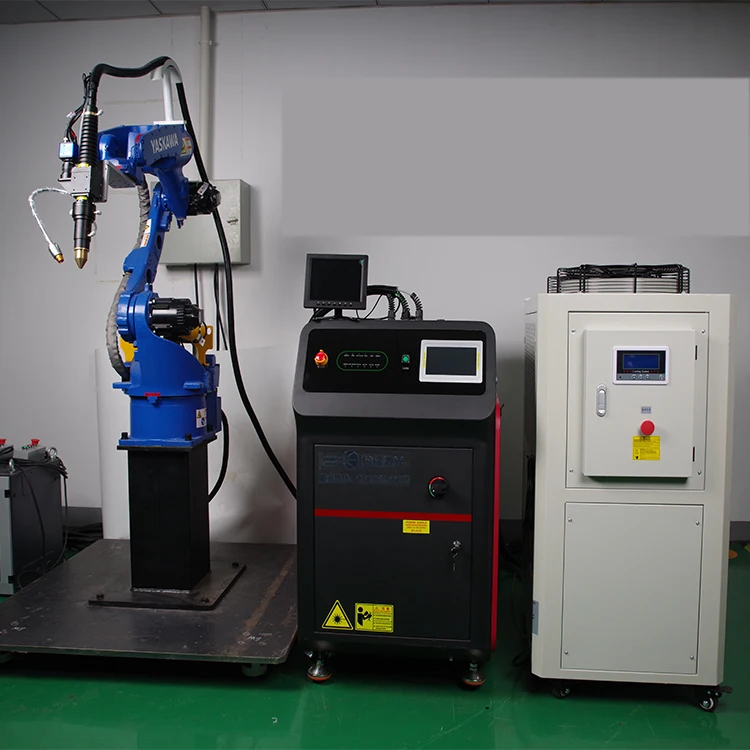

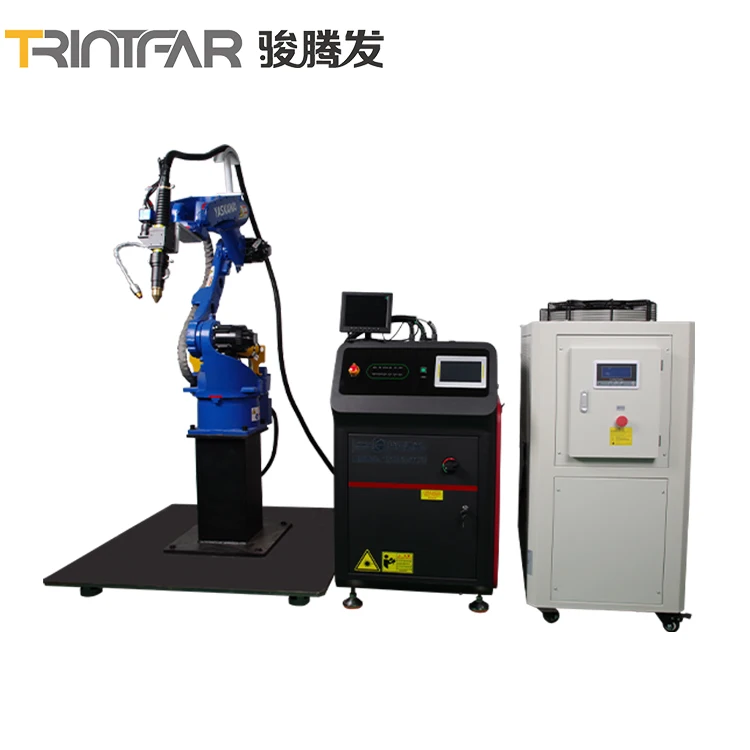

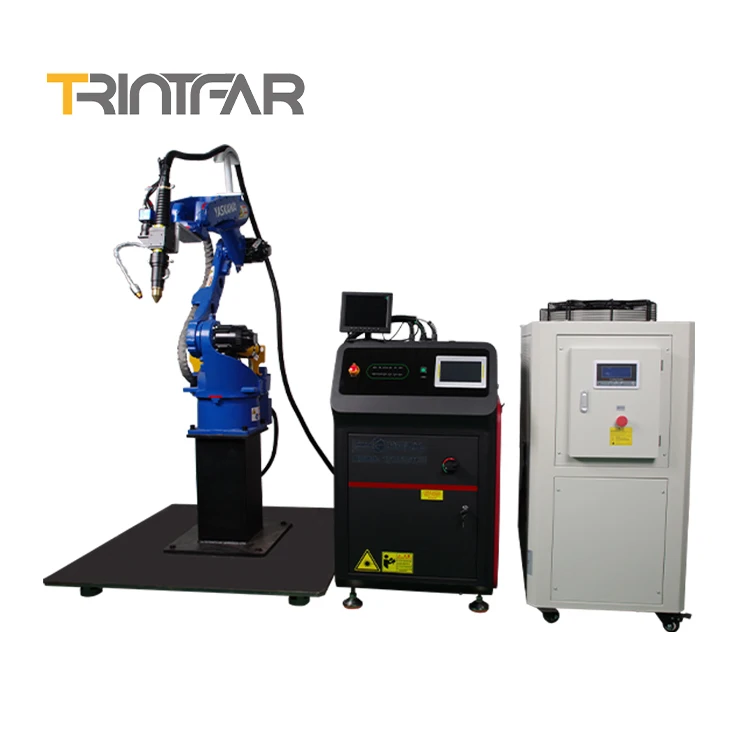

      The laser energy feedback fiber-optic conduction laser welding machine is an advanced laser application device that achieves laser output control through the industry's first-class "energy negative feedback" technology to obtain laser with higher stability. The equipment can effectively improve welding stability, reduce product defect rate, and reduce material and processing costs for enterprises.



 Feature

• the first-class "energy negative feedback technology", the laser output energy conversion is controlled within 3%, to ensure the laser output power is stable, thereby improving the welding repeatability, reducing the product defect rate, saving material costs for the enterprise;


• optical fiber transmission: the development of an extremely unique transient spectroscopic technology, production efficiency is one time faster than the traditional time splitting, enabling users to complete processing orders in the shortest time with high efficiency and high productivity, and also achieve time and energy splitting;


• welding quality: the welding point is smooth and beautiful, the weld is smooth and no pores, the weld strength, the minimum is at least equal to or even exceed the base metal, no treatment after welding or just simple treatment, reducing the labor intensity of workers;


• rich I / O interface, the user can conveniently control the welding machine;


• The key components are imported from abroad to ensure the quality of the products;


• special machine customization ability, a variety of worktables for users to choose, can be tailor-made according to customer requirements.

Parameters

Model	BH-50	BH-150	BH-300	BH-400	BH-500
Maximum laser power	50W	150W	300W	400W	500W
Laser working medium	Nd:YAG
Laser wavelength	1064mm
Single pulse maximum laser energy	30J/10ms	50J/10ms	60J/10ms	90J/10ms	100J/10ms
Number of fiber outputs	Up to 4 channels
Feedback type	Energy feedback
Single pulse width	0.1-50ms
Spectral mode	Energy splitting or time splitting or instantaneous splitting
Pulse frequency	1-300HZ
Aiming and positioning	Red light (optional CCD)
Cooling method	Air cooled	Water cooling	Water cooling	Water cooling	Water cooling
Machine power	2KW	6KW	12KW	15KW	15KW





Appication Rance

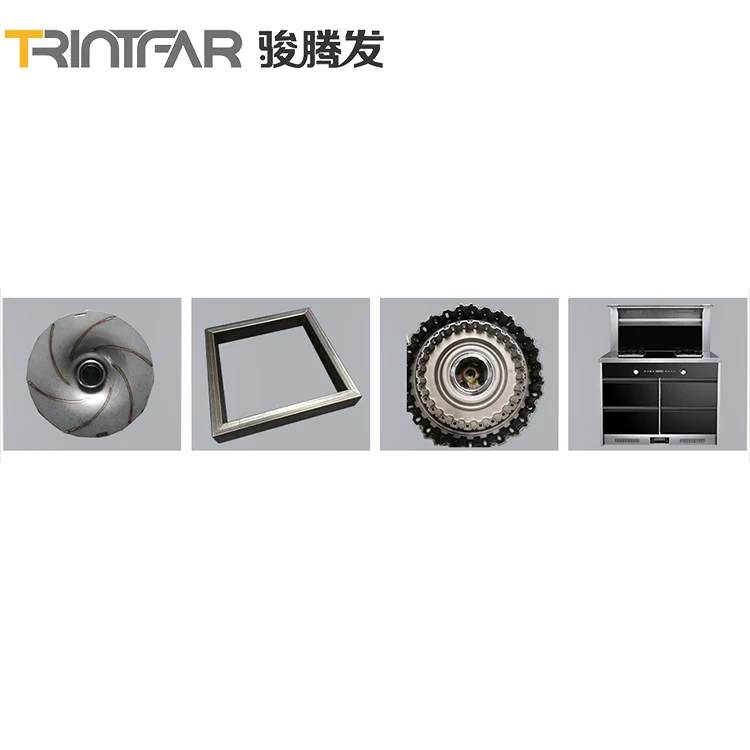

     Suitable for 3C, fiber optic connectors, microelectronic components, medical devices, sensor diaphragms, precision parts and other welding.
