Характеристики
Product Description
1.Technical parameters
| Rated Voltage: | DC 9V~36V/1A |
| Working temperature: | -10℃~+60℃ |
| Storage temperature: | -20℃~+60℃ |
| Relative humidity: | 10-90%, No condensation |
| Work frequency: | GSM: 850/900/1800/1900MHz |
| 3G WCDMA: 900/2100 MHz UMTS | |
| 3G CDMA2000:850/1900MHz UMTS | |
| 3G: 850/2100MHz UMTS | |
| 4G: | |
| C:GSM:900/1800,LTE-FDD B1/B3/B5/B8 LTE-TDD:B34/B38/B39/B40/B41 | |
| E:GSM:900/1800,LTE-FDD B1/B3/B5/B7/B8/B20 | |
| SA:GSM:850/900/1800/1900M LTE-FDD B1/B3/B5/B7/B8/B28/B66 | |
| Communication protocol: | GSM PHASE 2/2+ (include data service) |
| Related Voltage of the Output Relay: | 3A/240V AC |
| SIM Card: | Nano type, 3V |
| Antenna: | 50 Ω SMA |
| Wired Switch: | Supports |
| Dimension: | 96.5*50*31.5mm |
| Net Weight: | 88g |
| Contact Capacity : | 5 Amps at 250VAC Cosφ=1. 20 Amps at 14VDC |
2.Products instruction
Based on GSM/3G/4G communication protocol, supports 1001 authorized users. Authorized
users can remotely control the equipment, systems and machines connected to the product by
SMS commands & free calling. It is widely used in access control systems, garage doors, swing
doors ,folding doors,sliding doors, parking system and the equipments that can be connected to
the relay control,the G202PLUS gate controller will send a notification (via SMS) to the user of
the result of the remote control (such as the opening and closing status of the
gate).
With real authorize and multi-level authorization, more security. no authorize no access, even
if you know the password.
3.Physical Layout

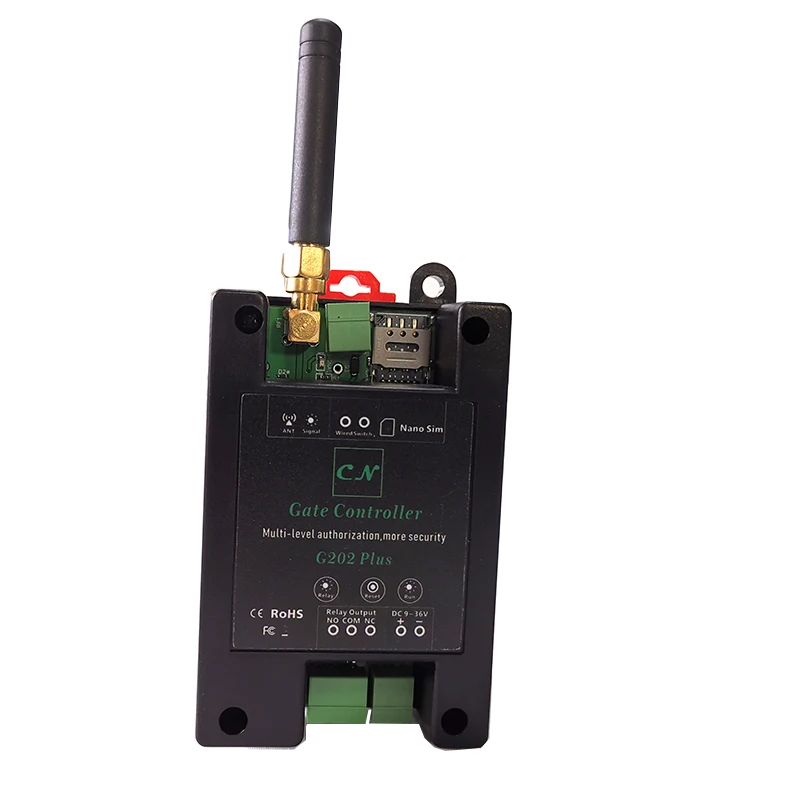

Product display

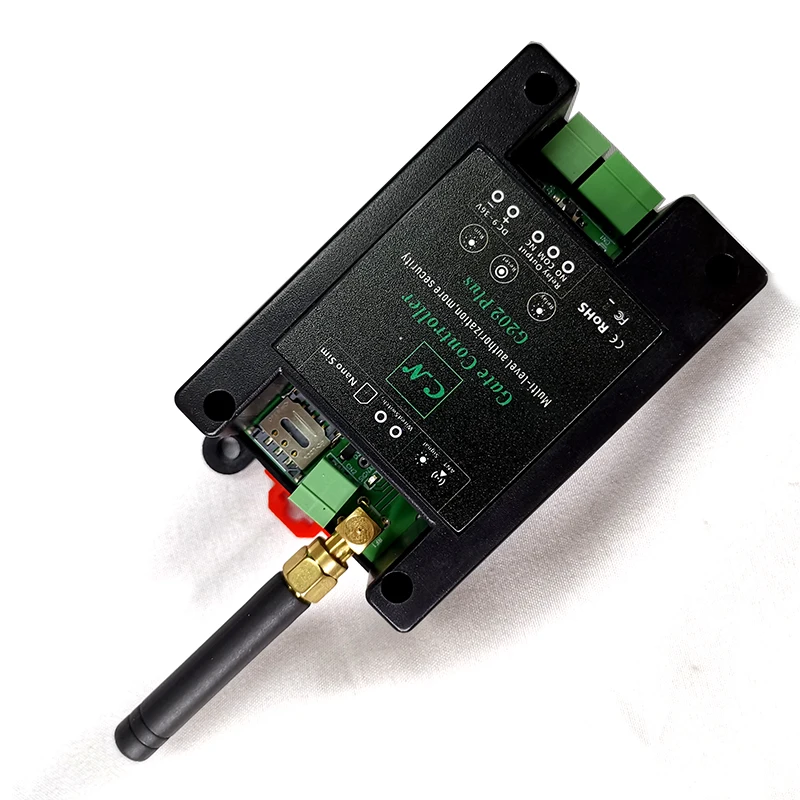

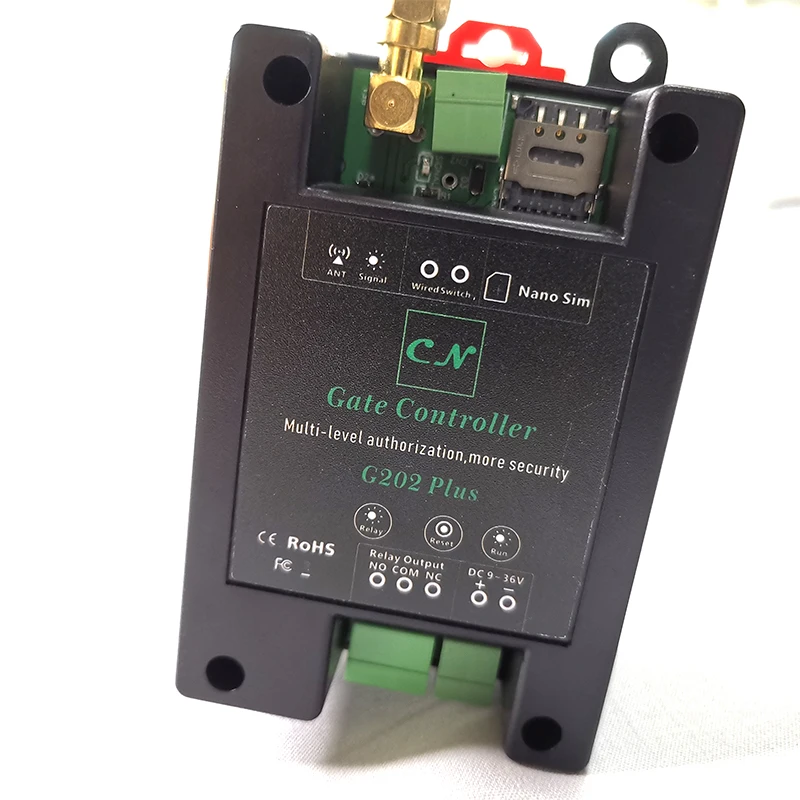

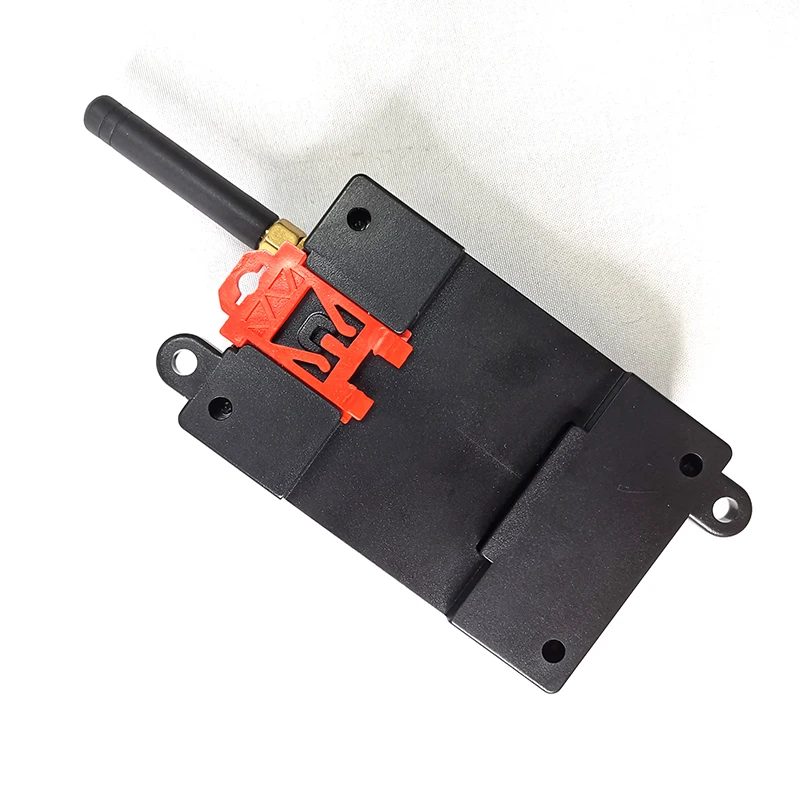

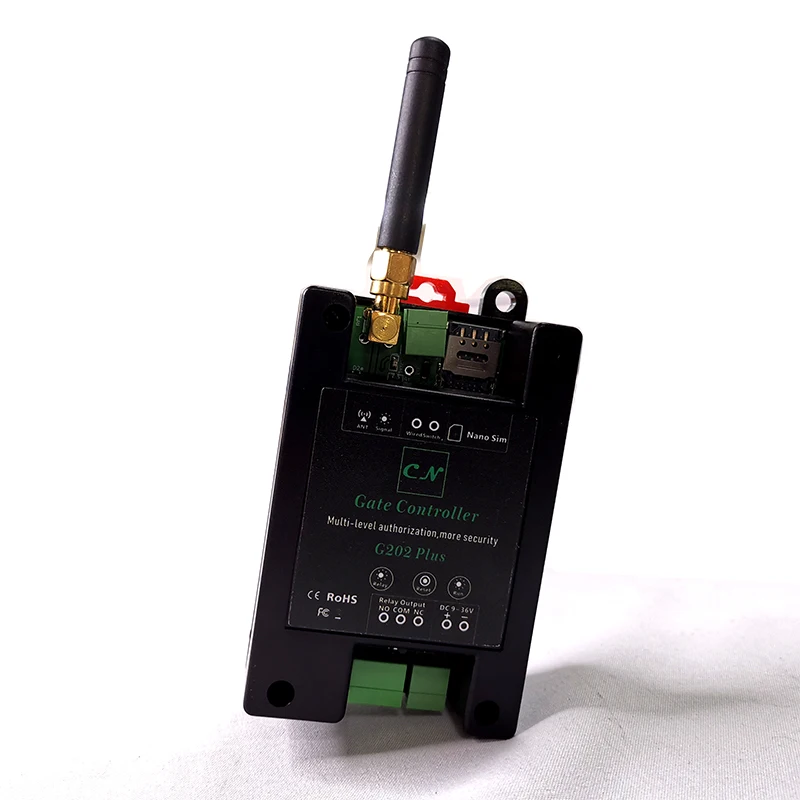

Real picture display
Installation
1.A nano SIM card support basic communication function for SMS and calling, close the PIN lock
2.Connecting diagram
3.Follow the commands list to operate
4.After the first authorize successfully, follow the commands list and the user manual to
do other settings
Connecting diagram:
Commands list and note
FAQ
common problem:
1.After authorized, why the device does not respone the commands or calling?
Due to the different communication methods of operators in different countries, the actual
number recognized by the device may be different. For example, your authorized number is +86
12345678, and the actual device acquisition number may be 12345678, resulting in invalid
authorization.
When the authorized number to send the instruction and dial the telephone device does not
correspond, you can use this number to send the verification instruction to the device to verify
whether the authorized number you filled in is correct. The instructions are as follows:
0000#CHECKTHEPHONE#
The device will feedback: YOUR Phone Num:XXXXXXXXX to re-authorize the number
