Целевое устройство компенсации коэффициента мощности шкафа 200 Квар 0 98 Реактивная мощность


Поделиться:


Цена:3 000,00 $ - 5 000,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-15-2025 3570.98 $* 3749.91 $*
Aug-15-2025 3540.18 $* 3717.71 $*
Jul-15-2025 2970.68 $* 3119.51 $*
Jun-15-2025 3480.71 $* 3654.14 $*
May-15-2025 3030.47 $* 3182.5 $*
Apr-15-2025 3420.16 $* 3591.72 $*
Mar-15-2025 3390.90 $* 3560.43 $*
Feb-15-2025 3360.74 $* 3528.15 $*
Jan-15-2025 3330.66 $* 3497.56 $*

Характеристики





Product Description


Product name: 200KVAR target power factor 0.98 reactive power free stand cabinet power factor compensation device
Thyristor Switched Capacitor system is designed for 0.4kV low voltage distribution network.The TSC power factor compensation system includes the Thyristor Switches, Capacitors and Reactors, using as a new generation of compensation module with functions of energy saving, reduction of line loss, power factor enhancement and improvement of power quality. Elecnova provides TSC power factor correction device in the capacity at 200Kvar, 300Kvar, 400Kvar, 500Kvar,600Kvar or by customization.

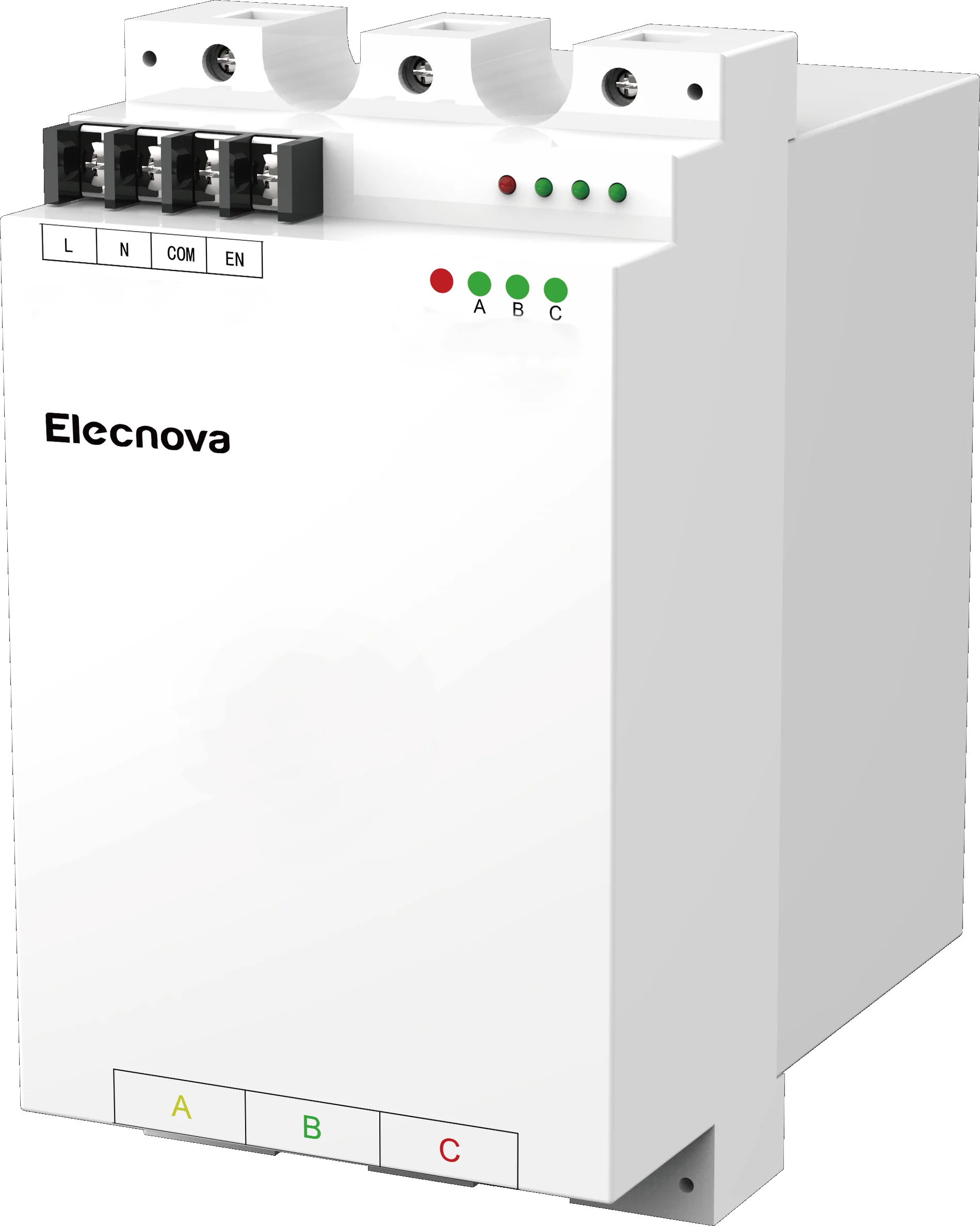

Thyristor Switch
LBT series dynamic switching unit refers to a kind of contactless rapid switch with high reliability, and it is used in dynamic power factor compensation equipment. It is especially applicable to switching occasions requiring rapid and no-wear switching. It
is usually applied into occasions where reactive change is frequent,such as lifting equipment, elevator and electric welding
machine.


Working Power Source
AC220V±20%
Switching Capacity
15~50Kvar
Control Voltage
5~15V DC
Switching Time
≤20ms
Contact Voltage Resistance
1600V
Cooling Mode
active air cooling
Environmental Temperature
—25℃~+70℃
Environmental Humidity
≤85%
Allowable Maximum Altitude
≤2,000m (5,000m can be customized
service Life
10^6 times
External Dimension
External dimension: 116 (width)× 214(height)× 186 (depth)(unit: mm)
Installation Hole Dimension
installation hole dimension: 35 (width)×198(height)

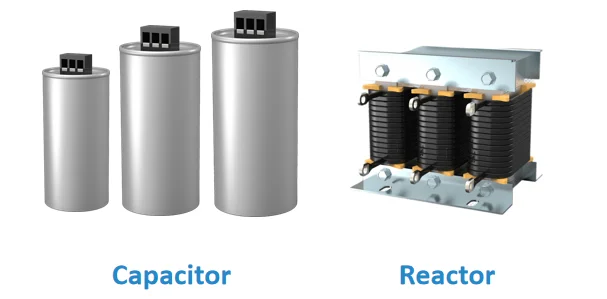

Capacitor & Reactor
SLG series is a combination of filter reactors and capacitors that are accurately matched and calculated according to reactance coefficient and output capacity through professional design.
Features
1. Convenient assembly & replacement;
2. Reactors for harmonics to adapt to more complex sites;
3. The capacitor has self-healing function and high reliability;
4. It can be combined into a large capacity range, up to 400kvar.


Capacitor
Over current
1.7In
Rated voltage
480V
Capacity tolerance
-1%~+3%
Tangent of loss angle
tanδ≤0.1
Three-phase imbalance rate
<105%
Relative humidity
≤85%
Ambient temperature
-25℃~+55℃
Reactor
Rated voltage
400V (3 phase ) / 230V(single phase)
Over current
1.7In
Inductive error
±3%
Installation
Horizontal or vertical
Ambient temperature
-25℃~+105℃


PFC Controller




PFC Controller Main Features
- The model refers to fully digital design, and adopts AC sampling algorithm
- The model possesses RS-485 standard bus interface, and it supports Modbus-RTU communication protocol;
- The model can be of pressure loss release after the power supply to power grid has been suspended for longer than 15 ms;
- It is allowed to set the output capacity of each output circuit at the same time.


Items
Parameters
Number of output contacts
12
Signal input
Wiring
3phase 4 wire for combined compensation
Voltage
Range
Phase voltage 20~220V
Overload
Continuous:1.2 times; instantaneous:2 times
Power consumption
< 1VA
Current
Range
5A
Overload
Continuous:1.2 times; instantaneous:2 times
Power consumption
< 1VA
Frequency
45~65 Hz
Power supply
AC/DC 80~270V
Switching output
Capacity 3A / 250VAC (3A / 30VDC) relay or level (not less than 8mA) output
Communication
RS485, 1200~9600bpsParity method N81、N82、E81、O81
Accuracy
Electricity:1.0
Power:2.0
Frequency:±0.1Hz
Harmonic measurement:B
Display mode
LCD display:128*64 LCD,contrast can be se
Protection degree
Panel IP66, case IP30
Environment
Working temperature:-15~55ºC
Storage temperature:-20~75ºC
Outline dimension and weight
Outline dimension:120×120×114mm
Weight:0.6kg

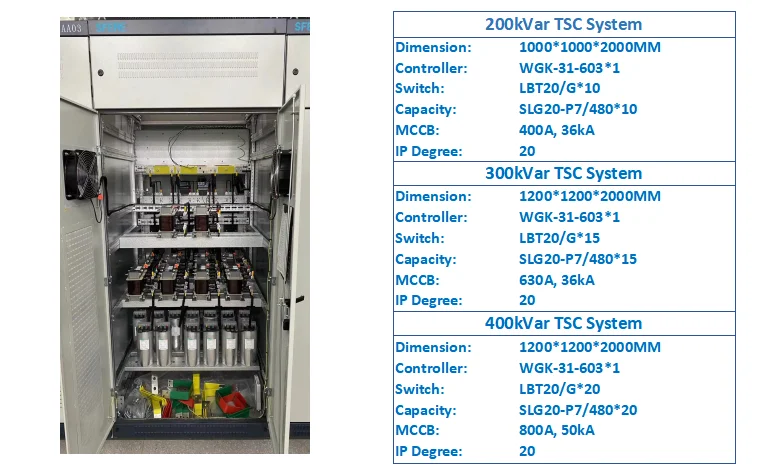

Capacity selection
